Abstract
The utility model relates to a glass removes membrane machine technical field, concretely relates to vertical glass removes membrane machine, include: the grinding wheel assembly comprises a support, a conveyor belt, a floating pressing piece, a cross frame, a rotating unit, a grinding wheel assembly and a threaded shaft, wherein the floating pressing piece is arranged on two sides of the conveyor belt; the cross frame is driven by the driving unit to slide, and the grinding wheel assembly is connected to the rotating unit. The utility model has the advantages that: the conveyor belt is arranged to enlarge the pressed area of the glass placed on the conveyor belt, so that the compressive strength of the glass is higher during grinding; the floating pressing piece is arranged, so that the glass with different sizes is placed on the conveying belt, and the glass can be pressed; the glass grinding machine is provided with two grinding wheel assemblies to realize synchronous grinding of two edges of glass, and the rotating unit and the driving unit are arranged to enable the grinding wheel assemblies to grind two edges which are not ground, so that the grinding efficiency is improved; the threaded shaft is arranged, so that the two grinding wheel assemblies can move relatively through the rotation of the threaded shaft, and the grinding range of the grinding wheel can be adjusted.
Description
Technical Field
The utility model relates to a glass removes membrane machine technical field, concretely relates to vertical glass removes membrane machine.
Background
Glass is a transparent solid substance that forms a continuous network structure when melted. With the improvement of domestic glass production technology and the increasing range of glass application fields, China will become one of the most important glass production places in the world in the coming years.
Present vertical glass removes membrane machine places glass vertically, and the conveyer belt through the glass bottom side carries out the transmission to glass, and four limits of glass are always ground to the single emery wheel of rethread, have produced two problems in such mode: 1. the glass does not have enough supporting pieces to support the glass, and the glass can generate a cutter back-off phenomenon during grinding to influence the grinding effect; 2. the single grinding wheel assembly consumes more beats during grinding, and the production efficiency is reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome the problem that exists among the prior art, provide vertical glass and remove membrane machine, it can realize reducing the work beat, adapt to not unidimensional glass, packing force automatically regulated, emery wheel grinding scope is adjustable.
In order to realize the technical purpose, the technical effect is achieved, the utility model discloses a realize through following technical scheme:
a vertical glass film removing machine comprises:
a support;
the conveying belt is arranged in the bracket;
the floating pressing pieces are symmetrically arranged on two sides of the conveyor belt;
the transverse frame is arranged in the bracket through a connecting sliding piece and is driven by the driving unit to horizontally slide in the bracket;
the rotating unit is fixedly connected to the cross frame and can rotate;
two grinding wheel assemblies are correspondingly arranged and connected to the rotating unit, and each grinding wheel assembly consists of a driving motor and a grinding wheel;
the grinding wheel assembly comprises a threaded shaft, wherein the threaded shaft is composed of a first threaded section of a front section, a shaft section of a middle section and a second threaded section of a tail section, the screwing directions of the first threaded section and the second threaded section are opposite, two grinding wheel assemblies are respectively in threaded connection with the first threaded section and the second threaded section, and the two grinding wheel assemblies can move relatively when the threaded shaft rotates.
Further, the floating compression piece comprises a fixing frame vertically arranged on two sides of the conveying belt, a T-shaped compression rod which horizontally penetrates into the fixing frame and slides freely is correspondingly arranged in the fixing frame, a fixing ring is sleeved on the T-shaped compression rod, a spring is further sleeved on the T-shaped compression rod, one end of the spring is fixedly connected with the fixing frame, the other end of the spring abuts against the fixing ring, and the T-shaped compression rod is provided with a roller which is connected with the T-shaped compression rod in a rotating mode and is horizontally arranged on the corresponding side of the T-shaped.
Furthermore, the driving unit comprises a servo motor fixed on the support, and an output shaft of the servo motor penetrates into the support and is fixedly connected with the cross frame through a connecting linear transmission mechanism and drives the cross frame to horizontally slide in the support.
Further, linear transmission mechanism including rotate connect on the support and with the hob of servo motor rigid coupling, set up the slide rail on the support inner wall, be equipped with two sliding blocks that freely slide on it on the slide rail, sliding block rigid coupling crossbearer, the hob cover is located on two sliding blocks and with two sliding block rolling helical drive.
Further, the rotary unit includes the servo motor of rigid coupling on the crossbearer, servo motor's output shaft penetrates in the crossbearer and the rigid coupling has the mounting panel, the bottom of mounting panel is equipped with the slide rail along the length direction level, the emery wheel assembly freely slides on the slide rail.
Further, a fixed block is fixedly connected to the mounting plate, a rolling bearing is sleeved on the fixed block, and a shaft section of the threaded shaft is sleeved on the rolling bearing.
The utility model has the advantages that: the conveyor belt is arranged to enlarge the pressed area of the glass placed on the conveyor belt, so that the compressive strength of the glass is higher during grinding; the floating pressing piece is arranged, so that the glass with different sizes is placed on the conveying belt, and the glass can be pressed; the two grinding wheel assemblies are arranged to realize synchronous grinding of two edges of the glass, the rotating unit is arranged to enable the grinding wheel assemblies to grind two non-ground edges through rotation of the rotating unit and sliding of the cross frame driven by the driving unit after the two edges of the glass are ground, and compared with a traditional mode in which a single grinding wheel assembly is used for grinding, the time required in the grinding process is reduced, the beat is reduced, and the grinding efficiency is improved; the threaded shaft is arranged, so that the two grinding wheel assemblies can move relatively through the rotation of the threaded shaft, and the grinding range of the grinding wheel can be adjusted.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

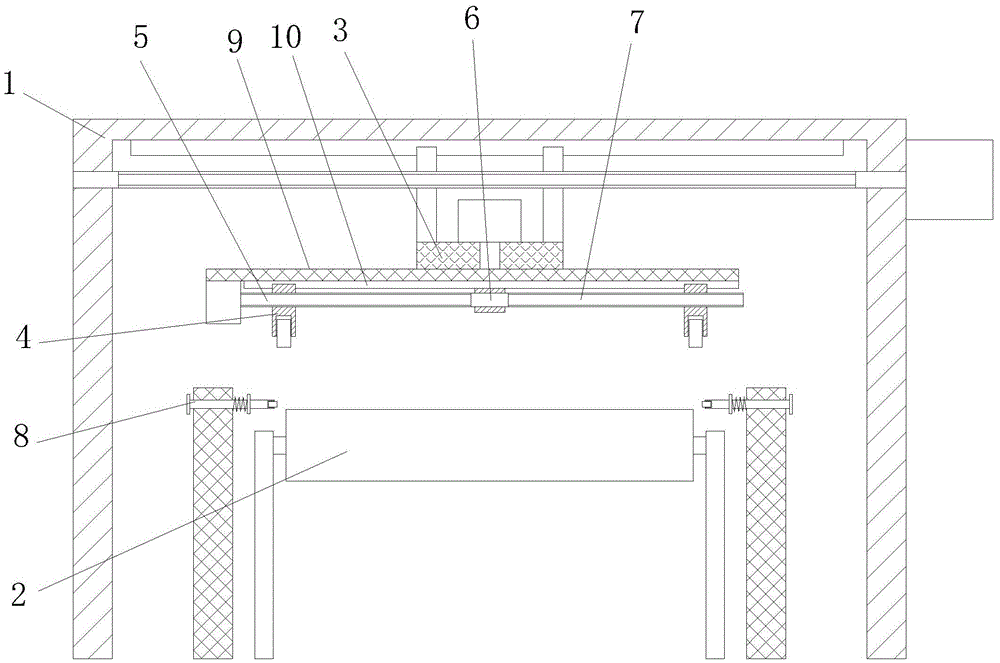

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the rotating unit after rotating in the embodiment of the present invention;
in the drawings, the reference numerals denote the following components:
the grinding machine comprises a support 1, a conveyor belt 2, a cross frame 3, a grinding wheel assembly 4, a first thread section 5, a shaft section 6, a second thread section 7, a T-shaped pressure rod 8, a mounting plate 9 and a slide rail 10.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments of the present invention, and obviously, the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, "first," "second," "third," and "fourth" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it should be further noted that, unless explicitly stated or limited otherwise, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected, mechanically connected, electrically connected, directly connected, connected through an intermediate medium, or connected to the inside of two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
A vertical glass film removing machine as shown in fig. 1-2, comprising:
a bracket 1;
the conveying belt 2 is arranged in the bracket 1, and the glass is placed on the conveying belt 2 in a lying manner;
the floating pressing pieces are symmetrically arranged on two sides of the conveying belt 2, the floating pressing pieces tightly press the glass placed on the conveying belt 2 through floating pressure of the floating pressing pieces, and the floating pressing pieces are used for pressing the glass with different width sizes conveniently;
the cross frame 3 is arranged in the bracket 1 through a connecting sliding piece and is driven by a driving unit to horizontally slide in the bracket 1;
a rotating unit which is fixedly connected to the cross frame 3 and can rotate;
the grinding wheel assemblies 4 are correspondingly provided with two grinding wheel assemblies 4 and are connected to the rotating unit, each grinding wheel assembly 4 consists of a driving motor and a grinding wheel, and the rotating speed of the driving motor is controlled by an external controller so as to adjust the grinding force of the grinding wheel;
the threaded spindle, the threaded spindle has first screw thread section 5 of anterior segment, the shaft part 6 of middle section, the second screw thread section 7 of end section to constitute, just first screw thread section 5 with the screw thread of second screw thread section 7 is revolved to opposite, two emery wheel assemblies 4 of difference threaded connection on first screw thread section 5, the second screw thread section 7, just during the threaded spindle rotates, two emery wheel assembly 4 can relative motion, is convenient for adjust the grinding scope of emery wheel assembly 4, can set the threaded spindle into by its rotation of motor drive, the motor is controlled its rotation by outside controller.
The part that compresses tightly floats includes the mount of vertical setting in 2 both sides of conveyer belt, correspond in the mount and be equipped with the level and penetrate in it and the T shape depression bar 8 of free slip, the cover is equipped with solid fixed ring on the T shape depression bar 8, still the cover is equipped with the spring on the T shape depression bar 8, spring one end rigid coupling mount, the other end support the top gu fixed ring, two T shape depression bar 8 is equipped with rather than the gyro wheel that the level of rotating the connection was placed in its side that corresponds respectively, sets up the edge that the gyro wheel is used for supporting glass, and the glass of being convenient for carries out the transmission on conveyer belt.
The driving unit comprises a servo motor fixed on the support 1, an output shaft of the servo motor penetrates into the support 1, is fixedly connected with the cross frame 3 through a connecting linear transmission mechanism and drives the cross frame 3 to horizontally slide in the support 1.
The linear transmission mechanism comprises a screw rod which is rotatably connected to the support 1 and fixedly connected with the servo motor and a sliding rail which is arranged on the inner wall of the support 1, two sliding blocks which freely slide on the sliding rail are arranged on the sliding rail, a sliding block fixedly connected with a cross frame 3, and the screw rod is sleeved on the two sliding blocks and is in rolling spiral transmission with the two sliding blocks.
The rotary unit includes the rigid coupling servo motor on crossbearer 3 servo motor's output shaft penetrates in the crossbearer 3 and the rigid coupling has mounting panel 9, the bottom of mounting panel 9 is equipped with slide rail 10 along the length direction level, emery wheel assembly 4 freely slides on slide rail 10.
The mounting panel 9 is fixedly connected with a fixed block, a rolling bearing is sleeved on the fixed block, the shaft section 6 of the threaded shaft is sleeved on the rolling bearing, the rolling bearing is arranged to reduce mechanical wear of the threaded shaft, and meanwhile, the threaded shaft is convenient to rotate.
The utility model discloses when using: the glass is placed on a conveying belt in a flat mode, rollers on T-shaped pressure rods on two sides of the conveying belt abut against edges of the glass and abut against the glass tightly, the conveying belt starts to rotate, when the edges of the glass are transmitted to the lower portion of a grinding wheel assembly, the conveying belt stops rotating, grinding wheels on the two grinding wheel assemblies synchronously remove films on the two edges of the glass, after the films are removed, a rotating unit rotates, after the glass is rotated for 90 degrees, a driving unit drives a cross frame to slide, the grinding wheels on the grinding wheel assembly grind the two edges of the glass which is not ground, and after the grinding is finished, the conveying belt continues to transmit, and the next grinding process is started.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (6)
1. The utility model provides a vertical glass film removing machine which characterized in that includes:
a support (1);
the conveying belt (2), the conveying belt (2) is arranged in the bracket (1);
the floating pressing pieces are symmetrically arranged on two sides of the conveyor belt (2);
the transverse frame (3) is arranged in the bracket (1) through a connecting sliding piece and is driven by the driving unit to horizontally slide in the bracket (1);
the rotating unit is fixedly connected to the transverse frame (3) and can rotate;
the grinding wheel assemblies (4) are correspondingly arranged, the two grinding wheel assemblies (4) are connected to the rotating unit, and each grinding wheel assembly (4) consists of a driving motor and a grinding wheel;
the grinding wheel device comprises a threaded shaft, wherein the threaded shaft comprises a first threaded section (5) of a front section, a shaft section (6) of a middle section and a second threaded section (7) of a tail section, the first threaded section (5) is opposite to the thread of the second threaded section (7) in the rotating direction, the first threaded section (5) and the second threaded section (7) are respectively in threaded connection with two grinding wheel assemblies (4), and the threaded shaft rotates and the grinding wheel assemblies (4) can move relatively.
2. The vertical glass film removing machine according to claim 1, wherein the floating pressing piece comprises fixing frames vertically arranged on two sides of the conveying belt (2), T-shaped pressing rods (8) which horizontally penetrate into the fixing frames and freely slide are correspondingly arranged in the fixing frames, fixing rings are sleeved on the T-shaped pressing rods (8), springs are further sleeved on the T-shaped pressing rods (8), one ends of the springs are fixedly connected with the fixing frames, the other ends of the springs abut against the fixing rings, and two T-shaped pressing rods (8) are respectively provided with horizontally-placed idler wheels which are rotatably connected with the T-shaped pressing rods on corresponding sides of the T-shaped pressing rods (8).
3. The vertical glass film removing machine according to claim 1, wherein the driving unit comprises a servo motor fixed on the support (1), an output shaft of the servo motor penetrates into the support (1) and is fixedly connected with the transverse frame (3) through a connecting linear transmission mechanism and drives the transverse frame (3) to horizontally slide in the support (1).
4. The vertical glass film removing machine as claimed in claim 3, wherein the linear transmission mechanism comprises a screw rod rotatably connected to the support (1) and fixedly connected to the servo motor, and a sliding rail arranged on the inner wall of the support (1), the sliding rail is provided with two sliding blocks freely sliding thereon, the sliding blocks are fixedly connected to the cross frame (3), and the screw rod is sleeved on the two sliding blocks and is in rolling spiral transmission with the two sliding blocks.
5. The vertical glass film removing machine according to claim 1, wherein the rotating unit comprises a servo motor fixedly connected to the cross frame (3), an output shaft of the servo motor penetrates into the cross frame (3) and is fixedly connected to a mounting plate (9), a slide rail (10) is horizontally arranged at the bottom of the mounting plate (9) along the length direction, and the grinding wheel assembly (4) freely slides on the slide rail (10).
6. The vertical glass film removing machine according to claim 5, wherein a fixed block is fixedly connected to the mounting plate (9), a rolling bearing is sleeved on the fixed block, and a shaft section (6) of the threaded shaft is sleeved on the rolling bearing.
