Abstract

The utility model relates to the technical field of powder metallurgy, in particular to a powder metallurgy powder mixing device, comprising a stirring box, two sides of the top of the stirring box are fixedly installed with support plates, and the top of the inner side of the support plate is fixedly installed with a mounting plate, A servo motor is fixedly installed at the middle end of the top of the mounting plate, a stirring rod is fixedly installed at the output end of the servo motor, stirring blades are fixedly installed on both sides of the stirring rod, and both ends of the stirring blade are inserted. A water delivery pipe is connected, and the outer side of the water delivery pipe is connected with a nozzle; the utility model adopts a stirring box, a support plate, a mounting plate, a servo motor, a stirring rod, a stirring blade, a connecting plate, a rubber plate, a water tank, a pump and a hose. The installation of water pipes and nozzles solves the problem that the existing mixing device cannot remove the adhesions on the inner wall, which will not only affect the quality of the next mixing, but also cause inconvenient cleaning, and reduce people's work efficiency and effect. The problem.

Description

Powder metallurgy powder mixing device

technical field

The utility model relates to the technical field of powder metallurgy, in particular to a powder metallurgy powder mixing device.

Background technique

Powder metallurgy is a process technology for preparing metal powder or using metal powder (or a mixture of metal powder and non-metal powder) as raw material, after forming and sintering, to manufacture metal materials, composite materials and various types of products, powder metallurgy method and production Ceramics have similarities and belong to powder sintering technology. Therefore, a series of new powder metallurgy technologies can also be used for the preparation of ceramic materials. Due to the advantages of powder metallurgy technology, it has become the key to solving the problem of new materials. In the development of new materials It plays a pivotal role in the manufacturing process and requires the use of a mixing device.

However, the existing mixing device cannot remove the adhering matter on the inner wall, which not only affects the quality of the next mixing, but also causes inconvenience in cleaning, and reduces people's work efficiency and effect.

Utility model content

The purpose of the utility model is to provide a powder metallurgy powder mixing device, which has the advantage of removing the adherents on the inner wall, and solves the problem that the existing mixing device cannot remove the adhering substances on the inner wall, which will not only affect the quality of the next mixing, but also cause It avoids the phenomenon of inconvenient cleaning, and reduces people's work efficiency and effect.

In order to achieve the above purpose, the utility model provides the following technical solutions: a powder metallurgy powder mixing device, including a stirring box, support plates are fixedly installed on both sides of the top of the stirring box, and a mounting plate is fixedly installed on the top of the inner side of the support plate. A servo motor is fixedly installed at the middle end of the top of the mounting plate, a stirring rod is fixedly installed at the output end of the servo motor, and stirring blades are fixedly installed on both sides of the stirring rod, and both ends of the stirring blade are fixedly installed. A water delivery pipe is inserted and connected to the outer side of the water delivery pipe, and a nozzle is connected to the outer side of the water delivery pipe. A water tank is installed, the lower end of the right side of the water tank is fixedly installed with a pump machine, the water inlet end of the pump machine is connected with the bottom of the right side of the water tank through a pipeline, and the water outlet end of the pump machine is connected with a hose through the pipeline, so The water outlet end of the hose is communicated with the top of the water delivery pipe.

Preferably, the number of the stirring blades is five groups, and the tops of the four groups of stirring blades at the upper end are provided with sockets, and the tops of the bottom group of stirring blades are provided with slots, and the water pipe is inserted into the stirring blades through the sockets and the slots. catch.

Preferably, the outer side of the stirring blade is provided with a chute, the inner cavity of the chute is slidably connected with a sliding rod, and the outer side of the sliding rod is fixedly installed with the inner side of the connecting plate.

Preferably, both the front end and the rear end of the top of the mounting plate are provided with through openings, and the through openings are designed in an arc shape.

Preferably, a visible transparent window is fixedly installed on the left end of the surface of the water tank, and a water filling port is opened at the middle end of the top of the water tank.

Preferably, support legs are fixedly installed around the bottom of the stirring box, and a discharge pipe is communicated with the middle end of the bottom of the stirring box.

Preferably, the top of the stirring box is of an open design, and the water outlet end of the hose extends to the inner cavity of the stirring box.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model can effectively adjust the mixing box, the support plate, the installation plate, the servo motor, the stirring rod, the stirring blade, the connecting plate, the rubber plate, the water tank, the pump, the hose, the water pipe and the nozzle. Cleaning and removing the adhesions on the inner wall not only ensures the quality of the next mixing, but also facilitates cleaning, which solves the problem that the existing mixing device cannot remove the adhesions on the inner wall, which will not only affect the quality of the next mixing, but also cause The phenomenon of inconvenient cleaning occurs, and at the same time, the problem of people's work efficiency and effect is reduced.

2. The utility model can be used to insert the water pipe and the stirring blade through the arrangement of the slot and the socket, so as to facilitate the water spray cleaning, and the arrangement of the chute and the sliding rod can be used to connect the The plate and the rubber plate are slidably connected with the stirring blade, so as to facilitate the cleaning and removal of the adhering matter on the inner wall thereof, and through the arrangement of the opening, the hose can be used to pass through the installation plate, so as to be used for water delivery.

3. The utility model can be used to observe the water level inside the water tank through the setting of the visible transparent window and the water filling port, and it is convenient and timely to add the water source. Through the setting of the support legs and the discharge pipe, it can be used to support the whole operation. , and is used to discharge the mixed materials. Through the open design of the top of the mixing box and the setting of the hose to extend the inner cavity of the mixing box, it can be used to facilitate feeding and cleaning, and at the same time, it is convenient to transport the water source.

Description of drawings

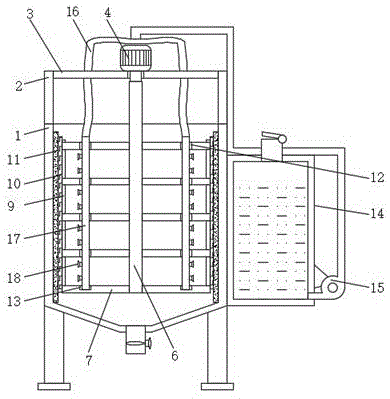

Fig. 1 is the structural representation of the utility model;

FIG. 2 is a partial top view of the sliding rod of the utility model;

3 is a partial front view of the water tank of the utility model;

FIG. 4 is a partial top view of the mounting plate of the present invention.

In the picture: 1. Mixing box; 2. Support plate; 3. Mounting plate; 4. Servo motor; 5. Port; 6. Stirring bar; 7. Stirring blade; 8. Chute; 9. Slide bar; 10. connecting plate; 11, rubber plate; 12, socket; 13, slot; 14, water tank; 15, pump; 16, hose; 17, water pipe; 18, nozzle; 19, visible transparent window.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figure 1-4. The powder metallurgy powder mixing device includes a stirring box 1. Support plates 2 are fixedly installed on both sides of the top of the stirring box 1. The top of the inner side of the support plate 2 is fixedly installed with a mounting plate 3. The mounting plate 3 The middle end of the top is fixedly installed with a servo motor 4, the output end of the servo motor 4 is fixedly installed with a stirring rod 6, both sides of the stirring rod 6 are fixedly installed with stirring blades 7, and both ends of the stirring blade 7 are plugged with water pipes 17. The outside of the water delivery pipe 17 is communicated with the nozzle 18, the outside of the stirring blade 7 is slidably connected with a connecting plate 10, the outside of the connecting plate 10 is fixedly installed with a rubber plate 11, and the bottom of the right side of the mixing box 1 is fixedly installed with a water tank 14, the water tank The lower end of the right side of the 14 is fixedly installed with a pump 15, the water inlet end of the pump 15 is communicated with the bottom of the right side of the water tank 14 through a pipeline, the water outlet end of the pump 15 is connected with a hose 16 through a pipeline, and the water outlet end of the hose 16 Connected with the top of the water pipe 17, through the stirring box 1, the support plate 2, the mounting plate 3, the servo motor 4, the stirring rod 6, the stirring blade 7, the connecting plate 10, the rubber plate 11, the water tank 14, the pump 15, the hose 16. The arrangement of the water delivery pipe 17 and the nozzle 18 can effectively clean and remove the adhering matter on the inner wall, which not only ensures the next mixing quality, but also facilitates cleaning, and solves the problem that the existing mixing device cannot remove the inner wall. Adhesion will not only affect the quality of the next mixing, but also cause inconvenient cleaning, and reduce people's work efficiency and effect.

In this embodiment, specifically, the number of stirring blades 7 is five groups, and the tops of the four groups of stirring blades 7 at the upper end are provided with sockets 12, and the tops of the bottom group of stirring blades 7 are provided with slots 13, and the water pipes 17 pass through the sockets. 12 and the slot 13 are plugged with the stirring blade 7, and can be used for plugging the water delivery pipe 17 with the stirring blade 7, so as to facilitate water spray cleaning.

In this embodiment, specifically, the outer side of the stirring blade 7 is provided with a chute 8, the inner cavity of the chute 8 is slidably connected with a sliding rod 9, and the outer side of the sliding rod 9 is fixedly installed with the inner side of the connecting plate 10, which can be used for connecting The connecting plate 10 and the rubber plate 11 are slidably connected with the stirring blade 7, so as to facilitate the cleaning and removal of the adhering matter on the inner wall thereof.

In this embodiment, specifically, the front end and the rear end of the top of the mounting plate 3 are both provided with through openings 5, and the shape of the through openings 5 is arc-shaped design, which can be used to allow the hose 16 to penetrate the mounting plate 3, so as to be used for water delivery.

In this embodiment, specifically, the left end of the surface of the water tank 14 is fixedly installed with a visible transparent window 19, and the middle end of the top of the water tank 14 is provided with a water filling port, which can be used to observe the water level inside the water tank 14, and it is convenient and timely to add water sources .

In this embodiment, specifically, support legs are fixedly installed around the bottom of the mixing box 1, and a discharge pipe is connected to the middle end of the bottom of the mixing box 1, which can be used to support the whole for operation and to discharge the mixed materials. .

In this embodiment, specifically, the top of the mixing box 1 is an open design, and the water outlet end of the hose 16 extends to the inner cavity of the mixing box 1, which can be used to facilitate feeding and cleaning, and at the same time, it is convenient to transport water sources.

Working principle: When cleaning and cleaning are required, the water delivery pipe 17 is firstly inserted through the mounting plate 3 and then inserted into the support plate 2, and then the external controller is used to start the pump 15, and the pump 15 is used to pass the internal water through the soft plate. The pipe 16 is transported into the water delivery pipe 17, and then sprayed out by the nozzle 18. At this time, the external controller is used to start the servo motor 4, the servo motor 4 is used to drive the stirring rod 6, and the stirring rod 6 drives the stirring blade 7 to rotate slowly, and The direction of rotation is forward half-turn and half-turn, so as to wash out some of the adhesions existing in it, then stop the rotation, and then through the sliding connection between the sliding groove 8 and the sliding rod 9, it can be used to connect the connecting plate 10 and the rubber plate 11. It is inserted into the outer side of the stirring blade 7, and then rotated again. Through the rubber plate 11, the surface with less adhering substances can be cleaned and scraped, and then sprayed with water while cleaning.

The control method of the application document is automatically controlled by the controller, and the control circuit of the controller can be realized by simple programming by those skilled in the art, which belongs to the common knowledge in the field, and the application document is mainly used to protect the mechanical device, so This application document will not explain the control method and circuit connection in detail.

The standard parts used in this application document can be purchased from the market, and can be customized according to the description in the description and the attached drawings. The specific connection method of each part adopts the mature bolts, rivets, welding, etc. in the prior art. Conventional means, machinery, parts and equipment all use conventional models in the prior art, and the structures and principles of components known to those skilled in the art can be known through technical manuals or through routine experimental methods.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. A powder metallurgy powder mixing device, comprising a stirring box (1), characterized in that: support plates (2) are fixedly installed on both sides of the top of the stirring box (1), and support plates (2) are installed inside the support plates (2). A mounting plate (3) is fixedly installed at the top, a servo motor (4) is fixedly installed at the middle end of the top of the mounting plate (3), and a stirring rod (6) is fixedly installed at the output end of the servo motor (4). Both sides of the stirring rod (6) are fixedly installed with stirring blades (7), both ends of the stirring blade (7) are plugged with a water delivery pipe (17), and the outside of the water delivery pipe (17) is connected with a A nozzle (18), a connecting plate (10) is slidably connected to the outside of the stirring blade (7), a rubber plate (11) is fixedly installed on the outside of the connecting plate (10), and the right side of the stirring box (1) is The bottom of the water tank (14) is fixedly installed with a water tank (14), the lower end of the right side of the water tank (14) is fixedly installed with a pump (15), and the water inlet end of the pump (15) is connected to the right side of the water tank (14) through a pipeline. The bottom is connected, the water outlet end of the pump (15) is connected with a hose (16) through a pipeline, and the water outlet end of the hose (16) is communicated with the top of the water delivery pipe (17). 2 . The powder metallurgy powder mixing device according to claim 1 , wherein the number of the stirring blades ( 7 ) is five groups, and the top of the four groups of stirring blades ( 7 ) at the upper end are provided with sockets ( 12 ). 3 . , a slot (13) is provided on the top of the bottom group of stirring blades (7), and the water delivery pipe (17) is inserted into the stirring blade (7) through the socket (12) and the slot (13). 3 . The powder metallurgy powder mixing device according to claim 1 , wherein a chute ( 8 ) is opened on the outer side of the stirring blade ( 7 ), and the inner cavity of the chute ( 8 ) is slidably connected with a A sliding rod (9), the outer side of the sliding rod (9) is fixedly installed with the inner side of the connecting plate (10). 4 . The powder metallurgy powder mixing device according to claim 1 , wherein the front end and the rear end of the top of the mounting plate ( 3 ) are provided with through openings ( 5 ), and the through opening ( 5 ) has an opening. The shape is curved. 5. The powder metallurgy powder mixing device according to claim 1, characterized in that: a visible transparent window (19) is fixedly installed on the left end of the surface of the water tank (14), and the middle end of the top of the water tank (14) There is a water inlet. 6. The powder metallurgy powder mixing device according to claim 1, characterized in that: supporting legs are fixedly installed around the bottom of the stirring box (1), and the middle end of the bottom of the stirring box (1) is connected with a Discharge tube. 7. The powder metallurgy powder mixing device according to claim 1, characterized in that: the top of the stirring box (1) is an open design, and the water outlet end of the hose (16) extends to the stirring box (1). ) of the lumen.
