CN211988389U

CN211988389U - Pneumatic stirring equipment is used in sewage treatment agent production

Info

Publication number: CN211988389U
Application number: CN202020581900.0U
Authority: CN
Inventors: 王杰; 李玉凤
Original assignee: Langfang Jiejie Chemical Co ltd
Current assignee: Liaoning Jiesen Environmental Protection Technology Co ltd
Priority date: 2020-04-18
Filing date: 2020-04-18
Publication date: 2020-11-24
Anticipated expiration: 2030-04-18

Abstract

The utility model discloses a pneumatic agitated vessel is used in sewage treatment agent production, including a jar body and driving gear, the inside of jar body is provided with the spray tube, and the front end of spray tube has seted up the orifice, the fixed plate is installed to the top of spray tube, and the left and right sides of fixed plate all installs the supporting shoe, the pivot is installed to the top of fixed plate, and the inside of pivot is provided with rotary joint, rotary joint's top is connected with the connecting pipe, the left and right sides of pivot all is installed and is stored up dirty tank frame, and stores up the inside of dirty tank frame and be provided with the runner, the cell room is installed to the below of runner. This pneumatic agitated vessel is used in sewage treatment agent production is provided with orifice and spray tube, erupts gas through the orifice for gas stream flows through the material, can effectual drive material motion, can effectually provide stirring effect for the material, and the evenly distributed of orifice can effectual increase area of contact between gas and the material, thereby can the effectual mixed effect that improves the material.

Description

Pneumatic stirring equipment is used in sewage treatment agent production

Technical Field

The utility model relates to a sewage treatment agent technical field specifically is a pneumatic agitated vessel is used in sewage treatment agent production.

Background

The sewage treatment agent is an additive needed in sewage treatment, such as polyacrylamide, cationic polyacrylamide, anionic polyacrylamide, nonionic polyacrylamide, zwitterionic polyacrylamide, polyaluminium chloride and the like, can be used as the sewage treatment agent in different applications, and the sewage treatment agent needs to be stirred.

The existing pneumatic stirring equipment is low in action range in the using process, accurate angle adjustment cannot be achieved, impurities cannot be well recovered, filtering treatment is provided for waste gas, the using requirements of people cannot be well met, and technical innovation is performed on the basis of the existing pneumatic stirring equipment according to the condition.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a pneumatic agitated vessel is used in sewage treatment agent production to propose current pneumatic agitated vessel in the use among the above-mentioned background of solution, gaseous working range is lower, and can not obtain accurate angle modulation, and recovery impurity that can not be fine, and for waste gas provides filtration treatment, the user demand problem of satisfying people that can not be fine.

In order to achieve the above object, the utility model provides a following technical scheme: a pneumatic stirring device for sewage treatment agent production comprises a tank body and a driving gear, wherein a spray pipe is arranged inside the tank body, a spray hole is formed in the front end of the spray pipe, a fixed plate is installed above the spray pipe, supporting blocks are installed on the left side and the right side of the fixed plate, a rotating shaft is installed above the fixed plate, a rotating joint is arranged inside the rotating shaft, a connecting pipe is connected above the rotating joint, a sewage storage tank frame is installed on the left side and the right side of the rotating shaft, a rotating roller is arranged inside the sewage storage tank frame, a tank chamber is installed below the rotating roller, an exhaust hole is installed on one side of the tank body, a filter screen is arranged inside the exhaust hole, a control valve is installed above the tank body, an air pipe is installed on one side of the control valve, a driven gear is installed on one side of the air pipe, and, the driving gear is located above the servo motor.

Preferably, the spray pipe is communicated with the air pipe, the spray pipe is connected with the connecting pipe through a rotary joint, and the spray holes are uniformly distributed along the outer wall of the spray pipe.

Preferably, the spray pipe is connected with the fixed plate, the fixed plate is connected with the rotating shaft, and the supporting blocks are symmetrically distributed around the vertical center line of the fixed plate.

Preferably, the sewage storage tank frame is movably connected with the rotary roller, the sewage storage tank frame is connected with the tank body, and the sewage storage tank frame is symmetrically divided about a vertical center line of the tank body.

Preferably, the exhaust holes are connected with the filter screen, and the filter screen is of a mesh structure.

Preferably, the driven gear is connected with the rotating shaft, and the driven gear is meshed with the driving gear.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses be provided with the supporting shoe, can effectually provide stable support for the fixed plate through the supporting shoe, avoid the supporting shoe to produce the incline, make the fixed plate can stable rotation, be provided with and store up dirty tank frame and commentaries on classics roller, the impurity that the material stirring produced suspends, make impurity and commentaries on classics roller between contact, push impurity into the inside of storing up dirty tank frame, can effectual recovery impurity through the tank room, reduce the influence that impurity mixes to the material, be provided with the filter screen, can effectually filter the impurity that waste gas carried through the filter screen, avoid waste gas polluted air, and guarantee the feature of environmental protection of equipment operation;

2. the utility model is provided with the spray holes and the spray pipe, and sprays gas through the spray holes, so that the gas flows through the material, can effectively drive the material to move, can effectively provide a stirring effect for the material, and the uniform distribution of the spray holes can effectively increase the contact area between the gas and the material, thereby effectively improving the mixing effect of the material;

3. the utility model discloses be provided with driven gear and driving gear, servo motor can effectually promote driven gear through the driving gear and rotate, can effectually drive the spray tube and rotate to the turned angle that can effectual change spray tube, the gaseous scope of action that can effectual increase reduces the dead angle of material stirring, and can effectually adjust the spray tube to suitable position, make gas can provide the stirring processing of high accuracy for the material.

Drawings

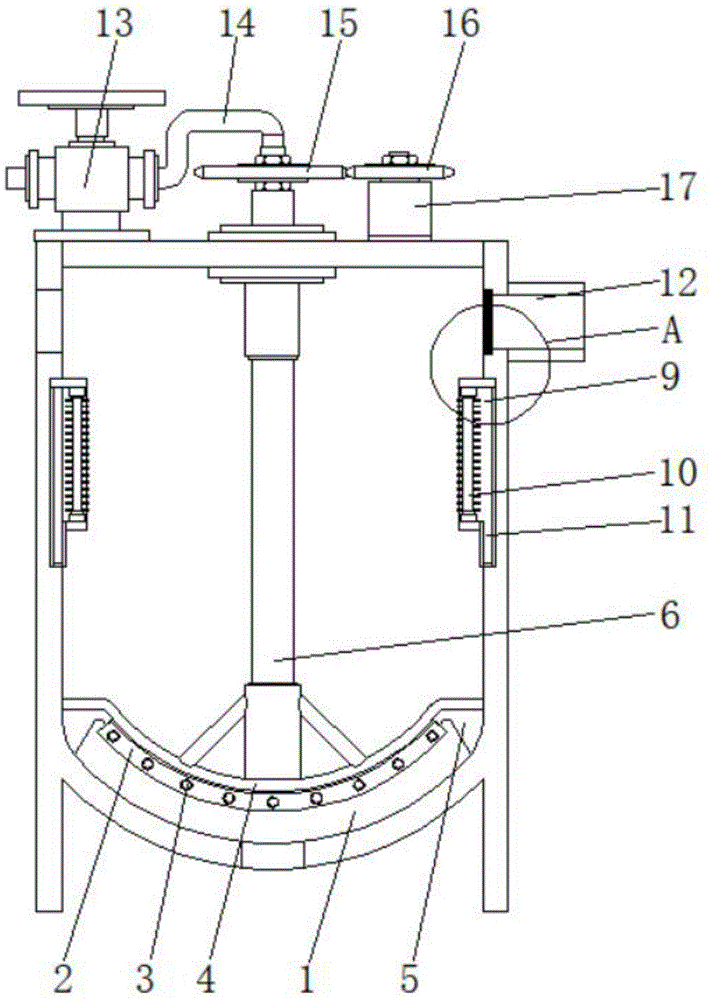

FIG. 1 is a schematic view of the structure of the present invention;

FIG. 2 is a schematic view of the internal structure of the rotating shaft of the present invention;

fig. 3 is a schematic view of a part of an enlarged structure at a in fig. 1 according to the present invention.

In the figure: 1. a tank body; 2. a nozzle; 3. spraying a hole; 4. a fixing plate; 5. a support block; 6. a rotating shaft; 7. a rotary joint; 8. a connecting pipe; 9. a sewage storage tank rack; 10. rotating the roller; 11. a tank chamber; 12. an exhaust hole; 13. a control valve; 14. an air tube; 15. a driven gear; 16. a driving gear; 17. a servo motor; 18. and (5) filtering by using a filter screen.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a pneumatic stirring device for sewage treatment agent production comprises a tank body 1 and a driving gear 16, wherein a spray pipe 2 is arranged inside the tank body 1, a spray hole 3 is formed in the front end of the spray pipe 2, a fixed plate 4 is arranged above the spray pipe 2, supporting blocks 5 are arranged on the left side and the right side of the fixed plate 4, a rotating shaft 6 is arranged above the fixed plate 4, a rotating joint 7 is arranged inside the rotating shaft 6, the spray pipe 2 is connected with the fixed plate 4, the fixed plate 4 is connected with the rotating shaft 6, the supporting blocks 5 are symmetrically distributed about the vertical central line of the fixed plate 4, stable support can be effectively provided for the fixed plate 4 through the supporting blocks 5, the supporting blocks 5 are prevented from deflecting, and the fixed plate 4 can stably rotate;

the upper part of the rotary joint 7 is connected with a connecting pipe 8, the left side and the right side of the rotating shaft 6 are respectively provided with a sewage storage tank frame 9, the interior of the sewage storage tank frame 9 is provided with a rotating roller 10, the sewage storage tank frame 9 and the rotating roller 10 are movably connected, the sewage storage tank frame 9 is connected with the tank body 1, the sewage storage tank frame 9 and the tank body 1 are symmetrically distributed about the vertical central line of the tank body 1, impurities generated by material stirring are suspended, the impurities are contacted with the rotating roller 10, the impurities are pushed into the interior of the sewage storage tank frame 9, the impurities can be effectively recycled through the tank chamber 11, the influence of the impurities on material mixing is reduced, the tank chamber 11 is arranged below the rotating roller 10, one side of the tank body 1 is provided with an exhaust hole 12, the interior of the exhaust hole 12 is provided with a filter screen 18, the exhaust hole 12 is connected with the filter screen 18, the interior of the filter screen 18 is of a mesh, the waste gas is prevented from polluting air, the environmental protection performance of equipment operation is guaranteed, a control valve 13 is installed above a tank body 1, an air pipe 14 is installed on one side of the control valve 13, the spray pipe 2 is communicated with the air pipe 14, the spray pipe 2 is connected with a connecting pipe 8 through a rotary joint 7, spray holes 3 are uniformly distributed along the outer wall of the spray pipe 2, external air is guided into the spray pipe 2 along the air pipe 14 and the connecting pipe 8, the air is sprayed out through the spray holes 3, the air flows through materials, the materials can be effectively driven to move, the stirring effect can be effectively provided for the materials, the contact area between the air and the materials can be effectively increased due to the uniform distribution of the spray holes 3, and the mixing effect of the materials can be effectively improved;

driven gear 15 is installed to trachea 14's one side, and servo motor 17 is installed to driven gear 15's one side, driving gear 16 is located servo motor 17's top, be connected between driven gear 15 and the pivot 6, and mesh between driven gear 15 and the driving gear 16 mutually, under servo motor 17's effect, can effectually promote driven gear 15 through driving gear 16 and rotate, and driven gear 15 is connected between pivot 6 and fixed plate 4, thereby can effectually drive spray tube 2 and rotate, can effectual change the turned angle of spray tube 2, can effectual increase gaseous application range, reduce the dead angle of material stirring, and can effectually adjust spray tube 2 to suitable position, make gas can provide the stirring processing of high accuracy for the material.

The working principle is as follows: when the pneumatic stirring equipment for sewage treatment agent production is used, firstly, a feed inlet is formed in the other side of the outer wall of the tank body 1, a user can sequentially place materials into the tank body 1, then, the servo motor 17 is started, so that the servo motor 17 pushes the driven gear 15 to rotate through the driving gear 16, and the driven gear 15 is connected with the fixing plate 4 through the rotating shaft 6 until the spray pipe 2 is adjusted to a proper angle;

secondly, an external air pump is connected, a control valve 13 is opened, air is guided into the spray pipe 2 along an air pipe 14 and a connecting pipe 8, the air is sprayed out through a spray hole 3, the air flows through materials, the materials can be effectively driven to move, a stirring effect can be effectively provided for the materials, then impurities generated by material stirring are suspended, the impurities are in contact with a rotating roller 10, the impurities are pushed into a dirt storage tank frame 9, and the impurities can be effectively recovered through a tank chamber 11;

and finally, the waste gas is discharged from the waste gas exhaust hole 12, and at the moment, the filter screen 18 can effectively filter the waste gas and reduce impurities carried by the gas, which is the working principle of the pneumatic stirring equipment for producing the sewage treatment agent.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a pneumatic agitated vessel is used in sewage treatment agent production, includes jar body (1) and driving gear (16), its characterized in that: the utility model discloses a sewage treatment tank, including the jar body (1), the inside of the jar body (1) is provided with spray tube (2), and the front end of spray tube (2) has seted up orifice (3), fixed plate (4) are installed to the top of spray tube (2), and supporting shoe (5) are all installed to the left and right sides of fixed plate (4), pivot (6) are installed to the top of fixed plate (4), and the inside of pivot (6) is provided with rotary joint (7), the top of rotary joint (7) is connected with connecting pipe (8), store up dirty tank tower (9) is all installed to the left and right sides of pivot (6), and the inside of storing up dirty tank tower (9) is provided with runner roll (10), cell (11) are installed to the below of runner roll (10), exhaust hole (12) are installed to the one side of the jar body (1), and the inside of exhaust hole (12) is provided with filter screen (18), and trachea (14) are installed to one side of control valve (13), driven gear (15) are installed to one side of trachea (14), and servo motor (17) are installed to one side of driven gear (15), driving gear (16) are located servo motor (17)'s top.

2. The pneumatic stirring device for sewage treatment agent production according to claim 1, wherein: the spraying pipe (2) is communicated with the air pipe (14), the spraying pipe (2) is connected with the connecting pipe (8) through the rotary joint (7), and the spraying holes (3) are uniformly distributed along the outer wall of the spraying pipe (2).

3. The pneumatic stirring device for sewage treatment agent production according to claim 1, wherein: the spray pipe (2) is connected with the fixing plate (4), the fixing plate (4) is connected with the rotating shaft (6), and the supporting blocks (5) are symmetrically distributed around the vertical center line of the fixing plate (4).

4. The pneumatic stirring device for sewage treatment agent production according to claim 1, wherein: the sewage storage tank frame (9) is movably connected with the rotary roller (10), the sewage storage tank frame (9) is connected with the tank body (1), and the sewage storage tank frame (9) is symmetrically distributed around the vertical center line of the tank body (1).

5. The pneumatic stirring device for sewage treatment agent production according to claim 1, wherein: the exhaust holes (12) are connected with the filter screen (18), and the inside of the filter screen (18) is of a net-shaped body structure.

6. The pneumatic stirring device for sewage treatment agent production according to claim 1, wherein: the driven gear (15) is connected with the rotating shaft (6), and the driven gear (15) is meshed with the driving gear (16).
