Abstract

The utility model belongs to the technical field of medical appliances, in particular to a cross-shaped flushing drainage tube, which comprises a drainage tube body and a flushing tube body; the drainage tube body is of a hollow cylinder structure with openings at two ends, the flushing tube body is of a hollow cylinder structure with openings at two ends, and the flushing tube body comprises an inner flushing tube and an outer flushing tube; the inner washing pipe is arranged in the drainage pipe body, and a cross-shaped drainage groove is formed in the outer side of one end of the inner washing pipe in a surrounding mode; the length of the internal flushing pipe is less than that of the cross-shaped drainage pipe; the external flushing pipe passes through the drainage pipe body and is arranged on the outer side of the drainage pipe body; its advantages are: the drainage flushing can be realized, the efficient drainage efficiency can be guaranteed, the drainage tube can be effectively prevented from being blocked, and the drainage device is simple in structure and convenient to use.

Description

Cross flushing drainage tube

Technical Field

The utility model belongs to the technical field of the medical instrument technique and specifically relates to a drainage tube is washed to cross.

Background

With the progress of the times, the rapid development of science and technology, the medical level is continuously improved, the treatment capacity of serious diseases, particularly malignant tumors, is continuously enhanced, the surgical skills of a plurality of hospitals are continuously improved, the crowd is benefited, and the human beings are continuously advanced on the way of overcoming the diseases. However, with the development of some major operations, the operation wound surface is large, and the phenomena of exudation, bleeding, necrotic substances and effusion accumulation can occur at the wound surface, for example, the oozing blood and necrotic tissues are not cleared in time, so that the healing of the operation wound surface can be affected, even the operation wound surface is infected and the anastomotic stoma is open under severe conditions, severe patients can further cause severe infection of the abdominal cavity and hemorrhage of large blood vessels, and finally the death of patients is caused. The current solution which is commonly used clinically is to drain the oozing blood and necrotic tissues out of the body of a patient by using a negative pressure drainage technology, namely, a negative pressure drainage tube is arranged at the position of a wound surface, and the accumulated liquid is drained by using negative pressure. However, in general, the negative pressure drainage tube is easily sealed by necrotic tissues in the suction process, so that the negative pressure suction tube cannot work normally, and the postoperative rehabilitation is influenced. Moreover, when the anastomotic fistula occurs in the wound anastomotic stoma, the digestive tract contents and digestive juice leak to the periphery of the anastomotic stoma, and if the leakage liquid cannot be drained in time, the risk of infection and bleeding is increased sharply, and at this time, exogenous sterile normal saline is needed to flush the local part, dilute the leakage liquid and drain the leakage liquid.

The drainage tube that uses always clinically at present has single chamber and two-chamber drainage tube, and the single chamber includes the ordinary drainage tube that drainage effect is general and the better cross drainage tube of drainage effect, nevertheless all lacks the washing function, can not in time dilute the weeping liquid in time and the drainage goes out the patient external when complication such as anastomotic fistula has taken place, and ordinary two-chamber pipe has the washing function, but the drainage effect is not good, and the drainage hole is blockked up easily and is influenced the drainage effect.

Chinese patent documents: CN203749999U discloses a washable pressure-resistant drainage tube, which comprises a drainage section tube body, a hollow section tube body, a flushing tube and a flushing tube joint, wherein a reinforcing rib with a cross-shaped section is arranged in the drainage section tube body; this cross strengthening rib of patent document has strengthened the crushing resistance of drainage section body greatly, has guaranteed drainage speed when increasing drainage tube crushing resistance, when meetting great clot and blockking up the drainage section, can dredge the drainage section through the mode of injecting into the flush fluid from the flushing pipe, has avoided the emergence of jam to the realization lasts the drainage, has reduced the infection rate, has effectively reduced treatment cost. But it separates into the mode of three drainage chambeies and a washing chamber through arranging the strengthening rib, makes the washing chamber occupy one side pipe wall, very big restriction drainage efficiency.

In summary, a cross-shaped washing drainage tube which can realize drainage washing, can ensure efficient drainage efficiency, can effectively prevent the drainage tube from being blocked, and is simple in structure and convenient to use is urgently needed.

Disclosure of Invention

The utility model aims at providing a, can realize that the drainage washes, can guarantee efficient drainage efficiency again, can effectually prevent that the drainage tube from blockking up, simple structure and convenient to use's cross washes the drainage tube.

In order to achieve the purpose, the utility model adopts the technical proposal that:

a cross-shaped washing drainage tube comprises a drainage tube body and a washing tube body; the drainage tube body is of a hollow cylinder structure with openings at two ends, the flushing tube body is of a hollow cylinder structure with openings at two ends, and the flushing tube body comprises an inner flushing tube and an outer flushing tube; the inner washing pipe is arranged in the drainage pipe body, and a cross-shaped drainage groove is formed in the outer side of one end of the inner washing pipe in a surrounding mode; the external flushing pipe is arranged on the outer side of the drainage pipe body.

As a preferred solution, the cross drainage groove has a length less than the length of the inner wash tube.

As a preferred technical scheme, the cross drainage groove is arranged at the end part of one end in the drainage tube body, so that one end of the drainage tube body is provided with a plurality of groove-shaped channels.

As a preferable technical scheme, the external flushing pipe penetrates through the outer wall of the drainage pipe body and is arranged outside the drainage pipe body.

As a preferable technical scheme, a connector is arranged at the port of the external flushing pipe and can be connected with an external infusion flushing pipeline.

As a preferred technical scheme, the connecting head is provided with a detachable sealing cover.

As a preferred technical scheme, one end of the drainage tube body can be connected with an external drainage pipeline.

As a preferred technical scheme, the outer wall of the drainage tube body is provided with scale marks.

The utility model has the advantages that:

1. the washing pipe body comprises an inner washing pipe and an outer washing pipe, the inner washing pipe is arranged in the drainage pipe body, and the outer side of one end of the inner washing pipe is provided with a cross-shaped drainage groove in a surrounding mode, so that the washing pipe body does not occupy the pipe wall of the drainage pipe body, and drainage efficiency is guaranteed.

2. The cross drainage groove is formed in the end portion of one end of the drainage tube body, namely one end of the drainage tube body is divided into a plurality of groove-shaped channels and is in contact with a drainage part to be drained of a patient, so that the initial contact area of fluid and the tube wall is increased, drainage can be conducted on accumulated fluid, percolate and the like effectively, and blockage is avoided.

3. The length of the cross drainage groove is smaller than that of the internal washing pipe, so that accumulated liquid or exudate flows into an external drainage pipeline along the drainage pipe body after drainage dredging of the cross drainage groove, and the drainage efficiency is further increased.

4. The port of the external flushing pipe is provided with a connector which can be connected with an external infusion flushing pipeline, and the connector is provided with a detachable sealing cover, so that the connection is convenient to seal when the infusion flushing is not needed.

Drawings

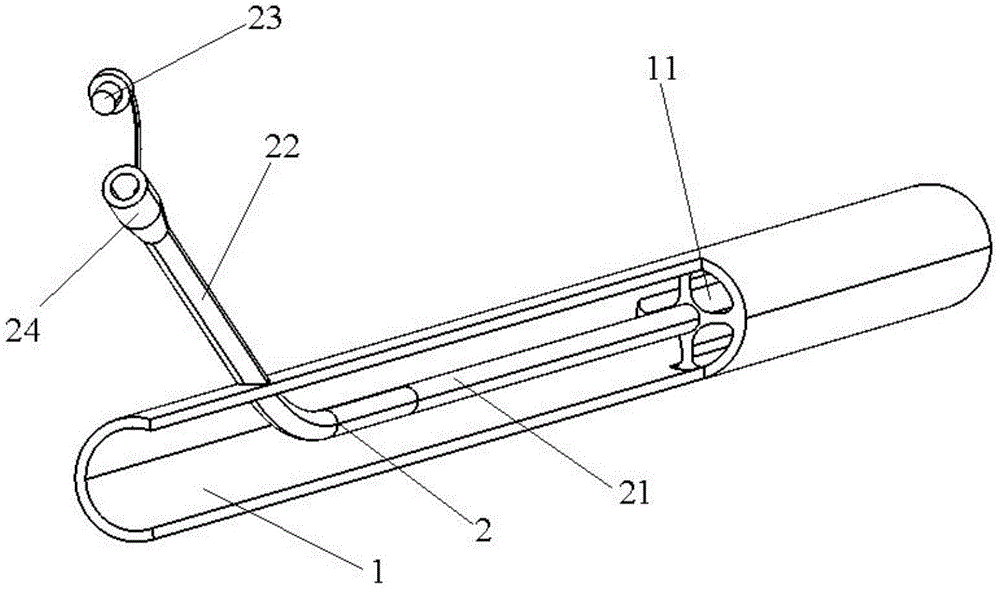

Figure 1 is a three-dimensional schematic view of a cross-shaped washing drainage tube of the utility model.

Fig. 2 is a schematic view of section a of fig. 1.

Fig. 3 is a schematic view of section B of fig. 1.

Figure 4 is a schematic view of the cross-shaped flushing drainage tube and the external pipeline of the utility model.

Figure 5 is another cross of the utility model washing drainage tube partially sectional view.

FIG. 6 is a perspective view of another cross-shaped irrigation drainage tube of the present invention.

Detailed Description

The present invention will be further described with reference to the following detailed description. It should be understood that these examples are for illustrative purposes only and are not intended to limit the scope of the present invention. Furthermore, it should be understood that various changes and modifications can be made by those skilled in the art after reading the disclosure of the present invention, and such equivalents also fall within the scope of the appended claims.

The reference numerals and components referred to in the drawings are as follows:

1. drainage tube body 2, flushing tube body 3, external infusion flushing pipeline

4. External drainage pipeline 11, cross drainage groove 21, internal flushing pipe

22. External flushing pipe 23, sealing cover 24, connector

12. Graduation mark

Example 1

Please refer to fig. 1, fig. 1 is a perspective view of a cross-shaped irrigation drainage tube of the present invention. A cross-shaped washing drainage tube comprises a drainage tube body 1 and a washing tube body 2; the drainage tube body 1 is a hollow cylinder structure with openings at two ends and a length of 260mm, the flushing tube body 2 is a hollow cylinder structure with openings at two ends and a length of 220mm, and the flushing tube body 2 comprises an inner flushing tube 21 and an outer flushing tube 22; the length of the internal flushing pipe 21 is 200mm and is arranged in the drainage tube body 1; please refer to fig. 2 and fig. 3; FIG. 2 is a schematic view of section A of FIG. 1, and FIG. 3 is a schematic view of section B of FIG. 1. The outer side of one end of the internal washing pipe 21 is provided with a cross-shaped drainage groove 11 with the length of 80mm in a surrounding manner, the cross-shaped drainage groove 11 is arranged at the end part of one internal end of the drainage pipe body 1, so that one end of the drainage pipe body 1 is provided with four groove-shaped channels, and the drainage dredging effect is fully ensured; the external washing pipe 22 penetrates through the outer wall of the drainage tube body 1 and is arranged outside the drainage tube body 1, and the penetrating position of the external washing pipe is 50mm away from the end part of one end of the drainage tube body 1; the port of the external flushing pipe 22 is provided with a connector 24 which can be connected with the external infusion flushing pipeline 3.

Please refer to fig. 4, fig. 4 is a schematic view of the connection between the cross-shaped flushing drainage tube and the external pipeline of the present invention. The utility model discloses a use method: when needs utilize the negative pressure drainage, will in the operation cross wash its one end that is equipped with cross drainage groove 11 and arrange the surface of a wound position in, the patient is arranged in to the other end in vitro, and its drainage tube body 1 is in the external one end of patient and can dismantle with outside drainage pipeline 4 after the disinfection and link to each other, negative pressure suction device is being connected to outside drainage pipeline 4, connector 24 on it of outside flushing pipe 22 is infusing when washing in needs, carries out disinfection treatment to it to can dismantle with outside infusion flushing pipeline 3 and link to each other, outside infusion flushing pipeline 3 is connecting the infusion bottle, with aseptic salt solution or liquid medicine accessible flushing pipe body 2 washes into, after the infusion washes the end, can take off outside infusion flushing pipeline 3, seals outside flushing pipe 22.

It should be noted that: the flushing pipe body 2 comprises an inner flushing pipe 21 and an outer flushing pipe 22, the inner flushing pipe 21 is arranged inside the drainage pipe body 1, so that the flushing pipe body 2 is combined with the drainage pipe body 1, and the cross-shaped flushing drainage pipe of the drainage pipe has a flushing drainage function; the external washing pipe 22 penetrates through the outer wall of the drainage tube body 1 and is arranged outside the drainage tube body 1, so that the external washing pipe is conveniently connected with an external infusion washing pipeline 3 and avoids interfering with the connection of the drainage tube body 1 and an external drainage pipeline 4; the cross-shaped drainage groove 11 is formed in the outer side of one end of the inner washing pipe 2, accumulated liquid, percolate and the like can be effectively drained through the cross-shaped drainage groove 11, and the blocking condition is avoided; the length of the cross drainage groove 11 is less than that of the internal washing pipe 21, so that accumulated liquid or exudate can flow into the external drainage pipeline 4 along the drainage pipe body 1 after drainage and dredging of the accumulated liquid or the exudate through the cross drainage groove 11, and the drainage efficiency is further increased; the cross drainage groove 11 is arranged at one end part of the inner part of the drainage tube body 1 and is arranged at the affected part of a patient, so that effusion or effusion and the like can conveniently enter the drainage tube body 1 along the groove wall; the port of the external flushing pipe 22 is provided with a connector 24 which is convenient to be connected with the external infusion flushing pipeline 3.

Example 2

Please refer to fig. 5, fig. 5 is a partial cross sectional view of another cross-shaped irrigation drainage tube of the present invention. The embodiment is substantially the same as embodiment 1, and the difference is that the connector 24 is provided with a detachable sealing cover 23, it should be noted that the arrangement of the sealing cover 23 does not affect the utility model, and the connector 24 is provided with the detachable sealing cover 23, so that the flushing pipe body 2 can be more conveniently sealed when the infusion flushing is not needed.

Example 3

Please refer to fig. 6, fig. 6 is a perspective view of another cross-shaped irrigation drainage tube of the present invention. The embodiment is substantially the same as embodiment 1, and the difference is that the scale mark 12 with mm as a measurement unit is arranged on the outer wall of the drainage tube body 1, so that medical personnel can clearly judge the implanted length of the drainage tube body in an operation, and the medical personnel can judge whether the drainage tube body is displaced in the subsequent drainage stage, and it needs to be explained that the scale mark 12 on the drainage tube body 1 does not affect the use efficiency of the drainage tube body.

The above description is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of improvements and additions can be made without departing from the principles of the present invention, and some improvements and additions should also be regarded as the protection scope of the present invention.

Claims (8)

1. A cross-shaped washing drainage tube is characterized by comprising a drainage tube body and a washing tube body; the drainage tube body is of a hollow cylinder structure with openings at two ends, the flushing tube body is of a hollow cylinder structure with openings at two ends, and the flushing tube body comprises an inner flushing tube and an outer flushing tube; the inner washing pipe is arranged in the drainage pipe body, and a cross-shaped drainage groove is formed in the outer side of one end of the inner washing pipe in a surrounding mode; the external flushing pipe is arranged on the outer side of the drainage pipe body.

2. The cross-shaped irrigation drain of claim 1 wherein the cross-shaped drainage channel has a length less than the length of the inner irrigation tube.

3. The cross-shaped irrigation drainage tube of claim 1 wherein the cross-shaped drainage grooves are formed at the inner end of the drainage tube body so that one end of the drainage tube body is a plurality of channel-shaped channels.

4. The cross-shaped irrigation drain of claim 1 wherein the outer irrigation tube passes through the outer wall of the drain body, being disposed outside the drain body.

5. The cross-shaped irrigation drainage tube of claim 1 wherein the external irrigation tube has a connector at its end for connection to an external infusion irrigation line.

6. The cross-shaped irrigation drainage tube of claim 5 wherein the connector is provided with a removable sealing cap.

7. The cross-shaped irrigation drain of claim 1 wherein the drain body is connectable at one end to an external drain line.

8. The cross-shaped irrigation drain of claim 1 wherein the drain body has graduations on its outer wall.
