The utility model discloses a railway boundary noise detector with waterproof function, including bracing piece, fixed block, line control box and adsorption plate, the welding has the mount on the bracing piece, and the screw connection has solar panel on the mount, install the display screen on the mount, and the welding has a driving motor on the mount, the fixed block is connected in the spout, and welds the toothed wheel plate on the spout, the meshing is connected with circular gear on the toothed wheel plate, and the welding has the brush-holder stud on the circular gear. This railway boundary noise detector with waterproof function is provided with the brush-holder stud, and the carousel can drive the fixed block and rotate in the spout, and then can drive the pinion rack through the spout and carry out reciprocating motion, and under the motion effect of pinion rack, circular gear can drive the brush-holder stud and carry out reciprocating motion on the display screen, can erase the dust on the display screen, has increased noise detector's use variety.
Description
Technical Field
The utility model relates to a noise detects technical field, specifically is a railway boundary noise detector with waterproof function.
Background
The railway is a traffic line used by trains, the railway line of China is wide, residential areas are built near part of railways, and in order to ensure that the railways do not cause noise pollution to residents, a noise detector needs to be installed and fixed on the railway boundary to detect the noise of the railways in real time, so that the noise pollution of the trains is prevented.
Most of the existing noise detectors have the following problems:
firstly, because the noise detector of the railway boundary is located outdoors, the noise detector cannot effectively prevent water in rainy days, and rainwater enters the noise detector to damage the line;
second, in the course of the work of noise detector, staff and house resident can learn the noise decibel on railway boundary through observing the display screen, and the display screen is in the open air for a long time, can accumulate a large amount of dusts, can not in time clear away and can cause harmful effects to the observation of display screen.
Therefore, we have proposed a railway boundary noise detector having a waterproof function so as to solve the above-mentioned problems.
Disclosure of Invention
An object of the utility model is to provide a railway boundary noise detector with waterproof function to noise detector can not carry out effectual waterproof work on solving the existing market that above-mentioned background art provided, and can not in time clear away the problem of the dust that accumulates on the display screen.
In order to achieve the above object, the utility model provides a following technical scheme: a railway boundary noise detector with a waterproof function comprises a supporting rod, a fixing block, a line control box and an adsorption plate, wherein a fixing frame is welded on the supporting rod, a solar panel is connected on the fixing frame through screws, a storage battery is connected on the fixing frame through bolts, a noise sensor is connected on the fixing frame through screws, a data conveyor is connected on the fixing frame through bolts, a display screen is installed on the fixing frame, a first driving motor is welded on the fixing frame, the fixing block is connected in a sliding groove in a clamping mode, a toothed wheel plate is welded on the sliding groove, a circular gear is connected on the toothed wheel plate in a meshing mode, a brush rod is welded on the circular gear, the line control box is connected on the supporting rod through bolts, a second driving motor is welded on the line control box, a first fan blade is connected on the second driving motor in an axial mode, and a first conical, the meshing is connected with second bevel gear on the first bevel gear, and second bevel gear welds on reciprocal lead screw, install the adsorption plate on the reciprocal lead screw, and seted up the through-hole on the adsorption plate, the screw connection has the absorption net on the circuit control box, the meshing is connected with the drive belt on the second driving motor, and the drive belt meshing is connected on the second flabellum to second flabellum hub connection is on the filter screen.
Preferably, the length of the solar panel is greater than that of the fixing frame, and the height of the noise sensor is smaller than that of the solar panel.
Preferably, the first driving motor is axially connected with a turntable, the turntable and the fixed block are of an integrated structure, and the length of the sliding groove is greater than the diameter of the turntable.
Preferably, the brush rod shaft is connected to the middle part of the bottom of the fixed frame, the length of the brush rod is equal to the height of the display screen, and the brush rod is attached to the outer surface of the display screen.
Preferably, the first fan blade and the first bevel gear are located on the same central shaft, the first fan blade is fixed in the middle of the circuit control box, the length of the first fan blade is equal to that of the adsorption net, and the adsorption net is symmetrically distributed on two sides of the circuit control box.
Preferably, threaded connection is adopted between the reciprocating screw rod and the adsorption plate, sliding connection is adopted between the adsorption plate and the circuit control box, and the through holes are distributed on the adsorption plate at equal angles.
Compared with the prior art, the beneficial effects of the utility model are that: the railway boundary noise detector with the waterproof function;
(1) the detector is provided with the solar panel, solar energy can be converted into electric energy under the action of the solar panel, and then the electric energy is stored and used by the storage battery, so that electric power can be provided for the noise detector, and the use environmental protection performance of the noise detector can be ensured;
(2) the detector is provided with the brush rod, under the action of the first driving motor, the turntable can drive the fixed block to rotate in the sliding groove, so that the toothed plate can be driven to do reciprocating motion through the sliding groove, and under the action of the movement of the toothed plate, the circular gear can drive the brush rod to do reciprocating motion on the display screen, so that dust on the display screen can be erased, the inconvenience in observation can be effectively prevented, and the use diversity of the noise detector is increased;
(3) this detector is provided with the adsorption plate, and under second driving motor's effect, moisture and impurity in the first flabellum can adsorb the circuit control box through adsorption net and filter screen and clear away, and in first flabellum pivoted, first conical gear can drive reciprocal lead screw through second conical gear and rotate, and then can make the adsorption plate carry out reciprocating motion on reciprocal lead screw, can carry out the cleaing away of moisture to the circuit through the through-hole, has improved noise detector's safety in utilization.
Drawings

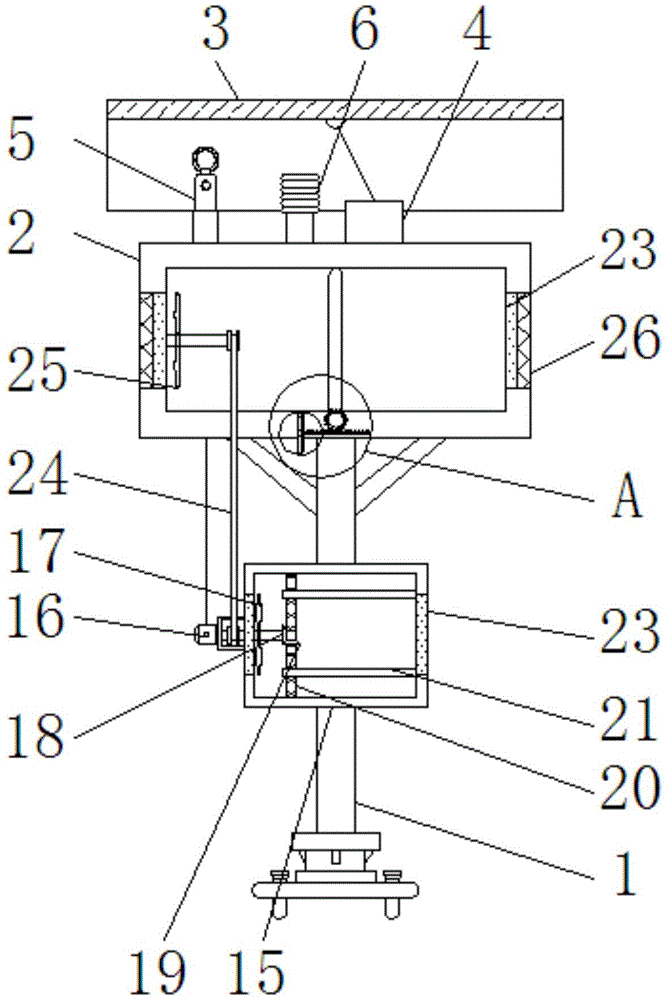

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic diagram of a side view structure of the display screen of the present invention;
FIG. 3 is a schematic view of the structure at A in FIG. 1 according to the present invention;
FIG. 4 is a schematic view of the structure of FIG. 2B according to the present invention;
fig. 5 is a schematic view of the top view structure of the adsorption plate of the present invention.
In the figure: 1. a support bar; 2. a fixed mount; 3. a solar panel; 4. a storage battery; 5. a noise sensor; 6. a data conveyer; 7. a display screen; 8. a first drive motor; 9. a turntable; 10. a fixed block; 11. a chute; 12. a toothed plate; 13. a circular gear; 14. a brush bar; 15. a line control box; 16. a second drive motor; 17. a first fan blade; 18. a first bevel gear; 19. a second bevel gear; 20. a reciprocating screw rod; 21. an adsorption plate; 22. a through hole; 23. an adsorption net; 24. a transmission belt; 25. a second fan blade; 26. and (5) filtering by using a filter screen.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a railway boundary noise detector with a waterproof function comprises a supporting rod 1, a fixing frame 2, a solar panel 3, a storage battery 4, a noise sensor 5, a data conveyor 6, a display screen 7, a first driving motor 8, a rotary table 9, a fixing block 10, a sliding chute 11, a gear tooth plate 12, a circular gear 13, a brush rod 14, a circuit control box 15, a second driving motor 16, a first fan blade 17, a first bevel gear 18, a second bevel gear 19, a reciprocating screw rod 20, an adsorption plate 21, a through hole 22, an adsorption net 23, a transmission belt 24, a second fan blade 25 and a filter screen 26, wherein the fixing frame 2 is welded on the supporting rod 1, the solar panel 3 is connected on the fixing frame 2 through screws, the storage battery 4 is connected on the fixing frame 2 through screws, the noise sensor 5 is connected on the fixing frame 2 through screws, the data conveyor 6 is connected on the fixing frame 2 through screws, the, a first driving motor 8 is welded on the fixed frame 2, a fixed block 10 is connected in the sliding chute 11 in a clamping manner, a pinion plate 12 is welded on the sliding chute 11, a circular gear 13 is connected on the pinion plate 12 in a meshing manner, a brush rod 14 is welded on the circular gear 13, a line control box 15 is connected on the support rod 1 through a bolt, a second driving motor 16 is welded on the line control box 15, a first fan blade 17 is connected on the second driving motor 16 in an upper shaft manner, a first conical gear 18 is welded on the first fan blade 17, a second conical gear 19 is connected on the first conical gear 18 in a meshing manner, the second conical gear 19 is welded on the reciprocating screw rod 20, an adsorption plate 21 is installed on the reciprocating screw rod 20, a through hole 22 is formed in the adsorption plate 21, an adsorption net 23 is connected on the line control box 15 through a screw, a transmission belt 24 is connected on the second driving motor 16 in a meshing manner, and the transmission, and the second fan blade 25 is pivotally connected to the screen 26.
The first driving motor 8 is axially connected with the rotary table 9, the rotary table 9 and the fixed block 10 are of an integrated structure, the length of the sliding groove 11 is larger than the diameter of the rotary table 9, the stability of the connection state between the rotary table 9 and the fixed block 10 can be guaranteed, and the use safety of the device is improved.
The brush rod 14 is connected to the middle part of the bottom of the fixing frame 2 in a shaft mode, the length of the brush rod 14 is equal to the height of the display screen 7, the brush rod 14 is attached to the outer surface of the display screen 7, and therefore the adverse effect of the brush rod 14 on the display screen 7 can be effectively avoided.
The first fan blade 17 and the first bevel gear 18 are located on the same central shaft, the first fan blade 17 is fixed in the middle of the circuit control box 15, the length of the first fan blade 17 is equal to that of the adsorption net 23, and the adsorption net 23 is symmetrically distributed on two sides of the circuit control box 15, so that the first fan blade 17 can uniformly blow the inside of the circuit control box 15, and the use efficiency of the device is improved.
For threaded connection between reciprocal lead screw 20 and the adsorption plate 21, and be sliding connection between adsorption plate 21 and the circuit control box 15 to angular distribution such as through-hole 22 can guarantee to conveniently control adsorption plate 21 and carry out work on reciprocal lead screw 20, has increased the use variety of device.
The working principle is as follows: before the railway boundary noise detector with the waterproof function is used, the overall condition of the device needs to be checked firstly, and normal work can be determined;
under the action of the solar panel 3, with reference to fig. 1 and 2, outdoor solar energy can be converted into electric energy, and then the electric energy is stored and used by the storage battery 4, so that electric power can be provided for each device on the noise detector;
under the action of the first driving motor 8, with reference to fig. 1-4, the rotary table 9 can drive the fixed block 10 to rotate in the sliding chute 11, and further can drive the toothed plate 12 to reciprocate through the sliding chute 11, and under the action of the movement of the toothed plate 12, the circular gear 13 can drive the brush rod 14 to reciprocate on the display screen 7, so that dust on the display screen 7 can be erased;
under the action of the second driving motor 16, referring to fig. 1 and 5, the first fan blade 17 can adsorb and remove moisture and impurities in the circuit control box 15 through the adsorption net 23 and the filter net 26, and while the first fan blade 17 rotates, the first bevel gear 18 can drive the reciprocating screw rod 20 to rotate through the second bevel gear 19, so as to enable the adsorption plate 21 to reciprocate on the reciprocating screw rod 20, and can remove moisture from the circuit through the through hole 22, and while the first fan blade 17 rotates, the second fan blade 25 can perform moisture removal work on the inside of the display screen 7 under the action of the transmission belt 24, which is the working process of the whole device, and the contents not described in detail in this specification, such as the solar panel 3, the storage battery 4, the noise sensor 5, the data conveyor 6, the display screen 7, the first driving motor 8 and the adsorption plate 21, are well known to those skilled in the art.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides a railway boundary noise detector with waterproof function, includes bracing piece (1), fixed block (10), line control box (15) and adsorption plate (21), its characterized in that: the solar energy meter is characterized in that a fixing frame (2) is welded on the supporting rod (1), a solar panel (3) is connected to the fixing frame (2) through screws, a storage battery (4) is connected to the fixing frame (2) through screws, a noise sensor (5) is connected to the fixing frame (2) through screws, a data conveyor (6) is connected to the fixing frame (2) through screws, a display screen (7) is installed on the fixing frame (2), a first driving motor (8) is welded to the fixing frame (2), a fixing block (10) is clamped and connected in a sliding groove (11), a toothed wheel plate (12) is welded to the sliding groove (11), a circular gear (13) is connected to the toothed wheel plate (12) in a meshed mode, a brush rod (14) is welded to the circular gear (13), a line control box (15) is connected to the supporting rod (1) through screws, and a second driving motor (16) is, second driving motor (16) upper shaft is connected with first flabellum (17), and the welding has first conical gear (18) on first flabellum (17), the meshing is connected with second conical gear (19) on first conical gear (18), and second conical gear (19) welding on reciprocal lead screw (20), install adsorption plate (21) on reciprocal lead screw (20), and seted up through-hole (22) on adsorption plate (21), the screw connection has adsorption net (23) on circuit control box (15), the meshing is connected with drive belt (24) on second driving motor (16), and drive belt (24) meshing is connected on second flabellum (25) to second flabellum (25) hub connection is on filter screen (26).
2. The railway boundary noise detector with the waterproof function according to claim 1, characterized in that: the length of the solar panel (3) is greater than that of the fixing frame (2), and the height of the noise sensor (5) is smaller than that of the solar panel (3).
3. The railway boundary noise detector with the waterproof function according to claim 1, characterized in that: the first driving motor (8) is in upper shaft connection with a rotary table (9), the rotary table (9) and the fixed block (10) are of an integrated structure, and the length of the sliding groove (11) is larger than the diameter of the rotary table (9).
4. The railway boundary noise detector with the waterproof function according to claim 1, characterized in that: the brush rod (14) is connected to the middle part of the bottom of the fixing frame (2) in a shaft mode, the length of the brush rod (14) is equal to the height of the display screen (7), and the brush rod (14) is attached to the outer surface of the display screen (7).
5. The railway boundary noise detector with the waterproof function according to claim 1, characterized in that: the first fan blade (17) and the first bevel gear (18) are located on the same central shaft, the first fan blade (17) is fixed in the middle of the circuit control box (15), the length of the first fan blade (17) is equal to that of the adsorption net (23), and the adsorption net (23) is symmetrically distributed on two sides of the circuit control box (15).
6. The railway boundary noise detector with the waterproof function according to claim 1, characterized in that: the reciprocating screw rod (20) is in threaded connection with the adsorption plate (21), the adsorption plate (21) is in sliding connection with the line control box (15), and the through holes (22) are distributed on the adsorption plate (21) at equal angles.
