Abstract

The utility model discloses a nut port face grinding device, including the box, the bottom is equipped with first electric telescopic handle in the box, and first electric telescopic handle's the flexible end is vertical upwards vertical. The utility model has the advantages that: the utility model provides a nut port face grinding device, first electro-magnet circular telegram is fixed with the nut actuation of its upside, third electric telescopic handle level promotes the square and moves right, it is corresponding with first electro-magnet to make the second polish the dish, open the second motor and rotate the second and polish the dish, first electric telescopic handle upwards promotes first electro-magnet and makes nut and second polish the dish contact and polish, after polishing at a terminal surface of nut, first electric telescopic handle pulls back first electro-magnet downwards and makes it reset and cut off the power supply with first electro-magnet, third electric telescopic handle stimulates the square and makes it reset, second electric telescopic handle promotes the second electro-magnet downwards and makes the nut of second electro-magnet and first electro-magnet upside contact.

Description

Nut port face grinding device
Technical Field
The utility model relates to a nut technical field that polishes specifically is a nut port face grinding device.
Background
The nut is a nut, is screwed together with a bolt or a screw rod to play a role in fastening, and an element which is necessary for all production and manufacturing machines is divided into carbon steel, stainless steel, nonferrous metal and the like according to different materials, and is ground or wiped on the surface of an object to be smooth and exquisite.
In the manufacturing process of the nut, the port surface of the nut needs to be ground and polished, so that the nut is more attractive in appearance and more convenient to use, and hands cannot be hurt due to uneven surface. However, the existing nut polishing device needs to polish through a handheld nut during the nut polishing process, such polishing mode is dangerous, and is easy to cause the damage of workers, so that the polishing mode wastes time, the work efficiency is reduced, a large amount of dust is generated during polishing, the environment is polluted, and the operation workers are easy to suffer from pneumoconiosis.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a nut port face grinding device to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a nut port face polishing device comprises a box body, wherein a first electric telescopic rod is arranged at the bottom in the box body, the telescopic end of the first electric telescopic rod is vertically upward and vertical, a first supporting plate is fixedly connected to the tail end of the telescopic end of the first electric telescopic rod and horizontally arranged, a first electromagnet is horizontally arranged on the upper side of the first supporting plate, a second electric telescopic rod is arranged at the top in the box body, the telescopic end of the second electric telescopic rod is vertically and downwardly arranged towards the first electromagnet, a second supporting plate is fixedly connected to the tail end of the telescopic end of the second electric telescopic rod and horizontally arranged, a second electromagnet is horizontally arranged on the lower side of the second supporting plate and is opposite to the first electromagnet, a third electric telescopic rod is arranged on the inner wall of one side of the box body, the telescopic end of the third electric telescopic rod is horizontally arranged towards the inner wall of the other side of the box body, a vertically arranged square is fixedly connected to the tail end, the upper end of the square block is provided with a first mounting groove, a first motor is arranged in the first mounting groove, a main shaft of the first motor vertically extends upwards to the outer side of the square block, the extending end of the main shaft of the first motor is fixedly connected with a horizontally arranged first polishing disc, the lower end of the square block is provided with a second mounting groove, a second motor is arranged in the second mounting groove, a main shaft of the second motor vertically extends downwards to the outer side of the square block, and the extending end of the main shaft of the second motor is fixedly connected with a horizontally arranged second polishing disc;
the upside of box is equipped with the suction cleaner, and the inlet scoop of suction cleaner is equipped with the aspiration channel, and the one end of aspiration channel runs through the box downwards and is linked together with the dust absorption mouth, and the dust absorption mouth passes through connecting rod fixed connection top in the box, and the vertical downward setting of dust absorption mouth, the air outlet of suction cleaner communicate with the dust filter case through going out the tuber pipe, and dust filter case fixed connection is at the upside of box.
Preferably, one side that the box is close to the dust filtration case is equipped with fourth electric telescopic handle, and fourth electric telescopic handle's flexible end level runs through the box and stretches into in the box, the material receiving box that sets up at the terminal fixed connection level of the flexible end of fourth electric telescopic handle.
Preferably, the material receiving box is arranged corresponding to the square blocks, and a rubber pad is arranged at the bottom in the material receiving box.
Preferably, one side of straining the dirt case is equipped with the fresh air inlet, the tuber pipe is linked together with the fresh air inlet, one side of straining the dirt case is equipped with the interface that the level set up, and the interface communicates with straining the dirt case, strain the dirt case and keep away from the inserting groove that is equipped with the level setting on the inner wall of interface, the inserting groove with the corresponding setting of interface, the filter plate board that the level set up is connected in the inserting fit, the one end of filter plate board stretches into strain the dirt case and inserts the cooperation and connect in the inserting groove, the other end setting of filter plate is in the outside of interface and the vertical baffle of the fixed connection setting, one side that the filter plate board was kept away from to the baffle is equipped with the pull handle, and the one side top that the dirt case is close.
Preferably, one side of the square facing the third electric telescopic rod is fixedly connected with a group of guide rods horizontally arranged, one side of the box body close to the third electric telescopic rod is provided with a group of guide holes, the guide rods penetrate through the guide holes in a one-to-one correspondence mode, and each guide rod can slide up and down along the guide hole opposite to the guide rod.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model provides a nut port face grinding device, the nut that will polish is vertically put on the first electro-magnet upside, the first electro-magnet circular telegram is with its upside nut actuation fixed, the third electric telescopic handle horizontal promotion square moves to the right, make the second polish dish correspond with the first electro-magnet, turn on the second motor and rotate the second polish dish, the first electric telescopic handle promotes the first electro-magnet upwards to make the nut contact with the second polish dish and polish, after polishing of an end face of nut, the first electric telescopic handle pulls back the first electro-magnet downwards to make it reset and cut off the power supply of the first electro-magnet, the third electric telescopic handle pulls the square to make it reset, the second electric telescopic handle promotes the second electro-magnet downwards to make the second electro-magnet contact with the nut of first electro-magnet upside, the nut actuation of the first electro-magnet upside is switched on with the second electro-magnet, the second electric telescopic rod pulls the second electromagnet upwards to reset, the third electric telescopic rod horizontally pushes the square block to move rightwards, the first polishing disc corresponds to the second electromagnet, the first motor is started to rotate the first polishing disc, the second electric telescopic rod pushes the second electromagnet downwards to enable the nut to be in contact with the first polishing disc for polishing, and the dust collector sucks a large amount of dust generated during polishing out of the dust filter box, filters the dust filter box and then discharges the dust through the air exhaust hole. Can solve handheld nut like this and polish, such mode of polishing is comparatively dangerous, causes staff's damage easily, and the time that can be more wasted like this one polish has reduced the efficiency of work, and can produce a large amount of dusts when polishing, has the pollution to the environment, causes the problem that the operation workman suffers from pneumoconiosis easily.
Drawings

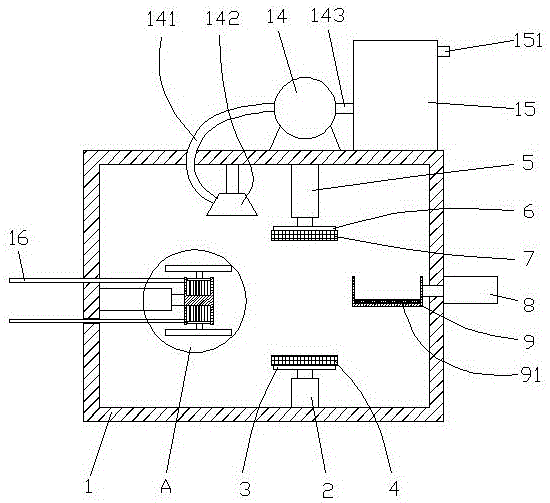

Fig. 1 is a schematic view of a basic structure of a nut port surface polishing device provided by the present invention;
FIG. 2 is an enlarged view of portion A of FIG. 1;
fig. 3 is a schematic diagram of the basic structure of the dust filtering box.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
As shown in figures 1-3, the utility model relates to a nut port surface polishing device, which comprises a box body 1, one side of the box body 1 is provided with a box door, the bottom in the box body 1 is fixedly connected with a first electric telescopic rod 2 through a bolt, the telescopic end of the first electric telescopic rod 2 is vertically upward and vertical, the end of the telescopic end of the first electric telescopic rod 2 is fixedly welded and connected with a horizontally arranged first supporting plate 3, the upper side of the first supporting plate 3 is fixedly connected with a horizontally arranged first electromagnet 4, the top in the box body 1 is fixedly connected with a second electric telescopic rod 5 through a bolt, the telescopic end of the second electric telescopic rod 5 is vertically and downwardly arranged towards the first electromagnet 4, the end of the telescopic end of the second electric telescopic rod 5 is fixedly welded and connected with a horizontally arranged second supporting plate 6, the lower side of the second supporting plate 6 is fixedly connected with a horizontally arranged second electromagnet 7, the second electromagnet 7 is in the same shape as and is arranged opposite, through bolt fixed connection third electric telescopic handle 10 on the inner wall of one side of box 1, the flexible end level of third electric telescopic handle 10 sets up towards the opposite side inner wall of box 1, at the square 11 of the vertical setting of the terminal welded fastening connection of the flexible end of third electric telescopic handle 10, square 11 sets up towards the guide bar 16 of one side welded fastening connection a set of level of third electric telescopic handle 10, box 1 is close to third electric telescopic handle 10 one side and is equipped with a set of guiding hole, 16 one-to-ones of guide bar follow pass in the guiding hole, and every guide bar 16 homoenergetic slides from top to bottom along rather than relative guiding hole. The upper end of square 11 is equipped with first mounting groove 111, through first motor 112 of bolt fixed connection in the first mounting groove 111, the main shaft of first motor 112 vertically upwards stretches out to the outside of square 11, the first polishing dish 113 of the end welding fixed connection level setting of the end that stretches out at first motor 112 main shaft, the lower extreme of square 11 is equipped with second mounting groove 114, through bolt fixed connection second motor 115 in the second mounting groove 114, the vertical outside that stretches out to square 11 downwards of main shaft of second motor 115, at the second polishing dish 116 of the end welding fixed connection level setting of the end that stretches out of the main shaft of second motor 115. One side of the box body 1 close to the dust filtering box 15 is fixedly connected with a fourth electric telescopic rod 8 through a bolt, the telescopic end level of the fourth electric telescopic rod 8 penetrates through the box body 1 and extends into the box body 1, and a material receiving box 9 is arranged at the tail end of the telescopic end of the fourth electric telescopic rod 8 and is fixedly connected with the level. The material receiving box 9 is arranged corresponding to the square 11, the rubber pad 91 is arranged at the bottom in the material receiving box 9, and the rubber pad 91 can reduce the damage during material receiving.
The upper side of the box body 1 is fixedly connected with a dust collector 14 through bolts, an air suction pipe 141 is arranged at an air suction opening of the dust collector 14, one end of the air suction pipe 141 penetrates through the box body 1 downwards to be communicated with a dust suction opening 142, the dust suction opening 142 is fixedly connected to the inner top of the box body 1 through a connecting rod, the dust suction opening 142 is vertically and downwards arranged, an air outlet of the dust collector 14 is communicated with a dust filtering box 15 through an air outlet pipe 143, the dust filtering box 15 is fixedly connected to the upper side of the box body 1, one side of the dust filtering box 15 is provided with an air inlet 152, the air outlet pipe 143 is communicated with the air inlet 152, one side of the dust filtering box 15 is provided with a horizontally arranged inserting opening 154, the inserting opening 154 is communicated with the dust filtering box 15, a horizontally arranged inserting groove 153 is arranged on the inner wall of the dust filtering box 15 far away from the inserting opening 154, the inserting groove 153 is correspondingly arranged in the inserting opening 154, a horizontally arranged filter screen 155 is inserted and connected in the inserting groove, the other end of the filter screen 155 is arranged at the outer side of the insertion port 154 and is fixedly welded to a vertically arranged baffle 156, one side of the baffle 156 far away from the filter screen 155 is fixedly welded to a pull handle 157, an air exhaust hole 151 is arranged above one side of the dust filtering box 15 close to the insertion port 154, and the filter screen 155 can be conveniently cleaned or replaced by arranging the insertion groove 153 and the insertion port 154.
When the nut port surface polishing device provided by the utility model is used, a box door on one side of a box body 1 is opened, a nut to be polished is vertically placed on the upper side of a first electromagnet 4, the first electromagnet 4 is electrified to attract and fix the nut on the upper side, a third electric telescopic rod 10 horizontally pushes a square block 11 to move rightwards, a second polishing disc 116 is enabled to correspond to the first electromagnet 4, a second motor 115 is opened to rotate the second polishing disc 116, the first electric telescopic rod 2 pushes the first electromagnet 4 upwards to enable the nut to be contacted with the second polishing disc 116 for polishing, after one end surface of the nut is polished, the first electric telescopic rod 2 pulls the first electromagnet 4 downwards to enable the first electromagnet 4 to be powered off, the third electric telescopic rod 10 pulls the square block 11 to enable the square block 11 to be reset, the second electric telescopic rod 5 pushes the second electromagnet 7 downwards to enable the second electromagnet 7 to be contacted with the nut on the upper side of the first electromagnet 4, the second electromagnet 7 is electrified to attract the nut on the upper side of the first electromagnet 4, the second electric telescopic rod 5 is pulled back upwards to the second electromagnet 7 to reset, the third electric telescopic rod 10 horizontally pushes the square block 11 to move rightwards so that the first polishing disk 113 corresponds to the second electromagnet 7, the first motor 112 is started to rotate the first polishing disk 113, the second electric telescopic rod 5 downwards pushes the second electromagnet 7 so that the nut is contacted with the first polishing disk 113 to polish, after the other surface of the nut is polished, the third electric telescopic rod 10 pulls the square block 11 to reset the square block, the fourth electric telescopic rod 8 horizontally pushes the material receiving box 9 to the left, the material receiving box 9 corresponds to the second electromagnet 7, the second electromagnet 7 is powered off, the nut on the second electromagnet 7 falls into the material receiving box 9, the dust collector 14 is opened, and a large amount of dust generated during polishing is sucked out and filtered through the dust filtering box 15 and then is discharged through the air exhaust hole 151.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (5)

1. The utility model provides a nut port face grinding device, includes box (1), its characterized in that: the bottom in the box body (1) is provided with a first electric telescopic rod (2), the telescopic end of the first electric telescopic rod (2) is vertically and upwards vertical, the tail end of the telescopic end of the first electric telescopic rod (2) is fixedly connected with a horizontally arranged first supporting plate (3), the upper side of the first supporting plate (3) is provided with a horizontally arranged first electromagnet (4), the top in the box body (1) is provided with a second electric telescopic rod (5), the telescopic end of the second electric telescopic rod (5) is vertically and downwards arranged towards the first electromagnet (4), the tail end of the telescopic end of the second electric telescopic rod (5) is fixedly connected with a horizontally arranged second supporting plate (6), the lower side of the second supporting plate (6) is provided with a horizontally arranged second electromagnet (7), the second electromagnet (7) is arranged opposite to the first electromagnet (4), the inner wall on one side of the box body (1) is provided with a third electric telescopic rod (10), the telescopic end of the third electric telescopic rod (10) is horizontally arranged towards the inner wall of the other side of the box body (1), the tail end of the telescopic end of the third electric telescopic rod (10) is fixedly connected with a square block (11) which is vertically arranged, the upper end of the square block (11) is provided with a first mounting groove (111), a first motor (112) is arranged in the first mounting groove (111), a main shaft of the first motor (112) vertically extends upwards to the outer side of the square block (11), the extension end of the main shaft of the first motor (112) is fixedly connected with a first polishing disc (113) which is horizontally arranged, the lower end of the square block (11) is provided with a second mounting groove (114), a second motor (115) is arranged in the second mounting groove (114), the main shaft of the second motor (115) vertically extends downwards to the outer side of the square block (11), a second polishing disc (116) which is horizontally arranged is fixedly connected with the extending end of the main shaft of the second motor (115);
the upside of box (1) is equipped with dust catcher (14), the inlet scoop of dust catcher (14) is equipped with aspiration channel (141), the one end of aspiration channel (141) runs through box (1) downwards and is linked together with dust absorption mouth (142), top in box (1) is passed through connecting rod fixed connection in dust absorption mouth (142), dust absorption mouth (142) are vertical to be set up downwards, the air outlet of dust catcher (14) is linked together through outlet duct (143) and dust filtering box (15), dust filtering box (15) fixed connection is at the upside of box (1).
2. The nut port face grinding device of claim 1, wherein: one side that box (1) is close to dust filtering box (15) is equipped with fourth electric telescopic handle (8), and the flexible end level of fourth electric telescopic handle (8) runs through box (1) and stretches into in box (1), connects magazine (9) that the end fixed connection level of the flexible end of fourth electric telescopic handle (8) set up.
3. The nut port face grinding device of claim 2, wherein: the material receiving box (9) is arranged corresponding to the square block (11), and a rubber pad (91) is arranged at the bottom in the material receiving box (9).
4. The nut port face grinding device of claim 1, wherein: an air inlet hole (152) is formed in one side of the dust filtering box (15), the air outlet pipe (143) is communicated with the air inlet hole (152), a horizontally arranged inserting port (154) is formed in one side of the dust filtering box (15), the inserting port (154) is communicated with the dust filtering box (15), a horizontally arranged inserting groove (153) is formed in the inner wall, far away from the inserting port (154), of the dust filtering box (15), the inserting groove (153) is arranged corresponding to the inserting port (154), a horizontally arranged filter screen plate (155) is inserted and matched and connected in the inserting groove (153) in the inserting port (154), one end of the filter screen plate (155) extends into the dust filtering box (15) and is inserted and matched and connected in the inserting groove (153), the other end of the filter screen plate (155) is arranged on the outer side of the inserting port (154) and fixedly connected with a vertically arranged baffle plate (156), a pull handle (157) is arranged on one side, far away from the filter, an air exhaust hole (151) is arranged above one side of the dust filtering box (15) close to the plug-in port (154).
5. The nut port face grinding device of claim 1, wherein: the square block (11) is fixedly connected with a guide rod (16) which is horizontally arranged on one side of the third electric telescopic rod (10), a group of guide holes are formed in one side, close to the third electric telescopic rod (10), of the box body (1), the guide rods (16) are in one-to-one correspondence to penetrate through the guide holes, and each guide rod (16) can horizontally slide along the guide holes opposite to the guide rods.
