Abstract
The utility model discloses a batching jar improves structure for printing and dyeing relates to stirring tool technical field for printing and dyeing technology, comprising a cylinder body, the last fixed surface of cylinder body is connected with the casing, the left side inner wall fixedly connected with servo motor of casing, servo motor's output fixedly connected with lead screw, the outside threaded connection of lead screw has the sliding seat, the lower fixed surface of sliding seat is connected with the motor, the output fixedly connected with pivot of motor, the spout has been seted up on the top of cylinder body, the bottom of pivot runs through the spout and is located the inside of cylinder body, a plurality of (mixing) shafts of the equal fixedly connected with in both sides of pivot, fixed mounting has the flight on the (mixing) shaft. The utility model discloses a cooperation setting of servo motor, lead screw and sliding seat can make (mixing) shaft and flight can remove about rotating the in-process for raw materials and (mixing) shaft and flight fully contact, thereby make the raw materials by stirring misce bene.
Description
Technical Field
The utility model relates to a stirring tool technical field for the printing and dyeing technology, in particular to improve structure with batching jar for printing and dyeing.
Background
In the printing and dyeing process of cloth, dye needs to be configured in a mixing cylinder, the mixing cylinder is named as a material mixing cylinder and a material mixing cylinder, the mixing cylinder has the advantages of energy conservation, corrosion resistance, strong production capacity, convenience in cleaning, simple structure and the like, is mainly used for uniformly stirring milk products, food and various medicines after being matched, and is indispensable equipment for manufacturers for manufacturing dairy products, beverages, medicines and the like.
Batching jar mainly includes cylinder body, end cover to and rabbling mechanism, among the prior art, the rabbling mechanism is fixed mounting usually in the inside of cylinder body, leads to the rabbling mechanism's stirring effect not good enough.
Therefore, there is a need for an improved dispensing cylinder for printing and dyeing that solves the above problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a batching jar improves structure for printing and dyeing to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a printing and dyeing are with batching jar improvement structure, includes the cylinder body, the last fixed surface of cylinder body is connected with the casing, the left side inner wall fixedly connected with servo motor of casing, servo motor's output fixedly connected with lead screw, the outside threaded connection of lead screw has the sliding seat, the lower fixed surface of sliding seat is connected with the motor, the output fixedly connected with pivot of motor, the spout has been seted up on the top of cylinder body, the bottom of pivot runs through the spout and is located the inside of cylinder body, a plurality of (mixing) shafts of the equal fixedly connected with in both sides of pivot, fixed mounting has the flight on the (mixing) shaft.
Optionally, the housing is a box body without a lower surface;
the right end of the screw rod is movably connected with the inner wall of the left side of the shell through a bearing seat.
Optionally, it is a plurality of the (mixing) shaft is from last to being equidistant distribution down in proper order, the (mixing) shaft is located the inside of cylinder body.
Optionally, the inside fixedly connected with guide bar of casing, the guide bar is located servo motor's top, the outside sliding connection of guide bar has the sliding sleeve, the bottom of sliding sleeve and the top fixed connection of sliding seat.
Optionally, a protective shell is arranged on the outer side of the motor, the protective shell is fixedly mounted on the lower surface of the sliding seat, and the rotating shaft is movably connected with the protective shell through a bearing seat.
Optionally, the right side top fixedly connected with inlet pipe of cylinder body, fixed mounting has feed valve on the inlet pipe.
Optionally, the left bottom end of the cylinder body is fixedly connected with a discharge pipe, and a discharge valve is fixedly mounted on the discharge pipe.
The utility model discloses a technological effect and advantage:
1. the utility model discloses during the use, open feed valve, the raw materials that will treat the stirring are poured into the inside of cylinder body and are closed feed valve through the inlet pipe, the starter motor drives the pivot and is rotated, the pivot can drive the (mixing) shaft rotation at the rotation in-process, the (mixing) shaft can drive the flight rotation at the rotation in-process, can stir the raw materials through the rotation of (mixing) shaft and flight, start servo motor and drive the lead screw rotation, when lead screw corotation, the lead screw can drive threaded connection's sliding seat and remove right at the corotation in-process, the sliding seat can drive the motor at the removal in-process, a rotating shaft, the (mixing) shaft and flight remove right, when the lead screw reverses, the lead screw can drive threaded connection's sliding seat and remove left at the reversal in-process, the sliding seat can drive the motor at the removal in-process, a, The cooperation setting of lead screw and sliding seat can make (mixing) shaft and flight can remove about rotating the in-process for raw materials and (mixing) shaft and flight fully contact, thereby make the raw materials by stirring misce bene.
2. The utility model discloses a cooperation setting of guide bar and sliding sleeve can prevent that the lead screw from driving the sliding seat in the rotation process and rotating to can make the lead screw drive the sliding seat and remove rotating the in-process.
Drawings
Fig. 1 is a schematic view of the structure of the present invention.

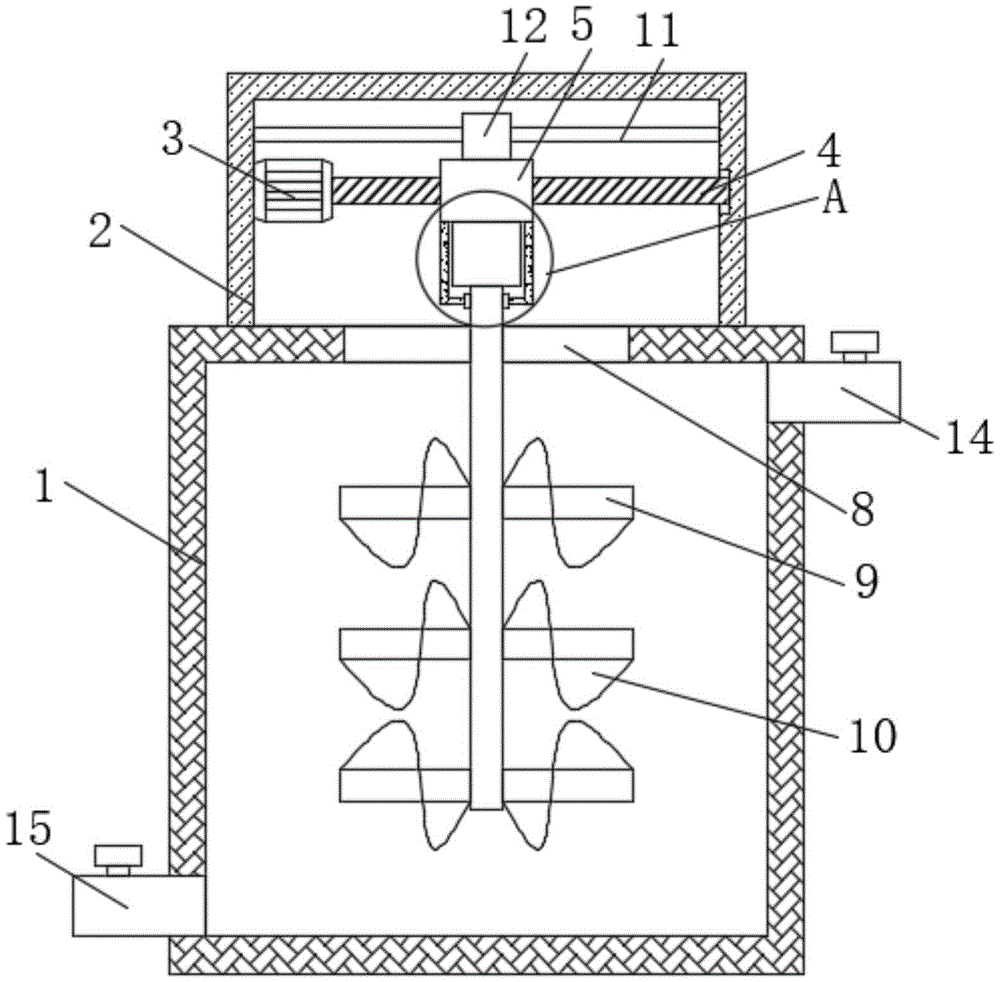

Fig. 2 is a schematic sectional view of the structure of the present invention.
Fig. 3 is an enlarged schematic view of a structure a in fig. 2 according to the present invention.
Fig. 4 is a schematic perspective view of the cylinder structure of the present invention.
In the figure: 1. a cylinder body; 2. a housing; 3. a servo motor; 4. a screw rod; 5. a sliding seat; 6. a motor; 7. a rotating shaft; 8. a chute; 9. a stirring shaft; 10. a spiral sheet; 11. a guide bar; 12. a sliding sleeve; 13. a protective shell; 14. a feed pipe; 15. and (4) discharging the pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like, indicate the orientation or positional relationship indicated based on the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
In the present invention, unless otherwise expressly stated or limited, the terms "disposed," "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection or a removable connection; may be a mechanical connection; may be directly connected or indirectly connected through an intermediate. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
The utility model provides an improved structure of a batching cylinder for printing and dyeing as shown in figures 1-4, which comprises a cylinder body 1, a feeding pipe 14 is fixedly connected with the top end of the right side of the cylinder body 1, a feeding valve is fixedly arranged on the feeding pipe 14, a discharging pipe 15 is fixedly connected with the bottom end of the left side of the cylinder body 1, a discharging valve is fixedly arranged on the discharging pipe 15, a shell 2 is fixedly connected with the upper surface of the cylinder body 1, the shell 2 is a box body without a lower surface, a servo motor 3 is fixedly connected with the inner wall of the left side of the shell 2, a lead screw 4 is fixedly connected with the output end of the servo motor 3, the right end of the lead screw 4 is movably connected with the inner wall of the left side of the shell 2 through a bearing seat, a sliding seat 5 is connected with the outer side of the lead screw 4 through a thread, the bottom end of the sliding sleeve 12 is fixedly connected with the top end of the sliding seat 5, the sliding seat 5 can be prevented from rotating in the rotating process by the aid of the guide rod 11 and the sliding sleeve 12 which are arranged in a matched mode, so that the screw rod 4 can drive the sliding seat 5 to move in the rotating process, the lower surface of the sliding seat 5 is fixedly connected with the motor 6, the output end of the motor 6 is fixedly connected with the rotating shaft 7, the outer side of the motor 6 is provided with the protective shell 13, the protective shell 13 is fixedly arranged on the lower surface of the sliding seat 5, the rotating shaft 7 is movably connected with the protective shell 13 through the bearing seat, the protective shell 13 plays a role in protecting the motor 6, the top end of the cylinder body 1 is provided with the sliding groove 8, the bottom end of the rotating shaft 7 penetrates through the sliding groove 8 and is positioned in the cylinder body 1, the two sides of the rotating shaft 7 are fixedly connected with a plurality, the stirring shaft 9 is positioned inside the cylinder body 1, the spiral piece 10 is fixedly installed on the stirring shaft 9, the feeding valve is opened, raw materials to be stirred are poured into the cylinder body 1 through the feeding pipe 14, the feeding valve is closed, the starting motor 6 drives the rotating shaft 7 to rotate, the rotating shaft 7 can drive the stirring shaft 9 to rotate in the rotating process, the stirring shaft 9 can drive the spiral piece 10 to rotate in the rotating process, the raw materials can be stirred through the rotation of the stirring shaft 9 and the spiral piece 10, the servo motor 3 is started to drive the screw rod 4 to rotate, when the screw rod 4 rotates forwards, the screw rod 4 can drive the sliding seat 5 in threaded connection to move rightwards in the forward rotating process, the sliding seat 5 can drive the motor 6, the rotating shaft 7, the stirring shaft 9 and the spiral piece 10 to move rightwards in the moving process, when the screw rod 4 rotates backwards, the screw rod 4 can drive the, sliding seat 5 can drive motor 6, pivot 7, (mixing) shaft 9 and flight 10 and remove left at the removal in-process, sets up through servo motor 3, lead screw 4 and sliding seat 5's cooperation, can make (mixing) shaft 9 and flight 10 remove about rotating the in-process for raw materials and (mixing) shaft 9 and flight 10 fully contact, thereby make the raw materials stirred the misce bene.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
This practical theory of operation: opening a feeding valve, pouring raw materials to be stirred into the cylinder body 1 through a feeding pipe 14 and closing the feeding valve, starting a motor 6 to drive a rotating shaft 7 to rotate, wherein the rotating shaft 7 can drive a stirring shaft 9 to rotate in the rotating process, the stirring shaft 9 can drive a spiral sheet 10 to rotate in the rotating process, the raw materials can be stirred through the rotation of the stirring shaft 9 and the spiral sheet 10, a servo motor 3 is started to drive a lead screw 4 to rotate, when the lead screw 4 rotates forwards, the lead screw 4 can drive a sliding seat 5 which is in threaded connection to move rightwards in the forward rotating process, the sliding seat 5 can drive the motor 6, the rotating shaft 7, the stirring shaft 9 and the spiral sheet 10 to move rightwards in the moving process, when the lead screw 4 rotates backwards, the lead screw 4 can drive the sliding seat 5 which is in threaded connection to move leftwards in the reverse rotating process, the sliding seat 5, (mixing) shaft 9 and flight 10 remove left, through servo motor 3, lead screw 4 and sliding seat 5's cooperation setting, can make (mixing) shaft 9 and flight 10 remove about rotating the in-process for the raw materials fully contacts with (mixing) shaft 9 and flight 10, thereby makes the raw materials stirred the misce bene.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (7)
1. The utility model provides a printing and dyeing is with batching jar improvement structure, includes cylinder body (1), its characterized in that: the upper surface fixedly connected with casing (2) of cylinder body (1), the left side inner wall fixedly connected with servo motor (3) of casing (2), the output fixedly connected with lead screw (4) of servo motor (3), the outside threaded connection of lead screw (4) has sliding seat (5), the lower fixed surface of sliding seat (5) is connected with motor (6), the output fixedly connected with pivot (7) of motor (6), spout (8) have been seted up on the top of cylinder body (1), spout (8) are run through and are located the inside of cylinder body (1) in the bottom of pivot (7), a plurality of (mixing) shaft (9) of the equal fixedly connected with in both sides of pivot (7), fixed mounting has flight (10) on (mixing) shaft (9).
2. The improved structure of the dispensing cylinder for printing and dyeing as claimed in claim 1, characterized in that:
the shell (2) is a box body without a lower surface;
the right end of the screw rod (4) is movably connected with the inner wall of the left side of the shell (2) through a bearing seat.
3. The improved structure of the dispensing cylinder for printing and dyeing as claimed in claim 1, characterized in that:
a plurality of (mixing) shaft (9) are equidistant distribution from last to down in proper order, (mixing) shaft (9) are located the inside of cylinder body (1).
4. The improved structure of the dispensing cylinder for printing and dyeing as claimed in claim 1, characterized in that:
the inside fixedly connected with guide bar (11) of casing (2), guide bar (11) are located the top of servo motor (3), the outside sliding connection of guide bar (11) has sliding sleeve (12), the bottom of sliding sleeve (12) and the top fixed connection of sliding seat (5).
5. The improved structure of the dispensing cylinder for printing and dyeing as claimed in claim 1, characterized in that:
the outer side of the motor (6) is provided with a protective shell (13), the protective shell (13) is fixedly installed on the lower surface of the sliding seat (5), and the rotating shaft (7) is movably connected with the protective shell (13) through a bearing seat.
6. The improved structure of the dispensing cylinder for printing and dyeing as claimed in claim 1, characterized in that:
the right side top fixedly connected with inlet pipe (14) of cylinder body (1), fixed mounting has feed valve on inlet pipe (14).
7. The improved structure of the dispensing cylinder for printing and dyeing as claimed in claim 1, characterized in that:
the left side bottom fixedly connected with discharging pipe (15) of cylinder body (1), fixed mounting has the ejection of compact valve on discharging pipe (15).
