CN211963223U - Portable landfill leachate processing apparatus - Google Patents
Portable landfill leachate processing apparatus Download PDFInfo
- Publication number
- CN211963223U CN211963223U CN202020307832.9U CN202020307832U CN211963223U CN 211963223 U CN211963223 U CN 211963223U CN 202020307832 U CN202020307832 U CN 202020307832U CN 211963223 U CN211963223 U CN 211963223U
- Authority
- CN
- China
- Prior art keywords
- box
- filter
- landfill leachate
- gyro wheel
- rollers
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model discloses a portable landfill leachate processing apparatus, the power distribution box comprises a box body, the gyro wheel is installed to the bottom of box, and the front side of box is installed and is drawn the hook, and the outlet is installed to the rear side of box, and the filter is installed to the top case mouth of box, and the filter top is equipped with by gyro wheel driven clean structure, is equipped with detachable storage sediment part below this clean structure front side, clean structure is including setting up the live-rollers at the filter both ends, and two live-rollers pass through the strip drive belt and connect, and the brush that equidistant setting was installed in the outside of strip drive belt. The utility model discloses simple structure, through setting up the gyro wheel, it is more convenient that the box removes, improve equipment's utilization ratio, strip drive belt and brush remove not need external power supply moreover, the energy can be saved, and the filter residue in time cleans, can improve the work efficiency of filter.
Description
Technical Field
The utility model relates to a filtration liquid treatment technical field especially relates to a portable landfill leachate treatment device.
Background
During the stacking and landfill processes of the garbage, due to biochemical degradation effects such as compaction, fermentation and the like, a high-concentration liquid with organic or inorganic components is generated under the seepage action of precipitation and groundwater, and the high-concentration liquid is called as garbage leachate and is also called leachate; the distribution of the percolate is not concentrated, if a filtering device is established at a certain position, the utilization rate of the device cannot be maximized, and the cost investment is high.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a movable garbage leachate treatment device.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a portable landfill leachate processing apparatus, includes the box, the gyro wheel is installed to the bottom of box, and the front side of box is installed and is drawn the hook, and the outlet is installed to the rear side of box, and the filter is installed to the top case mouth of box, and the filter top is equipped with by gyro wheel driven clean structure, is equipped with detachable storage sediment part below this clean structure front side.
Preferably, the cleaning structure comprises rotating rollers arranged at two ends of the filter plate in an erected mode, the two rotating rollers are connected through a strip-shaped transmission belt, and brushes arranged at equal intervals are installed on the outer side of the strip-shaped transmission belt.
Preferably, the rolling shaft of the roller is connected with the rotating roller through a driving belt, and the driving belt is arranged in a cross connection mode.
Preferably, the slag storage component comprises a slag box, one side of the slag box, which is close to the box body, is provided with a hook, and the box body is provided with a hanging ring corresponding to the hook.
Preferably, a plurality of baffle plates arranged at equal intervals are arranged on the inner wall of the box body.
Preferably, the filter plate sets up in the slope, and installs the blend stop at the filter plate least significant end.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses simple structure, through setting up the gyro wheel, it is more convenient that the box removes, improve equipment's utilization ratio, strip drive belt and brush remove not need external power supply moreover, the energy can be saved, and the filter residue in time cleans, can improve the work efficiency of filter.
Drawings

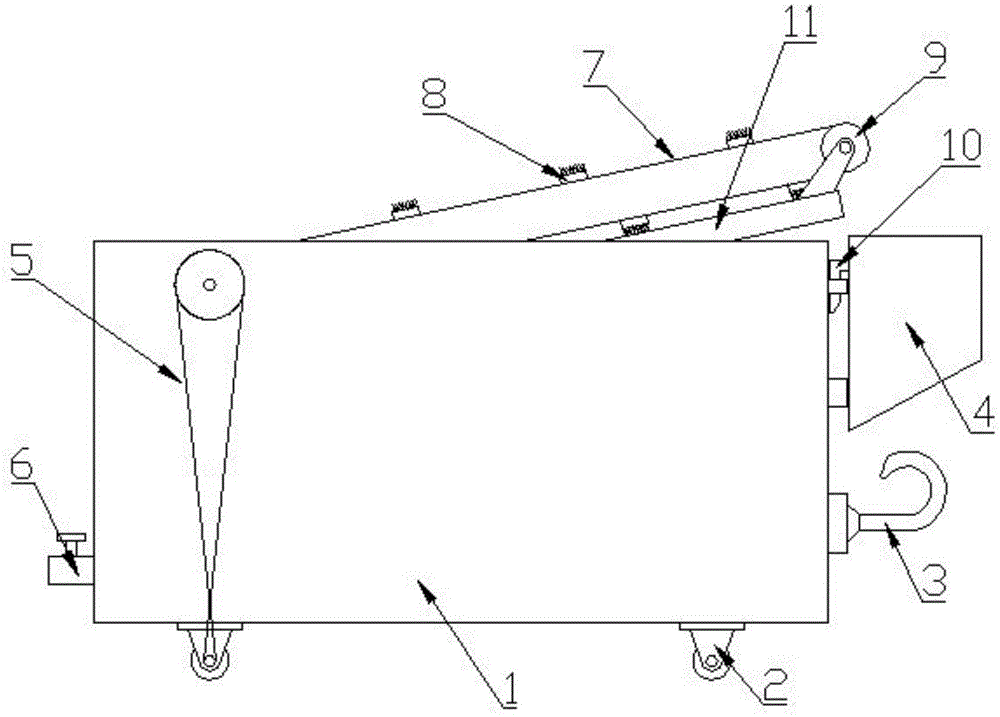

Fig. 1 is a schematic structural diagram of the present invention;
fig. 2 is a cross-sectional view of fig. 1.
In the figure: the device comprises a box body 1, a roller 2, a traction hook 3, a waste residue box 4, a driving belt 5, a water outlet 6, a strip-shaped driving belt 7, a brush 8, a rotating roller 9, a hook 10, a filter plate 11, a barrier plate 12 and a barrier strip 13.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-2, a portable landfill leachate treatment facilities, includes box 1, and gyro wheel 2 is installed to the bottom of box 1, and towing hook 3 is installed to the front side of box 1, and outlet 6 is installed to the rear side of box 1, and filter 11 is installed to the top case mouth of box 1, and filter 11 top is equipped with the clean structure by gyro wheel 2 driven, is equipped with detachable storage sediment part below this clean structure front side.
Clean structure is including erectting at the live-rollers 9 at 11 both ends of filter, and two live-rollers 9 pass through strip drive belt 7 and connect, and the brush 8 that equidistant setting was installed in the outside of strip drive belt 7 utilizes brush 8 to clean filter residue on the filter 11, avoids its gathering on filter 11.
The roller shaft of the roller 2 is connected with the rotating roller 9 through the driving belt 5, the driving belt 5 is arranged in a cross connection mode, the roller 2 is used for moving, the driving hairbrush 8 is driven to move, an external power source is not needed, and energy is saved.
Store up the sediment part and include waste residue box 4, one side that waste residue box 4 is close to box 1 is equipped with couple 10, is equipped with the link corresponding with couple 10 on the box 1 for deposit the filter residue that cleans down, can dismantle moreover, conveniently empty.
A plurality of equidistantly arranged baffle plates 12 are arranged on the inner wall of the box body 1, and the inertia of the filtered water is slowed down to one box of the box body 1 by utilizing the separation effect of the baffle plates 12.
The setting of 11 slopes of filter, and install blend stop 13 at 11 least significant ends of filter, 11 following flows can be followed to filtration liquid, avoid concentrating on a certain piece and filter, but blend stop 13 separation filter residue gets into in the box 1.
In the present case, pour into filtration liquid from filter 11 top, filter 11 filters it, and the filter residue then can remain in filter 11 top, after a filtration liquid is handled, usable tractor pulls box 1 through towing hook 3 and removes, gyro wheel 2 drives strip drive belt 7 and 8 anticlockwise rotations of brush through driving band 5, sweep the filter residue of filter 11 top into waste residue box 4, through setting up gyro wheel 2, box 1 removes more conveniently, improve equipment's utilization ratio, and strip drive belt 7 and 8 removal of brush need not external power supply, the energy can be saved, the filter residue is in time cleaned, can improve filter 11's work efficiency.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a portable landfill leachate processing apparatus, includes box (1), its characterized in that, gyro wheel (2) are installed to the bottom of box (1), and towing hook (3) are installed to the front side of box (1), and outlet (6) are installed to the rear side of box (1), and filter (11) are installed to the top case mouth of box (1), and filter (11) top is equipped with by gyro wheel (2) driven clean structure, is equipped with detachable storage sediment part in this clean structure front side below.
2. The mobile landfill leachate treatment plant of claim 1, wherein the cleaning structure comprises rotating rollers (9) mounted at both ends of the filter plate (11), the two rotating rollers (9) are connected by a strip belt (7), and brushes (8) are mounted on the outer side of the strip belt (7) at equal intervals.
3. The mobile landfill leachate treatment plant according to claim 2, wherein the rollers of the rollers (2) are connected to the rotating rollers (9) by means of drive belts (5), and the drive belts (5) are arranged in a cross-connection manner.
4. The mobile landfill leachate treatment device according to claim 2, wherein the slag storage component comprises a slag box (4), a hook (10) is arranged on one side of the slag box (4) close to the box body (1), and a hanging ring corresponding to the hook (10) is arranged on the box body (1).
5. Mobile landfill leachate treatment plant according to claim 4, characterized in that the inner wall of the tank (1) is fitted with a plurality of baffle plates (12) arranged equidistantly.
6. The mobile landfill leachate treatment plant according to claim 2, wherein the filter plate (11) is disposed obliquely and the barrier strip (13) is installed at the lowest end of the filter plate (11).
