The utility model discloses a make things convenient for height-adjusting's mining machinery strutting arrangement, include base, electric putter, place board, opening and wheel components, the equal fixedly connected with electric putter in the left and right sides at base top, two electric putter's top is through placing board fixed connection, the opening has all been seted up to the left and right sides of base bottom, the inside of base is provided with wheel components, wheel components includes two servo motor, and two servo motor symmetries set up the left and right sides at the base inner wall, servo motor's the last servo pivot of fixedly connected with of output shaft, servo motor's one end fixedly connected with thread bush is kept away from in servo pivot. The utility model discloses a base, electric putter, place board, opening and wheel components and mutually support, played the height-adjusting of being convenient for and placed firm effect, limited avoided the phenomenon that appears the displacement, excellent in use effect brings very big facility for the user.
Description
Technical Field
The utility model relates to a mining machinery strutting arrangement technical field specifically is a make things convenient for height-adjusting's mining machinery strutting arrangement.
Background
When mining in the mine, need use various machinery, because height is not unified everywhere in the mine, along with the going on of mining work, need continuous regulation mining machinery's position, need use strutting arrangement to support a part of mining machinery, make things convenient for the mining machinery operation. At present, the height of common mining machinery supporting device is not convenient for adjust, and places and stabilize inadequately, and the displacement phenomenon easily appears, and the result of use is poor.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a make things convenient for height-adjusting's mining machinery strutting arrangement to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a mining machinery supporting device convenient for height adjustment comprises a base, electric push rods, a placing plate, through openings and roller assemblies, wherein the electric push rods are fixedly connected to the left side and the right side of the top of the base;
the roller component comprises two servo motors, the two servo motors are symmetrically arranged on the left side and the right side of the inner wall of the base, a servo rotating shaft is fixedly connected onto an output shaft of each servo motor, one end, away from each servo motor, of each servo rotating shaft is fixedly connected with a threaded sleeve, a threaded rod is arranged inside each threaded sleeve, one end, away from each threaded sleeve, of each threaded rod penetrates through each threaded sleeve and extends to the outside of each threaded sleeve to be fixedly connected with a fixed plate, the two fixed plates are movably connected, a first shaft rod is fixedly connected to the front side of each fixed plate, slide rods are fixedly connected to the left side and the right side of the bottom of the inner wall of the base, baffles are fixedly connected to the tops of the slide rods through supporting plates in a sliding manner, rollers are fixedly connected to the bottoms of the supporting plates and correspond to the positions of the through holes, the front side fixedly connected with two second axostylus axostyles of fixed block is articulated through the connecting rod between the first axostylus axostyle that is located the homonymy and the second axostylus axostyle, the right side fixedly connected with controller of base, electric putter and servo motor respectively with controller electric connection.
Preferably, the surface of the servo motor is fixedly connected with the inside of the base.
Preferably, the threaded rod is in threaded connection with the threaded sleeve.
Preferably, the surface of the supporting plate is movably connected with the inner wall of the base.
Preferably, the first shaft and the second shaft are of the same size.
Compared with the prior art, the beneficial effects of the utility model are as follows:
the utility model discloses a base, electric putter, place board, opening and wheel components and mutually support, played the height-adjusting of being convenient for and placed firm effect, limited avoided the phenomenon that appears the displacement, excellent in use effect brings very big facility for the user.
Drawings

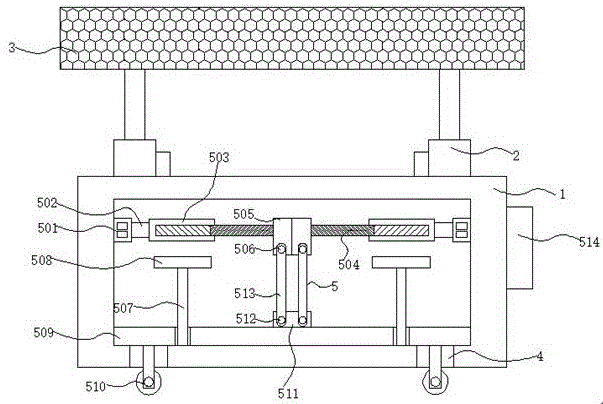

FIG. 1 is a structural section view in elevation of the present invention;
fig. 2 is a schematic structural diagram of the front view of the present invention.
In the figure: the device comprises a base 1, an electric push rod 2, a placing plate 3, a through opening 4, a roller assembly 5, a servo motor 501, a servo rotating shaft 502, a threaded sleeve 503, a threaded rod 504, a fixing plate 505, a first shaft 506, a sliding rod 507, a baffle 508, a supporting plate 509, a roller 510, a fixing block 511, a second shaft 512, a connecting rod 513 and a controller 514.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, a mining machinery supporting device convenient for height adjustment comprises a base 1, electric push rods 2, a placing plate 3, through openings 4 and roller assemblies 5, wherein the electric push rods 2 are fixedly connected to the left side and the right side of the top of the base 1, the tops of the two electric push rods 2 are fixedly connected with the placing plate 3, the through openings 4 are formed in the left side and the right side of the bottom of the base 1, and the roller assemblies 5 are arranged inside the base 1.
The roller assembly 5 comprises two servo motors 501, the two servo motors 501 are symmetrically arranged on the left side and the right side of the inner wall of the base 1, the surface of the servo motor 501 is fixedly connected with the inside of the base 1, a servo rotating shaft 502 is fixedly connected on an output shaft of the servo motor 501, a threaded sleeve 503 is fixedly connected with one end of the servo rotating shaft 502 far away from the servo motor 501, a threaded rod 504 is arranged inside the threaded sleeve 503, one end of the threaded rod 504 far away from the threaded sleeve 503 penetrates through the threaded sleeve 503 and extends to the outside of the threaded sleeve 503 and is fixedly connected with a fixing plate 505, the threaded rod 504 is in threaded connection with the threaded sleeve 503, the two fixing plates 505 are movably connected, a first shaft 506 is fixedly connected with the front side of the fixing plate 505, slide bars 507 are fixedly connected with the left side and the right side of the bottom of the inner, swing joint between the surface of backup pad 509 and base 1's the inner wall, backup pad 509 bottom just corresponds the position fixedly connected with gyro wheel 510 of opening 4, the bottom of gyro wheel 510 runs through opening 4 and extends to its outside, midpoint department fixedly connected with fixed block 511 at backup pad 509 top, two second axostylus axostyles 512 of front side fixedly connected with of fixed block 511, the specification of first axostylus axostyle 506 and second axostylus axostyle 512 is the same, it is articulated through connecting rod 513 between first axostylus axostyle 506 and the second axostylus axostyle 512 that are located the homonymy, base 1's right side fixedly connected with controller 514, electric putter 2.
During the use, remove this device to suitable position, then the user passes through controller 514 control servo motor 501 forward start, thereby it is rotatory to drive servo pivot 502 and thread bush 503 in proper order by servo motor 501, thereby make threaded rod 504 drive fixed plate 505 and first axostylus axostyle 506 to the one side motion that is close to servo motor 501, thereby drive second axostylus axostyle 512 in proper order through connecting rod 513 by first axostylus axostyle 506, fixed block 511, backup pad 509 and gyro wheel 510 upward movement, thereby make gyro wheel 510 withdraw inside to base 1 can, base 1's bottom can be with ground contact this moment, thereby stability when can improving this device and place, then fix mine equipment on placing plate 3, then it can to place board 3 upwards or move down to suitable height to drive through controller 514 control electric putter 2.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a make things convenient for mining machinery strutting arrangement of height-adjusting, includes base (1), electric putter (2), places board (3), opening (4) and wheel components (5), its characterized in that: the left side and the right side of the top of the base (1) are fixedly connected with electric push rods (2), the tops of the two electric push rods (2) are fixedly connected through a placing plate (3), through holes (4) are formed in the left side and the right side of the bottom of the base (1), and a roller assembly (5) is arranged in the base (1);
the roller assembly (5) comprises two servo motors (501), the two servo motors (501) are symmetrically arranged on the left side and the right side of the inner wall of the base (1), a servo rotating shaft (502) is fixedly connected to an output shaft of the servo motor (501), one end, far away from the servo motor (501), of the servo rotating shaft (502) is fixedly connected with a threaded sleeve (503), a threaded rod (504) is arranged inside the threaded sleeve (503), one end, far away from the threaded sleeve (503), of the threaded rod (504) penetrates through the threaded sleeve (503) and extends to the outside of the threaded sleeve and is fixedly connected with a fixing plate (505), the two fixing plates (505) are movably connected with each other, a first shaft rod (506) is fixedly connected to the front side of the fixing plate (505), slide rods (507) are fixedly connected to the left side and the right side of the bottom of the inner wall of the base (1, through backup pad (509) sliding connection between two slide bars (507), the position fixedly connected with gyro wheel (510) of backup pad (509) bottom and corresponding opening (4), the bottom of gyro wheel (510) runs through opening (4) and extends to its outside, midpoint department fixedly connected with fixed block (511) at backup pad (509) top, two second axostylus axostyles (512) of front side fixedly connected with of fixed block (511) are articulated through connecting rod (513) between first axostylus axostyle (506) and the second axostylus axostyle (512) that are located the homonymy, the right side fixedly connected with controller (514) of base (1), electric putter (2) and servo motor (501) respectively with controller (514) electric connection.
2. The mining machine supporting device with the height convenient to adjust as claimed in claim 1, wherein: the surface of the servo motor (501) is fixedly connected with the inside of the base (1).
3. The mining machine supporting device with the height convenient to adjust as claimed in claim 1, wherein: the threaded rod (504) is in threaded connection with the threaded sleeve (503).
4. The mining machine supporting device with the height convenient to adjust as claimed in claim 1, wherein: the surface of the supporting plate (509) is movably connected with the inner wall of the base (1).
5. The mining machine supporting device with the height convenient to adjust as claimed in claim 1, wherein: the first shaft (506) and the second shaft (512) are of the same gauge.
