The utility model discloses a sewage quality purification device, which comprises a bottom plate, a sewage stirring box is arranged on the left side of the top of the bottom plate, the left side of the top of the sewage stirring box is connected with a water inlet pipe, a motor box is arranged at the center of the top of the sewage stirring box, a stirring motor is arranged in the inner cavity of the motor box, a driving gear is arranged at the top of the stirring motor, a stirring rod is rotatably connected with the center of the top of the sewage stirring box, a driven gear is arranged at the top of the stirring rod, stirring blades are arranged on the outer wall of, and stirring vane is located the inner chamber of sewage agitator tank, and the right side wall lower extreme of sewage agitator tank is connected with the outlet pipe, and the quality of water purifying box is installed on the top right side of bottom plate, and the suction pump is installed at the top of quality of water purifying box, is connected with the drinking-water pipe between suction pump and the sewage agitator tank, and the left side of drinking-water pipe is taken water the department and is linked together with the right side wall upper end of sewage agitator tank. The utility model discloses can solve sewage treatment device's construction cost height, equipment investment is big, the high problem of running cost.

Description

Sewage quality purification device
Technical Field
The utility model relates to a sewage purification technology field specifically is a sewage quality of water purifier.
Background
Sewage treatment: the sewage is purified to reach the water quality requirement of being discharged into a certain water body or being reused. Sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people.
For the treatment of industrial and civil sewage, the conventional sewage treatment is to complete the whole process of sewage treatment by a sedimentation tank, an advection tank, a filtering device, a concentration tank, a mud-water separation device and the like, but the process equipment has large occupied area, high construction cost, large equipment investment and high operation cost, and is difficult to adopt the method for sewage disposal in common small and medium-sized enterprises. Therefore, a sewage quality purification device is designed.
SUMMERY OF THE UTILITY MODEL
The utility model provides a sewage quality purification device, which solves the problems of high construction cost, large equipment investment and high operation cost of sewage treatment equipment.
In order to achieve the purpose, the invention adopts the technical scheme that:
a sewage quality purification device comprises a bottom plate, wherein a sewage stirring tank is installed on the left side of the top of the bottom plate, a water inlet pipe is connected on the left side of the top of the sewage stirring tank, a motor box is installed at the center of the top of the sewage stirring tank, a stirring motor is installed in an inner cavity of the motor box, a driving gear is installed at the top of the stirring motor, a stirring rod is rotatably connected to the center of the top of the sewage stirring tank, the top of the stirring rod extends into the inner cavity of the motor box, a driven gear is installed at the top of the stirring rod and is meshed with the driving gear, stirring blades are installed on the outer wall of the stirring rod and are positioned in the inner cavity of the sewage stirring tank, a water outlet pipe is connected to the lower end of the right side wall of the sewage stirring tank, a water quality purification tank is installed on the right side, be connected with the drinking-water pipe between suction pump and the sewage agitator tank, and the left side of drinking-water pipe is drawn water the department and is linked together with the right side wall upper end of sewage agitator tank.
The utility model provides an aforementioned sewage purification device, the grafting fixed block is installed to the inner chamber upper end left and right sides symmetry of water purification case, the inner chamber from the top down of water purification case is pegged graft in proper order and is had first filter screen, second filter screen and active carbon filtration adsorption equipment, and first filter screen, second filter screen and active carbon filtration adsorption equipment all peg graft between the grafting fixed block, the handle is all installed to first filter screen, second filter screen and active carbon filtration adsorption equipment's right side.
According to the sewage quality purification device, the filtering aperture of the first filtering net is 0.5-1mm, the filtering aperture of the second filtering net is 0.02-0.1mm, the filtering effect of sewage is better through the filtering nets with different apertures, and large-particle objects are filtered.
In the above sewage purification device, the joint between the handle and the water purification box is provided with the sealing strip.
The utility model provides an aforementioned sewage quality purification device, stirring vane is provided with a plurality ofly, and a plurality of stirring vane are array form setting along the lateral wall of puddler, and the large granule thing in with solid and the sewage is broken and the deposit through the stirring, the sewage purification on next step of being convenient for.
According to the sewage quality purification device, the bottom of the stirring rod is rotatably connected with the center of the bottom of the sewage stirring box, and the rotating bearing is arranged at the joint of the stirring rod and the sewage stirring box.
The utility model has the advantages that: the utility model has the advantages of reasonable design, on the one hand, the rotation of driving gear is driven through the rotation of agitator motor, thereby drive driven gear's rotation, make the puddler stir in the sewage agitator tank, a plurality of stirring vane make the stirring more abundant, through stirring with the large granule thing breakage and the deposit in solid and the sewage, be convenient for next step sewage purification, make the dirt in the sewage can the layering, sink into the bottom of sewage agitator tank, and discharge the deposit of sewage agitator tank lower extreme through the outlet pipe, on the other hand control suction pump is with the upper strata water pumping inner chamber of water purification case after deposiing, with by first filter screen, second filter screen and active carbon filtration adsorption equipment with the water purification of pumping complete, discharge again, purify the sewage, and after long-time use, can take first filter screen out through the handle, second filter screen and active carbon filtration adsorption equipment clear up and change, simple structure and low cost.
Drawings

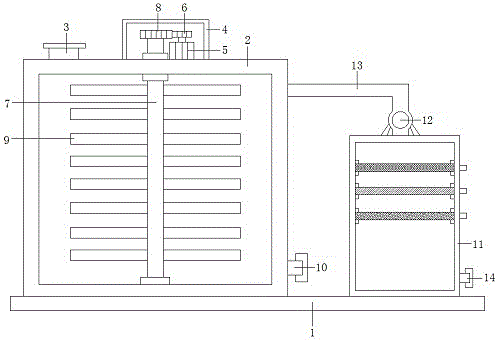

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic view of the structure of the water purifying tank.
In the figure: 1. the bottom plate, 2, sewage agitator tank, 3, inlet tube, 4, motor case, 5, agitator motor, 6, driving gear, 7, puddler, 8, driven gear, 9, stirring vane, 10, the outlet pipe, 11, water purification case, 1101, grafting fixed block, 1102, first filter screen, 1103, second filter screen, 1104, active carbon filtration adsorption equipment, 1105, handle, 12, suction pump, 13, drinking-water pipe.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
Referring to FIGS. 1-2: a sewage quality purification device comprises a bottom plate 1, a sewage stirring tank 2 is installed on the left side of the top of the bottom plate 1, a water inlet pipe 3 is connected on the left side of the top of the sewage stirring tank 2, a motor tank 4 is installed at the center of the top of the sewage stirring tank 2, a stirring motor 5 is installed in an inner cavity of the motor tank 4, a driving gear 6 is installed at the top of the stirring motor 5, a stirring rod 7 is rotatably connected at the center of the top of the sewage stirring tank 2, the top of the stirring rod 7 extends into the inner cavity of the motor tank 4, the bottom of the stirring rod 7 is rotatably connected with the center of the bottom of the sewage stirring tank 2, a rotating bearing is arranged at the joint of the stirring rod 7 and the sewage stirring tank 2, a driven gear 8 is installed at the top of the stirring rod 7, the driven gear 8 is meshed with the driving gear 6 and connected, stirring blades 9 are installed on the, a plurality of stirring blades 9 are arranged, the stirring blades 9 are arranged in an array shape along the side wall of the stirring rod 7, the lower end of the right side wall of the sewage stirring tank 2 is connected with a water outlet pipe 10, the right side of the top of the bottom plate 1 is provided with a water quality purification tank 11, the left side and the right side of the upper end of the inner cavity of the water quality purification tank 11 are symmetrically provided with inserting fixing blocks 1101, the inner cavity of the water quality purification tank 11 is sequentially inserted with a first filter screen 1102, a second filter screen 1103 and an active carbon filtering adsorption device 1104 from top to bottom, the first filter screen 1102, the second filter screen 1103 and the active carbon filtering adsorption device 1104 are inserted between the inserting fixing blocks 1101, the right sides of the first filter screen 1102, the second filter screen 1103 and the active carbon filtering adsorption device 1104 are respectively provided with a handle 1105, the filter aperture of the first filter screen 1101 is 0.5-1mm, the filter aperture of the second filter screen 2503 is 0.02-0.1mm, and, the water quality purifying box 11 is provided with a water suction pump 12 at the top, a water suction pipe 13 is connected between the water suction pump 12 and the sewage stirring box 2, and the left side of the water suction pipe 13 is communicated with the upper end of the right side wall of the sewage stirring box 2.
To sum up, the utility model discloses when using, the rotation that drives driving gear 6 through agitator motor 5 on the one hand drives the rotation of driven gear 8, make puddler 7 stir in sewage agitator tank 2, a plurality of stirring vane 9 make the stirring more abundant, through stirring with the large granule thing breakage and the deposit in solid and the sewage, be convenient for sewage purification on next step, make the dirt in the sewage can the layering, sink into the bottom of sewage agitator tank 2, and discharge the deposit of sewage agitator tank 2 lower extreme through outlet pipe 10, on the other hand control suction pump 12 is with the inner chamber of water quality suction water purification case 11 after the upper strata precipitates, with by first filter screen 1102, second filter screen 1103 and active carbon filtration adsorption equipment 1104 purify the water of suction completely, discharge again, handle sewage purification treatment, and after long-time use, accessible handle 1105 takes first filter screen 1102 out, The second filter screen 1103 and the activated carbon filtering and adsorbing device 1104 are cleaned and replaced, the structure is simple, the price is low, and the problems of high construction cost, large equipment investment and high operation cost of sewage treatment equipment are solved.
The stirring motor and the water pump mentioned in the above embodiments are all electrical components which are easily available in the market, and the stirring motor and the water pump are mature technologies which are mastered by technicians in the field, and in this embodiment, only the stirring motor and the water pump are used without changing the structure and the function of the stirring motor and the water pump, and the stirring motor and the water pump are both provided with control switches which are matched with the stirring motor and the water pump, and the switch positions can be specifically limited according to actual use conditions.
The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.

Claims (6)

1. The utility model provides a sewage quality purification device, includes bottom plate (1), its characterized in that: the sewage treatment device is characterized in that a sewage stirring box (2) is installed on the left side of the top of the bottom plate (1), a water inlet pipe (3) is connected on the left side of the top of the sewage stirring box (2), a motor box (4) is installed at the center of the top of the sewage stirring box (2), a stirring motor (5) is installed in an inner cavity of the motor box (4), a driving gear (6) is installed at the top of the stirring motor (5), a stirring rod (7) is rotatably connected to the center of the top of the sewage stirring box (2), the top of the stirring rod (7) extends into the inner cavity of the motor box (4), a driven gear (8) is installed at the top of the stirring rod (7), the driven gear (8) is meshed with the driving gear (6) and is connected with the outer wall of the stirring rod (7) in a meshed mode, stirring blades (9) are installed on the, the utility model discloses a sewage agitator tank, including bottom plate (1), water quality purifying box (11), suction pump (12) are installed on the top of water quality purifying box (11), the right side wall lower extreme of sewage agitator tank (2) is connected with outlet pipe (10), water quality purifying box (11) are installed on the top right side of bottom plate (1), be connected with between suction pump (12) and sewage agitator tank (2) drinking-water pipe (13), and the left side of drinking-water pipe (13) is taken water and is located and the right side wall upper end of sewage agitator tank (2) and be linked together.
2. A wastewater purification apparatus according to claim 1, wherein: grafting fixed block (1101) are installed to the inner chamber upper end left and right sides symmetry of quality of water purifying box (11), the inner chamber from the top down of quality of water purifying box (11) is pegged graft in proper order and is had first filter screen (1102), second filter screen (1103) and active carbon filtration adsorption equipment (1104), and first filter screen (1102), second filter screen (1103) and active carbon filtration adsorption equipment (1104) all peg graft between grafting fixed block (1101), handle (1105) are all installed on the right side of first filter screen (1102), second filter screen (1103) and active carbon filtration adsorption equipment (1104).
3. A wastewater purification apparatus according to claim 2, wherein: the filter pore size of the first filter screen (1102) is 0.5-1mm, and the filter pore size of the second filter screen (1103) is 0.02-0.1 mm.
4. A wastewater purification apparatus according to claim 2, wherein: and a sealing strip is arranged at the joint of the handle (1105) and the water purification box (11).
5. A wastewater purification apparatus according to claim 1, wherein: stirring vane (9) are provided with a plurality ofly, and a plurality of stirring vane (9) are array form setting along the lateral wall of puddler (7).
6. A wastewater purification apparatus according to claim 1, wherein: the bottom of puddler (7) is connected with the bottom center department rotation of sewage agitator tank (2), the junction of puddler (7) and sewage agitator tank (2) is provided with rolling bearing.
