CN211935915U

CN211935915U - Production waste liquid filter equipment is used in production and processing of intelligence building intercom

Info

Publication number: CN211935915U
Application number: CN202020298167.1U
Authority: CN
Inventors: 黄水南
Original assignee: Fujian Quanzhou Electronic Co ltd
Current assignee: Fujian Quanzhou Electronic Co ltd
Priority date: 2020-03-12
Filing date: 2020-03-12
Publication date: 2020-11-17
Anticipated expiration: 2030-03-12

Abstract

The utility model discloses an intelligent building intercom production and processing is with production waste liquid filter equipment, including quick-witted case and motor, the cartridge filter that is used for filtering is installed to quick-witted case inside upper end, quick-witted case up end left end is installed the pan feeding mouth that communicates with the cartridge filter, the inside spiral plectrum that is connected with quick-witted case both sides face rotation that is equipped with of cartridge filter, spiral plectrum right-hand member passes quick-witted case and is connected with the output of motor, cartridge filter right-hand member downside is equipped with the storage component that is used for collecting waste material impurity; this production waste liquid filter equipment filters waste liquid impurity through pouring the waste liquid into the pan feeding mouth then getting into the cartridge filter, and the waste liquid after the filtration flows into quick-witted bottom half, and the impurity that filters gets off can enter into the storage cavity under the effect of spiral plectrum, and accessible chamber door clears up impurity after filtering, and this device can carry out incessant clearance to filtering impurity to can not make impurity jam cartridge filter.

Description

Production waste liquid filter equipment is used in production and processing of intelligence building intercom

Technical Field

The utility model relates to an intercom production technical field specifically is an intelligent building intercom production and processing is with production waste liquid filter equipment.

Background

The interphone is a two-way mobile communication tool, can be used for communication without any network support, has no telephone charge, and is suitable for occasions with relatively fixed and frequent communication.

But can produce the waste liquid in the production and processing of intelligent building intercom, remain harmful substance in the waste liquid and can't satisfy the emission requirement, consequently need just can discharge after carrying out filtration treatment to the waste liquid. At present to producing the waste liquid when producing the intercom, generally handle through adding the precipitant after the impurity filtering with in the waste liquid, but present equipment can lead to impurity to block up filter equipment's the condition when filtering and take place, can seriously influence work efficiency if can't in time clear up, and the waste liquid of current device after the sediment can't distinguish the precipitate with the liquid after the sediment, and it is very inconvenient to use.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an intelligence building intercom production and processing is with production waste liquid filter equipment to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a production waste liquid filtering device for production and processing of an intelligent building interphone comprises a case and a motor, wherein a filter cartridge for filtering is mounted at the upper end inside the case, a feeding hole communicated with the filter cartridge is mounted at the left end of the upper end face of the case, spiral shifting pieces rotatably connected with two side faces of the case are arranged inside the filter cartridge, the right ends of the spiral shifting pieces penetrate through the case and are connected with the output end of the motor, and a storage member for collecting waste impurities is arranged on the lower side of the right end of the filter cartridge;

the improved machine case is characterized in that the liquid storage tank is fixedly connected to the upper end of the right side face of the machine case, a liquid filling port communicated with the inside of the liquid storage tank is formed in the upper end face of the liquid storage tank, a water pipe arranged in the middle of the inside of the machine case is connected to a delivery outlet of the liquid storage tank, a round hole is formed in the position, located in the inside of the machine case, of the water pipe, a control valve used for controlling on-off is arranged at the position, located outside the machine case, of the water pipe, a stirring component used for stirring liquid is installed at the lower side of the inside of the machine case, a liquid drainage component used for discharging liquid in the machine case is installed at.

Preferably, the storage component includes the storage chamber, the storage chamber is established in cartridge filter right side bottom, the filter layer is installed to storage chamber bottom, the storage chamber right side is equipped with and is located quick-witted case right flank and is used for and conveniently carrying out the chamber door of clearing up to the storage chamber.

Preferably, the stirring component includes dwang and quick-witted case, the dwang both ends are all rotated and are connected at quick-witted incasement portion downside, install on the dwang and be used for the driving lever, the dwang right-hand member passes quick-witted case and crank fixed connection.

Preferably, the drainage member comprises a liquid outlet, the liquid outlet is installed on the lower portion of the left side face of the case, a filtering plug is arranged inside the liquid outlet, the filtering plug and the liquid outlet are in threaded connection, and a sealing cover is further arranged at the outlet of the liquid outlet.

Preferably, the discharging component comprises a discharging pipe and a discharging motor, a spiral discharging shifting piece which is arranged in the discharging pipe and used for discharging is installed at the output end of the discharging motor, and a sealing plug is further arranged at the outlet end of the discharging pipe.

Preferably, the bottom of the supporting leg is provided with a universal wheel for moving.

Compared with the prior art, the beneficial effects of the utility model are that:

1. this production waste liquid filter equipment is through pouring the waste liquid into the pan feeding mouth, then gets into the cartridge filter and filters waste liquid impurity, and the waste liquid after the filtration flows into quick-witted bottom half, and the impurity that filters gets off can enter into the storage cavity under the effect of spiral plectrum, and accessible chamber door clears up impurity after filtering, and this device can carry out incessant clearance to filtering impurity to can not make impurity jam cartridge filter.

2. This production waste liquid filter equipment can evenly let in the waste liquid after the filtration with the precipitant through the round hole through opening the control valve, then through the crank with precipitant and waste liquid intensive mixing, makes precipitation reaction rapider.

3. This production waste liquid filter equipment can be with the liquid discharge who handles the completion through the filtration stopper that sets up in the liquid outlet to can carry out the separation with the precipitate, can not flow out along with liquid together, drive spiral ejection of compact plectrum and discharge precipitate discharge machine case through ejection of compact motor rotation after liquid gets rid of the completion, this device can filter convenient and practical with liquid and precipitate.

Drawings

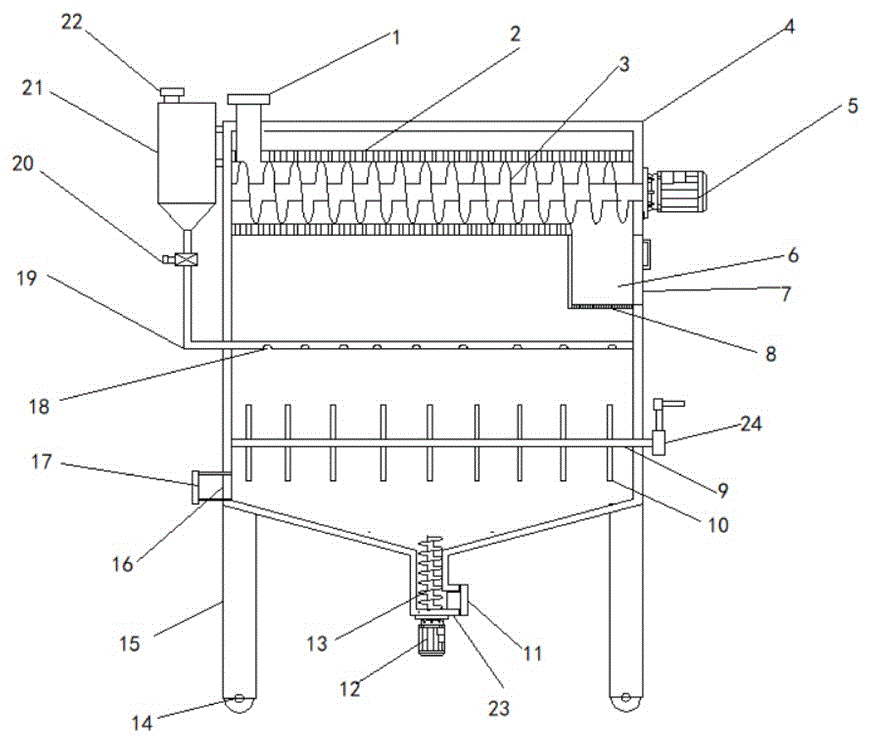

Fig. 1 is a schematic structural diagram of a production waste liquid filtering device for production and processing of an intelligent building interphone.

Fig. 2 is a schematic sectional structure view of a liquid outlet in a production waste liquid filtering device for production and processing of an intelligent building interphone.

Fig. 3 is a schematic view of a local amplification structure in a production waste liquid filtering device for production and processing of an intelligent building interphone.

Wherein: 1 pan feeding mouth, 2 cartridge filter, 3 spiral plectrums, 4 quick-witted casees, 5 motors, 6 storage material chambeies, 7 chamber doors, 8 filter layers, 9 dwang, 10 driving levers, 11 closure stopper, 12 discharge motor, 13 spiral ejection of compact plectrums, 14 universal wheels, 15 landing legs, 16 filter stopper, 17 liquid outlet, 18 round holes, 19 water pipes, 20 control valves, 21 liquid storage tanks, 22 filling opening, 23 discharging pipe, 24 cranks.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, in the embodiment of the present invention, an intelligent building intercom production and processing production waste liquid filtering apparatus includes a case 4 and a motor 5, a filter cartridge 2 for filtering is installed at the upper end inside the case 4, a feeding port 1 communicated with the filter cartridge 2 is installed at the left end of the upper end surface of the case 4, a spiral dial piece 3 rotatably connected with two side surfaces of the case 4 is installed inside the filter cartridge 2, the right end of the spiral dial piece 3 passes through the case 4 to be connected with the output end of the motor 5, and a storage member for collecting waste impurities is installed at the lower side of the right end of the filter cartridge 2;

a liquid storage tank 21 is fixedly connected to the upper end of the right side face of the case 4, a liquid filling port 22 communicated with the inside of the liquid storage tank 21 is formed in the upper end face of the liquid storage tank 21, a water pipe 19 arranged in the middle of the inside of the case 4 is connected to an output port of the liquid storage tank 21, a round hole 18 is formed in the position, located inside the case 4, of the water pipe 19, a control valve 20 used for controlling on-off is arranged at the position, located outside the case 4, of the water pipe 19, a stirring member used for stirring liquid is arranged at the lower side of the inside of the case 4, a liquid drainage member used for draining liquid in the case 4 is arranged at the lower position of the left side of the case 4, a discharging member used for draining sediments is arranged at the; universal wheels 14 for moving are arranged at the bottoms of the supporting legs 15; this production waste liquid filter equipment pours the waste liquid into pan feeding mouth 1 when using, then the waste liquid gets into cartridge filter 2 and carries out filtration treatment, liquid after the filtration flows out from cartridge filter 2, the impurity of crossing filters off will get into storage cavity 6 under spiral plectrum 3's effect, the chamber door 7 that sets up on quick-witted case 4 can clear up the impurity of storage cavity 6, then can let in quick-witted case 4 inside with the precipitant through opening control valve 20, can make precipitant and waste liquid intensive mixing through rotating crank 24, can be with the liquid discharge that the internal processing is good through liquid outlet 17 after the sediment is accomplished, the ejection of compact component of bottom passes through ejection of compact motor 12 and rotates drive spiral ejection of compact plectrum 13, can be with sediment discharge machine case 4, universal wheel 14 bottom landing leg 15 can conveniently remove the device.

The storage component includes storage cavity 6, storage cavity 6 is established in cartridge filter 2 right side bottom, filter layer 8 is installed to 6 bottoms in storage cavity, 6 right sides in storage cavity are equipped with and are located 4 right flanks of quick-witted case and be used for and conveniently carry out the chamber door 7 of clearing up storage cavity 6. The stirring component comprises a rotating rod 9 and a case 4, two ends of the rotating rod 9 are rotatably connected to the lower side in the case 4, a shifting rod 10 is mounted on the rotating rod 9, and the right end of the rotating rod 9 penetrates through the case 4 and is fixedly connected with a crank 24; this production waste liquid filter equipment can filter remaining liquid in the impurity once more through filter layer 8, can open chamber door 7 after the device uses and clear up the impurity in the storage cavity 6, and the stirring component can make precipitant and waste liquid intensive mixing.

The liquid drainage component comprises a liquid outlet 17, the liquid outlet 17 is arranged at the lower part of the left side surface of the case 4, a filter plug 16 is arranged in the liquid outlet 17, the filter plug 16 is connected with the liquid outlet 17 by threads, and a sealing cover is arranged at the outlet of the liquid outlet 17; the discharging component comprises a discharging pipe 23 and a discharging motor 12, a spiral discharging shifting piece 13 which is arranged inside the discharging pipe 23 and used for discharging is installed at the output end of the discharging motor 12, and a sealing plug 11 is further arranged at the outlet end of the discharging pipe 23. This production waste liquid filter equipment passes through the filtration stopper 16 that sets up in the liquid outlet 17 and can be with the liquid discharge who handles the completion to can carry out the separation with the precipitate, can not flow out along with liquid together, get rid of when liquid and accomplish the back and rotate through ejection of compact motor 12 and drive spiral ejection of compact plectrum 13 with precipitate discharge machine case 4, this device can filter convenient and practical with liquid and precipitate.

The utility model discloses a theory of operation is: pan feeding mouth 1 is poured into with the waste liquid when using, then the waste liquid gets into cartridge filter 2 and carries out filtration treatment, liquid after the filtration flows out from cartridge filter 2, the impurity of crossing the filtration will get into storage cavity 6 under spiral plectrum 3's effect, the chamber door 7 that sets up on quick-witted case 4 can clear up the impurity of storage cavity 6, then can let in quick-witted incasement 4 inside with the precipitant through opening control valve 20, can make precipitant and waste liquid intensive mixing through rotating crank 24, can be with the liquid discharge that the internal processing is good through liquid outlet 17 after the completion of precipitation, the ejection of compact component of bottom rotates through ejection of compact motor 12 and drives spiral ejection of compact plectrum 13, can be with sediment discharge machine case 4.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. The utility model provides an intelligence building intercom production and processing is with production waste liquid filter equipment, includes quick-witted case (4) and motor (5), its characterized in that: the upper end of the inside of the case (4) is provided with a filter cartridge (2) for filtering, the left end of the upper end face of the case (4) is provided with a feeding port (1) communicated with the filter cartridge (2), the inside of the filter cartridge (2) is provided with a spiral shifting piece (3) rotatably connected with two side faces of the case (4), the right end of the spiral shifting piece (3) penetrates through the case (4) to be connected with the output end of a motor (5), and the lower side of the right end of the filter cartridge (2) is provided with a storage component for collecting waste impurities;

the upper end of the right side surface of the case (4) is also fixedly connected with a liquid storage tank (21), the upper end surface of the liquid storage tank (21) is provided with a liquid filling port (22) communicated with the inside of the liquid storage tank (21), the outlet of the liquid storage tank (21) is connected with a water pipe (19) arranged in the middle of the inner part of the case (4), the part of the water pipe (19) positioned inside the case (4) is provided with a round hole (18), a control valve (20) for controlling the on-off is arranged at the position of the water pipe (19) outside the case (4), a stirring component for stirring liquid is arranged at the lower side position in the case (4), a drainage component for draining liquid in the case (4) is arranged at the lower part of the left side of the case (4), and a discharging component for discharging sediments is arranged in the middle of the bottom of the case (4), and supporting legs (15) for supporting the case (4) are further arranged at the bottom of the case (4).

2. The production waste liquid filtering device for the production and processing of the intelligent building interphone according to the claim 1, is characterized in that: the storage component comprises a storage cavity (6), the storage cavity (6) is arranged at the bottom of the right side of the filter cartridge (2), the filter layer (8) is arranged at the bottom of the storage cavity (6), and the right side of the storage cavity (6) is provided with a box door (7) which is arranged on the right side surface of the case (4) and used for cleaning the storage cavity (6) conveniently.

3. The production waste liquid filtering device for the production and processing of the intelligent building interphone according to the claim 1, is characterized in that: the stirring component includes dwang (9) and quick-witted case (4), dwang (9) both ends are all rotated and are connected at the inside downside of quick-witted case (4), install on dwang (9) and be used for driving lever (10), dwang (9) right-hand member passes quick-witted case (4) and crank (24) fixed connection.

4. The production waste liquid filtering device for the production and processing of the intelligent building interphone according to the claim 1, is characterized in that: the drainage member comprises a liquid outlet (17), the liquid outlet (17) is installed on the lower portion of the left side face of the case (4), a filtering plug (16) is arranged inside the liquid outlet (17), the filtering plug (16) and the liquid outlet (17) are connected in a threaded mode, and a sealing cover is further arranged at the outlet of the liquid outlet (17).

5. The production waste liquid filtering device for the production and processing of the intelligent building interphone according to the claim 1, is characterized in that: the discharging component comprises a discharging pipe (23) and a discharging motor (12), a spiral discharging shifting piece (13) which is arranged inside the discharging pipe (23) and used for discharging is installed at the output end of the discharging motor (12), and a sealing plug (11) is further arranged at the outlet end of the discharging pipe (23).

6. The production waste liquid filtering device for the production and processing of the intelligent building interphone according to the claim 1, is characterized in that: the bottom of the supporting leg (15) is provided with a universal wheel (14) for moving.
