Abstract
The utility model relates to a remote control liftable back bolster, including first back bolster and second back bolster, first back bolster and second back bolster one side all are provided with first magic subsides, first back bolster is connected with the second magic subsides of supporting seat one side through first magic subsides, second back bolster is connected with the second magic subsides of connecting seat one side through first magic subsides, and the connecting seat sets up at the top of supporting seat, the supporting seat is hollow structure, and be provided with a plurality of lift cylinders in the supporting seat, the piston rod top of each lift cylinder all is connected with the bottom of connecting seat; first bolster and the second of leaning on all include the surrounding layer, are provided with the elasticity filling pad in the surrounding layer, and elasticity filling pad one side is provided with the sponge filling layer, and sponge filling layer one side is provided with first rubber layer, leans on the bolster through the second of the liftable that sets up, leans on the height of bolster according to user's adjustment second, offers convenience for the user of lying on the back.
Description
Technical Field
The utility model relates to a back cushion pillow, in particular to a remote control liftable back cushion pillow.
Background
The back cushion pillow is used for adjusting the contact point of a human body with a seat and a bed to obtain a more comfortable angle to relieve fatigue, and is convenient and flexible to use and convenient for people to use in various occasions and environments. The existing back cushion pillow has limited height, and the waist of a user lying on the back contacts the back cushion pillow to cause hanging of the neck, thereby bringing discomfort to the user.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a remote control liftable back bolster to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a remote control liftable back cushion pillow comprises a first back cushion pillow and a second back cushion pillow, wherein first magic tapes are arranged on one sides of the first back cushion pillow and the second back cushion pillow, the first back cushion pillow is connected with a second magic tape on one side of a supporting seat through the first magic tapes, the second back cushion pillow is connected with a second magic tape on one side of a connecting seat through the first magic tapes, the connecting seat is arranged at the top of the supporting seat, the supporting seat is of a hollow structure, a plurality of lifting cylinders are arranged in the supporting seat, and the top end of a piston rod of each lifting cylinder is connected with the bottom of the connecting seat; first bolster and second are leaned on the bolster and all include the surrounding layer, are provided with the elasticity and fill up in the surrounding layer, and elasticity is filled up one side and is provided with the sponge filling layer, and sponge filling layer one side is provided with first rubber layer, and first rubber layer one side is provided with many springs, and the spring other end sets up on the second rubber layer.
Preferably, the lifting cylinder is connected with the remote controller, the lifting cylinder is connected with the storage battery in the supporting seat, and the storage battery is electrically connected with the charging jack arranged on the outer side wall of the supporting seat.
Preferably, a plurality of horizontally arranged supporting frames are arranged in the supporting seat, and a through hole which is connected with a piston rod of the lifting cylinder in a sliding manner is formed in the top of the supporting seat.
Preferably, one side of the first back cushion pillow and one side of the second back cushion pillow are both arc-shaped structures.
Preferably, the springs are uniformly distributed between the first rubber layer and the second rubber layer, and the second rubber layer is arranged close to the inner wall of one side of the outer cladding layer.
Compared with the prior art, the beneficial effects of the utility model are that: the second through the liftable that sets up leans on the bolster, according to the height that the user adjustment second leaned on the bolster, bring convenience for the user of lying on the back, lean on first rubber layer in the bolster, spring and second rubber layer, the elasticity of this bolster has been improved, long-time use has been avoided causing the bolster to warp, also bring comfortablely for the user, and first bolster and second bolster of leaning on are dismantled and are installed through the magic subsides respectively, bring convenience for the use, still can make things convenient for medical patient to use.
Drawings

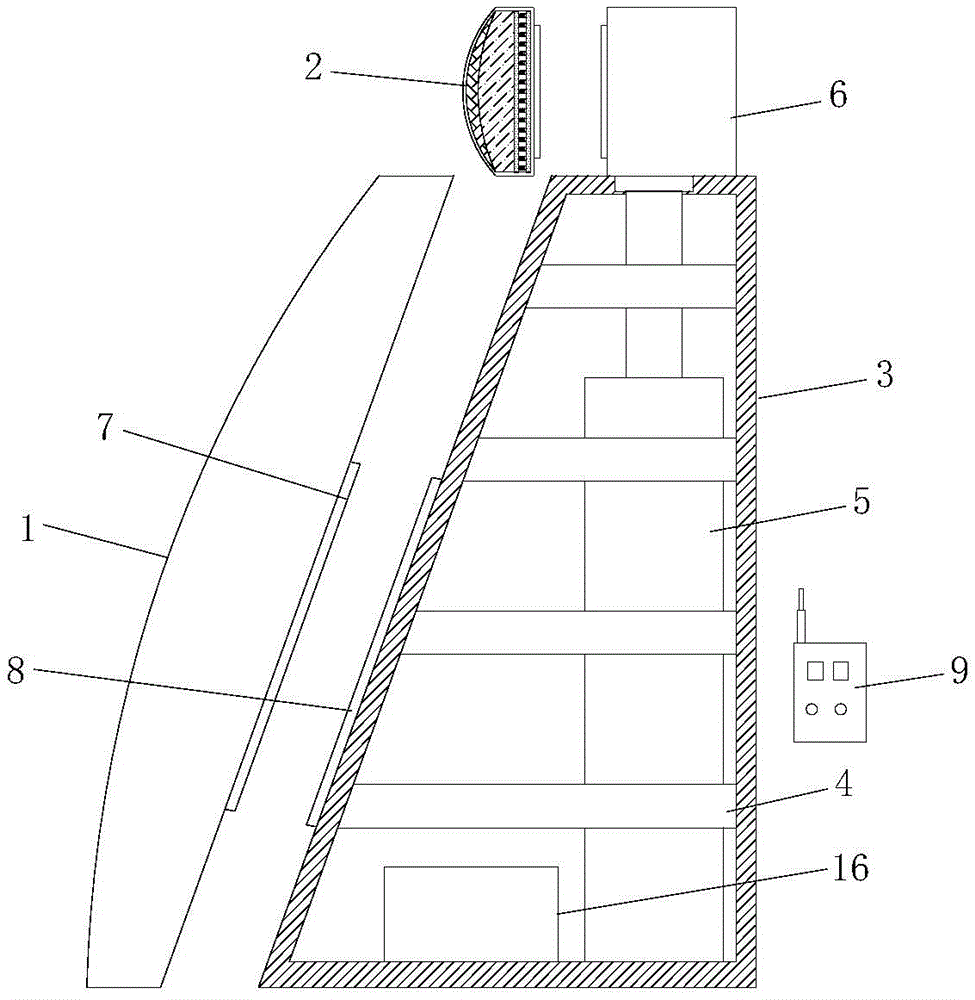

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a front view of the present invention;
FIG. 3 is a schematic view of the internal structure of the back cushion pillow of the present invention;
fig. 4 is a top view of the support seat of the present invention.
In the figure: 1. a first back bolster; 2. a second bolster; 3. a supporting seat; 4. a support frame; 5. a lifting cylinder; 6. a connecting seat; 7. a first magic tape; 8. a second magic tape; 9. a remote controller; 10. an outer cladding; 11. an elastic filling pad; 12. a sponge filling layer; 13. a first rubber layer; 14. a spring; 15. a second rubber layer; 16. and (4) a storage battery.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Referring to fig. 1-4, the present invention provides a technical solution: a remote control liftable back cushion pillow comprises a first back cushion pillow 1 and a second back cushion pillow 2, wherein first magic tapes 7 are arranged on one sides of the first back cushion pillow 1 and the second back cushion pillow 2, the first back cushion pillow 1 is connected with a second magic tape 8 on one side of a supporting seat 3 through the first magic tapes 7, the second back cushion pillow 2 is connected with a second magic tape 8 on one side of a connecting seat 6 through the first magic tapes 7, the connecting seat 6 is arranged at the top of the supporting seat 3, the supporting seat 3 is of a hollow structure, a plurality of lifting cylinders 5 are arranged in the supporting seat 3, and the top end of a piston rod of each lifting cylinder 5 is connected with the bottom of the connecting seat 6; first bolster 1 and second bolster 2 all include surrounding layer 10, are provided with elastic filling pad 11 in the surrounding layer 10, and elastic filling pad 11 one side is provided with sponge filling layer 12, and sponge filling layer 12 one side is provided with first rubber layer 13, and first rubber layer 13 one side is provided with many springs 14, and the spring 14 other end sets up on second rubber layer 15.
The lifting cylinder 5 is connected with the remote controller 9, the lifting cylinder 5 is connected with the storage battery 16 in the supporting seat 3, and the storage battery 16 is electrically connected with the charging jack arranged on the outer side wall of the supporting seat 3.
A plurality of support frames 4 which are horizontally arranged are arranged in the support base 3, and a through hole which is connected with a piston rod of the lifting cylinder 5 in a sliding manner is arranged at the top of the support base 3.
One side of the first back cushion pillow 1 and one side of the second back cushion pillow 2 are both arc-shaped structures.
The springs 14 are evenly distributed between the first rubber layer 13 and the second rubber layer 15, and the second rubber layer 15 is arranged close to the inner wall of one side of the outer cladding 10.
The working principle is as follows: during the use, paste 7 and 8 bonding of second magic subsides through first magic, it installs bolster 1 and second by bolster 2 respectively on supporting seat 4 and connecting seat 6 to lean on first bolster 1 and second, when needing the height-adjusting, through the work of remote controller 9 control lift cylinder 5, the piston rod promotes connecting seat 6 and second by bolster 2 and risees, bring convenience for the user, the user contacts when first bolster 1 and second by bolster 2, elastic filling pad 11 and sponge filling layer 12 are extrudeed, because elasticity, bring comfortablely for the user, when sponge filling layer 12 is extruded, spring 14 between first rubber layer 13 and the second rubber layer 15 is compressed, because spring 14's elasticity, avoid first bolster 1 and second by bolster 2 by the extrusion deformation.
It is worth noting that: the whole device realizes control over the remote controller through the remote controller, and because the equipment matched with the remote controller is common equipment, the remote controller belongs to the existing mature technology, and the electrical connection relation and the specific circuit structure are not repeated.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a remote control liftable back bolster, includes first back bolster (1) and second back bolster (2), its characterized in that: the first cushion pillow (1) and the second cushion pillow (2) are respectively provided with a first magic tape (7), the first cushion pillow (1) is connected with a second magic tape (8) on one side of the supporting seat (3) through the first magic tape (7), the second cushion pillow (2) is connected with the second magic tape (8) on one side of the connecting seat (6) through the first magic tape (7), the connecting seat (6) is arranged at the top of the supporting seat (3), the supporting seat (3) is of a hollow structure, a plurality of lifting cylinders (5) are arranged in the supporting seat (3), and the top end of a piston rod of each lifting cylinder (5) is connected with the bottom of the connecting seat (6); the first cushion pillow (1) and the second cushion pillow (2) comprise outer wrapping layers (10), elastic filling pads (11) are arranged in the outer wrapping layers (10), sponge filling layers (12) are arranged on one sides of the elastic filling pads (11), first rubber layers (13) are arranged on one sides of the sponge filling layers (12), a plurality of springs (14) are arranged on one sides of the first rubber layers (13), and the other ends of the springs (14) are arranged on the second rubber layers (15).
2. The remote control liftable back cushion pillow according to claim 1, wherein: the lifting cylinder (5) is connected with the remote controller (9), the lifting cylinder (5) is connected with the storage battery (16) in the supporting seat (3), and the storage battery (16) is electrically connected with the charging jack arranged on the outer side wall of the supporting seat (3).
3. The remote control liftable back cushion pillow according to claim 1, wherein: a plurality of support frames (4) which are horizontally arranged are arranged in the support seat (3), and a through hole which is connected with the piston rod of the lifting cylinder (5) in a sliding manner is arranged at the top of the support seat (3).
4. The remote control liftable back cushion pillow according to claim 1, wherein: one sides of the first back cushion pillow (1) and the second back cushion pillow (2) are both arc-shaped structures.
5. The remote control liftable back cushion pillow according to claim 1, wherein: the springs (14) are uniformly distributed between the first rubber layer (13) and the second rubber layer (15), and the second rubber layer (15) is tightly attached to the inner wall of one side of the outer cladding (10).
