CN211920287U

CN211920287U - Melt-blown machine with automatic receiving agencies

Info

Publication number: CN211920287U
Application number: CN201922367201.6U
Authority: CN
Inventors: 孙益家
Original assignee: Nantong Nice Environmental Protection Technology Co ltd
Current assignee: Nantong Nice Environmental Protection Technology Co ltd
Priority date: 2019-12-25
Filing date: 2019-12-25
Publication date: 2020-11-13
Anticipated expiration: 2029-12-25

Abstract

The utility model discloses a melt-blown machine with an automatic material receiving mechanism, which comprises a workbench, a fixed plate is fixedly arranged at the rear side of the upper surface of the workbench, a plurality of conveying rollers are arranged on the fixed plate in a rotating way, a mounting plate is fixedly arranged at the front side of the workbench at the right side of the fixed plate, a transverse plate is fixedly arranged at the top of the mounting plate, a motor is fixedly arranged at the upper surface of the workbench at the right side of the mounting plate, the motor is started to roll the non-woven fabric by a winding roller, the non-woven fabric is extruded by the matching between a spring inside a sleeve and a sliding plate as well as an inner rod, so that the non-woven fabric is more compact during rolling, the high-efficiency and quick rolling work is ensured, the distance between the mounting plate and a moving rod can be adjusted by the matching of a first threaded rod and a first turntable, the winding roller, the compression roller is always kept right above the winding roller, and collection is facilitated.

Description

Melt-blown machine with automatic receiving agencies

Technical Field

The utility model belongs to melt the quick-witted field of spouting, especially, relate to a melt machine with automatic receiving agencies.

Background

The non-woven fabric is also called non-woven fabric, is formed by oriented or random fibers, is a new generation of environment-friendly material, and has the characteristics of moisture resistance, air permeability, flexibility, light weight, no combustion supporting, easy decomposition, no toxicity, no irritation, rich color, low price, recycling and the like. For example, the polypropylene (pp material) granules are mostly adopted as raw materials and are produced by a continuous one-step method of high-temperature melting, spinning, laying a line and hot-pressing coiling. It is called a cloth because of its appearance and certain properties.

In the production and manufacture of non-woven fabrics, the working procedures mainly comprise melting raw materials, spraying, forming a net, compounding, cutting and receiving materials; the non-woven fabric passing through the net forming device needs to be wound by a material collecting shaft, the material collecting shaft on the original net forming device is driven by a motor to collect the non-woven fabric, the rotating speed of the material collecting shaft is not well controlled, the non-woven fabric is finally curled to generate wrinkles, and the material collecting is not tight, so that the inconvenience is brought to the next working procedure; and the change of the wind-up roll is unchanged, and the practicability is reduced.

Therefore, in order to solve the problems, the melt-blowing machine with the automatic material receiving mechanism is provided.

SUMMERY OF THE UTILITY MODEL

The utility model provides a melt-blown machine with automatic receiving agencies aims at solving the problem of mentioning in the above-mentioned background art.

The utility model is realized in such a way, a melt-blown machine with an automatic material collecting mechanism comprises a workbench, a fixed plate is fixedly arranged at the rear side of the upper surface of the workbench, a plurality of conveying rollers are arranged on the fixed plate in a rotating way, the right side of the fixed plate is arranged at the front side of the workbench, a transverse plate is fixedly arranged at the top of the mounting plate, a motor is fixedly arranged at the right side of the mounting plate, an output shaft of the motor is fixedly sleeved with a driving wheel, a rotating shaft is arranged on the mounting plate in a rotating way, a winding roller is fixedly sleeved on the rotating shaft, a moving rod is arranged at the rear side of the mounting plate on the workbench, a mounting seat is fixedly arranged at the top of the moving rod, the other end of the rotating shaft is rotatably sleeved in the mounting seat, the rotating shaft penetrates through the mounting plate, a driven, from the driving wheel with be provided with the hold-in range between the action wheel, the diaphragm bottom is provided with two sleeves, two the fixed dead lever that is provided with in the middle of the top in the sleeve, sliding sleeve is equipped with the slide on the dead lever, the slide top is located the dead lever both sides are fixed respectively and are provided with the spring, the top of spring with sleeve top fixed connection, the bottom of slide is located the both sides of dead lever are fixed respectively and are provided with interior pole, the bottom of interior pole is run through telescopic bottom extends to the outside, the fixed connecting plate that is provided with in bottom of interior pole, the fixed connecting rod that is provided with in bottom of connecting plate, the outside rotation cover of connecting rod is equipped with the compression roller, the.

And a limiting block is fixedly arranged at the bottom end of the fixing rod.

The inner portion of the workbench is provided with a first threaded rod in a rotating mode, one end of the first threaded rod penetrates through one side of the workbench and extends to the outer side, a first rotary disc is fixedly arranged at one end, located on the outer side of the workbench, of the first threaded rod, a first threaded sleeve is sleeved on the first threaded rod in a threaded mode, and the top of the first threaded rod is fixedly connected with the bottom of the moving rod through a moving block.

The transverse plate is internally and rotatably provided with a second threaded rod, one end of the second threaded rod penetrates through one side of the transverse plate and extends to the outer side, one end, located on the outer side of the transverse plate, of the second threaded rod is fixedly provided with a second rotary plate, two second threaded sleeves are sleeved on the second threaded rod in a threaded manner, and the bottoms of the two second threaded sleeves are fixedly connected with the tops of the two sleeves through the moving block.

A first sliding groove is formed in the workbench, and a second sliding groove is formed in the bottom of the transverse plate.

The workbench is characterized in that supporting legs are fixedly arranged at the bottom of the workbench, and moving wheels are fixedly arranged at the bottoms of the supporting legs.

Compared with the prior art, the beneficial effects of the utility model are that: the motor is started, the non-woven fabric is rolled by the rolling roller, the non-woven fabric is more smooth in the rolling process through the arranged conveying roller and the arranged compression roller, so that the non-woven fabric cannot be randomly swung and disorderly when rolled, the surface of the rolling roller is extruded through the compression roller, the non-woven fabric is extruded through the matching between the spring inside the sleeve and the sliding plate and the inner rod, the non-woven fabric is more compact when rolled, the rolling work is efficiently and quickly carried out, the rolling efficiency is improved, the distance between the mounting plate and the moving rod can be adjusted through the matching of the arranged first threaded rod and the arranged first turntable, the rolling roller can be replaced according to the non-woven fabrics with different widths, the rolling work is convenient to carry out, the compression roller is always kept right above the rolling roller through the matching of the arranged second threaded rod and the arranged second turntable, is convenient for collection.

Drawings

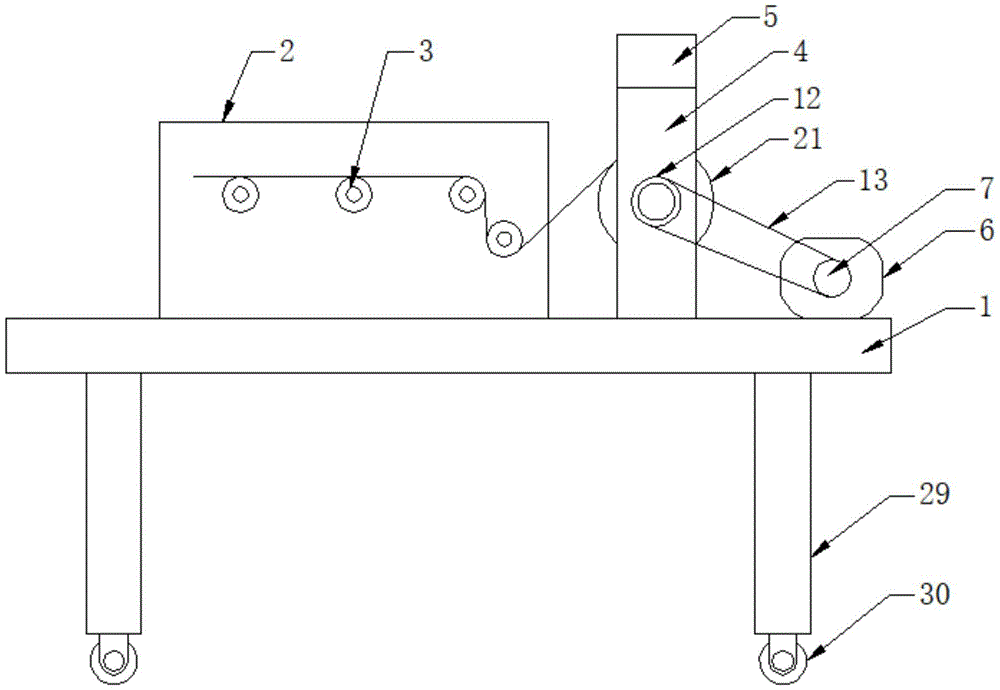

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a side view of the present invention;

fig. 3 is a schematic view of the internal structure of the sleeve according to the present invention.

In the figure: 1. a work table; 2. a fixing plate; 3. a conveying roller; 4. mounting a plate; 5. a transverse plate; 6. a motor; 7. a driving wheel; 8. a rotating shaft; 9. a wind-up roll; 10. a travel bar; 11. a mounting seat; 12. a driven wheel; 13. a synchronous belt; 14. a sleeve; 15. fixing the rod; 16. a slide plate; 17. a spring; 18. an inner rod; (ii) a 19. A connecting plate; 20. a connecting rod; 21. a compression roller; 22. a limiting block; 23. a first threaded rod; 24. a first turntable; 25. a first threaded sleeve; 26. a second threaded rod; 27. a second turntable; 28. a second threaded sleeve; 29. supporting legs; 30. the wheel is moved.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. In addition, in the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

Referring to fig. 1-3, a melt-blowing machine with an automatic material receiving mechanism comprises a workbench 1, a fixed plate 2 is fixedly arranged on the rear side of the upper surface of the workbench 1, a plurality of conveying rollers 3 are rotatably arranged on the fixed plate 2, a mounting plate 4 is fixedly arranged on the right side of the fixed plate 2 and positioned on the front side of the workbench 1, a transverse plate 5 is fixedly arranged on the top of the mounting plate 4, a motor 6 is fixedly arranged on the upper surface of the workbench 1 on the right side of the mounting plate 4, a driving wheel 7 is fixedly sleeved on an output shaft of the motor 6, a rotating shaft 8 is rotatably arranged on the mounting plate 4, a winding roller 9 is fixedly sleeved on the rotating shaft 8, a moving rod 10 is arranged on the rear side of the mounting plate 4 on the workbench 1, a mounting seat 11 is fixedly arranged on the top of the moving rod 10, the other end of the rotating shaft, be provided with hold-in range 13 between driven wheel 12 and the action wheel 7, diaphragm 5 bottom is provided with two sleeves 14, the fixed dead lever 15 that is provided with in the middle of the top in two sleeves 14, sliding sleeve is equipped with slide 16 on the dead lever 15, slide 16 top is located the fixed spring 17 that is provided with respectively in dead lever 15 both sides, the top and the sleeve 14 top fixed connection of spring 17, slide 16's bottom is located the fixed interior pole 18 that is provided with respectively in both sides of dead lever 15, the bottom of interior pole 18 runs through sleeve 14's bottom and extends to the outside, the fixed connecting plate 19 that is provided with in bottom of interior pole 18, the fixed connecting rod 20 that is provided with in bottom of connecting plate 19, the outside rotation cover of connecting rod.

The bottom end of the fixed rod 15 is fixedly provided with a limiting block 22, and when the sliding plate 16 is pushed downwards by the spring 17, the sliding plate 16 is prevented from being separated from the fixed rod 15, so that the use is prevented from being influenced.

The inside of workstation 1 is rotated and is provided with first threaded rod 23, the one end of first threaded rod 23 runs through one side of workstation 1 and extends to the outside, the one end that first threaded rod 23 is located the 1 outside of workstation is fixed and is provided with first carousel 24, threaded sleeve is equipped with first thread bush 25 on the first threaded rod 23, the bottom fixed connection of movable block and carriage release lever 10 is passed through at the top of first threaded rod 23, rotate first threaded rod 23 through first carousel 24, first threaded rod 23 drives and controls about first thread bush 25, first thread bush 25 drives and controls about the carriage release lever 10, be convenient for change not unidimensional wind-up roll 9.

The transverse plate 5 is internally and rotatably provided with a second threaded rod 26, one end of the second threaded rod 26 penetrates through one side of the transverse plate 5 and extends to the outside, one end, located on the outside of the transverse plate 5, of the second threaded rod 26 is fixedly provided with a second rotary plate 27, two second threaded sleeves 28 are in threaded sleeve connection on the second threaded rod 26, the bottoms of the two second threaded sleeves 28 are fixedly connected with the tops of the two sleeves 14 through moving blocks, the second threaded rod 26 is rotated through the second rotary plate 27 and drives the second threaded sleeves 28 to move left and right, the second threaded sleeves 28 drive the two sleeves 14 to move left or right simultaneously, so that the compression roller 21 is always kept right above the winding roller 9, the non-woven fabric is more flat and smooth in the winding process, and the non-woven fabric cannot randomly swing and has no disorder when being wound, and is convenient to collect.

A first sliding groove is formed in the workbench 1, a second sliding groove is formed in the bottom of the transverse plate 5, and the first sliding groove and the second sliding groove are convenient for moving the moving rod and the sleeve 14.

The bottom of the workbench 1 is fixedly provided with a supporting leg 29, and the bottom of the supporting leg 29 is fixedly provided with a moving wheel 30, so that the device can be moved conveniently.

The utility model discloses a theory of operation is: when in use, the motor 6 is started, so that the winding roller 9 winds the non-woven fabric, the non-woven fabric is more smooth in the winding process through the arranged conveying roller 3 and the pressing roller 21, the non-woven fabric is not disordered due to random swing of the non-woven fabric in the winding process and is convenient to collect, the surface of the winding roller 9 is extruded through the pressing roller 21 in the winding process, and the non-woven fabric is extruded through the matching between the spring 17 inside the sleeve 14 and the sliding plate 16 and the inner rod 18, so that the non-woven fabric is more compact in the winding process, the efficient and rapid winding work is ensured, the winding efficiency is improved, the distance between the mounting plate 4 and the moving rod 10 can be adjusted through the matching of the arranged first threaded rod 23 and the first rotating disc 24, the winding roller 9 can be replaced according to the non-woven fabrics with different widths, and the winding work is convenient to carry out, through the cooperation of the second threaded rod 26 and the second rotary disc 27, the pressing roller 21 is always kept right above the winding roller 9, and the collection is convenient.

The above description is only exemplary of the present invention and should not be construed as limiting the present invention, and any modifications, equivalents and improvements made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.

Claims

1. The utility model provides a melt-blown machine with automatic receiving agencies, includes workstation (1), its characterized in that: the automatic winding machine is characterized in that a fixed plate (2) is fixedly arranged on the rear side of the upper surface of a workbench (1), a plurality of conveying rollers (3) are arranged on the fixed plate (2) in a rotating manner, the right side of the fixed plate (2) is positioned on the front side of the workbench (1) and is fixedly provided with a mounting plate (4), a transverse plate (5) is fixedly arranged at the top of the mounting plate (4), a motor (6) is fixedly arranged on the upper surface of the workbench (1) on the right side of the mounting plate (4), an output shaft of the motor (6) is fixedly sleeved with a driving wheel (7), a rotating shaft (8) is rotatably arranged on the mounting plate (4), a winding roller (9) is fixedly sleeved on the rotating shaft (8), a moving rod (10) is arranged on the rear side of the mounting plate (4) on the workbench (1), a mounting seat (11) is fixedly arranged at the top of the moving, the utility model discloses a fixed mounting plate, including mounting panel (4), pivot (8), diaphragm (5), slide bar (16), slide plate (16), pivot (8) are located the fixed cover of one end in the mounting panel (4) outside is equipped with from driving wheel (12), from driving wheel (12) with be provided with hold-in range (13) between action wheel (7), diaphragm (5) bottom is provided with two sleeves (14), two fixed dead lever (15) of being provided with in the middle of the top in sleeve (14), the slip cap is equipped with slide plate (16) on dead lever (15), slide plate (16) top is located dead lever (15) both sides are fixed respectively and are provided with spring (17), the top of spring (17) with sleeve (14) top fixed connection, the bottom of slide plate (16) is located the both sides of dead lever (15) are fixed respectively and are provided with interior pole (18), the bottom of interior pole (18, the fixed connecting plate (19) that is provided with in bottom of interior pole (18), the fixed connecting rod (20) that is provided with in bottom of connecting plate (19), connecting rod (20) outside is rotated the cover and is equipped with compression roller (21), compression roller (21) are located directly over wind-up roll (9).

2. The melt-blowing machine with the automatic material receiving mechanism as claimed in claim 1, wherein: the bottom end of the fixed rod (15) is fixedly provided with a limiting block (22).

3. The melt-blowing machine with the automatic material receiving mechanism as claimed in claim 1, wherein: the inside of workstation (1) is rotated and is provided with first threaded rod (23), the one end of first threaded rod (23) is run through one side of workstation (1) and is extended to the outside, first threaded rod (23) are located the one end in workstation (1) outside is fixed and is provided with first carousel (24), threaded sleeve is equipped with first thread bush (25) on first threaded rod (23), the top of first threaded rod (23) pass through the movable block with the bottom fixed connection of carriage release lever (10).

4. The melt-blowing machine with the automatic material receiving mechanism as claimed in claim 1, wherein: the novel anti-theft bolt is characterized in that a second threaded rod (26) is rotatably arranged in the transverse plate (5), one end of the second threaded rod (26) penetrates through one side of the transverse plate (5) and extends to the outer side, a second rotary table (27) is fixedly arranged at one end, located on the outer side of the transverse plate (5), of the second threaded rod (26), two second threaded sleeves (28) are sleeved on the upper threads of the second threaded rod (26), and the bottoms of the second threaded sleeves (28) are fixedly connected with the tops of the sleeves (14) through moving blocks.

5. The melt-blowing machine with the automatic material receiving mechanism as claimed in claim 1, wherein: a first sliding groove is formed in the workbench (1), and a second sliding groove is formed in the bottom of the transverse plate (5).

6. The melt-blowing machine with the automatic material receiving mechanism as claimed in claim 1, wherein: the bottom of the workbench (1) is fixedly provided with a supporting leg (29), and the bottom of the supporting leg (29) is fixedly provided with a moving wheel (30).
