CN211911986U

CN211911986U - Corsage for binding after minimally invasive breast surgery

Info

Publication number: CN211911986U
Application number: CN202020205509.0U
Authority: CN
Inventors: 唐任芳; 王坤
Original assignee: Guangdong General Hospital Guangdong Academy of Medical Sciences
Current assignee: Guangdong General Hospital Guangdong Academy of Medical Sciences
Priority date: 2020-02-25
Filing date: 2020-02-25
Publication date: 2020-11-13
Anticipated expiration: 2030-02-25

Abstract

The utility model discloses a corsage used for binding after a breast minimally invasive surgery, which comprises a bra, wherein a first connecting piece is arranged on one side edge of the bra, a second connecting piece corresponding to the first connecting piece is arranged on the other side edge of the bra, the first connecting piece comprises a first adjusting piece, a second adjusting piece and a third adjusting piece, the first adjusting piece, the second adjusting piece and the third adjusting piece are sequentially arranged along the length direction of the one side edge of the bra, and intervals are arranged between the first adjusting piece, the second adjusting piece and the third adjusting piece; the second connecting piece comprises a first adjusting part, a second adjusting part and a third adjusting part, and the first adjusting part, the second adjusting part and the third adjusting part are sequentially arranged along the length direction of the other side edge of the bra; wherein, in the length direction of bust, first regulating part can be dismantled with first regulating part and be connected, second regulating part can be dismantled with second regulating part and be connected, third regulating part can be dismantled with third regulating part and be connected. The utility model has the advantages of convenient use and good wound wrapping effect.

Description

Corsage for binding after minimally invasive breast surgery

Technical Field

The utility model belongs to the technical field of medical care, concretely relates to corselet that is used for mammary gland minimal access surgery postoperative to wrap.

Background

The minimally invasive breast surgery is a surgery method for excising benign breast tumor through a small incision by using a rotary mammary gland cutting system, can be performed under local anesthesia, has the advantages of short surgery time, quick postoperative recovery, small scar and attractive appearance, and is widely applied to excision and biopsy of breast tumor.

In order to prevent postoperative bleeding and cavity-wound hematoma, the postoperative residual cavity needs to be pressed and bound for more than 72 hours after operation, the traditional method is to press the postoperative residual cavity by a gauze ball through the body surface and add an elastic bandage for pressing and binding, the method is time-consuming and tedious to use, the binding tightness and the comfort of a patient all depend on the experience of a binder, the adjustment difficulty is high when the pressure is not suitable, and the dressing needs to be completely disassembled and bound again; when the bandage is too tight, the patient is easy to feel discomfort such as chest distress, back pain, axillary skin tightening marks and the like, and the serious patient has dyspnea, palpitation and even can not fall asleep; when the bandage is too loose, the bandage can slide down to cause the compressed gauze to shift, and the wound is exposed to be unable to achieve the purpose of compression, thereby causing complications such as bleeding, wound hematoma, wound infection and the like, and bringing unnecessary injury to patients.

SUMMERY OF THE UTILITY MODEL

In order to overcome the defects in the prior art, the utility model aims to provide a corsage used for binding after the minimally invasive breast surgery, which aims to solve the technical problems of inconvenient use and poor wound binding effect of the pressure binding of an elastic bandage in the prior art.

The utility model discloses a reach its purpose, the technical scheme who adopts as follows:

a corsage for binding after a breast minimally invasive surgery comprises a bra body, wherein a first connecting piece is arranged on one side edge of the bra body, a second connecting piece corresponding to the first connecting piece is arranged on the other side edge of the bra body, the first connecting piece comprises a first adjusting piece, a second adjusting piece and a third adjusting piece, and the first adjusting piece, the second adjusting piece and the third adjusting piece are sequentially arranged along the length direction of the one side edge of the bra body and have intervals; the second connecting piece comprises a first adjusting part, a second adjusting part and a third adjusting part, and the first adjusting part, the second adjusting part and the third adjusting part are sequentially arranged along the length direction of the edge of the other side of the bra; in the length direction of the bra, the first adjusting piece is detachably connected with the first adjusting part, the second adjusting piece is detachably connected with the second adjusting part, and the third adjusting piece is detachably connected with the third adjusting part.

Further, the first adjusting part and the first adjusting part are both magic tapes or row buttons, the second adjusting part and the second adjusting part are both magic tapes or row buttons, and the third adjusting part are both magic tapes or row buttons.

Further, the first adjusting part and the first adjusting part are both magic tapes, the second adjusting part and the second adjusting part are both row buckles, and the third adjusting part are both magic tapes.

Further, the corselet for binding after minimally invasive breast surgery further comprises double shoulder straps, and the double shoulder straps are arranged on the upper edge of the bra.

Further, the double shoulder straps are detachably attached to the upper edge of the bust.

Furthermore, each shoulder belt of the double shoulder belts is provided with a shoulder belt adjusting buckle.

Further, a flexible pad is arranged inside the upper edge of the bust and/or inside the lower edge of the bust.

Furthermore, the material of the bust is elastic fabric.

Further, the bra comprises an inner lining cloth and an outer lining cloth, the inner lining cloth is detachably connected to the outer lining cloth and is overlapped with the outer lining cloth, the first adjusting piece, the second adjusting piece and the third adjusting piece are sequentially arranged along the length direction of one side edge of the outer lining cloth, intervals exist among the first adjusting piece, the second adjusting piece and the third adjusting piece, and the first adjusting portion, the second adjusting portion and the third adjusting portion are sequentially arranged along the length direction of the other side edge of the outer lining cloth.

Compared with the prior art, the beneficial effects of the utility model are that:

the utility model provides a corselet for binding up after mammary gland minimal access surgery, through set up first regulating part, second regulating part and third regulating part on one side edge of chest circumference, set up the first regulating part of being connected with first regulating part correspondence simultaneously on the opposite side edge corresponding with one side edge of chest circumference, the second regulating part of being connected with second regulating part correspondence and the third regulating part of being connected with third regulating part correspondence, so, through the adjustment mode of this kind of multi-disc connection, on the one hand, only need to be connected first regulating part with first regulating part when using, the second regulating part is connected with the second regulating part, the third regulating part is connected with the third regulating part can, it is very convenient; on the other hand, the bra can conform to the radian of the breast and adjust the local pressure according to the operation position, thereby improving the binding effect of the breast wound and being beneficial to the healing of the wound.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without any creative effort.

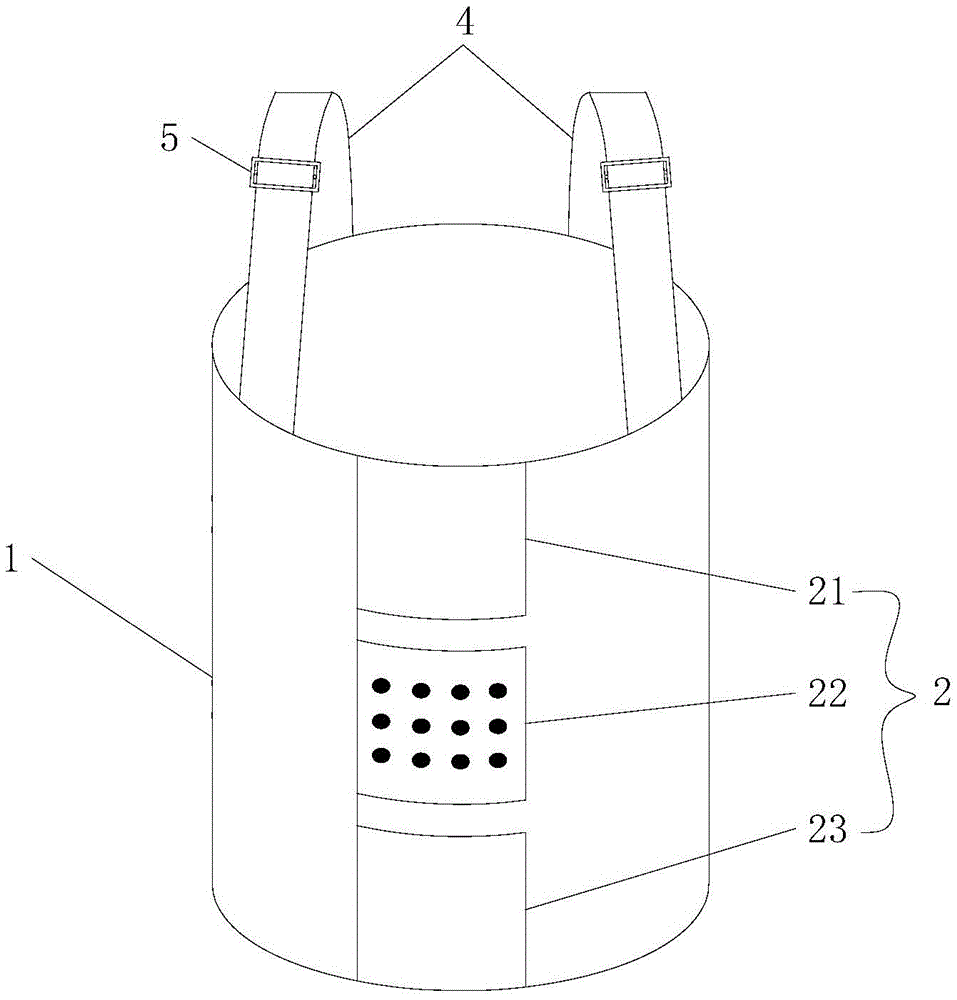

Fig. 1 is a schematic perspective view of a corsage for binding after minimally invasive breast surgery according to an embodiment of the present invention;

fig. 2 is a schematic view of an inner side plane structure of a corsage for binding after a minimally invasive breast surgery according to an embodiment of the present invention;

fig. 3 is a schematic view of the outer side plane structure of the corselet for binding after the minimally invasive breast surgery according to an embodiment of the present invention;

FIG. 4 is a schematic view of the inner side of a bra used for binding after minimally invasive breast surgery according to another embodiment of the present invention;

FIG. 5 is a schematic view of a shoulder strap according to an embodiment of the present invention;

fig. 6 is a schematic structural decomposition diagram of a corsage for binding after minimally invasive breast surgery in an embodiment of the present invention.

Description of reference numerals:

1-bra, 11-inner lining cloth, 111-connecting hole, 12-outer lining cloth, 121-button, 2-first connecting piece, 21-first adjusting piece, 22-second adjusting piece, 23-third adjusting piece, 3-second connecting piece, 31-first adjusting part, 32-second adjusting part, 33-third adjusting part, 4-double shoulder straps, 41-shoulder straps, 411-shoulder strap buckle, 5-shoulder strap adjusting buckle, 6-shoulder strap buckle and 7-flexible pad.

Detailed Description

In order to make the above objects, features and advantages of the present invention more clearly understood, the present invention will be described in detail with reference to the accompanying drawings and detailed description. In addition, the embodiments of the present invention and the features of the embodiments may be combined with each other without conflict. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, and the described embodiments are merely some embodiments, rather than all embodiments, of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work all belong to the protection scope of the present invention.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used herein in the description of the invention is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention.

Referring to fig. 1 to 3, an embodiment of the present invention provides a corsage for binding after a breast minimally invasive surgery, including a bra 1, a first connecting piece 2 is arranged on one side edge of the bra 1, a second connecting piece 3 corresponding to the first connecting piece 2 is arranged on the other side edge of the bra 1, the first connecting piece 2 includes a first adjusting piece 21, a second adjusting piece 22 and a third adjusting piece 23, the first adjusting piece 21, the second adjusting piece 22 and the third adjusting piece 23 are sequentially arranged along the length direction of one side edge of the bra 1, and there are intervals therebetween; the second connecting piece 3 comprises a first adjusting part 31, a second adjusting part 32 and a third adjusting part 33, wherein the first adjusting part 31, the second adjusting part 32 and the third adjusting part 33 are sequentially arranged along the length direction of the other side edge of the bust 1; in the length direction of the bust 1, the first adjusting piece 21 is detachably connected with the first adjusting part 31, the second adjusting piece 22 is detachably connected with the second adjusting part 32, and the third adjusting piece 23 is detachably connected with the third adjusting part 33.

In this embodiment, this a corselet that is used for mammary gland minimal access surgery postoperative to wrap when using comparatively nimble, both can adopt the mode of wrapping of "preceding formula" (i.e. be connected first connecting piece 2 with second connecting piece 3 in the front of the chest), can adopt the mode of wrapping of "back formula" again (i.e. be connected first connecting piece 2 with second connecting piece 3 at the back), wherein, when using, the mode of wrapping of preferred "preceding formula", so, compare with the mode of wrapping of "back formula", not only single operation is more convenient, and it is also more convenient to look over the wound.

In the embodiment, the corselet for the dressing after the minimally invasive breast surgery is characterized in that the first adjusting piece 21, the second adjusting piece 22 and the third adjusting piece 23 are arranged on one side edge of the bust 1, while on the other side edge corresponding to one side edge of the bust 1, a first adjusting part 31 corresponding to the first adjusting part 21, a second adjusting part 32 corresponding to the second adjusting part 22 and a third adjusting part 33 corresponding to the third adjusting part 23 are provided, so that, by means of the adjustment of such a multi-piece connection (illustratively, the first connecting part 2 is of a multi-piece type, and the second connecting part 3 is of a one-piece type), on the one hand, when in use, the first adjusting piece 21 is connected with the first adjusting part 31, the second adjusting piece 22 is connected with the second adjusting part 32, and the third adjusting piece 23 is connected with the third adjusting part 33, which is very convenient; on the other hand, the bra 1 can conform to the radian of the breast and adjust the local pressure according to the operation position, thereby improving the binding effect of the breast wound and being beneficial to the healing of the wound. The material of the bust 1 is preferably elastic fabric (such as polyester fabric, spandex fabric and the like), so that the adjustment of the local pressure of the mammary gland is facilitated.

Referring to fig. 1 to 3, in an exemplary embodiment, the first adjusting part 21 and the first adjusting part 31 are both magic tapes or row buttons, the second adjusting part 22 and the second adjusting part 32 are both magic tapes or row buttons, and the third adjusting part 23 and the third adjusting part 33 are both magic tapes or row buttons, so that the use cost is reduced, and the operation is more convenient, exemplarily, as shown in fig. 2 and 3, the first adjusting part 21 and the first adjusting part 31 are both magic tapes, the second adjusting part 22 and the second adjusting part 32 are both row buttons, and the third adjusting part 23 and the third adjusting part 33 are both magic tapes.

Referring to fig. 1 to 3, in an exemplary embodiment, the bra for binding after minimally invasive breast surgery further includes two shoulder straps 4, and the two shoulder straps 4 are disposed on the upper edge of the bra 1, so that the convenience of use is further improved by disposing the two shoulder straps 4 on the bra 1.

Referring to fig. 3 to 5, in an exemplary embodiment, the shoulder straps 4 are detachably connected to the upper edge of the bra 1, and for example, shoulder buckles 411 are provided at both ends of each shoulder strap 41 of the shoulder straps 4, and a plurality of shoulder strap buckles 6 (for example, four shoulder strap buckles 6 are provided at the upper edge of the bra 1) are provided at the upper edge of the bra 1, so that the detachable connection of the shoulder straps 4 to the upper edge of the bra 1 is realized by the shoulder buckles 411 in cooperation with the shoulder strap buckles 6, and of course, the detachable connection of the shoulder straps 4 to the upper edge of the bra 1 may be realized by other conventional methods without specific limitation. In this embodiment, the shoulder straps 4 are detachably connected to the bust 1, so that the shoulder straps 41 can be conveniently replaced, and the flexibility of use is improved.

Referring to fig. 3 to 5, in an exemplary embodiment, each shoulder strap 41 of the shoulder straps 4 is provided with a shoulder strap adjusting buckle 5, so that the tightness of the shoulder strap 41 can be adjusted by the shoulder strap adjusting buckle 5, thereby further improving the convenience and flexibility of use.

Referring to fig. 4, in an exemplary embodiment, a flexible pad 7 is disposed inside the upper edge of the busway 1 and/or inside the lower edge of the busway 1, and illustratively, the flexible pads 7 are disposed inside the upper edge of the busway 1 and inside the lower edge of the busway 1, wherein the flexible pads 7 disposed inside the upper edge of the busway 1 and/or inside the lower edge of the busway 1 may be implemented by using sponge as the flexible pads 7, and of course, other flexible substances that are currently available may be used as the flexible pads 7, which is not particularly limited. In this embodiment, because when wrapping up, the pressure of the upper and lower part edge of bust 1 is great to can cause local skin damage easily, consequently, set up flexible pad 7 through the upper portion edge inboard at bust 1 and/or the lower part edge inboard of bust 1, can alleviate when wrapping up to the pressure of local tissue, increase comfort level avoids damaging local skin.

Referring to fig. 6, in an exemplary embodiment, the bust 1 includes an inner lining cloth 11 and an outer lining cloth 12, the inner lining cloth 11 is detachably connected to the outer lining cloth 12 and overlaps the outer lining cloth 12, wherein a first adjusting member 21, a second adjusting member 22, and a third adjusting member 23 are sequentially arranged along a length direction of one side edge of the outer lining cloth 12 with a space therebetween, a first adjusting portion 31, a second adjusting portion 32, and a third adjusting portion 33 are sequentially arranged along a length direction of the other side edge of the outer lining cloth 12, and a double shoulder strap 4 is disposed on an upper edge of the outer lining cloth 12. In this embodiment, the buttons 121 are exemplarily disposed at four corners of the inner lining cloth 11, and correspondingly, the coupling holes 111 corresponding to the buttons 121 are disposed on the outer lining cloth 12, so that the inner lining cloth 11 can be detachably coupled to the outer lining cloth 12 by the buttons 121 in cooperation with the coupling holes 111, but the inner lining cloth 11 can also be detachably coupled to the outer lining cloth 12 by other conventional methods without specific limitation. In this embodiment, the lining cloth 11 is detachable and washable, so that the sanitary and clean can be ensured, and the lining cloth can be repeatedly used, and is simple and practical.

It should be noted that other contents of the corselet for binding after the minimally invasive breast surgery disclosed by the present invention can be referred to in the prior art, and are not described herein again.

Above, it is only the preferred embodiment of the present invention, but not to limit the present invention in any form, so that any modification, equivalent change and modification made to the above embodiments by the technical essence of the present invention are all within the scope of the technical solution of the present invention.

Claims

1. The corsage used for binding after the minimally invasive breast surgery is characterized by comprising a bra, wherein a first connecting piece is arranged on one side edge of the bra, a second connecting piece corresponding to the first connecting piece is arranged on the other side edge of the bra, the first connecting piece comprises a first adjusting piece, a second adjusting piece and a third adjusting piece, and the first adjusting piece, the second adjusting piece and the third adjusting piece are sequentially arranged along the length direction of the one side edge of the bra and have intervals; the second connecting piece comprises a first adjusting part, a second adjusting part and a third adjusting part, and the first adjusting part, the second adjusting part and the third adjusting part are sequentially arranged along the length direction of the edge of the other side of the bra; in the length direction of the bra, the first adjusting piece is detachably connected with the first adjusting part, the second adjusting piece is detachably connected with the second adjusting part, and the third adjusting piece is detachably connected with the third adjusting part.

2. The corselet for dressing after minimally invasive breast surgery according to claim 1, wherein the first adjusting part and the first adjusting part are both magic tapes or row buttons, the second adjusting part and the second adjusting part are both magic tapes or row buttons, and the third adjusting part are both magic tapes or row buttons.

3. The corselet for dressing after minimally invasive breast surgery according to claim 2, wherein the first adjusting part and the first adjusting part are both magic tapes, the second adjusting part and the second adjusting part are both row buttons, and the third adjusting part are both magic tapes.

4. The corsage for dressing after minimally invasive breast surgery according to claim 1, further comprising double shoulder straps provided on the upper edge of the bust.

5. The corset for breast minimally invasive surgery postoperative dressing according to claim 4, wherein the double shoulder straps are detachably connected to the upper edge of the bust band.

6. The corsage for dressing after minimally invasive breast surgery according to claim 4, wherein each shoulder strap of the double shoulder straps is provided with a shoulder strap adjusting buckle.

7. The corset for breast minimally invasive surgery postoperative dressing according to any one of claims 1 to 6, characterized in that a flexible pad is provided inside the upper edge of the bust and/or inside the lower edge of the bust.

8. The corsage for dressing after minimally invasive breast surgery according to any one of claims 1 to 6, wherein the material of the bust is an elastic fabric.

9. The corselet for breast minimally invasive surgery postoperative dressing according to any one of claims 1 to 3, wherein the bust comprises an inner lining cloth and an outer lining cloth, the inner lining cloth is detachably connected to the outer lining cloth and is overlapped with the outer lining cloth, the first adjusting piece, the second adjusting piece and the third adjusting piece are sequentially arranged along the length direction of one side edge of the outer lining cloth at intervals, and the first adjusting portion, the second adjusting portion and the third adjusting portion are sequentially arranged along the length direction of the other side edge of the outer lining cloth.
