CN211900278U

CN211900278U - Building energy-saving outward casement window with safety guardrail and mosquito-proof function

Info

Publication number: CN211900278U
Application number: CN202020359574.9U
Authority: CN
Inventors: 蔡文君; 蔡卧斌
Original assignee: Hunan Mengtong Curtain Wall Doors And Windows Co ltd
Current assignee: Hunan Mengtong Curtain Wall Doors And Windows Co ltd
Priority date: 2020-03-20
Filing date: 2020-03-20
Publication date: 2020-11-10
Anticipated expiration: 2030-03-20

Abstract

The invention relates to a building energy-saving outward casement window with safety guardrails and mosquito prevention functions, which comprises a door and window frame, door and window sashes and guardrails, wherein one end of each door and window sash is hinged with one side of the door and window frame, a detachable invisible screen window is arranged on each door and window frame, each invisible screen window comprises a screen, screen sash handles and a winding drum which are respectively arranged on the left side and the right side of the screen, and sliding chains which are respectively arranged on the upper side and the lower side of the screen, sliding rails corresponding to the sliding chains are respectively arranged on the inner sides of the upper side and the lower side of each door and window frame, and a locking strip is arranged at the end part of each screen sash handle and is matched with a strip-shaped piece arranged on a. The invention has the characteristics of mosquito prevention, falling prevention, glass capable of being arranged in the glass and low cost.

Description

Building energy-saving outward casement window with safety guardrail and mosquito-proof function

Technical Field

The invention relates to a building energy-saving heat-insulating outward casement window, in particular to a structure with a detachable invisible mosquito-proof screen window at an opening leaf part, a detachable anti-falling guardrail and a guardrail rod capable of being installed on a lower fixed window.

Background

The energy-conserving outer flat-open window of building that current engineering field used except only door and window open, close, energy-conserving function, no longer has other functions, if: the mosquito-proof function, open fan position and do not have child anti-falling function, the fixed window does not have the guardrail function of seting up defences.

In order to meet the completion acceptance standard specified in residential design Specifications (GB 50096-2011), the existing energy-saving casement window for buildings can be used for completion acceptance only by adding a zinc steel protective railing; after the zinc steel protective railing is additionally arranged, the indoor space is occupied; the hollow glass of the casement window is generally installed outdoors, so that the hidden danger of safety of constructors and the risk of falling of the glass from a building exists; the conversion frame can realize the interior installation of the hollow glass, but the cost of the aluminum alloy door and window is obviously increased.

Due to the problems and the defects, most developers pay houses to owners through completion and acceptance, and because doors and windows installed by the developers do not have the functions, the owners start to dismantle old windows and replace new windows after receiving house-handing keys, and dismantle zinc steel protective railings which are not attractive and occupy indoor space. The system door and window with the anti-mosquito screen sash or the anti-falling guardrail for children with individual requirements is required to be replaced besides the function of ventilation of the opening sash. And because the 'system door and window' requires that the aluminum profile has a wider series of scales (the width of the cross section) in order to realize anti-mosquito screen sash and child falling-prevention guardrail, the specification of the common system window is at least the requirement of 90 mm-145 mm series or larger scale, and the functions can be realized. Therefore, the cost of the system door and window is generally higher, generally between 800 and 1800 yuan/square meter, and the general family, especially the salary family is hard to bear.

Disclosure of Invention

The invention aims to improve and innovate the defects and problems in the background technology and provides a building energy-saving outward-hinged door and window structure which has the advantages of mosquito prevention, falling prevention, glass capable of being arranged inside and low cost.

The invention discloses a building energy-saving external casement window with safety guardrails and mosquito-proof functions, which comprises a door and window frame, door and window sashes and guardrails, wherein one end of each door and window sash is hinged with one side of the door and window frame, a detachable invisible screen window is arranged on the door and window frame, the invisible screen window comprises a screen, screen handles and winding drums which are respectively arranged at the left side and the right side of the screen, and sliding chains which are respectively arranged at the upper side and the lower side of the screen, sliding rails corresponding to the sliding chains are respectively arranged at the inner sides of the upper side and the lower side of the door and window frame, handle sealing heads corresponding to the sliding rails are respectively arranged at the upper end and the lower end of each screen handle, the winding drums comprise screen drum boxes, shaft drums and two screen drum sealing covers, the screen drum sealing covers are arranged at the two ends of each screen drum box and are respectively provided with a fixed rotating shaft and a movable rotating shaft which are opposite to each other, a torsion spring external sleeve, the yarn cylinder sealing cover is only fixed with one end of a torsion spring in the torsion spring sleeve, the side face of the yarn cylinder box is open, at least one first clamping groove is formed in the shaft cylinder, one side of the gauze is clamped in one first clamping groove through a clamping adhesive tape, the end part of the movable rotating shaft is provided with a handle, the side face of the end part is provided with a first limiting hole, and the yarn cylinder sealing cover connected with the movable rotating shaft is provided with a second limiting hole corresponding to the first limiting hole;

one side of the yarn barrel box, back to the opening, is connected with an outer frame clamping strip, the outer frame clamping strip is connected with a door and window frame, an inner frame clamping strip is further arranged on the door and window frame and positioned on the indoor side and in front of the yarn barrel sealing cover (positioned on the indoor side), a guide roller is arranged between the inner frame clamping strip and the shaft barrel, and the guide roller is positioned on an extension line of a movable track of the yarn sash handle;

the end part of the inner frame clamping strip is connected with the guardrail through a locking rubber strip;

the screen sash handle is L-shaped as a whole, one side of the L-shape is provided with a first handle, the other side of the L-shape is provided with a recess for forming a second handle, and one end of the second handle, which is far away from the first handle, is connected with a screen;

the sash frame and the glass of the door and window sash can be embedded between the door and window frame and the mullion, and one side of the sash frame is provided with a limit strip;

the L-shaped corner of the screen sash handle is provided with a locking strip, a mullion opposite to the screen drum box is provided with a strip-shaped piece with a groove corresponding to the locking strip, and the locking strip can be elastically locked with the strip-shaped piece.

And a latch lock is also arranged between the screen sash handle and the mullion.

The locking rubber strip is integrally inverted-splayed, the bottom of the locking rubber strip is closed, the inner sides of the two legs are provided with opposite first surrounding bulges, and the end parts of the two legs far away from the locking rubber strip are respectively provided with a second clamping groove which is concave from outside to inside; the inner frame clamping strip is provided with a receiving groove capable of receiving the locking rubber strip, and the receiving groove is provided with a second surrounding bulge for clamping a second clamping groove; the guardrail is provided with a plug with an expanded end part, and the plug can be clamped in the locking rubber strip by the first encircling protrusion.

The connecting side of the inner frame clamping strip and the locking rubber strip is connected with the door and window frame through a spring pin.

The handle head include the slider and insert the fixed pin of second handle, be provided with on the slider with slide rail complex slide rail groove, the one end of slider sets up the third draw-in groove that holds the gauze to set up the pinhole and be used for installing the bolt and fix the gauze in the third draw-in groove.

The guard bar is connected with the door and window frame or the mullion through the locking rubber strip.

Well club on set up the quadriversal section bar, the left side of quadriversal section bar sets up a pair of block tongue 49 left for be connected with well club, quadriversal section bar upper portion sets up the groove of accomodating that holds the locking adhesive tape, be used for connecting the guardrail, the right side of quadriversal section bar sets up decurrent adhesive tape mounting groove, is used for installing the bread adhesive tape sealed with the door and window fan, the bottom of quadriversal section bar sets up bar mounting groove rightwards for the bar spare of installation trough of belt makes it and fixed pin cooperation, fixed screen fan handle.

One of a pair of block tongues of quadriversal section bar is located the upwards extension department of quadriversal section bar, set up the curved separation blade of area arc on the frame of guardrail for when the plug on the frame of guardrail inserts downwards and accomodates the groove, the separation blade covers the edge of well club.

The section of the strip-shaped part 50 is in a shape that a front E and a back E are opposite and the bottoms of the front E and the back E are connected, two symmetrical barbs 54 pointing to the opening direction are arranged on the outer side of the strip-shaped part, the strip-shaped part installation groove 51 is U-shaped, and barb grooves 55 matched with the barbs 54 are arranged on the inner sides of two sides of the opening.

The gauze is a stainless steel gauze.

The invention has the advantages and beneficial effects that:

on the premise of not increasing the width of aluminum material series, namely the cross section of aluminum material, and the using amount of aluminum materials of doors and windows, and below 70 series (such as 50, 55, 60, 65 series and the like) of the original common window, the multifunctional aluminum material window can realize the multifunction of the doors and windows, and has the functions of (1) hiding and preventing mosquitoes from falling off a building by opening a fan, (2) preventing children from falling off the building by opening a fan, and (3) fixing the window guard rail, and has the remarkable characteristics of assembly and disassembly, and the hiding and preventing mosquitoes and windows and the children falling off guard rail can be disassembled to be convenient for maintenance and fire fighting.

When the multifunctional door and window is adopted, as the fixed window protective railing and the door and window are integrated into a whole, developers or construction parties can transact completion acceptance without installing a zinc steel guardrail, the cost is saved for the developers, and the users save and utilize the indoor space; 2. the opening part is provided with the child anti-falling guardrail, a user does not need to additionally install a stainless steel anti-falling window, the stainless steel anti-falling window is not beneficial to fire fighting and rescue when a fire disaster happens in a high building, and a plurality of large cities forbid the outdoor installation of the stainless steel anti-falling window at present, the child anti-falling guardrail is detachable, a fireman does not need a special window breaking tool when the fire disaster happens and the rescue is needed, and the fireman can open the child anti-falling guardrail to enter the room for rescue by pushing from the outside to the inside; when hardware, a hinge and an invisible mosquito-proof screen window of an opening sash need to be replaced or maintained, an adult can pull inwards with force to exceed the deformation limit value of a clamping rubber strip of an ethylene propylene diene monomer butterfly-shaped rubber strip, and the protective guard can be detached; 3. the invisible screen window is arranged at the opening part, so that the problem that the opening window sash part of the engineering window has no mosquito-proof screen window function is solved, and the embarrassment that the invisible screen window cannot use a stainless steel screen net which can prevent the rat from biting is also solved.

The invention can realize that a developer does not increase the cost, a user does not detach an old window and replace a new window because of the single function of the door and the window, thereby saving the cost of the developer or a building unit and the cost of replacing the window by the user. The inner side of the frame of the guardrail and the inner side of the window frame are basically in the same vertical plane, so that the guardrail is attractive and does not occupy indoor area.

Drawings

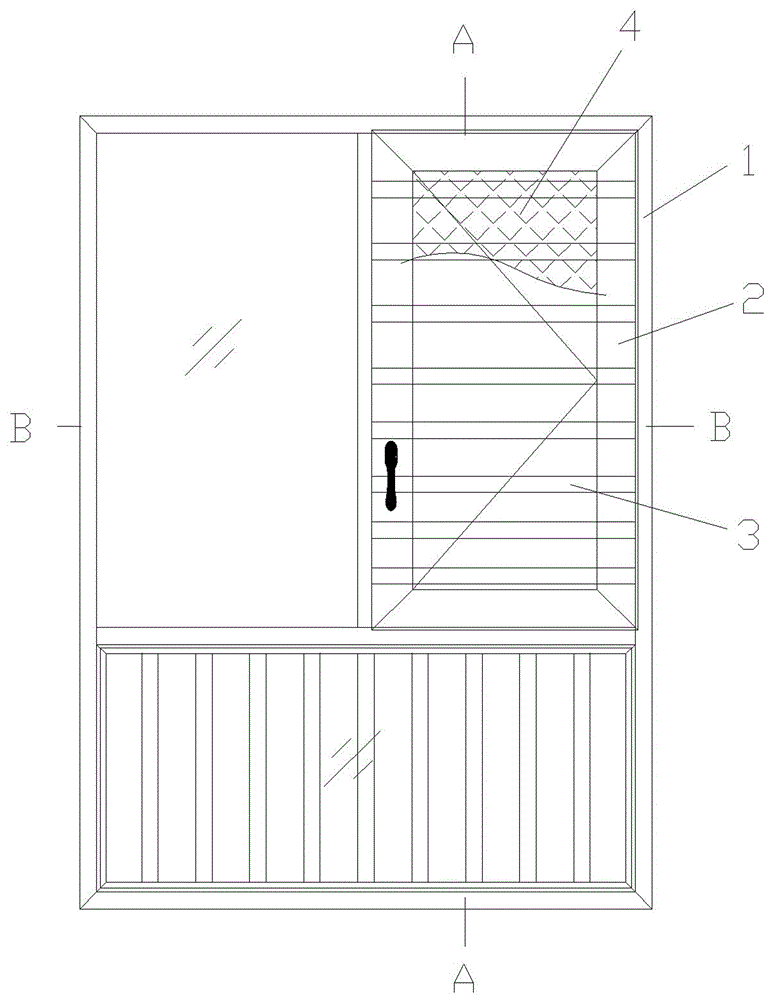

Fig. 1 is a schematic view of the overall structure of the embodiment.

Fig. 2 is a sectional view taken along line a-a in fig. 1.

Fig. 3 is a sectional view taken along line B-B in fig. 1.

Figure 4 is an exploded view of the invisible screen.

Fig. 5 is a schematic view showing the state that the invisible screen window is closed and the door and window sash is opened.

Fig. 6 is a schematic view showing an opened state of the invisible screen window (the door and window sash is not shown).

Fig. 7 is a schematic structural diagram of a four-way profile in the embodiment.

Fig. 8 is a schematic view of the mounting relationship of the bar to the bar mounting groove of fig. 7.

Detailed Description

To facilitate an understanding of the invention, the invention will now be described more fully with reference to the accompanying drawings. Preferred embodiments of the present invention are shown in the drawings. This invention may, however, be embodied in many different forms and should not be construed as limited to the embodiments set forth herein. Rather, these embodiments are provided so that this disclosure will be thorough and complete.

It will be understood that when an element is referred to as being "disposed" on another element, it can be directly disposed or attached to the other element or intervening elements may also be present.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used in the description is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention.

Example 1

As shown in fig. 1-6, an energy-saving external casement window with safety guardrail and mosquito-proof function for building comprises a window and door frame 1, a window and door sash 2 and a guardrail 3, wherein one end of the window and door sash 2 is hinged with one side of the window and door frame 1 through a hinge, a detachable invisible window screen 4 is arranged on the window and door frame, the invisible window screen 4 comprises a gauze 5 made of stainless steel, a gauze sash handle 6 and a winding drum 7 which are respectively arranged at the left side and the right side of the gauze 5, and sliding chains 8 which are respectively arranged at the upper side and the lower side of the gauze 5, sliding rails 9 corresponding to the sliding chains 8 are respectively arranged at the inner sides of the upper side and the lower side of the window and door frame 1, handle end enclosures 10 corresponding to the sliding rails 9 are respectively arranged at the upper end and the lower end of the gauze sash handle 6, the winding drum 7 comprises a gauze drum box 11, a shaft 12 and two gauze drum end enclosures 13, the gauze drum end enclosures 13 are arranged at the two ends of the gauze drum box 11, a torsion spring external member 44 is arranged between the fixed rotating shaft 14 and the movable rotating shaft 43, the shaft barrel 12 is sleeved outside the torsion spring external member 44, and is fixed only to one end of the torsion spring 41 in the torsion spring kit 44, the side of the bobbin case 11 is opened, the shaft barrel 12 is provided with three first clamping grooves 15, one edge of the gauze 5 is clamped in one of the first clamping grooves 15 through a clamping rubber strip 46, the end part of the movable rotating shaft 43 is provided with a handle 17, and the side of the end part is provided with a first limit hole 56, the bobbin sealing cover 13 connected with the movable rotating shaft 43 is provided with a second limit hole corresponding to the first limit hole 56, when the handle 17 drives the movable shaft 43 to rotate until the first limiting hole 56 is aligned with the second limiting hole, screws or split pins can be inserted through the first position-limiting holes 56 and the second position-limiting holes to fix the same, the movable rotating shaft 43 and the corresponding bobbin sealing cover 13 can be further provided with arrows indicating whether the first limiting hole and the second limiting hole are aligned or not;

one side, back to the opening, of the gauze drum box 11 is connected with an outer frame clamping strip 18, the outer frame clamping strip 18 is connected with a door and window frame 1, an inner frame clamping strip 19 is further arranged on the door and window frame 1 and positioned on the indoor side and in front of the gauze drum sealing cover 13 (positioned on the indoor side), a guide roller 45 is arranged between the inner frame clamping strip 19 and the shaft drum 12, and the guide roller 45 is positioned on an extension line of the movable track of the gauze sash handle 6;

the end part of the inner frame clamping strip 19 is connected with the guardrail 3 through a locking rubber strip 20;

the screen sash handle 6 is L-shaped as a whole, one side of the L-shape is provided with a first handle 22, the other side of the L-shape is provided with a recess for forming a second handle 23, and one end of the second handle 23 far away from the first handle 22 is connected with the screen 5;

the L-shaped corner of the screen sash handle 6 is provided with a locking strip 24, a mullion 25 opposite to the screen barrel box 11 is provided with a strip part 50 with a groove corresponding to the locking strip 24, and the locking strip 24 can be elastically locked with the strip part 50. The sash frame and the glass of the door and window sash 2 can be embedded between the door and window frame 1 and the mullion 25, and one side of the sash frame is provided with a limit strip 27.

The whole locking rubber strip 20 is in an inverted-splayed shape, the bottom of the locking rubber strip is closed (the direction of the locking rubber strip is the drawing depicted in the attached drawing 3, and the installation direction in practical application is not limited), the inner sides of the two legs are provided with opposite first surrounding protrusions 28, and the end parts far away from the two legs are respectively provided with second clamping grooves 29 which are concave from outside to inside; the inner frame clamping strip 19 is provided with a receiving groove 30 capable of receiving the locking rubber strip 20, and the receiving groove 30 is provided with a second surrounding protrusion 31 for clamping a second clamping groove 29; the guardrail 3 is provided with a plug 32 with an expanded end, and the plug 32 can be clamped in the locking rubber strip 20 by the first encircling protrusion 28.

The connecting side of the inner frame clamping strip 19 and the locking rubber strip 20 is connected with the door and window frame 1 through a spring pin 33.

The handle end socket 10 comprises a sliding block 39 and a fixing pin 34 inserted into the second handle 23, a sliding rail groove 35 matched with the sliding rail 9 is arranged on the sliding block 39, a third clamping groove 36 for accommodating the gauze 5 is arranged at one end of the sliding block 39, and a pin hole 37 is arranged for installing a pin to fix the gauze 5 in the third clamping groove 36.

The guard rail 3 and the door and window frame 1 or the mullion 25 are both connected through the locking rubber strip 20.

As shown in fig. 7, a four-way section bar 47 is arranged on the mullion 25, a pair of leftward locking tongues 49 is arranged on the left side of the four-way section bar 47 and used for being connected with the mullion 25, the accommodating groove 30 for accommodating the locking rubber strip 20 is arranged on the upper portion of the four-way section bar 47 and used for being connected with the guardrail 3, a downward rubber strip installation groove 51 is arranged on the right side of the four-way section bar 47 and used for installing a bread rubber strip 48 sealed with a door and a window sash, and a rightward strip-shaped piece installation groove 52 is arranged on the bottom of the four-way section bar 47 and used for installing a strip-shaped piece 50 with a groove so as to be matched with the. One of a pair of clamping tongues 49 of the four-way section bar 47 is positioned at the upward extending part of the four-way section bar 47, and a blocking piece 53 with an arc-shaped bend is arranged on the frame of the guardrail 3, so that when the plug 32 on the frame of the guardrail 3 is inserted into the accommodating groove 30 downwards, the blocking piece 53 covers the edge of the mullion 25, and the blocking piece and the window frame of the indoor surface are in the same plane, so that the angle can be formed by 45 degrees, and the appearance is attractive.

As shown in fig. 8, the section of the strip 50 is in a shape that the front side E and the back side E are opposite and the bottoms are connected, two symmetrical barbs 54 pointing to the opening direction are arranged on the outer side of the strip, the strip installation groove 51 is U-shaped, and barb grooves 55 matched with the barbs 54 are arranged on the inner sides of the two sides of the opening.

The technical problem to be solved by the invention is mainly that aiming at the field of building engineering, the energy-saving side-hung door and window (a house built by developers or investors) for building in the field of existing real estate buildings is generally adopted between 50-80 series, and aluminum door and window profiles between 50-80 series only realize the opening and closing functions of an opening sash due to the limitation of section width, do not have the mosquito-proof function, do not have the falling-down prevention function for children at the opening sash part, do not have the protection railing function at a fixed window part, and can be checked and accepted as the completion only by additionally installing a zinc steel protection railing; the hollow glass generally adopts an outdoor installation process, so that potential safety hazards such as personnel safety risks and glass falling risks exist; when the 'conversion frame aluminum section' is adopted, the interior of the hollow glass can be realized, but the disadvantages of cost increase of the aluminum alloy door and window and the like are obviously overcome.

The indoor and outdoor surfaces of the frame material of the heat-insulation outward casement window are the same mold, and the indoor and outdoor surfaces of the stile material are the same mold, so that the stile material is universal internally and externally, and by adopting the design, the main section aluminum material mold can be reduced, the stock variety can be reduced, and the utilization rate of the aluminum material can be improved;

the notch width design of frame material, well club material, fan material is hinge notch (K groove or C groove) for uniform size, and the fixed window of being convenient for is general with the glass line ball of opening the fan, has reduced glass line ball aluminium alloy mould, has reduced the stock of glass line ball variety, has improved the utilization ratio of glass line ball aluminum product.

The design can also realize the universality of main section aluminum materials of the inward opening window and the outward opening window, namely the inward opening window and the outward opening window can be opened in an inward mode. The fixed glass can be embedded in the hollow glass without adding a conversion frame, so that the aluminum material is saved.

The sliding mechanism (sliding rail, vertical frame, etc.) of the invisible screen window can be the same section bar, plastic sliding grooves are embedded in the section bar, the two ends of the handle are provided with upper and lower plastic handle end sockets with opposite directions, the end sockets are provided with blocking blocks to limit the invisible screen from entering the screen box after contracting to proper positions, the plastic end sockets are assembled at the two ends of the aluminum product of the handle to form the handle of the invisible screen window, the plastic end sockets are provided with sliding blocks and small holes, and the small holes are used for fixing the screen. The sliding blocks are used for moving in the slide ways of the upper and lower tracks to stretch and contract the screen window, and the upper and lower handle end socket sliding blocks enter the upper and lower slide way grooves and the left or right hidden yarns are provided with locking strips, so that the screen can be prevented from wrinkling, the screen can be prevented from being blown away by wind, the aim of preventing mosquitoes is fulfilled, and the effects of sealing and preventing the handle from rebounding are also achieved.

Stealthy screen window is under shrink quiescent condition, and the screen window draws the hand power and is sheltered from by interior frame gib block, and is unusable, and the yarn section of thick bamboo box is blocked to first handle this moment, prevents that the screen window handle from further retracting. When the hidden yarn pulling device is used, the first handle is a traction handle, hidden yarns are slightly pulled out and are pulled away from the exposed inner frame clamping strip, and then the sunken second handle is a normal handle.

The connection of the screen mesh of the hidden screen, the screen cylinder and the screen sash handle is embedded, the problem that the hidden screen mesh in the current market only adopts a nylon mesh and is bonded on the screen cylinder by using a double-sided adhesive tape is solved, the hidden screen window can be made of a stainless steel screen mesh, and the purpose of preventing rat bites is achieved.

The embodiments of the present invention are described only for the preferred embodiments of the present invention, and not for the limitation of the concept and scope of the present invention, and various modifications and improvements made to the technical solution of the present invention by those skilled in the art without departing from the design concept of the present invention shall fall into the protection scope of the present invention, and the technical content of the present invention which is claimed is fully set forth in the claims.

Claims

1. The utility model provides an energy-conserving outer flat-open window of building with safety barrier, mosquito-proof function which characterized in that: the door and window comprises a door and window frame, a door and window sash and a guardrail, wherein one end of the door and window sash is hinged with one side of the door and window frame, a detachable invisible screen window is arranged on the door and window frame, the invisible screen window comprises a screen mesh, a screen sash handle and a winding drum which are respectively arranged at the left side and the right side of the screen mesh, and sliding chains which are respectively arranged at the upper side and the lower side of the screen mesh, sliding rails corresponding to the sliding chains are respectively arranged at the inner sides of the upper side and the lower side of the door and window frame, handle sealing heads corresponding to the sliding rails are respectively arranged at the upper end and the lower end of the screen sash handle, the winding drum comprises a screen drum box, a shaft drum and two screen drum sealing covers, the screen drum sealing covers are arranged at the two ends of the screen drum box and are respectively provided with a fixed rotating shaft and a movable rotating shaft which are opposite to each other, a torsion spring sleeve is arranged between the fixed rotating, the shaft barrel is provided with at least one first clamping groove, one edge of the gauze is clamped in one of the first clamping grooves through a clamping adhesive tape, the end part of the movable rotating shaft is provided with a handle, the side surface of the end part is provided with a first limiting hole, and a gauze barrel sealing cover connected with the movable rotating shaft is provided with a second limiting hole corresponding to the first limiting hole;

one side of the yarn barrel box, back to the opening, is connected with an outer frame clamping strip, the outer frame clamping strip is connected with a door and window frame, an inner frame clamping strip is further arranged on the door and window frame and positioned on the indoor side and in front of the yarn barrel sealing cover, a guide roller is arranged between the inner frame clamping strip and the shaft barrel and positioned on an extension line of a movable track of the yarn sash handle;

the end part of the inner frame clamping strip is connected with the guardrail through a locking rubber strip, and the guardrail is connected with the door and window frame or the mullion through the locking rubber strip;

2. The building energy-saving outward casement window with safety guardrail and mosquito-proof function according to claim 1, characterized in that: the locking rubber strip is integrally inverted-splayed, the bottom of the locking rubber strip is closed, the inner sides of the two legs are provided with opposite first surrounding bulges, and the end parts of the two legs far away from the locking rubber strip are respectively provided with a second clamping groove which is concave from outside to inside; the inner frame clamping strip is provided with a receiving groove capable of receiving the locking rubber strip, and the receiving groove is provided with a second surrounding bulge for clamping a second clamping groove; the guardrail is provided with a plug with an expanded end part, and the plug can be clamped in the locking rubber strip by the first enclosure.

3. The building energy-saving outward casement window with safety guardrail and mosquito-proof function according to claim 1, characterized in that: the connecting side of the inner frame clamping strip and the locking rubber strip is connected with the door and window frame through a spring pin.

4. The building energy-saving outward casement window with safety guardrail and mosquito-proof function according to claim 1, characterized in that: the handle head include the slider and insert the fixed pin of second handle, be provided with on the slider with slide rail complex slide rail groove, the one end of slider sets up the third draw-in groove that holds the gauze to set up the pinhole and be used for installing the bolt and fix the gauze in the third draw-in groove.

5. The building energy-saving outward casement window with safety guardrail and mosquito-proof function according to claim 1, characterized in that: the gauze is a stainless steel gauze.

6. The building energy-saving outward casement window with safety guardrail and mosquito-proof function according to claim 1, characterized in that: well club on set up the quadriversal section bar, the left side of quadriversal section bar sets up a pair of block tongue left for be connected with well club, quadriversal section bar upper portion sets up the groove of accomodating that holds the locking adhesive tape, be used for connecting the guardrail, the right side of quadriversal section bar sets up decurrent adhesive tape mounting groove, is used for installing the bread adhesive tape sealed with the door and window fan, the bottom of quadriversal section bar sets up bar mounting groove rightwards for the bar spare of installation trough of belt makes its and fixed pin cooperation, fixed screen window fan handle.

7. The building energy-saving outward casement window with safety guardrail and mosquito-proof function according to claim 6, characterized in that: one of a pair of block tongues of quadriversal section bar is located the upwards extension department of quadriversal section bar, set up the curved separation blade of area arc on the frame of guardrail 3 for when the plug on the frame of guardrail inserts downwards and accomodates the groove, the separation blade covers the edge of well club.

8. The building energy-saving outward casement window with safety barrier and mosquito prevention functions as claimed in claim 7, characterized in that: the section of the strip-shaped part is in a shape that a front E and a back E are opposite and the bottoms of the strip-shaped part are connected, two symmetrical barbs pointing to the opening direction are arranged on the outer side of the strip-shaped part, the strip-shaped part installation groove is U-shaped, and barb grooves matched with the barbs are arranged on the inner sides of two sides of the opening.
