Abstract
The energy-conserving unitized curtain wall of inclined plane of a kind of vertical insertion-connection applied to building curtain wall field, the unit plate of unit curtain wall of this inclined plane is designed and made and installed according to the vertical insertion-connection when the insertion-connection structure is designed, the hanging of the unit plate is the vertical hanging, the vertical insertion-connection of the unit plate and horizontal insertion-connection of the unit plate can adjust the construction deviation in the scene well about, a series of problems brought by direction and stroke that the traditional inclined plane unit plate is inserted and connected are inconsistent have been solved effectively, this curtain wall is rational in infrastructure, it is simple and fast to process and construct and install, quality control is simple and easy, the plate is assembled the detail and is hung and installed integrally effectually, there are extensive usage space and fine popularization prospect in the field of building curtain wall.
Description
Technical Field
The utility model relates to an energy-conserving unitized curtain of inclined plane of perpendicular grafting is applied to the design and the installation of inclined plane unitized curtain in the building curtain field.
Background
At present, the richness requirement of building facade is more and more diversified, and traditional unitized curtain wall generally comprises perpendicular plane frame and panel, and its facade whole is the structural style of perpendicular usually, and curtain effect and molding are more single, and in order to richen the facade effect design of curtain, some buildings require facade curtain to adopt inclined plane unitized curtain wall now, and plate frame section bar and panel assembly need take the angle cutting, take the angle equipment. In the traditional inclined plane unit type curtain wall manufacturing method, an upper unit plate and a lower unit plate are usually designed to be obliquely inserted, the connection direction of a unit plate switching system is generally vertically connected along the gravity direction, the two directions are different, the construction and installation are difficult, and especially, when the angle difference between the two directions is too large, the insertion and connection strokes are completely different, so that the unit plates cannot be installed, and huge loss is caused; on the other hand, the unit plate is more difficult to be obliquely inserted and installed due to the fact that aluminum profile processing and plate assembly deviation of the inclined unit plate are larger than those of a normal vertical surface unit.
Disclosure of Invention
In order to solve the above problem of traditional inclined plane unitized curtain wall, the utility model provides an energy-conserving unitized curtain wall in inclined plane of perpendicular grafting, this inclined plane unitized curtain wall unit plate's upper and lower crossbeam designs and makes the installation according to perpendicular grafting when the grafting structure design, the dress of hanging of unit plate also is perpendicular dress of hanging, control the vertical grafting of unit plate and the horizontal grafting of upper and lower unit plate can adjust the site operation deviation well, a series of problems that direction and the stroke inconsistent brought of traditional inclined plane unit plate grafting and hanging have effectively been solved, this curtain is rational in infrastructure, processing preparation and construction installation are simple swift, quality control is simple and easy, the plate is assembled the detail and is hung the dress whole effect better.
The utility model discloses the technical scheme who adopts is, an energy-conserving unitized curtain wall in inclined plane of perpendicular grafting, characterized by: the unit aluminum hooks on the inclined unit plate are vertically articulated with the unit hanging seat notches, the sections of an upper cross beam, a middle cross beam and a lower cross beam of the inclined unit plate are all designed to have inclined surface angles, the inclined unit plate is spliced with the left stand column and the right stand column to form an integral inclined plate frame, the front inserting wing and the rear inserting wing of the section of the upper cross beam are vertically upward, the front inserting notch and the rear inserting notch of the section of the lower cross beam are vertically downward, the rear openings of the connecting parts of the left stand column and the right stand column and the lower cross beam before the plate is assembled mill the inclined surface of the stand columns into vertical surfaces, so that the left stand column and the right stand column are communicated with the vertical walls of the inserting notches.
When the unit aluminum hook is installed on site, the unit aluminum hook on the inclined unit plate is vertically hung on a unit hanging seat which is installed and adjusted and fixed, after the adjacent unit plate is hung, the front transverse water collecting tank and the rear transverse water draining tank are slidingly moved to cover the gap between the two adjacent plates, and the peripheries of the front transverse water collecting tank and the rear transverse water draining tank are sealed by gluing.
When the inclined plane unit plate is hung, the left inclined plane unit plate and the right inclined plane unit plate are inserted and connected through the horizontal insertion of the left stand column and the right stand column of the adjacent unit plate, the upper inclined plane unit plate and the lower inclined plane unit plate are inserted and connected in the height direction through the vertical insertion of the adjacent upper cross beam and the adjacent lower cross beam, and finally the indoor decoration buckle cover section is installed at the rear opening of the lower cross beam in a buckling mode.
Technical characteristics
The technical characteristics of the vertical inserted slope unit type curtain wall are described as follows:
1. the inclined plane energy-saving unit type curtain wall is vertically spliced, an inclined plane upper cross beam and an inclined plane lower cross beam are designed in a vertical splicing mode, the on-site installation and positioning are more accurate, the splicing of the upper inclined plane plate and the lower inclined plane plate is easier to realize, and the outer vertical face decoration effect of the curtain wall is better realized.
2. When the inclined plane unit type curtain wall needs to be in circle intersection with the straight panel block at the same elevation, the size of the vertical splicing thin parts of the upper cross beam and the lower cross beam of the upper inclined plane block and the lower inclined plane block at the lower layer is consistent with that of the vertical splicing thin parts of the upper cross beam and the lower cross beam of the straight panel block, so that the front drainage tank and the rear drainage tank can be universal, the circle intersection of waterproof treatment can be realized, and the sealing effect is natural and tighter.
3. The rear opening of the lower cross beam of the inclined plane unit type curtain wall is consistent with the rear opening of the lower cross beam of the straight plane curtain wall in detail size, the indoor decoration buckle cover profiles are crossed, and the indoor effect is attractive and uniform.
Drawings
The embodiments of the present invention will be further explained with reference to the attached drawings, which are embodiments of a vertical splicing slope energy-saving unitized curtain wall.
Fig. 1 is a cross section point diagram of a vertically inserted inclined plane energy-saving unit type curtain wall.

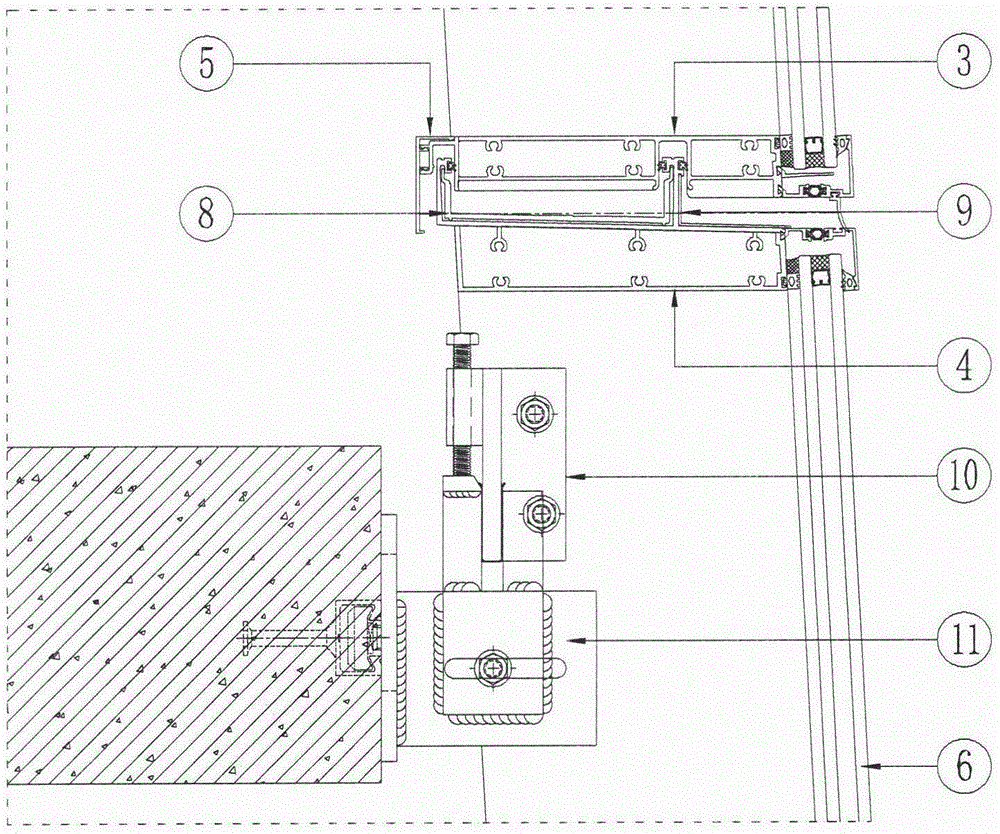

FIG. 2 is a longitudinal enlarged view of the vertical and horizontal insertion portion of the energy-saving unit type curtain wall with the inclined plane inserted vertically.
Fig. 3 is a longitudinal section outline of a complete unit of the inclined plane energy-saving unit type curtain wall which is vertically inserted.
In the figure, 1, a left upright post of a slope unit plate, 2, a right upright post of the slope unit plate, 3, a lower cross beam of the slope unit plate, 4, an upper cross beam of the slope unit plate, 5, an indoor decoration buckle cover, 6, a glass panel, 7, a middle cross beam of the slope unit plate, 8, a rear transverse water collecting tank, 9, a front transverse water discharging tank, 10, a unit aluminum hook and 11, a unit hanging seat are arranged.
Detailed Description
In fig. 1, 2 and 3, a left inclined unit plate column 1, a right inclined unit plate column 2, an upper inclined unit plate beam 4, a lower inclined unit plate beam 3 and a middle inclined unit plate beam 7 are assembled into an inclined unit plate main frame, wherein when the left inclined unit plate column 1, the right inclined unit plate column 2 and the lower inclined unit plate beam 3 are assembled, a rear opening of the column needs to be partially milled to reach a rear wall of a lower beam insertion groove opening, and meanwhile, an installation space for installing an indoor decoration buckle cover 5 is reserved. After the main frame of the inclined unit plate is assembled, the inclined unit plate is assembled after the glass panel 6 is installed. The unit hanging seat 11 is installed and adjusted and fixed well before field installation, after the inclined plane unit plate is sent to the field, the adjacent unit plate of the lower layer is hung and installed firstly, the unit aluminum hooks 10 of the unit plate are hung and connected on the unit hanging seat 11 vertically, then the front transverse water collecting tank 9 and the rear transverse water draining tank 8 slide to cover the gap between the two adjacent plates, the peripheries of the front transverse water collecting tank 9 and the rear transverse water draining tank 8 are sealed by gluing, then the inclined plane unit plate of the upper layer is hung and installed, and the lower cross beam of the inclined plane unit plate of the upper layer and the upper cross beam of the inclined plane unit plate of the lower layer are vertically spliced and positioned.
Claims (3)
1. The utility model provides an energy-conserving unitized curtain wall of inclined plane of perpendicular grafting, characterized by: the unit aluminum hooks on the inclined unit plate are vertically articulated with the unit hanging seat notches, the sections of an upper cross beam, a middle cross beam and a lower cross beam of the inclined unit plate are all designed to have inclined surface angles, the inclined unit plate is spliced with the left stand column and the right stand column to form an integral inclined plate frame, the front inserting wing and the rear inserting wing of the section of the upper cross beam are vertically upward, the front inserting notch and the rear inserting notch of the section of the lower cross beam are vertically downward, the rear openings of the connecting parts of the left stand column and the right stand column and the lower cross beam before the plate is assembled mill the inclined surface of the stand columns into vertical surfaces, so that the left stand column and the right stand column are communicated with the vertical walls of the inserting notches.
2. The energy-saving unit curtain wall with the vertically inserted inclined planes as claimed in claim 1, is characterized in that: when the unit aluminum hook is installed on site, the unit aluminum hook on the inclined unit plate is vertically hung on a unit hanging seat which is installed and adjusted and fixed, after the adjacent unit plate is hung, the front transverse water collecting tank and the rear transverse water draining tank are slidingly moved to cover the gap between the two adjacent plates, and the peripheries of the front transverse water collecting tank and the rear transverse water draining tank are sealed by gluing.
3. The energy-saving unit curtain wall with the vertically inserted inclined planes as claimed in claim 1, is characterized in that: when the inclined plane unit plate is hung, the left inclined plane unit plate and the right inclined plane unit plate are inserted and connected through the horizontal insertion of the left stand column and the right stand column of the adjacent unit plate, the upper inclined plane unit plate and the lower inclined plane unit plate are inserted and connected in the height direction through the vertical insertion of the adjacent upper cross beam and the adjacent lower cross beam, and finally the indoor decoration buckle cover section is installed at the rear opening of the lower cross beam in a buckling mode.
