Abstract

The utility model discloses an energy-saving reactive compensation capacitor box, the power distribution box comprises a box body, the top welding of box has waterproof top, and the both sides inner wall of waterproof top has the backup pad through the bolt fastening, the bottom of backup pad has first electric telescopic handle through the bolt fastening, and first electric telescopic handle's bottom has the rack through the bolt fastening, the both sides inner wall welding of box has the spliced pole, and one side of spliced pole is rotated and is connected with first bevel gear, and first bevel gear and rack mesh mutually, the both sides inner wall fixedly connected with baffle of box. The utility model relates to an energy-saving reactive compensation electric capacity cabinet can dispel the heat through fan round trip movement to the electric capacity on the mounting bracket, reduces the loss of electric capacity, and plays a protection to the inside device of electric capacity cabinet, can also turn into the electric energy with light energy, supplies with electrical apparatus and uses, not only resources are saved, and energy-concerving and environment-protective type society is favorable to the establishment of energy-concerving and environment-protective type society.

Description

Energy-saving reactive compensation capacitor box

Technical Field

The utility model relates to a reactive compensation capacitor box technical field especially relates to an energy-saving reactive compensation capacitor box.

Background

The reactive compensation cabinet has the functions of performing reactive compensation, providing necessary reactive power by means of reactive compensation equipment, improving power factors of a power grid and electric equipment in an electric power supply system, reducing loss of a power supply transformer and a transmission line, improving power supply efficiency of the power grid, improving power supply environment and improving quality of the power grid.

At present, current reactive compensation capacitor box equipment, mostly have following not enough, at the in-process of carrying out reactive compensation, need frequent charge and discharge, lead to a large amount of heat dissipations, and the heat of effluvium leads to the fact the damage to the inside device of capacitor box on the one hand, and on the other hand can aggravate the consume of electric energy, and a lot of capacitor boxes on the market at present can not be fine dispel the heat, to sum up, current reactive compensation equipment still can not be fine agree with the actual need.

SUMMERY OF THE UTILITY MODEL

In order to achieve the above purpose, the utility model adopts the following technical scheme:

an energy-saving reactive compensation capacitor box comprises a box body, wherein a waterproof top is welded at the top of the box body, supporting plates are fixed on the inner walls of two sides of the waterproof top through bolts, a first electric telescopic rod is fixed at the bottom of each supporting plate through bolts, a rack is fixed at the bottom end of each first electric telescopic rod through bolts, connecting columns are welded on the inner walls of two sides of the box body, a first bevel gear is rotatably connected to one side of each connecting column and meshed with the rack, a rotating rod is rotatably connected to the top of each connecting column, a second bevel gear is connected to one side of each rotating rod in a key mode, a rotating disc is welded at the top end of each rotating rod, a second connecting rod is welded on the upper surface of each rotating disc, a first connecting rod is rotatably connected to one side of each second connecting rod, a fan is fixed to the bottom of each first connecting rod through bolts, a sliding, the inner wall of one side of the sliding groove is connected with the sliding block in a sliding manner.

As the utility model discloses scheme further again, the both sides inner wall of box has the baffle through the bolt fastening, and the upper surface of baffle has seted up a plurality of ventilation holes.

As the utility model discloses scheme further again, one side inner wall of box has the mounting bracket through the bolt fastening, and the below that is located the baffle of mounting bracket.

As the utility model discloses scheme further again, the bottom outer wall of box has two second electric telescopic handle through the bolt fastening, and the base has all been welded to second electric telescopic handle's bottom.

As the utility model discloses scheme further again, one side of box is equipped with the chamber door, and one side outer wall of chamber door has the handle through the bolt fastening, and one side of handle bonds there is the slipmat.

As the utility model discloses scheme further again, one side of chamber door is equipped with the shutter, and one side of chamber door is passed through the bolt fastening and is had the snap ring, and one side of box is passed through the bolt fastening and is had buckle, buckle and snap ring looks joint.

As the utility model discloses scheme further again, one side outer wall of waterproof top has solar panel through the bolt fastening, and solar panel's output electric connection has photovoltaic controller, and photovoltaic controller's output electric connection has the battery, and the bottom of battery is connected with the last fixed surface of backup pad.

The utility model has the advantages that:

1. can reciprocate under first electric telescopic handle's drive through setting up of rack, under rack and the effect that first bevel gear meshed mutually, first bevel gear begins to rotate to drive the carousel and begin to rotate, simultaneously, the second connecting rod begins to rotate, and under the cooperation of head rod and slider, the fan round trip movement dispels the heat to the electric capacity on the mounting bracket, reduces the loss of electric capacity electric energy.

2. The solar panel can absorb light energy, convert the solar energy into electric energy through the photovoltaic controller, send the electric energy into the storage battery for storage, and supply the electric energy for the electric appliance of the capacitor box for use, so that the energy-saving and environment-friendly solar photovoltaic power generation system saves resources, is energy-saving and environment-friendly, and is favorable for building an energy-saving and environment-friendly society.

3. The height of the device can be adjusted as required by the arrangement of the second electric telescopic rod, the applicability of the device is improved, the box body can be ventilated and cooled by the arrangement of the blind window, the safety of the environment in the box body is guaranteed, the box door can be locked by the arrangement of the buckle under the matching of the snap ring, and therefore the electric appliance in the capacitor cabinet is prevented from being lost and economic loss is caused.

Drawings

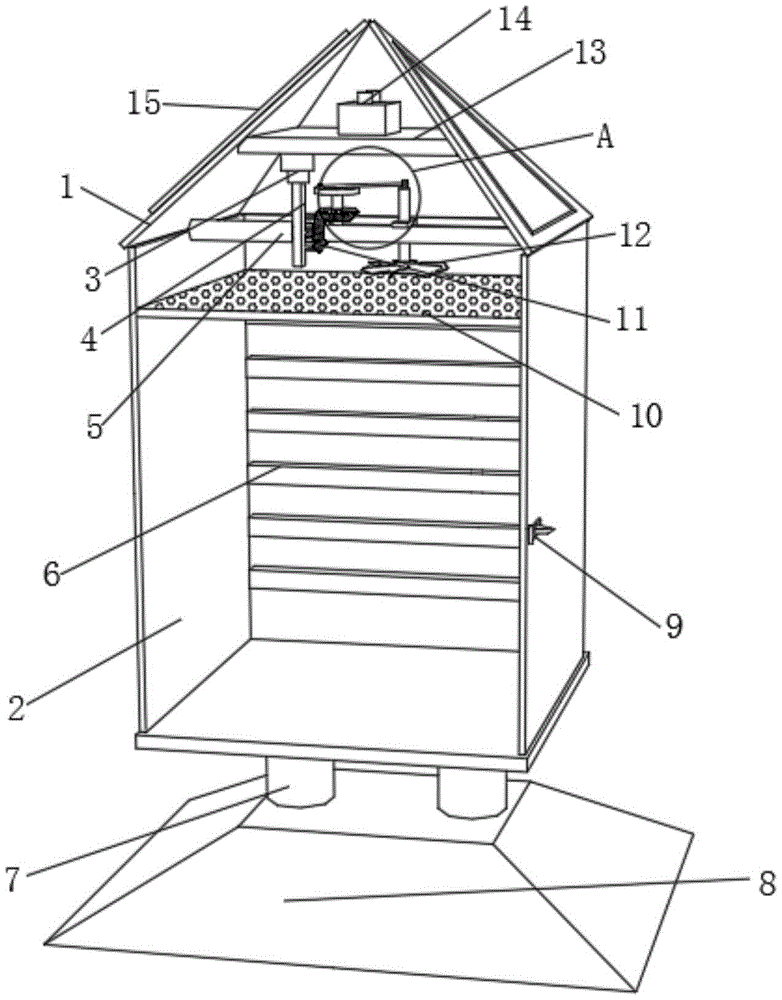

Fig. 1 is a schematic diagram of an internal structure of an energy-saving reactive compensation capacitor box provided by the present invention;

fig. 2 is a schematic view of a three-dimensional structure of an energy-saving reactive compensation capacitor box provided by the present invention;

fig. 3 is a schematic view of a partial structure of an energy-saving reactive compensation capacitor box a provided by the present invention;

in the figure: 1. a waterproof roof; 2. a box body; 3. a first electric telescopic rod; 4. a rack; 5. connecting columns; 6. a mounting frame; 7. a second electric telescopic rod; 8. a base; 9. buckling; 10. a baffle plate; 11. a first bevel gear; 12. A fan; 13. a support plate; 14. a storage battery; 15. a solar panel; 16. the shutter is movably connected with the frame; 17. A handle; 18. a turntable; 19. a rotating rod; 20. a second bevel gear; 21. a slider; 22. a first connecting rod; 23. A second connecting rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, an energy-saving reactive compensation capacitor box comprises a box body 2, a waterproof roof 1 is welded on the top of the box body 2, supporting plates 13 are fixed on the inner walls of two sides of the waterproof roof 1 through bolts, a first electric telescopic rod 3 is fixed on the bottom of the supporting plate 13 through bolts, a rack 4 is fixed on the bottom end of the first electric telescopic rod 3 through bolts, connecting posts 5 are welded on the inner walls of two sides of the box body 2, one side of each connecting post 5 is rotatably connected with a first bevel gear 11, the connecting posts move up and down under the driving of the first electric telescopic rod 3 through the racks 4, the first bevel gears 11 start to rotate under the meshing action of the racks 4 and the first bevel gears 11, the first bevel gears 11 are meshed with the racks 4, a rotating rod 19 is rotatably connected on the top of the connecting posts 5, a second bevel gear 20 is connected on one side of the rotating rod, and the last skin weld of carousel 18 has second connecting rod 23, second connecting rod 23 rotates around carousel 18 off-centre, one side of second connecting rod 23 is rotated and is connected with head rod 22, the bottom of head rod 22 has fan 12 through the bolt fastening, rotate under the drive of first bevel gear 11 through second bevel gear 20, thereby drive the rotation of carousel 18, slider 21 has been cup jointed to one side of head rod 22, the spout has been seted up to one side of spliced pole 5, one side inner wall and the slider 21 sliding connection of spout, and simultaneously, head rod 22 begins to rotate, under the cooperation of second connecting rod 23, slide back and forth under the cooperation of spout through slider 21, fan 12 round trip movement dispels the heat.

Wherein, the both sides inner wall of box 2 has baffle 10 through the bolt fastening, and the upper surface of baffle 10 has seted up a plurality of ventilation holes, makes the air-out more even through the ventilation hole on the baffle 10, carries out comprehensive heat dissipation to electric capacity.

Wherein, the inner wall of one side of box 2 is fixed with mounting bracket 6 through the bolt, makes things convenient for the installation of electric capacity through mounting bracket 6, and mounting bracket 6 is located the below of baffle 10.

Wherein, the bottom outer wall of box 2 has two second electric telescopic handle 7 through the bolt fastening, and through second electric telescopic handle 7 height adjusting device as required, base 8 has all been welded to the bottom of second electric telescopic handle 7.

Wherein, one side of box 2 is equipped with the chamber door, and one side outer wall of chamber door is fixed with handle 17 through the bolt, and one side bonding of handle 17 has the slipmat, and the joining of handle 17 for the opening and closing of chamber door are lighter.

Wherein, one side of chamber door is equipped with shutter 16, carries out ventilation cooling in to box 2 through shutter 16, and one side of chamber door is fixed with the snap ring through the bolt fastening, and one side of box 2 is fixed with buckle 9 through the bolt fastening, and under the cooperation of snap ring, with the chamber door locking, buckle 9 and snap ring looks joint through buckle 9.

Wherein, one side outer wall of waterproof top 1 is fixed with solar panel 15 through the bolt, solar panel 15's output electric connection has photovoltaic controller, it needs to explain, photovoltaic controller's model is YZGTYN-5L, photovoltaic controller's output electric connection has battery 14, and the bottom of battery 14 is connected with the last fixed surface of backup pad 13, absorb light energy through solar panel 15 and pass through photovoltaic controller again with solar energy transformation electric energy into the electric energy and send into battery 14 internal storage, supply again for the electrical apparatus use of electric capacity cabinet, not only resources are saved, and energy-concerving and environment-protective.

The working principle is as follows: when the device is used, firstly, the capacitor is installed on the installation frame 6, then, the first electric telescopic rod 3 is started, the rack 4 is driven by the first electric telescopic rod 3 to move up and down, the first bevel gear 11 is driven to rotate under the action of the meshing between the rack 4 and the first bevel gear 11, the first bevel gear 11 is driven by the second bevel gear 20 to rotate, the rotating disc 18 is driven to rotate, the second connecting rod 23 eccentrically rotates around the rotating disc 18, meanwhile, the first connecting rod 22 starts to rotate, the fan 12 moves back and forth to dissipate heat under the matching of the second connecting rod 23 and the sliding block 21, the solar energy absorbed by the solar panel 15 is converted into electric energy by the photovoltaic controller, the electric energy is sent into the storage battery 14 to be stored and then supplied to the electric appliance of the capacitor cabinet for use, when the height of the device needs to be adjusted, the telescopic length of the second electric telescopic rod 7 is adjusted to adjust the height of the device, the box body 2 is ventilated and cooled through the shutter 16, and the box door is locked through the buckle 9 under the matching of the snap ring.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.

Claims (7)

1. An energy-saving reactive compensation capacitor box comprises a box body (2) and is characterized in that the top of the box body (2) is fixedly connected with a waterproof roof (1), the inner walls of the two sides of the waterproof roof (1) are fixedly connected with supporting plates (13), the bottom of each supporting plate (13) is fixedly connected with a first electric telescopic rod (3), the bottom of each first electric telescopic rod (3) is fixedly connected with a rack (4), the inner walls of the two sides of the box body (2) are fixedly connected with a connecting column (5), one side of each connecting column (5) is movably provided with a first bevel gear (11), the first bevel gear (11) is meshed with the rack (4), the top of each connecting column (5) is movably connected with a rotating rod (19), one side of each rotating rod (19) is fixedly connected with a second bevel gear (20), the top of each rotating rod (19) is fixedly connected with a rotating disc (18), and the upper surface of each rotating disc, one side swing joint of second connecting rod (23) has head rod (22), and the bottom fixedly connected with fan (12) of head rod (22), one side of head rod (22) are equipped with slider (21), the spout has been seted up to one side of spliced pole (5), one side inner wall and slider (21) sliding connection of spout.

2. The energy-saving reactive compensation capacitor box according to claim 1, wherein baffles (10) are fixedly connected to inner walls of two sides of the box body (2), and a plurality of ventilation holes are formed in the upper surface of each baffle (10).

3. An energy-saving reactive compensation capacitor cabinet according to claim 1, characterized in that a mounting rack (6) is fixedly connected to the inner wall of one side of the cabinet body (2), and the mounting rack (6) is located below the baffle (10).

4. The energy-saving reactive compensation capacitor box of claim 1, wherein two second electric telescopic rods (7) are fixedly connected to the outer wall of the bottom of the box body (2), and a base (8) is fixedly connected to the bottom ends of the second electric telescopic rods (7).

5. The energy-saving reactive compensation capacitor box according to claim 1, wherein a box door is arranged on one side of the box body (2), a handle (17) is fixedly connected to the outer wall of one side of the box door, and a non-slip mat is fixed on one side of the handle (17).

6. The energy-saving reactive compensation capacitor box according to claim 5, wherein a shutter (16) is arranged on one side of the box door, a snap ring is fixedly connected to one side of the box door, a buckle (9) is fixedly connected to one side of the box body (2), and the buckle (9) is clamped with the snap ring.

7. The energy-saving reactive compensation capacitor box according to claim 1, wherein a solar panel (15) is fixedly connected to an outer wall of one side of the waterproof roof (1), a photovoltaic controller is electrically connected to an output end of the solar panel (15), a storage battery (14) is electrically connected to an output end of the photovoltaic controller, and a bottom of the storage battery (14) is fixedly connected to an upper surface of the supporting plate (13).
