Abstract
The utility model relates to the field of medical disinfection instruments, in particular to an ultraviolet disinfection machine which can be opened and closed, comprising a shell box body, a fresh air device, an ultraviolet disinfection device, a timing switch and a travel switch; the shell comprises a box body plate, a bottom plate and an opening and closing door plate, wherein the top of the box body plate is provided with a louver air opening, and the side surface of the louver air opening is embedded with a timing switch; the bottom plate is connected with two sides of the box body plate in a bent mode to form a closed box body; the fresh air device is fixedly arranged on the inner wall of the box body; the bottom of the bottom plate is provided with an air inlet grid; the ultraviolet disinfection device is fixedly arranged on the opening and closing door plate; by adopting the utility model, the opening and closing door plate is opened to disinfect the indoor or the surface of the article, and the opening and closing door plate can be closed to form a closed box body to disinfect the air; integrating the functions of the ultraviolet air sterilizer and the ultraviolet sterilizing lamp bracket; the equipment purchasing cost of the hospital is reduced, and the problem of occupied use space of a plurality of equipment is solved.
Description
Technical Field
The utility model relates to the field of medical disinfection apparatus, in particular to an ultraviolet disinfection machine capable of being opened and closed.
Background
At present, with the development of cities, the population of the cities increases, and the number of hospitals also increases, and the hospitals need an air sterilizer and an ultraviolet lamp to sterilize air and objects with viruses. The ultraviolet air disinfector on the market is divided into a wall-mounted type, a cabinet type and a movable type. The fan is arranged in the closed box body, the air with virus is sucked into the box body, the ultraviolet lamp is used for disinfection, then the air is discharged, and the indoor air is disinfected circularly. The disinfection method can effectively disinfect air, but can not play a role in viruses attached to walls, floors and objects in rooms, so that an ultraviolet disinfection lamp holder needs to be purchased additionally and hung indoors to disinfect the surfaces of the objects by ultraviolet irradiation.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing an integral type disinfecting equipment that can carry out indoor surface disinfection, circulated air disinfection, small in size, light in weight, purchasing cost are low.
An ultraviolet sterilizer capable of being opened and closed comprises a shell box body, a fresh air device, an ultraviolet sterilizer, a timing switch and a travel switch;
the shell comprises a box body plate, a bottom plate and an opening and closing door plate, wherein the top of the box body plate is provided with a louver air opening, and the side surface of the louver air opening is embedded with a timing switch; the bottom plate is connected with two sides of the box body plate in a bent mode to form a closed box body; the fresh air device is fixedly arranged on the inner wall of the box body; the bottom of the bottom plate is provided with an air inlet grid; the ultraviolet disinfection device is fixedly arranged on the opening and closing door plate, the two sides of the opening and closing door plate are provided with the ball-touching switches, and the opening and closing door plate and the bottom plate complete opening and closing actions through the hinges and the ball-touching switches;
the air inlet grid is communicated with the internal air duct through the louver air opening, a travel switch is arranged in the fresh air device, and the opening and closing door plate is installed in a matched mode with the travel switch.
Furthermore, the fresh air device comprises a cross flow fan bracket, a cross flow fan, a fan power supply, an air filter element and a filter element mounting slide rail; the cross-flow fan support is bent into an L shape, the fan power supply is fixed on the side plate surface of the support, and a travel switch is installed on an opening on the side plate surface of the support; the top view surface of the upper plate of the cross flow fan bracket is provided with an air outlet hole of the cross flow fan, and the cross flow fan is arranged on the top view surface of the upper plate of the bracket; the filter core mounting slide rail is fixed on the inner side wall of the box body plate, and the air filter core is arranged on the filter core mounting slide rail in a sliding mode.
Further, the disinfection device comprises an ultraviolet lamp tube, an ultraviolet lamp tube rectifier and an ultraviolet lamp tube bracket; the ultraviolet lamp tube support is fixed on the inner side of the opening and closing door plate and is provided with a plurality of mounting holes, the ultraviolet lamp tube is mounted on the ultraviolet lamp tube support, and the ultraviolet lamp tube rectifier is mounted on the side panel of the cross-flow fan support.
Furthermore, the box plate, the bottom plate, the opening and closing door plate and the cross-flow fan support are all made of sheet metal materials and can be bent and molded.
Furthermore, the air filter core is a primary active carbon filter core.
Furthermore, the bottom of the bottom plate is also provided with an adjustable foot margin.
The utility model has the advantages that:
the utility model has the following practical working process that when the opening and closing door plate is closed, air enters the shell box body from the air inlet grid arranged on the bottom plate, and is purified by the fresh air device, meanwhile, the ultraviolet disinfection device disinfects the air, and the air after disinfection is discharged from the louver air opening on the box body plate; under the mode of opening the opening and closing door plate, the travel switch cuts off the power supply of the fresh air device, only the ultraviolet disinfection device works normally at the moment, and ultraviolet rays act on the indoor wall body and the surface of an object where the disinfection machine is located to carry out disinfection work; the timing switch can be matched with a fresh air device and an ultraviolet disinfection device to realize control of different working modes; by adopting the utility model, the opening and closing door plate can be opened to expose the ultraviolet disinfection device for indoor or object surface disinfection, and the opening and closing door plate can also be closed to form a closed box body, and the air is disinfected in the box body through the fresh air device; integrating the functions of the ultraviolet air sterilizer and the ultraviolet sterilizing lamp bracket; the equipment purchasing cost of the hospital is reduced, and the problems of occupied use space and storage space for purchasing two kinds of equipment at the same time are solved.
Drawings

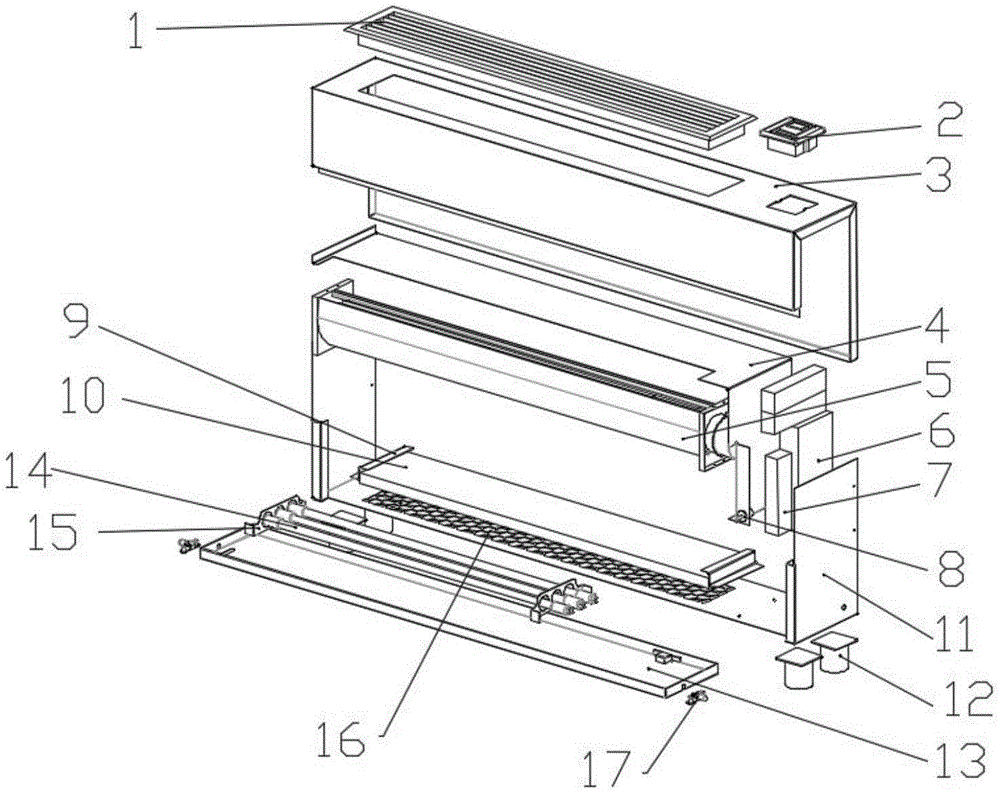

FIG. 1 is a disassembled view of the overall structure of the present invention;
FIG. 2 is a schematic view of the opening box of the present invention;
FIG. 3 is a schematic view of the closed box of the present invention;
reference numerals: 1-louver air port, 2-timing switch, 3-box plate, 4-cross flow fan bracket, 5-cross flow fan, 6-fan power supply, 7-ultraviolet lamp tube rectifier, 8-travel switch, 9-filter element mounting slide rail, 10-air filter element, 11-bottom plate, 12-adjustable ground foot, 13-opening and closing door plate, 14-ultraviolet lamp tube, 15-ultraviolet lamp tube bracket, 16-air inlet grid and 17-collision bead switch.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a retractable ultraviolet disinfection machine comprises a housing box, a fresh air device, an ultraviolet disinfection device, a timing switch 2 and a travel switch 8;
the shell comprises a box body plate 3, a bottom plate 11 and an opening-closing door plate 13, wherein the top of the box body plate 3 is provided with a louver air inlet 1, and the side surface of the louver air inlet 1 is embedded with a timing switch 2; the bottom plate 11 is connected with two sides of the box body plate 3 in a bending mode to form a closed box body; the fresh air device is fixedly arranged on the inner wall of the box body; an air inlet grid 16 is arranged at the bottom of the bottom plate 11; the ultraviolet disinfection device is fixedly arranged on the opening and closing door plate 13, the two sides of the opening and closing door plate 13 are provided with the ball-touching switches 17, and the opening and closing door plate 13 and the bottom plate 11 complete opening and closing actions through the hinges and the ball-touching switches 17; the air inlet grid 16 is communicated with the louver air port 1 to form an internal air channel, a travel switch 8 is arranged in the fresh air device, and the opening and closing door plate 13 is installed in a matched mode with the travel switch 8.
The practical working process of the utility model is as follows, when the opening and closing door plate 13 is closed, air enters the housing box body from the air inlet grid 16 arranged on the bottom plate 11, the air entering the housing box body is purified through the fresh air device, meanwhile, the ultraviolet disinfection device carries out disinfection work on the air, and the air after disinfection treatment is discharged from the louver air port 1 on the box body plate 3; under the mode of opening the opening and closing door plate 13, the travel switch cuts off the power supply of the fresh air device, only the ultraviolet disinfection device works normally at the moment, and ultraviolet rays act on the indoor wall body and the surface of an object where the disinfection machine is located to carry out disinfection work; the timing switch 2 can be matched with a fresh air device and an ultraviolet disinfection device to realize the control of different working modes.
By adopting the utility model, the opening and closing door plate 13 can be opened to expose the ultraviolet disinfection device for indoor or object surface disinfection, and the opening and closing door plate 13 can also be closed to form a closed box body, and the air is disinfected in the box body through the fresh air device; integrating the functions of the ultraviolet air sterilizer and the ultraviolet sterilizing lamp bracket; the equipment purchasing cost of the hospital is reduced, and the problems of occupied use space and storage space for purchasing two kinds of equipment at the same time are solved.
Referring to fig. 1-3, further, the fresh air device includes a cross flow fan bracket 4, a cross flow fan 5, a fan power supply 6, an air filter element 10 and a filter element mounting slide rail 9; the cross-flow fan bracket 4 is bent into an L shape, the fan power supply 6 is fixed on the side plate surface of the bracket, and a travel switch 8 is installed on an opening on the side plate surface of the bracket; the top view surface of the upper plate of the cross flow fan bracket 4 is provided with an air outlet hole of the cross flow fan 5, and the cross flow fan 5 is arranged on the top view surface of the upper plate of the bracket; the filter element mounting slide rails 9 are fixed on two sides of the air inlet grid 16 on the bottom plate 11, and the air filter element 10 is arranged on the filter element mounting slide rails 9 in a sliding manner.
In this embodiment, air enters from the bottom air inlet grid 16, is filtered by the air filter element 10 to remove most of hair, dust and peculiar smell, enters the box body, and is sent out of the box body by the cross flow fan 5.
Further, the disinfection device comprises an ultraviolet lamp tube 14, an ultraviolet lamp tube rectifier 7 and an ultraviolet lamp tube bracket 15; the ultraviolet lamp tube support 15 is fixed on the inner side of the opening and closing door plate 13 and is provided with 3 groups of mounting holes, 3 ultraviolet lamp tubes 14 are correspondingly arranged on the ultraviolet lamp tube support 15, and the ultraviolet lamp tube rectifier 7 is arranged on the side panel of the cross flow fan support 4.
In this embodiment, the air primarily filtered by the air filter core 10 is deeply sterilized by the ultraviolet lamp 14, and at the same time, the cross flow fan 5 sends the sterilized air out of the box.
Furthermore, the box plate 3, the bottom plate 11, the opening and closing door plate 13 and the cross-flow fan support 4 are all made of sheet metal materials, and can be bent and molded according to product requirements.
Further, the air filter element 10 is a primary active carbon filter element; the active carbon has strong adsorbability.
Further, the bottom of the bottom plate 11 is also provided with adjustable feet 12; the raised ground feet can lift the bottom plate 11, and ensure the normal air intake of the air intake grid 16.
The specific embodiments described herein are merely illustrative of the spirit of the invention. Various modifications, additions and substitutions for the described embodiments may be made by those skilled in the art without departing from the scope and spirit of the invention as defined by the accompanying claims.
Claims (6)
1. An ultraviolet disinfection machine capable of being opened and closed is characterized by comprising a shell box body, a fresh air device, an ultraviolet disinfection device, a timing switch (2) and a travel switch (8);
the shell comprises a box body plate (3), a bottom plate (11) and an opening and closing door plate (13), wherein the top of the box body plate (3) is provided with a louver air opening (1), and the side surface of the louver air opening (1) is embedded with a timing switch (2); the bottom plate (11) is connected with two sides of the box body plate (3) in a bending mode to form a closed box body; the fresh air device is fixedly arranged on the inner wall of the box body; an air inlet grid (16) is arranged at the bottom of the bottom plate (11); the ultraviolet disinfection device is fixedly arranged on the opening and closing door plate (13), the two sides of the opening and closing door plate (13) are provided with the ball-touching switches (17), and the opening and closing door plate (13) and the bottom plate (11) complete opening and closing actions through the hinges and the ball-touching switches (17);
the air inlet grid (16) is communicated with the internal air duct of the louver air port (1), a travel switch (8) is arranged in the fresh air device, and the opening and closing door plate (13) is installed in a matched mode with the travel switch (8).
2. The ultraviolet sterilizer capable of being opened and closed according to claim 1, wherein the fresh air device comprises a cross flow fan bracket (4), a cross flow fan (5), a fan power supply (6), an air filter element (10) and a filter element mounting slide rail (9); the cross-flow fan bracket (4) is bent into an L shape, the fan power supply (6) is fixed on the side plate surface of the bracket, and a travel switch (8) is installed on an opening on the side plate surface of the bracket; the top view surface of the upper plate of the cross flow fan bracket (4) is provided with an air outlet hole of the cross flow fan (5), and the cross flow fan (5) is arranged on the top view surface of the upper plate of the bracket; the filter element mounting slide rails (9) are fixed on two sides of an air inlet grid (16) on the bottom plate (11), and the air filter element (10) is arranged on the filter element mounting slide rails (9) in a sliding mode.
3. An openable and closable ultraviolet sterilizer as claimed in claim 2, wherein said sterilizing means comprises an ultraviolet lamp (14), an ultraviolet lamp rectifier (7) and an ultraviolet lamp holder (15); the ultraviolet lamp tube support (15) is fixed on the inner side of the opening and closing door plate (13) and provided with a plurality of mounting holes, the ultraviolet lamp tube (14) is installed on the ultraviolet lamp tube support (15), and the ultraviolet lamp tube rectifier (7) is installed on the side panel of the cross-flow fan support (4).
4. The ultraviolet sterilizer capable of being opened and closed according to claim 2 or 3, wherein the box plate (3), the bottom plate (11), the opening and closing door plate (13) and the cross flow fan bracket (4) are all made of sheet metal materials and are bendable and plastic.
5. The ultraviolet sterilizer capable of being opened and closed according to claim 2, wherein the air filter element (10) is a primary active carbon filter element.
6. A uv disinfection machine which can be opened and closed according to claim 1, characterized in that the bottom of the base plate (11) is also provided with adjustable feet (12).
