Abstract

The utility model provides a down lamp stand easy to assemble relates to the down lamp field. Including down lamp stand body, the last fixed surface of down lamp stand body installs the kicking block, the last fixed surface of down lamp stand body installs logical line hole. This easy to assemble's down lamp stand, through setting up fixed ear, fixing bolt, the cooperation in kicking block and logical line hole is used, make the circular telegram line can carry out better interlude in the lamp stand, protect the circular telegram electric wire, in order to avoid exposing for a long time and damage easily in the air, under the restriction of kicking block, can carry out the interval to lamp stand and wall body, better fix on the wall body fixed ear through fixing bolt, through setting up the handle, the second slide, the second spout, the cooperation of spring and draw-in groove, make the lamp stand can adjust the integral erection height of down lamp, at the first slide of cooperation, the setting of first spout and slider, can assist the adjusting sleeve to carry out altitude mixture control, also make things convenient for the installation of down lamp stand.

Description

Down lamp holder easy to assemble

Technical Field

The utility model relates to a down lamp technical field specifically is a down lamp stand easy to assemble.

Background

The down lamp is a lamp which is provided with a screw lamp holder and can be directly provided with an incandescent lamp or an energy-saving lamp. The down lamp is a lighting lamp embedded in a ceiling and emitting light downward. The concealed lamp embedded in the ceiling projects all light downwards, and belongs to direct light distribution. Different reflectors, lenses, shutters, bulbs can be used to achieve different light effects. The down lamp does not occupy space, soft atmosphere of the space can be increased, and if people want to create a warm feeling, a plurality of down lamps can be installed in a trial mode, so that space oppression is relieved. Generally, the coffee machine is used in hotels, families and coffee houses more. Many people confuse downlights and spot lights, and do not know what difference these two types of lights are, what location to apply to a home, and what effect to apply is different. In brief, a down lamp is a lamp having light-gathering property compared with a common surface-mounted lamp, and is generally used for common lighting or auxiliary lighting. The tube lamp can be provided with an incandescent bulb when viewed from the light source, and can also be provided with an energy-saving lamp. When the incandescent lamp is installed, the lamp is yellow. When the energy-saving lamp is installed, the lamp bulb type can be white light or yellow light. The light source direction of the ceiling down lamp cannot be adjusted. The common household spotlight uses a quartz bulb or a lamp bead. Of course, large spot lights do not necessarily require quartz bulbs. The quartz bulb has only yellow light. And the light source direction of the general spotlight can be freely adjusted. The down lamp is generally installed in the ceiling when viewing from the application position, and the general furred ceiling needs more than 150mm just can install. Of course, the down lamp is also externally arranged. Installing the down lamp in the area without the ceiling lamp or the ceiling lamp is a good choice, and the light is soft relative to the spotlight. The spot light can be generally classified into a rail type, a point-hanging type, an embedded type and the like. Spot lamps are generally provided with a transformer, but also without a transformer. In-line spot lights may be installed in the ceiling. The spotlight is mainly used for places needing emphasis or expression, such as television walls, wall paintings, ornaments and the like, and can emit light rhymes to enhance the effect.

When the existing down lamp is used, the integral installation height of the down lamp cannot be conveniently and fast adjusted, an electrified wire of the down lamp is exposed in the air for a long time and is easy to damage and cover dust, and the lamp holder body is very troublesome in installation and disassembly.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a down lamp stand easy to assemble has solved the problem mentioned among the above-mentioned background art.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a down lamp stand easy to assemble, includes down lamp stand body, the last fixed surface of down lamp stand body installs the kicking block, the last fixed surface of down lamp stand body installs logical line hole, the inside in logical line hole is equipped with circular telegram line, one side fixed mounting of down lamp stand body has the connecting plate, one side fixed mounting of connecting plate has fixed ear, the inside threaded connection of fixed ear has fixing bolt.

Preferably, the inside fixed mounting of down lamp holder body has first slide, first spout has been seted up to the inside of first slide.

Preferably, the adjusting sleeve is sleeved in the inner movable mode of the down lamp holder body, a fixing part is arranged on the outer side of the adjusting sleeve, a sliding block is fixedly mounted on the outer side of the adjusting sleeve, and the sliding block is connected with a first sliding groove in a sliding mode.

Preferably, the internal thread of the adjusting sleeve is connected with a connecting column, and one end of the connecting column is fixedly provided with a down lamp.

Preferably, the inside fixed mounting of down lamp holder body has the second slide, the second spout has been seted up to the inside of second slide, the inside sliding connection of second spout has the slide bar, the one end fixed mounting of slide bar has the handle.

Preferably, one side of the adjusting sleeve is provided with a clamping groove; the handle is clamped in the clamping groove; the upper surface of the handle is provided with a spring.

(III) advantageous effects

The utility model provides a down lamp stand easy to assemble. Has the following beneficial effects:

1. this down lamp stand easy to assemble uses through the cooperation that sets up fixed ear, fixing bolt, kicking block and lead to the line hole for the circular telegram line can carry out better interlude in the lamp stand, protects the circular telegram electric wire, so as to avoid exposing for a long time and damage easily in the air, under the restriction of kicking block, can carry out the interval to lamp stand and wall body, better fixes on the wall body fixed ear through fixing bolt, carries out further reinforcement, increases the fastness.

2. This easy to assemble's down lamp stand through the cooperation that sets up handle, second slide, second spout, spring and draw-in groove for the lamp stand can adjust the whole mounting height of down lamp, can highly carry out convenient adjustment to lamps and lanterns on the bulb fixing base, and at the setting of the first slide of cooperation, first spout and slider, can assist the adjusting sleeve to carry out altitude mixture control, also makes things convenient for the installation of down lamp stand.

Drawings

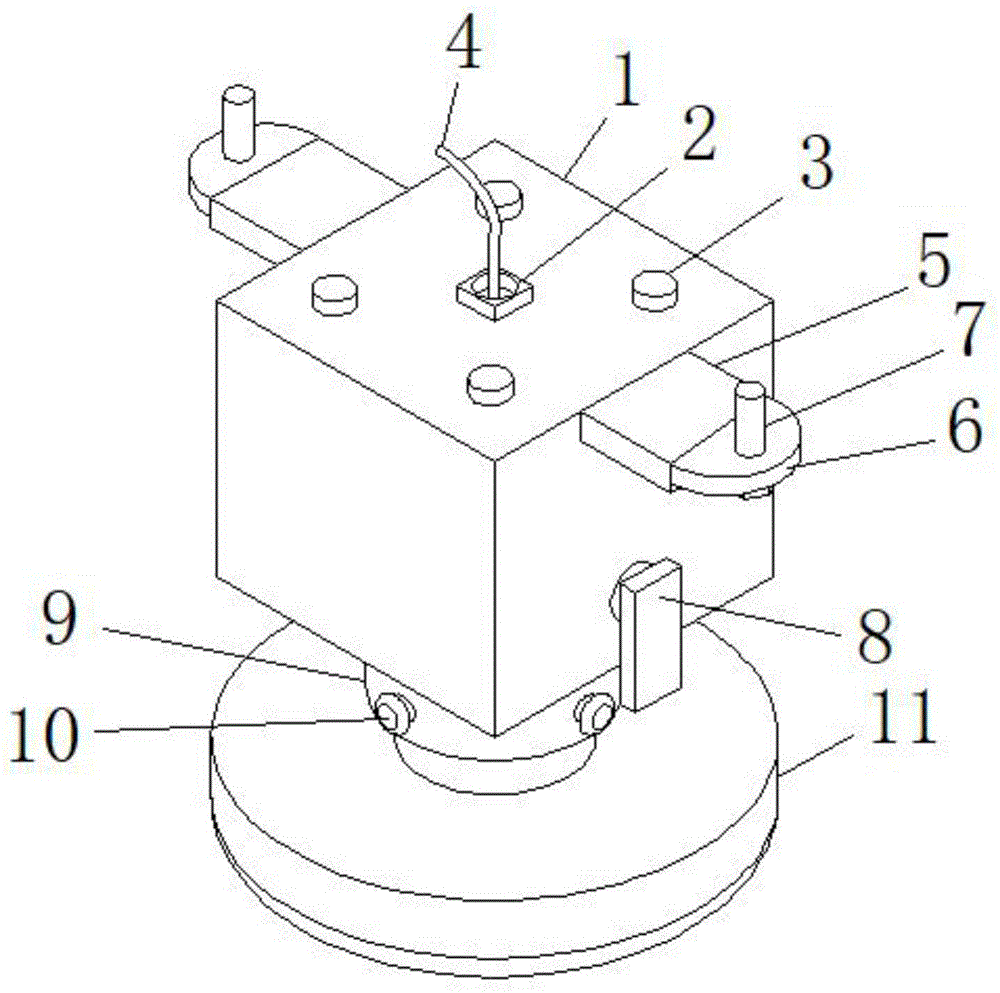

Fig. 1 is a schematic view of a first three-dimensional structure of the present invention;

fig. 2 is a schematic view of a second three-dimensional structure of the present invention;

FIG. 3 is a schematic view of the front cross-sectional structure of the present invention;

fig. 4 is an enlarged schematic structural view of a portion a in fig. 3 according to the present invention.

In the figure: the lamp holder of the down lamp comprises a lamp holder body of the down lamp, a through hole of 2, a top block of 3, a through wire of 4, a connecting plate of 5, a fixing lug of 6, a fixing bolt of 7, a handle of 8, an adjusting sleeve of 9, a fixing part of 10, a down lamp of 11, a connecting post of 12, a first sliding plate of 13, a first sliding groove of 14, a sliding block of 15, a clamping groove of 16, a second sliding plate of 17, a second sliding groove of 18, a sliding rod of 19 and.

Detailed Description

The invention is explained in more detail below with reference to the figures and examples.

The embodiment of the utility model provides a down lamp holder easy to assemble, as shown in figures 1-4, including a down lamp holder body 1, the upper surface of the down lamp holder body 1 is fixedly provided with a top block 3, the contact between the lamp holder and the wall body is better limited by setting the top block 3, a protection effect is exerted on the lamp holder, the upper surface of the down lamp holder body 1 is fixedly provided with a through hole 2, the inside of the through hole 2 is provided with an electrified wire 4, the through hole 2 is arranged to exert a protection effect on the electrified wire 4, so that the electrified wire 4 can be arranged inside the lamp holder, the passing of the wire is convenient, the wire can be well protected against dust and can be prevented from being exposed outside and damaged, one side of the lamp holder body 1 is fixedly provided with a connecting plate 5, one side of the connecting plate 5 is fixedly provided with a fixing lug 6, the internal thread of, through the cooperation that sets up connecting plate 5 and fixed ear 6 for fixing bolt 7 is connected fixedly to the wall body, makes better the fixing on the wall body of lamp stand.

Specifically, the inside fixed mounting of down lamp holder body 1 has first slide 13, and first spout 14 has been seted up to the inside of first slide 13, through the cooperation that sets up first slide 13 and first spout 14 for adjusting sleeve 9 can carry out steady reciprocating, adjusts the whole height of lamp stand.

It is specific, adjusting sleeve 9 has been cup jointed in the inside activity of down lamp holder body 1, adjusting sleeve 9's the outside is equipped with mounting 10, adjusting sleeve 9's outside fixed mounting has slider 15, slider 15 and 14 sliding connection of first spout, through the cooperation that sets up slider 15 and first spout 14, make adjusting sleeve 9 slide in 14 inside of first spout through slider 15, the whole height of better regulation lamp stand, also can highly carry out convenient adjustment to lamps and lanterns on the bulb fixing base.

Specifically, the internal thread of adjusting sleeve 9 is connected with spliced pole 12, and the one end fixed mounting of spliced pole 12 has down lamp 11, through the cooperation that sets up spliced pole 12 and adjusting sleeve 9 for threaded connection can be easy to assemble down lamp 11 is passed through to the one end of spliced pole 12, thereby makes down lamp 11 dismantle the installation more convenient.

Specifically, the inside fixed mounting of down lamp holder body 1 has second slide 17, second spout 18 has been seted up to the inside of second slide 17, the inside sliding connection of second spout 18 has slide bar 19, slide bar 19's one end fixed mounting has handle 8, through the cooperation that sets up second slide 17 and second spout 18 and slide bar 19 for when handle 8 extracts, can slide through slide bar 19 in second spout 18 and reduce frictional force.

Specifically, handle 8's upper surface is equipped with spring 20, and draw-in groove 16 has been seted up to one side of adjusting sleeve 9, and handle 8 and draw-in groove 16 joint through the cooperation that sets up spring 20 and draw-in groove 16, and better make inside handle 8 joint to draw-in groove 16, carry out the joint to adjusting sleeve 9 and fix.

All the electric equipment in the scheme supplies power through the external power supply.

The working principle is as follows: during the use, pass fixed ear 6 through fixing bolt 7 and fix the wall body, then penetrate down lamp stand body 1's inside through logical line hole 2 with circular telegram line 4, then carry out the joint through pulling handle 8 draw-in groove 16 on adjusting sleeve 9 for the whole height of lamp stand is adjusted, and the screw thread through spliced pole 12 one end is rotatory to adjusting sleeve 9's inside, makes spliced pole 12 fix in adjusting sleeve 9's inside, installs down lamp 11.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a down lamp stand easy to assemble, includes down lamp stand body (1), its characterized in that: the utility model discloses a lamp holder, including down lamp holder body (1), the last fixed surface of down lamp holder body (1) installs kicking block (3), the last fixed surface of down lamp holder body (1) installs logical line hole (2), the inside that leads to line hole (2) is equipped with circular telegram line (4), one side fixed mounting of down lamp holder body (1) has connecting plate (5), one side fixed mounting of connecting plate (5) has fixed ear (6), the inside threaded connection of fixed ear (6) has fixing bolt (7).

2. A conveniently mounted downlight base according to claim 1, characterized in that: the lamp holder is characterized in that a first sliding plate (13) is fixedly mounted inside the lamp holder body (1), and a first sliding groove (14) is formed in the first sliding plate (13).

3. A conveniently mounted downlight base according to claim 1, characterized in that: adjusting sleeve (9) have been cup jointed in the inside activity of down lamp holder body (1), the outside of adjusting sleeve (9) is equipped with mounting (10), the outside fixed mounting of adjusting sleeve (9) has slider (15), first spout (14) of slider (15) sliding connection.

4. A conveniently mounted downlight base according to claim 3, characterized in that: the inner thread of the adjusting sleeve (9) is connected with a connecting column (12), and one end of the connecting column (12) is fixedly provided with a down lamp (11).

5. A conveniently mounted downlight base according to claim 1, characterized in that: the inside fixed mounting of down lamp holder body (1) has second slide (17), second spout (18) have been seted up to the inside of second slide (17), the inside sliding connection of second spout (18) has slide bar (19), the one end fixed mounting of slide bar (19) has handle (8).

6. A downlight lamp holder easy to assemble according to claim 4, characterized in that: a clamping groove (16) is formed in one side of the adjusting sleeve (9); the handle (8) is clamped in the clamping groove (16); the upper surface of the handle (8) is provided with a spring (20).
