Abstract
The utility model discloses a camera shooting and collecting device with auxiliary protection function for underground garage, relating to the field of camera shooting system, aiming at the problem that the camera shooting and collecting device used in the current underground garage is easy to be damaged, the following proposal is proposed, which comprises a mounting base, wherein a storage battery is fixedly arranged at the bottom end of the inner wall of the mounting base, a rotating table is arranged at the center position of the upper surface of the mounting base, a fixed gear is fixedly arranged at the center of the lower surface of the rotating platform, a fixed gear groove matched with the fixed gear is arranged on the upper surface of the mounting base, the upper surface central point of revolving stage puts fixed mounting has the protection box, the inner wall both sides of protection box are the symmetric distribution and are provided with the fixed plate that matches with the protection box inner wall, two the outer wall one side central point of fixed plate puts fixed mounting has the thread bush. The utility model discloses novel structure, and it is convenient to install, has good protectiveness, and extension fixture's service life, the practicality is high.
Description
Technical Field
The utility model relates to a camera system field especially relates to an underground garage is with collection system that makes a video recording that has supplementary protect function.
Background
The parking problem is gradually increased when the automobile gradually popularizes to a large number of groups, particularly for public places such as districts and markets, in order to facilitate centralized management, the parked vehicles are mostly managed in a centralized mode by adopting an underground garage, camera shooting collection devices are installed at an outlet and an inlet of the underground garage, and information of the vehicles is acquired by collecting license plates of the passing vehicles.
Most of the camera shooting and collecting devices are placed outdoors, so that the camera shooting and collecting devices can be influenced by wind and sunlight, and the camera shooting and collecting devices are easily damaged after being used for a long time.
SUMMERY OF THE UTILITY MODEL
The utility model provides an underground garage is with collection system that makes a video recording that has supplementary protect function has solved the problem that the collection system that makes a video recording that uses has easy damage in the current underground garage.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the camera shooting and collecting device with the auxiliary protection function for the underground garage comprises an installation base, wherein a storage battery is fixedly installed at the bottom end of the inner wall of the installation base, a rotary table is arranged at the central position of the upper surface of the installation base, a fixed gear is fixedly installed at the central position of the lower surface of the rotary table, a fixed gear groove matched with the fixed gear is formed in the upper surface of the installation base, a protection box body is fixedly installed at the central position of the upper surface of the rotary table, fixing plates matched with the inner wall of the protection box body are symmetrically distributed on two sides of the inner wall of the protection box body, thread sleeves are fixedly installed at the central position of one side of the outer walls of the two fixing plates, connecting springs are fixedly installed at four corners of one side of the outer wall of each fixing plate in an evenly distributed mode, each connecting spring is fixedly, the protection box is characterized in that a spring sleeve is fixedly mounted on one side of the outer wall of the protection box body along the vertical direction, two expansion springs are fixedly mounted in the spring sleeve, a through groove is formed in the bottom of one end, close to the spring sleeve, of the protection box body, a breathable dust guard is arranged in the through groove along the vertical direction, and the bottom end of each expansion spring is fixedly connected with the breathable dust guard.
Preferably, a light energy converter is fixedly mounted at one end of the inner wall of the protection box body along the vertical direction, a solar photovoltaic panel is fixedly mounted on the upper surface of the protection box body, and the solar photovoltaic panel, the light energy converter and the storage battery are electrically connected.
Preferably, the hexagon socket head cap screw rod runs through one side of protection box, and the top fixed mounting of hexagon socket head cap screw rod has the limiting plate, the external diameter of limiting plate is greater than the external diameter of hexagon socket head cap screw rod.
Preferably, the outer wall of one side of each of the two fixing plates close to each other is fixedly provided with a rubber cushion.
Preferably, the protection box body is inclined, and one end of the protection box body close to the breathable dust guard is located at the bottommost end.
The utility model has the advantages that:
1. in the device, be provided with two sets of fixed plates, the collection system that makes a video recording that uses is located the centre of two fixed plates to through the effect of hexagon socket screw rod and thread bush, make a video recording collection system have good stability, and because the collection system that makes a video recording is located the inside of protection box, so avoided the condition that the wind blows the sun, thereby reduced the collection system's that makes a video recording damage condition, prolonged collection system's life.
2. In the device, be provided with solar photovoltaic board and light energy converter, in the use of device, through the common effect of the two, can be with the solar energy conversion of external environment for the electric energy to supply for the collection system that makes a video recording and use, thereby have energy-concerving and environment-protective effect.
In conclusion, in the device, the collection part of making a video recording of protection that can be fine has reduced because the damage that the weather that blows to shine causes, prolongs the life of collection part of making a video recording, simple to operate, and the practicality is high.
Drawings

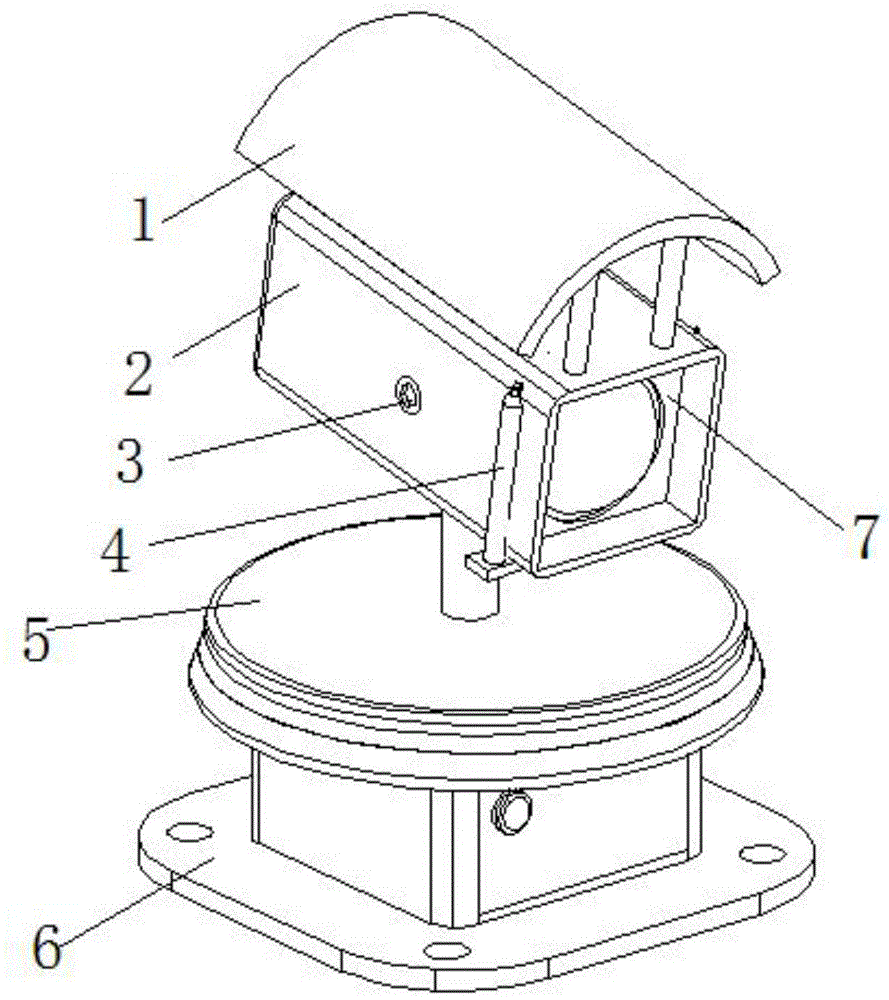

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural diagram of the mounting base member of the present invention.
Fig. 3 is a schematic structural view of the protection casing component of the present invention.
Reference numbers in the figures: the solar photovoltaic panel comprises a solar photovoltaic panel 1, a protective box body 2, a hexagon socket screw rod 3, a spring sleeve 4, a rotating table 5, an installation base 6, a ventilating dust guard 7, a fixed gear 8, a fixed gear groove 9, a storage battery 10, a through groove 11, a telescopic spring 12, a thread sleeve 13, a connecting spring 14, a partition plate 15, a light energy converter 16, a fixing plate 17 and a limiting plate 18.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a camera shooting and collecting device with auxiliary protection function for underground garage comprises an installation base 6, a storage battery 10 is fixedly installed at the bottom end of the inner wall of the installation base 6, a rotary table 5 is arranged at the central position of the upper surface of the installation base 6, a fixed gear 8 is fixedly installed at the central position of the lower surface of the rotary table 5, a fixed gear groove 9 matched with the fixed gear 8 is formed in the upper surface of the installation base 6, a protection box body 2 is fixedly installed at the central position of the upper surface of the rotary table 5, fixing plates 17 matched with the inner wall of the protection box body 2 are symmetrically arranged on two sides of the inner wall of the protection box body 2, thread sleeves 13 are fixedly installed at the central position of one side of the outer walls of the two fixing plates 17, and connecting springs 14 are fixedly installed at the four, each connecting spring 14 is fixedly connected with the protection box body 2, the inner hexagonal threaded rod 3 is rotatably installed inside the threaded sleeve 13, the spring sleeves 4 are fixedly installed on one side of the outer wall of the protection box body 2 along the vertical direction, the telescopic springs 12 are fixedly installed inside the two spring sleeves 4, the bottom of the protection box body 2 close to one end of each spring sleeve 4 is provided with a through groove 11, the ventilating dust guard 7 is vertically arranged inside the through groove 11, the bottom ends of the two telescopic springs 12 are fixedly connected with the ventilating dust guard 7, the light energy converter 16 is fixedly installed at one end of the inner wall of the protection box body 2 along the vertical direction, the solar photovoltaic panel 1 is fixedly installed on the upper surface of the protection box body 2, the solar photovoltaic panel 1, the light energy converter 16 and the storage battery 10 are electrically connected, and the inner hexagonal threaded rod 3 penetrates through one side of the protection box body 2, and the top fixed mounting of allen key threaded rod 3 has limiting plate 18, the external diameter of limiting plate 18 is greater than the external diameter of allen key threaded rod 3, two the equal fixed mounting of one side outer wall that fixed plate 17 is close to each other has the rubber cushion, protection box 2 is the slope form, and the one end that protection box 2 is close to ventilative dust guard 7 is located the bottommost.
The working principle is as follows: in the process of putting the device into use, the air-permeable dustproof plate 7 is firstly pulled downwards, then the camera shooting and collecting component is placed in the middle position of the two fixing plates 17, then, by screwing the hexagonal socket screw 3, because of the connection between the threaded sleeve 13 and the hexagonal socket screw 3, the two fixing plates 17 can move inside the protective case 2, so that the camera shooting collecting component can be clamped or loosened, then the air-permeable dustproof plate 7 is loosened, under the action of the two extension springs 12, the dustproof ventilation plate 7 is restored to the initial position, thereby protecting the interior of the box body 2 in a sealed state, thereby protecting the camera shooting collecting component in the inner part well, being convenient and fast to install, adjusting the camera shooting angle of the protective box body 2 through the fixed gear 8, meanwhile, the breathable dustproof plate 7 is a plate with better transparency, so that the shooting collection of the shooting collection component is not obstructed;
in addition, during the use process, the solar photovoltaic panel 1 collects external sunlight and converts the sunlight into electric energy through the light energy converter 16, and the electric energy can be supplied to the operation of the camera shooting collecting component and can also be stored in the storage battery 10.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The utility model provides an underground garage is with collection system that makes a video recording that has supplementary protect function, includes installation base (6), its characterized in that, the inner wall bottom fixed mounting of installation base (6) has battery (10), and the upper surface central point of installation base (6) puts and is provided with revolving stage (5), the central point of revolving stage (5) lower surface puts fixed mounting and has fixed gear (8), the fixed gear groove (9) that match with fixed gear (8) are seted up to the upper surface of installation base (6), the upper surface central point of revolving stage (5) puts fixed mounting and has protection box (2), the inner wall both sides of protection box (2) are the symmetric distribution and are provided with fixed plate (17) that match with protection box (2) inner wall, two outer wall one side central point fixed mounting of fixed plate (17) has thread bush (13), and outer wall one side four corners position of fixed plate (17) is evenly distributed fixed mounting and has connecting spring (14), every connecting spring (14) and protection box (2) are fixed connection, hexagonal threaded rod (3) in the inside rotation of thread bush (13) is installed, vertical direction fixed mounting is followed to outer wall one side of protection box (2) has spring housing (4), two the equal fixed mounting in inside of spring housing (4) has expanding spring (12), protection box (2) are close to the one end bottom of spring housing (4) and have been seted up through groove (11), be provided with ventilative dust guard (7) along vertical direction through the inside of groove (11), two the bottom of expanding spring (12) is fixed connection with ventilative dust guard (7).
2. The camera shooting and collecting device with the auxiliary protection function for the underground garage according to claim 1, wherein one end of the inner wall of the protection box body (2) is fixedly provided with a light energy converter (16) along a vertical direction, the upper surface of the protection box body (2) is fixedly provided with a solar photovoltaic panel (1), and the solar photovoltaic panel (1), the light energy converter (16) and the storage battery (10) are electrically connected.
3. The underground garage camera shooting collection device with auxiliary protection function according to claim 1, wherein the inner hexagonal threaded rod (3) runs through one side of the protection box body (2), the top end of the inner hexagonal threaded rod (3) is fixedly provided with a limiting plate (18), and the outer diameter of the limiting plate (18) is larger than that of the inner hexagonal threaded rod (3).
4. The camera shooting and collecting device with the auxiliary protection function for the underground garage as claimed in claim 1, wherein rubber cushions are fixedly mounted on the outer walls of the two fixing plates (17) at the side close to each other.
5. The camera shooting and collecting device with the auxiliary protection function for the underground garage according to claim 1, wherein the protection box body (2) is inclined, and one end of the protection box body (2) close to the air-permeable dust guard (7) is positioned at the bottommost end.
