Abstract
The utility model discloses a drawing tool is used in design, including pen-holder, ball-point pen nib, first cap for brush and electric capacity stylus, pack the supplementary pigment in the pen-holder, the ball-point pen nib can dismantle connect in the one end of pen-holder, first cap for brush with ball-point pen nib lid closes the connection, the tip setting of first cap for brush the electric capacity stylus. Compared with the prior art, the utility model discloses having the ballpoint nib and carrying out the paper drawing, having electric capacity stylus, covering the ballpoint and can having electric capacity stylus function for operate the panel computer, in addition, for the teacher uses, still designed the laser pen as an organic whole, the writing brush nib of design more is favorable to the hand to be painted the design and uses, still has the link design, portable, and convenient to use has the value of popularization and application.
Description
Technical Field
The utility model relates to an instrument for the design especially relates to a drawing tool for design.
Background
All need use drawing tool in fine arts design or various designs, and present drawing tool is of a great variety, also comparatively complicated during the use, in addition, current drawing pen function is comparatively single, and it is not very convenient to use, and in the design process, can use the panel computer and the paper drawing of touch-control mostly, and current pen can not be general, consequently, has the improvement space.
SUMMERY OF THE UTILITY MODEL
The present invention is directed to provide a drawing tool for design to solve the above problems.
The utility model discloses a following technical scheme realizes above-mentioned purpose:
the utility model discloses a pen-holder, ball-point pen nib, first cap and electric capacity stylus, fill in the pen-holder and supply pigment, the ball-point pen nib can dismantle connect in the one end of pen-holder, first cap with the ball-point pen nib lid closes the connection, the tip setting of first cap the electric capacity stylus.
As an improvement, the electric capacity stylus of first cap passes through second cap lid and closes, the tip of second cap is provided with the laser pen head, set up the battery in the second cap, the battery with laser pen head electric connection, be provided with the laser pen switch on the second cap outer wall, the battery passes through the laser pen switch with laser pen head electric connection.
As an improvement, the other end of the pen holder is provided with a writing brush pen point, and the writing brush pen point is covered by a third pen cap.
As an improvement, the end part of the third pen cap is provided with a hanging ring.
The beneficial effects of the utility model reside in that:
the utility model relates to a drawing tool is used in design, compare with prior art, the utility model discloses having the ballpoint nib and carrying out the paper drawing, having the electric capacity stylus, covering the ballpoint and can having electric capacity stylus function for operate the panel computer, in addition, for the teacher uses, still designed the laser pen as an organic whole for being convenient for, the writing brush nib of design more is favorable to the hand to be painted the design and uses, still has the link design, portable, convenient to use has the value of popularization and application.
Drawings

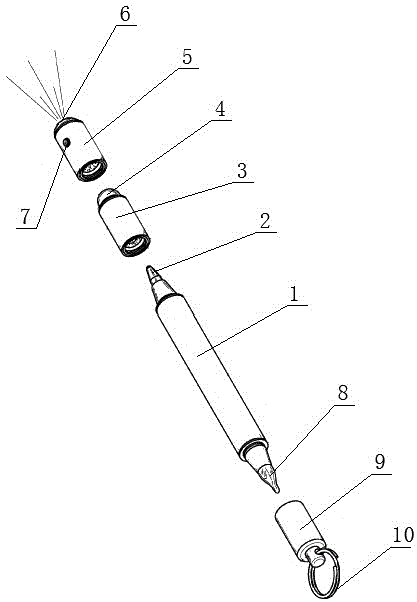

FIG. 1 is a schematic structural diagram of the present invention
In the figure: 1-pen holder, 2-ball pen point, 3-first pen cap, 4-capacitance touch pen, 5-second pen cap, 6-laser pen point, 7-laser pen switch, 8-brush pen point, 9-third pen cap and 10-hanging ring.
Detailed Description
The present invention will be further explained with reference to the accompanying drawings:
as shown in fig. 1: the utility model discloses a pen-holder 1, ball-point pen point 2, first pen cap 3 and electric capacity stylus 4, fill supplementary pigment in the pen-holder 1, ball-point pen point 2 can dismantle connect in the one end of pen-holder 1, first pen cap 3 with 2 lids of ball-point pen point close the connection, the tip setting of first pen cap 3 electric capacity stylus 4.
As an improvement, electric capacity stylus 4 of first cap 3 closes through 5 lids of second cap, the tip of second cap 5 is provided with laser pen head 6, set up battery (not shown in the figure) in the second cap 5, the battery with 6 electric connection of laser pen head, be provided with laser pen switch 7 on the 5 outer walls of second cap, the battery passes through laser pen switch 7 with 6 electric connection of laser pen head.
As an improvement, the other end of the pen holder 1 is provided with a writing brush pen point 8, and the writing brush pen point 8 is covered by a third pen cap 9.
As a modification, the end of the third cap 9 is provided with a hanging ring 10.
The basic principles and main features of the present invention and the advantages of the present invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (4)
1. A drawing tool for design, comprising: including pen-holder, ball-point pen nib, first cap and electric capacity stylus, fill in the pen-holder and supply pigment, ball-point pen nib can dismantle connect in the one end of pen-holder, first cap with ball-point pen nib lid closes the connection, the tip of first cap sets up the electric capacity stylus.
2. The drawing tool for design according to claim 1, wherein: the electric capacity touch pen of first cap closes through second cap lid, the tip of second cap is provided with the laser pen head, set up the battery in the second cap, the battery with laser pen head electric connection, be provided with the laser pen switch on the second cap outer wall, the battery passes through the laser pen switch with laser pen head electric connection.
3. The drawing tool for design according to claim 1, wherein: the other end of the pen holder is provided with a writing brush pen point, and the writing brush pen point is covered by a third pen cap.
4. The drawing tool for design according to claim 3, wherein: and a hanging ring is arranged at the end part of the third pen cap.
