Abstract

The utility model relates to a medical puncture support table, comprising a support table, the support table comprises a support table table and a telescopic support frame, the top of the telescopic support frame is fixedly connected with the support table table; there are at least two telescopic support frames, and the telescopic support frames are arranged at intervals The telescopic support frame includes a base, a fixed splint and a movable plate. The bottom of the fixed splint is fixed to the base, and two fixed splints are arranged in parallel to form a gap between the fixed splints. The lower end of the movable plate is installed in the gap and is connected with The fixed splint has a clearance fit; the fixed splint is provided with a vertical chute, one end of the bolt passes through the vertical chute of the two fixed splints, and the bolt can slide along the vertical chute, and the movable plate is fixed with the bolt. Locking bolts and locknuts that secure the splint. The table top of the utility model can be raised and lowered and the inclination can be adjusted, which is convenient to be adjusted according to the patient's body position, and is more convenient to use;

Description

A medical puncture bracket table

technical field

The utility model relates to the technical field of medical articles, in particular to a medical puncture bracket table.

Background technique

During venous blood collection or infusion, and arterial blood collection, the patient's arm needs to be kept stable or placed in a special position. Currently, the patient's arm is usually supported on the table or bed of the blood collection table. For some patients with loss of consciousness, they cannot cooperate with the positioning and need the assistance of others.

In addition, the treatment disc is also required for the arterial and venous puncture operation. Conventional treatment trays are large and heavy, and need to be placed on the table instead of close to the operator. Inconvenient to take operating tools.

Utility model content

The utility model aims to provide a medical puncture support table, which is favorable for adapting to the body position of the patient, can fix the arm, is convenient for placing the limb position, and is convenient to use.

In order to achieve the above object, the technical scheme adopted by the present utility model is as follows:

A medical puncture bracket table, comprising a bracket table, the bracket table includes a bracket table table and a telescopic support frame, the top of the telescopic support frame is fixedly connected with the bracket table table; there are at least two telescopic support frames, and the telescopic support racks are arranged on the bracket table table at intervals below;

The telescopic support frame includes a base, a fixed splint and a movable plate. The bottom of the fixed splint is fixedly connected to the base, and two fixed splints are arranged in parallel to form a gap between the fixed splints, and the lower end of the movable plate is installed in the gap and matched with the fixed splint;

There is a vertical chute on the fixed splint, one end of the bolt passes through the vertical chute of the two fixed splints, the bolt can slide along the vertical chute, the movable plate is fixed with the bolt, and the bolt is installed for locking the bolt and fixing Lock nut for splint.

Wherein, the movable plate has threaded holes adapted to the bolts, and the bolts are installed in the threaded holes.

Further, a self-adhesive wrist strap is provided at one end of the table top of the bracket.

Further, the medical puncture bracket table further includes a treatment plate assembly, the treatment plate assembly includes a pole and two treatment plates mounted on the pole, the two treatment plates are arranged up and down, and the pole is connected to the side of one end of the bracket table.

Further, the support table is provided with a socket seat adapted to the vertical rod, the vertical rod is inserted into the socket of the socket seat, and the lower end of the vertical rod has a blocking member for blocking the sliding of the vertical rod, and the blocking member is larger than the socket. socket socket.

Alternatively, the support table is provided with a jack seat adapted to the vertical rod, and the vertical rod is threadedly connected to the jack of the jack seat.

Further, one end of the treatment disc is rotatably connected with the vertical rod through the rotating seat.

Further, connecting devices B are provided on both ends of the support table top.

Preferably, the connecting device B can be a hook, an elastic claw or a magnet.

Compared with the prior art, the utility model has the following beneficial effects:

The utility model has reasonable structure and convenient use, the table top can be lifted and tilted, which is favorable for adapting to the body position of the patient; the arm can be fixed, which is convenient for placing the limb position; two treatment plates separated from the top and bottom are arranged, which can make sterile and bacteria in the space It can be used for venous blood collection, arterial blood collection and infusion puncture.

Description of drawings

Fig. 1 is the three-dimensional view of embodiment one;

Fig. 2 is the sectional view of embodiment one;

Figure 3 is a three-dimensional view of a telescopic support frame;

Figure 4 is a side view of the stand table in a tilted state;

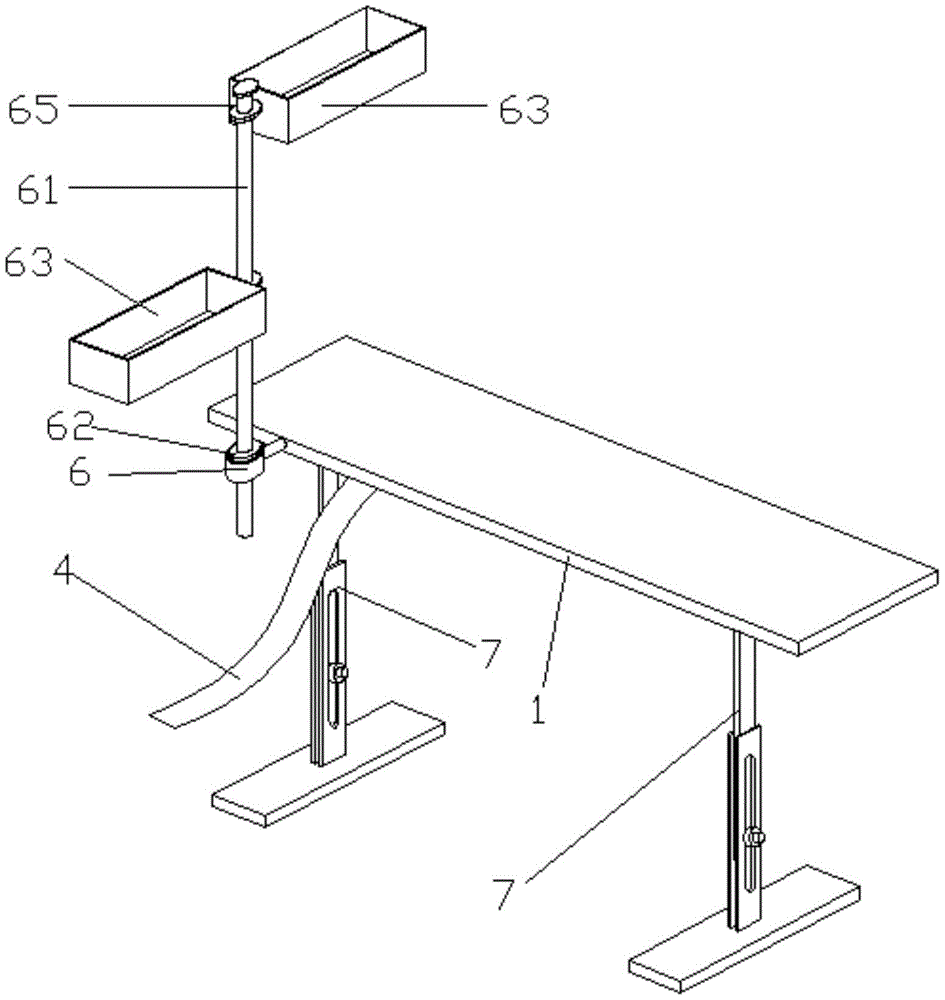

5 is a schematic structural diagram of Embodiment 2;

Fig. 6 is the structural representation of the support table in the second embodiment;

Fig. 7 is the structural representation of the treatment disc assembly;

8 is a schematic structural diagram of Embodiment 3;

Fig. 9 is the structural representation of embodiment four;

Fig. 10 is the structural representation of medical treatment towel;

Fig. 11 is the structural representation of roll-type treatment towel;

Figure 12 is a schematic structural diagram of a roll-type sterile treatment towel containing tube;

Figure 13 is a three-dimensional view of a waste treatment towel container;

Figure 14 is a cross-sectional view of a waste treatment towel container;

Fig. 15 is the structural representation when the treatment towel is spread on the support table;

In the picture: 1-stand table top, 2-rolled sterile treatment towel container, 3-discarded treatment towel container, 4-wrist strap, 5-rolled treatment towel, 6-jack socket, 7- Telescopic support frame, 11-connection device B, 21-treatment towel pull-out port, 23-connection device A, 24-end cap, 31-rotation operation handle, 32-treatment towel pull-in port, 33-treatment towel winding shaft, 61- Upright rod, 62-blocking part, 63-treatment disc, 65-rotating seat, 71-base, 72-fixed splint, 73-vertical chute, 74-lock nut, 75-movable plate, 76-connecting plate, 77 - Bolts.

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model more clearly understood, the present utility model will be further described in detail below with reference to the accompanying drawings.

Example 1

As shown in FIGS. 1-4 , the medical puncture support table disclosed in this embodiment includes a support table. The support table includes a support table table top 1 and a telescopic support frame 7 . The top of the telescopic support frame 7 is fixedly connected to the support table table top 1 , and the telescopic support frame 7 can be extended and retracted. There are at least two supporting frames 7 , and the telescopic supporting frames 7 are arranged at intervals below the stand table top 1 ; the telescopic supporting frames 7 can be a telescopic rod structure commonly used in the prior art.

However, another new telescopic support frame 7 is disclosed in this embodiment. The telescopic support frame 7 includes a base 71, a fixed clamp 72 and a movable plate 75. The bottom of the fixed clamp 72 is fixedly connected to the base 71, and the fixed clamp 72 is provided with two parallel A gap is formed between the fixed splints 72 , and the lower end of the movable plate 75 is installed in the gap and fits with the fixed splint 72 ; The vertical chute 73 , the bolt 77 can slide along the vertical chute 73 , the movable plate 75 is fixedly connected with the bolt 77 , and the bolt 77 is provided with a locking nut 74 for locking the bolt 77 and the fixed clamping plate 72 . The movable plate 75 has threaded holes adapted to the bolts 77, and the bolts 77 are installed in the threaded holes.

A connecting plate 76 is provided on the top of the movable plate 75, and the connecting plate 76 is screwed to the table top 1 of the bracket.

As shown in Figures 2, 3, and 4, loosen the locking nut 74, at this time the movable plate 75 can move up and down relative to the fixed splint 72, and can rotate around the bolt 77 at the same time, so as to realize the lifting and lowering of the support table table 1, and the support table Adjustment of the inclination of the table top 1 to suit the patient's position.

The stand table top 1 is rectangular. One end of the stand table top 1 is provided with a self-adhesive wrist strap 4, which is used to fix the arm and is convenient for placing the limb position; the wrist strap 4 can be selected with a Velcro strap.

Embodiment 2

The difference between this embodiment and the first embodiment is that the traditional Chinese medicine puncture support table in this embodiment also includes a treatment disk assembly. As shown in FIGS. 5 , 6 and 7 , the treatment disk assembly includes a vertical rod 61 and a Two treatment plates 63 are arranged up and down, the upper treatment plate 63 is used to place sterile items, and the lower treatment plate 63 can be used to place dirt, so that the aseptic and the bacteria can be separated in space.

One end of the treatment disc 63 is rotatably connected with the upright rod 61 through the rotating seat 65 . The treatment disc 63 is rectangular, with a length of 20 sides, a width of 10cm, and a depth of 6cm. The rotary seat 65 has an optional bearing seat.

As shown in FIGS. 5 and 6 , the stand table is provided with a socket seat 6 which is adapted to the vertical rod 61 , and the socket socket 6 and the wrist strap 4 are at the same end of the stand table table 1 . The vertical rod 61 is inserted into the socket of the socket socket 6 , and the lower end of the vertical rod 61 has a blocking member 62 for blocking the sliding of the vertical rod. The blocking member 62 is larger than the socket of the socket socket 6 .

In order to adapt to the inclination of the stand table top 1, in this embodiment, the jack socket 6 is universally connected to the stand table top 1 to ensure that the stand table top 1 is in any position, and the jack of the adjustable socket stand 6 is always perpendicular to the horizontal plane of.

In this embodiment, two treatment discs separated from the top and bottom are provided, which can separate the sterile and the bacteria in space.

Embodiment 3

The difference between this embodiment and the second embodiment is: as shown in FIG. 8 , in this embodiment, the vertical rod 61 is threadedly connected to the socket of the socket socket 6 , the lower end of the vertical rod 61 is provided with an external thread, and the socket of the socket socket 6 is threaded. There is a matching internal thread in it.

Embodiment 4

At present, before placing the arm, it is usually necessary to put a disposable treatment towel on the table or on the hospital bed, and the disposable treatment towel is used for each patient. Every time a patient is changed, a disposable treatment towel needs to be opened and rolled out again, which is cumbersome to operate, increases blood collection time, reduces work efficiency, and increases treatment costs.

Therefore, as shown in FIG. 9 , in this embodiment, connecting devices B11 are respectively provided at both ends of the stand table top 1 . The connecting device B11 is provided on the end surface of the stand table top 1 . The connecting device B11 can be a hook, an elastic claw, a magnet, or the like.

The connection device B11 can be used to install the medical treatment towel. As shown in Figures 10-14, the medical treatment towel includes a roll-type sterile treatment towel 5, a roll-type sterile treatment towel container 2 and a waste treatment towel container 3, which are discarded. A therapeutic towel winding shaft 33 is coaxially arranged in the treatment towel container 3, the treatment towel winding shaft 33 is rotatably connected with the discarded treatment towel container 3, and one end of the treatment towel winding shaft is connected with a rotary operation handle 31, and the rotary operation handle 31 is located in the waste treatment towel container 3. The outside of the treatment towel container 3.

The roll-type sterile treatment towel container 2 is provided with a strip-shaped treatment towel pull-out 21 along the axial direction, and the waste treatment towel container 3 is provided with a strip-shaped treatment towel pull-out 32 along the axial direction. The towel 5 is placed in the roll-type sterile treatment towel container 2, and one end of the roll-type treatment towel 5 is pulled out from the treatment towel pull-out port 21 and then inserted into the waste treatment towel container 3 through the treatment towel pull-out port 32, and It is connected with the winding shaft 33 of the treatment towel.

In this specific embodiment, one end of the roll-type sterile treatment towel container 2 is open, and one end of the pull-out port 21 of the treatment towel penetrates the open end of the roll-type sterile treatment towel container 2, as shown in FIG. An end cap 24 is provided on the open end of the cartridge-type sterile therapeutic towel containing cartridge 2 . In use, the roll-type treatment towel 5 is put in from the open end, one end of the roll-type treatment towel 5 is pulled out from the treatment towel pull-out port 21 , and then the end cover 24 is closed.

One end of the waste treatment towel container 3 is open, and one end of the treatment towel pull-in port 32 penetrates the open end of the waste treatment towel container 3. As shown in Figures 13 and 14, the open end of the waste treatment towel container 3 is also provided. There are end caps 24 . In order to facilitate the connection of the roll-type treatment towel 5, one end of the treatment towel winding shaft 33 is movably plugged with the bottom end of the waste treatment towel container 3, the other end of the treatment towel winding shaft 33 is rotatably connected with the end cover 24, and the treatment towel winding shaft 33 extends. Out of the end cap 24. When connecting the roll-type treatment towel 5, the end cover 24 and the treatment towel winding shaft 33 can be taken out together, and after connecting one end of the roll-type treatment towel 5 with the treatment towel winding shaft 33, the end cover 24 And the winding shaft 33 of the treatment towel is assembled with the cylinder.

The outer walls of the roll-type sterile treatment towel container 2 and the waste treatment towel container 3 are both provided with a connection device A23 for connecting with the connection device B11. Wherein, the connecting device A23 is a hanging ear, a belt loop or a magnetic material. When it is a belt loop, the belt loop is made of elastic material, and the belt loop is attached to the cylinder wall. When the connecting device A23 is a hanging ear, the connecting device B11 is a hook; when the connecting device A23 is a belt loop, the connecting device B11 is an elastic claw; when the connecting device A23 is a magnetic material, the connecting device B11 is a magnet, preferably a strong magnet , the roll-type sterile treatment towel container 2 and the waste treatment towel container 3 are magnetically sucked on the support table.

As shown in Figures 9 and 12, taking the connecting device A23 as a belt loop as an example, two connecting devices A23 are provided on the outer walls of the reel-type sterile treatment towel container 2 and the waste treatment towel container 3; The two ends of 1 are respectively provided with two elastic claws. The elastic claws are metal sheets and have a certain elasticity. One end of the elastic claws is connected to the table top 1 of the bracket. The free ends of the two elastic claws at the same end of the table top 1 are bent in opposite directions; during installation, the two elastic claws can be respectively inserted into one of the belt loops.

As shown in FIG. 15 , the roll-type sterile treatment towel container 2 is installed on one end of the support table top 1 through its connecting device A23, and the waste treatment towel container 3 is installed on the other end of the support table top 1 through its connection device A23 , the axes of the roll-type sterile treatment towel container 2 and the waste treatment towel container 3 are both parallel to the support table top 1; the width of the treatment towel is greater than the width of the support table top 1, and the pulled out treatment towel covers the support table top 1.

The treatment towel is placed on the table top 1 of the stand, the patient's arm is placed on the treatment towel, and the patient's arm is fixed with a wrist strap 4 as required, and blood collection can be performed.

When it is necessary to replace the treatment towel on the table, it is only necessary to rotate the rotary operating handle 31 to drive the treatment towel winding shaft 33 to rotate, so that the treatment towel is gradually wound on the treatment towel winding shaft 33, and finally the roll-type sterile treatment towel is filled with The new treatment towel in the barrel 2 is covered on the table top 1 of the stand, and the operation is convenient and quick, and the replacement efficiency is high. When the roll-type sterile treatment towel 5 is used up, the entire medical treatment towel is removed from the support table and thrown away, and a new medical treatment towel can be replaced.

The utility model has reasonable structure and convenient use, the table top can be lifted and tilted, which is favorable for adapting to the body position of the patient; the arm can be fixed, which is convenient for placing the limb position; two treatment plates separated from the top and bottom are arranged, which can make sterile and bacteria in the space Separation on the top; easy to spread the treatment towel, can improve work efficiency. It can be used for venous blood collection, arterial blood collection and transfusion puncture.

Of course, the present utility model can also have other various embodiments. Without departing from the spirit and essence of the present utility model, those skilled in the art can make various corresponding changes and deformations according to the present utility model, but these Corresponding changes and deformations should belong to the protection scope of the appended claims of the present utility model.

Claims (9)

1. a medical puncture support table is characterized in that: comprise a support table, the support table includes a support table table top and a telescopic support frame, and the top of the telescopic support frame is fixedly connected with the support table table top; the telescopic support frame has at least two, the telescopic support frame The interval is arranged under the table top of the bracket; The telescopic support frame includes a base, a fixed splint and a movable plate. The bottom of the fixed splint is fixedly connected to the base, and two fixed splints are arranged in parallel to form a gap between the fixed splints, and the lower end of the movable plate is installed in the gap and matched with the fixed splint; There is a vertical chute on the fixed splint, one end of the bolt passes through the vertical chute of the two fixed splints, the bolt can slide along the vertical chute, the movable plate is fixed with the bolt, and the bolt is installed for locking the bolt and fixing Lock nut for splint. 2 . The medical puncture support table according to claim 1 , wherein the movable plate has threaded holes adapted to the bolts, and the bolts are installed in the threaded holes. 3 . 3 . The medical puncture support table according to claim 1 , wherein a self-adhesive wrist strap is provided at one end of the table surface of the support table. 4 . 4. The medical puncture support table according to claim 1, 2 or 3, characterized in that: further comprising a treatment disc assembly, the treatment disc assembly comprising a pole and two treatment discs mounted on the pole, two The treatment plate is arranged up and down, and the vertical rod is connected with the side of one end of the support table. 5 . The medical puncture support table according to claim 4 , wherein the support table is provided with a jack seat adapted to the vertical rod, the vertical rod is inserted into the jack of the jack seat, and the vertical rod The lower end is provided with a blocking member for blocking the sliding of the vertical rod, and the blocking member is larger than the socket of the socket seat. 6 . The medical puncture support table according to claim 4 , wherein the support table is provided with a socket seat adapted to the vertical rod, and the vertical rod is threadedly connected with the socket of the socket socket. 7 . 7 . The medical puncture support table according to claim 4 , wherein one end of the treatment disc is rotatably connected to the vertical rod through a rotating seat. 8 . 8 . The medical puncture support table according to claim 1 , wherein connecting devices B are provided on both ends of the table surface of the support table. 9 . 9 . The medical puncture support table according to claim 1 or 8 , wherein the connecting device B is a hook, an elastic claw or a magnet. 10 .
