The utility model discloses a switch board based on cable fixed adjustment structure, including the switch board body, the positive opening part of switch board body has the cabinet door through hinge joint swing joint, the positive one side of cabinet door is fixed and is equipped with interior handle, the top of bottom plate is fixed and is equipped with three parallel opening box bodies, the positive opening part of three opening box body all has sliding connection with the stripper plate, the front of three stripper plate all with the back fixed connection of the connecting plate that is equipped with, the both ends of connecting plate all have the track groove through sliding block sliding connection, two track grooves respectively with two inside walls fixed connection of switch board body, the surface department of both ends sliding block all runs through threaded connection with the locking knob, the beneficial effects of the utility model are that through the opening box body, stripper plate, track groove and the locking knob that are equipped with, be convenient for firmly clamping the cable, avoid the loose of, affecting the normal operation of the power distribution cabinet body.
Description
Technical Field
The utility model relates to a switch board, in particular to switch board based on cable fixed adjustment structure.
Background
The distribution cabinet (case) is a final-stage device of a distribution system and is divided into a power distribution cabinet (case), a lighting distribution cabinet (case) and a metering cabinet (case). The power distribution cabinet is a general name of a motor control center. The power distribution cabinet is used in the occasions with dispersed loads and less loops; the motor control center is used for occasions with concentrated loads and more loops. They distribute the power of a certain circuit of the upper-level distribution equipment to the nearby loads. This level of equipment should provide protection, monitoring and control of the load.
The switch board is wearing to establish the cable and is crossing the back, need fix the cable, however current switch board does not possess fixed adjustment structure, only relies on the fixed unable effective fixed cable of cable head and switch position, when leading to the wiring very easily, and the cable takes place to become flexible with the switch position, influences the use, and current switch board has the thermal diffusivity relatively poor simultaneously, leads to inside temperature height, and electrical components life is low.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a switch board based on cable fixed adjustment structure to what put forward does not possess fixed adjustment structure, the relatively poor problem of thermal diffusivity in solving above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a power distribution cabinet based on a cable fixing and adjusting structure comprises a power distribution cabinet body, wherein a cabinet door is movably connected at an opening on the front side of the power distribution cabinet body through a hinge joint, an inner pull handle is fixedly arranged on one side of the front side of the cabinet door, a heat dissipation cylinder is embedded in the middle of the top end of the power distribution cabinet body, a heat dissipation motor is fixedly arranged in the heat dissipation cylinder, fan blades are fixedly connected at the output end of the heat dissipation motor, a protection window is fixedly arranged at the top end of the heat dissipation cylinder, a bottom plate is fixedly arranged at the bottom of an inner cavity of the power distribution cabinet body, three parallel opening box bodies are fixedly arranged at the top end of the bottom plate, extrusion plates are respectively and slidably connected at the openings on the front sides of the three opening box bodies, the front sides of the three extrusion plates are respectively and fixedly connected with the back sides of the provided connecting plates, both ends the surface department of sliding block all runs through threaded connection and has locking knob.
As an optimal technical scheme of the utility model, it is three the inside through connection of opening box body has the soft cover of protecting wire, and is three the bottom plate is all passed to the one end of the soft cover of protecting wire.
As a preferred technical scheme of the utility model, the dustproof window of heat dissipation has all been seted up at the top of switch board body both sides.
As a preferred technical scheme of the utility model, the threading hole department of switch board body both sides bottom all laminates and is connected with the dust cover.
As a preferred technical scheme of the utility model, wear-resisting plate fixedly connected with dampproofing seat is passed through to the bottom of switch board body.
As an optimized technical scheme of the utility model, the positive middle part fixed mounting of connecting plate has square handle, the fixed surface of square handle is equipped with anti-skidding rubber.
As an optimal technical scheme of the utility model, the top of switch board body inner chamber is inlayed and is established the down lamp of installing two symmetries.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses switch board based on fixed adjustment structure of cable through the opening box body, stripper plate, track groove and the locking knob that is equipped with, is convenient for stabilize the clamp to the cable and presss from both sides tightly, avoids wiring in-process cable stub not hard up, influences the normal operating of switch board body.
2. The utility model discloses switch board based on fixed adjustment structure of cable, through the heat dissipation motor, fan blade and the dustproof window of heat dissipation that is equipped with, improved the inside air current of switch board body and flowed for the heat dissipation of switch board body guarantees the normal operating of inside electric spare, simultaneously through the down lamp that is equipped with, the illumination of being convenient for brings the facility for the maintenance, and the dampproofing seat that is equipped with, prevents that the bottom of switch board body from weing and leading to inside electric spare short circuit.
Drawings

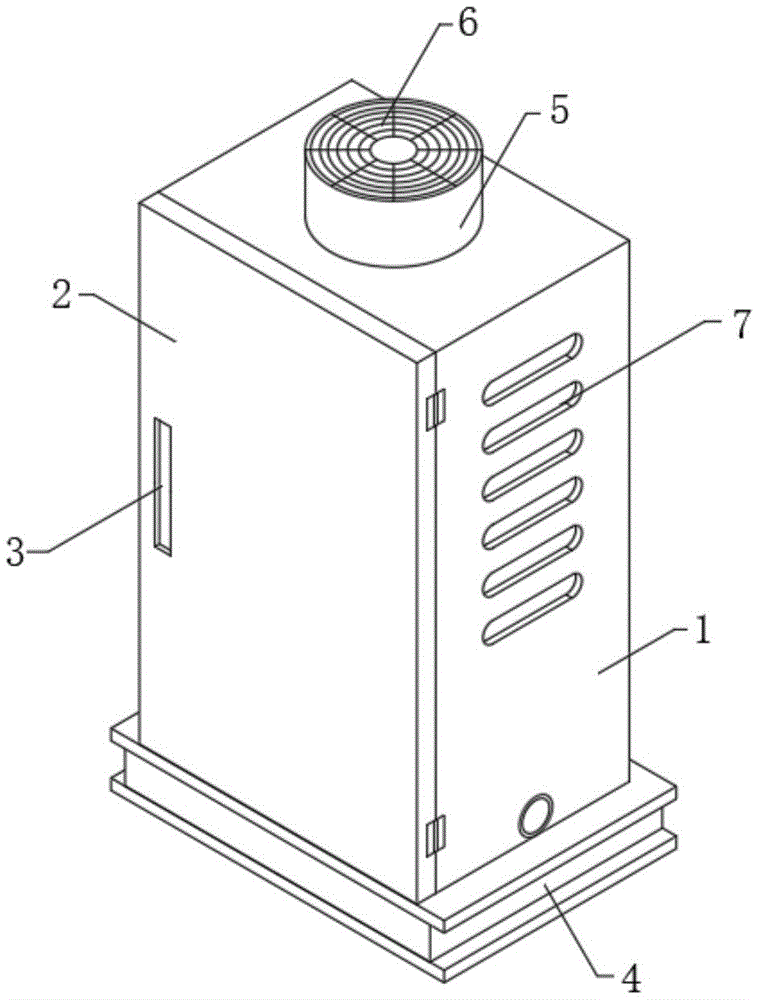

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic diagram of the internal structure of the power distribution cabinet body of the present invention;
fig. 3 is a schematic diagram of the separated structure of the opening box and the extruding plate of the present invention.
In the figure: 1. a power distribution cabinet body; 2. a cabinet door; 3. an inner handle; 4. a moisture-proof seat; 5. a heat-dissipating cylinder; 6. a protective window; 7. a heat dissipation dustproof window; 8. a dust cover; 9. a soft wire protecting sleeve; 10. a base plate; 11. a down lamp; 12. a heat dissipation motor; 13. a fan blade; 14. a square grip; 15. a connecting plate; 16. a pressing plate; 17. locking the knob; 18. a track groove; 19. an open box body.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the utility model provides a technical scheme of switch board based on cable fixed adjustment structure:
according to the figures 1-3, the power distribution cabinet based on the cable fixing and adjusting structure comprises a power distribution cabinet body 1, wherein the opening of the front side of the power distribution cabinet body 1 is movably connected with a cabinet door 2 through a hinge joint, one side of the front side of the cabinet door 2 is fixedly provided with an inner pull handle 3, the middle part of the top end of the power distribution cabinet body 1 is embedded with a heat dissipation cylinder 5, the inside of the heat dissipation cylinder 5 is fixedly provided with a heat dissipation motor 12, the output end of the heat dissipation motor 12 is fixedly connected with a fan blade 13, the top end of the heat dissipation cylinder 5 is fixedly provided with a protection window 6, the bottom of the inner cavity of the power distribution cabinet body 1 is fixedly provided with a bottom plate 10, the top end of the bottom plate 10 is fixedly provided with three parallel opening box bodies 19, the openings of the front sides of the three opening box bodies 19 are all slidably connected, two track grooves 18 respectively with two inside wall fixed connection of switch board body 1, the surface department of both ends sliding block all runs through threaded connection and has locking knob 17.
According to the drawings of fig. 1 and 2, the interior of the three open box bodies 19 is connected with a soft wire protection sleeve 9 in a penetrating way, one end of each soft wire protection sleeve 9 penetrates through the bottom plate 10 to protect the cables and prevent the cables from being damaged during extrusion, the tops of the two sides of the power distribution cabinet body 1 are respectively provided with a heat dissipation dustproof window 7 to improve the air permeability inside the power distribution cabinet body 1, the threading holes at the bottom of the two sides of the power distribution cabinet body 1 are respectively connected with a dustproof cover 8 in a laminating way to improve the dustproof property of the power distribution cabinet body 1, the bottom of the power distribution cabinet body 1 is fixedly connected with a dampproof seat 4 through an abrasion-resistant plate to improve the dampproof property of the bottom of the power distribution cabinet body 1, the middle part of the front surface of the connecting plate 15 is fixedly provided with a square grip 14, the surface of the square grip 14 is fixedly provided with antiskid, the illumination is convenient, and the maintenance is convenient.
When the cable fixing and adjusting structure-based power distribution cabinet is used, when the cable is connected, the cable is inserted into the three wire protecting soft sleeves 9, the cable is connected with the switches in the power distribution cabinet body 1 respectively, the square handle 14 is held to push the connecting plate 15, so that the three extrusion plates 16 are in sliding connection with the corresponding opening box bodies 19, the extrusion plates 16 extrude and deform the wire protecting soft sleeves 9 to limit the cable, the cable is convenient to wire, the loosening of the cable head in the wire laying process is avoided, the normal operation of the power distribution cabinet body 1 is influenced, meanwhile, the wire protecting soft sleeves 9 also avoid the damage of the cable, when the power distribution cabinet body 1 normally operates, the electric part can generate heat, the heat dissipation motor 12 is connected with a power supply, the air flow in the power distribution cabinet body 1 is accelerated by driving the fan blades 13 to rotate, the heat dissipation dustproof window 7 is matched to improve the heat dissipation efficiency of the power distribution cabinet body 1, guarantee internal component's normal operating, to sum up, the utility model discloses a down lamp 11 that is equipped with is convenient for the internal lighting to switch board body 1, offers convenience for the maintenance, through the dampproofing seat 4 that is equipped with, prevents that the bottom of switch board body 1 from weing and leading to the short circuit of inside electric spare.
In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the indicated device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention.
In the present invention, unless otherwise explicitly specified or limited, for example, it may be fixedly connected, detachably connected, or integrated; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The power distribution cabinet based on the cable fixing and adjusting structure comprises a power distribution cabinet body (1) and is characterized in that the positive opening of the power distribution cabinet body (1) is movably connected with a cabinet door (2) through a hinge joint, an inner handle (3) is fixedly arranged on one positive side of the cabinet door (2), a heat dissipation cylinder (5) is embedded in the middle of the top end of the power distribution cabinet body (1), a heat dissipation motor (12) is fixedly arranged inside the heat dissipation cylinder (5), fan blades (13) are fixedly connected to the output end of the heat dissipation motor (12), a protection window (6) is fixedly arranged on the top end of the heat dissipation cylinder (5), a bottom plate (10) is fixedly arranged at the bottom of an inner cavity of the power distribution cabinet body (1), three parallel opening box bodies (19) are fixedly arranged on the top end of the bottom plate (10), and extrusion plates (16) are slidably connected to the positive, it is three the front of stripper plate (16) all with the back fixed connection of connecting plate (15) that is equipped with, the both ends of connecting plate (15) all have track groove (18), two through sliding block sliding connection track groove (18) respectively with two inside wall fixed connection of switch board body (1), both ends the surface department of sliding block all runs through threaded connection and has locking knob (17).
2. The power distribution cabinet based on the cable fixing and adjusting structure according to claim 1, characterized in that: the inside through connection of three opening box body (19) has soft cover of protecting wire (9), and three the one end of soft cover of protecting wire (9) all passes bottom plate (10).
3. The power distribution cabinet based on the cable fixing and adjusting structure according to claim 1, characterized in that: the top of both sides of the power distribution cabinet body (1) is provided with heat dissipation dustproof windows (7).
4. The power distribution cabinet based on the cable fixing and adjusting structure according to claim 1, characterized in that: the bottom threading holes on the two sides of the power distribution cabinet body (1) are connected with dust covers (8) in an attached mode.
5. The power distribution cabinet based on the cable fixing and adjusting structure according to claim 1, characterized in that: the bottom of switch board body (1) passes through antifriction plate fixedly connected with dampproofing seat (4).
6. The power distribution cabinet based on the cable fixing and adjusting structure according to claim 1, characterized in that: the middle part of the front surface of the connecting plate (15) is fixedly provided with a square grip (14), and the surface of the square grip (14) is fixedly provided with anti-skid rubber.
7. The power distribution cabinet based on the cable fixing and adjusting structure according to claim 1, characterized in that:
the top of the inner cavity of the power distribution cabinet body (1) is embedded with two symmetrical down lamps (11).
