Abstract
The utility model discloses a tectorial membrane device for cement board, including being used for supporting fixed support frame, set up membrane roller, handrail on the support frame are still including setting up power unit for moving as a whole provides power on the support frame, and set up the tectorial membrane mechanism that membrane roller below was exerted pressure through direct and indirect to the film. The utility model discloses press the film through tectorial membrane mechanism and cover when power unit drives device moving as a whole, improved the efficiency of tectorial membrane, reduced intensity of labour.
Description
Technical Field
The utility model relates to a cement board field of making especially relates to a tectorial membrane device for cement board.
Background
The cement board is a building flat plate which is produced by processing cement as a main raw material, is a building product which is arranged between a gypsum board and a stone and can be freely cut, drilled and carved, and becomes a building material widely used in the building industry due to the superior fireproof, waterproof, anticorrosion, insect prevention and sound insulation performance of the cement board and the wood board and the price far lower than that of the stone.
In the process of manufacturing the cement board, a layer of thin film is required to be covered on the poured cement board in order to prevent the evaporation of water, and at present, the operation is mostly carried out manually, so that the operation efficiency is low, and the manual labor intensity is high.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a tectorial membrane device for cement board just in order to solve above-mentioned problem, the utility model discloses press the cover through tectorial membrane mechanism to the film when power unit drives device moving as a whole, improved the efficiency of tectorial membrane, reduced intensity of labour.
The utility model discloses a following technical scheme realizes above-mentioned purpose:
the utility model provides a tectorial membrane device for cement board, is in including being used for supporting fixed support frame, setting membrane roller, handrail on the support frame, still including setting up power unit for the bulk movement provides power on the support frame, and set up the tectorial membrane mechanism that membrane roller below is exerted pressure through direct and indirect to the film.
Further setting: the power mechanism comprises a servo motor, the servo motor is arranged above the support frame, the output end of the servo motor is connected with a first double-chain wheel, a transmission shaft is arranged on one side of the servo motor, second double-chain wheels are arranged at the front end and the rear end of the transmission shaft, the lower end of the support frame is located, a movable wheel is arranged on one side of the transmission shaft, a rotating shaft is arranged in the movable wheel, a first auxiliary chain wheel is arranged at the front end of the rotating shaft, the lower end of the support frame is far away from one side of the movable wheel, an auxiliary wheel is arranged, a support shaft is arranged.
So set up, through servo motor provides power, makes first double sprocket passes through chain drive and drives the second double sprocket the vice sprocket of second rotates, makes the removal wheel rotates and drives whole walking the membrane roller rotates and carries out the blowing to the film.
Further setting: the laminating mechanism comprises an air pump, an air pipe is arranged below the film roller, air spraying heads are evenly arranged on the lower side of the air pipe, the air pipe is connected with the air pump, and the laminating mechanism is connected with the support frame.
So set up, the air pump produces pressure gas and passes through the trachea is carried the jet head, covers the film.
Further setting: the laminating mechanism comprises a laminating roller, connecting blocks are arranged at the front end and the rear end of the laminating roller, connecting rods are arranged on the connecting blocks and penetrate through the supporting frames, and springs are arranged between the connecting blocks and the supporting frames and outside the connecting rods.
So set up, make through spring force the connecting block promotes downwards, makes the tectorial membrane roll is pressed and is covered on the film, carries out the pressure to the film at the in-process of advancing.
Further setting: the first double chain wheel is the same as the second double chain wheel, the first auxiliary chain wheel is the same as the second auxiliary chain wheel, and the transmission shaft is connected with the support frame in a rotating mode.
So set up, make first pair sprocket with the second pair sprocket rotational speed is the same, carries out the blowing of film in the in-process of marcing in step.
Further setting: the air pipe penetrates through the support frame and is connected with the support frame through a pipe hoop, and the air nozzle is in threaded connection with the air pipe.
So set up, be convenient for the trachea is in installation on the support frame is fixed, makes the air nozzle install fast on the trachea.
Further setting: the laminating roller is rotatably connected with the connecting block, and the connecting rod is in clearance connection with the supporting frame.
So set up, be convenient for the laminating roller is at the bulk movement in-process, through rotating to cover the film.
Compared with the prior art, the beneficial effects of the utility model are as follows:
drive first double sprocket through servo motor, the second double sprocket rotates, make first auxiliary sprocket, the second auxiliary sprocket drives respectively and removes the wheel, the membrane roller rotates, make whole in-process moving forward, the blowing is carried out in step to the membrane roller, the pressure gas that the air pump produced makes film and cement board contact through jet-propelled head, perhaps through the tectorial membrane roller of connecting on the support frame, make the tectorial membrane roller press the film to cover on the cement board through spring thrust, the efficiency of tectorial membrane has been improved, the manual labor intensity has been reduced.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive exercise.

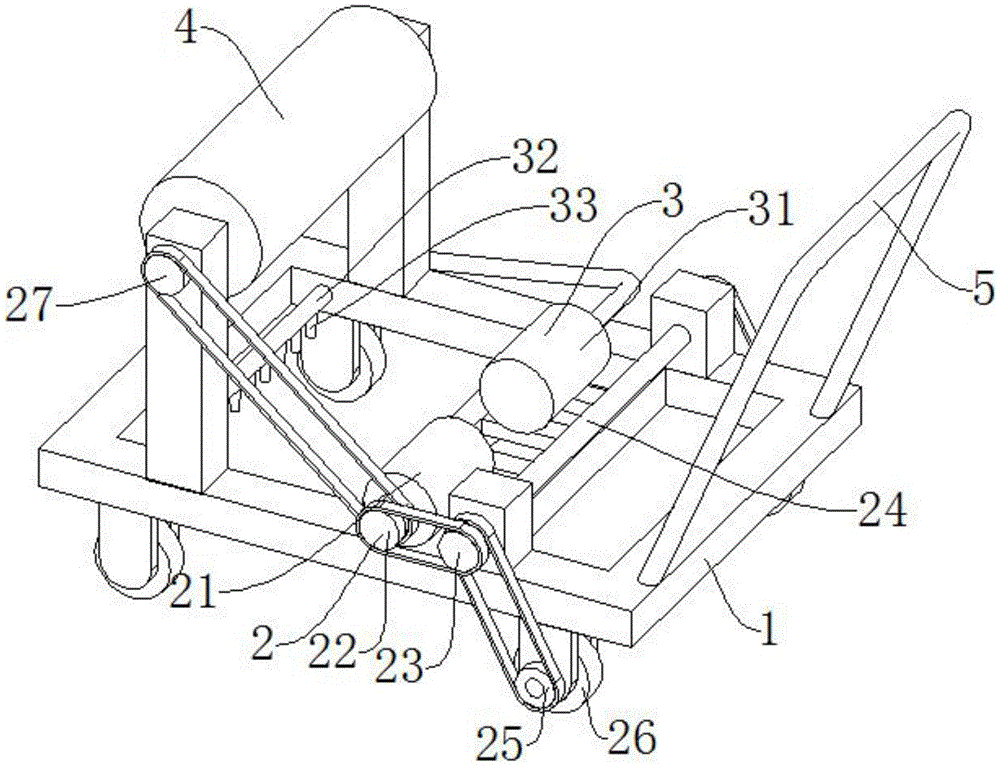

Fig. 1 is a first structural schematic diagram of embodiment 1 of the present invention;
fig. 2 is a schematic front view of embodiment 1 of the present invention;
fig. 3 is a second schematic structural diagram of embodiment 1 of the present invention;
fig. 4 is a partially enlarged schematic view of embodiment 1 of the present invention;
fig. 5 is an isometric view of embodiment 2 of the invention;
fig. 6 is a partially enlarged schematic view of embodiment 2 of the present invention.
The reference numerals are explained below:
1. a support frame; 2. a power mechanism; 21. a servo motor; 22. a first double sprocket; 23. a second double sprocket; 24. a drive shaft; 25. a first secondary sprocket; 26. a moving wheel; 27. a second secondary sprocket; 3. a film covering mechanism; 31. an air pump; 32. an air tube; 33. a gas showerhead; 34. a film laminating roller; 35. connecting blocks; 36. a connecting rod; 37. a spring; 4. a film roll; 5. a handrail.
Detailed Description
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are used merely for convenience of description and for simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. Furthermore, the terms "first", "second", etc. are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first," "second," etc. may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.
The present invention will be further explained with reference to the accompanying drawings:
example 1
As shown in fig. 1-4, a film covering device for cement board comprises a support frame 1 for supporting and fixing, a film roller 4 and a handrail 5 arranged on the support frame 1, a power mechanism 2 arranged on the support frame 1 for providing power for the whole movement, and a film covering mechanism 3 arranged below the film roller 4 for indirectly pressing a film.
Preferably: the power mechanism 2 comprises a servo motor 21, the servo motor 21 is arranged above the support frame 1, the output end of the servo motor 21 is connected with a first double-chain wheel 22, one side of the servo motor 21 is provided with a transmission shaft 24, the front end and the rear end of the transmission shaft 24 are provided with second double-chain wheels 23, the lower end of the support frame 1 is provided with a moving wheel 26 positioned on one side of the transmission shaft 24, a rotating shaft is arranged in the moving wheel 26, the front end of the rotating shaft is provided with a first auxiliary chain wheel 25, one side of the lower end of the support frame 1, which is far away from the moving wheel 26, is provided with an auxiliary wheel, a support shaft is arranged in the film roller 4, the front end of the film roller 4 is provided with a second auxiliary chain wheel 27, power is provided through the servo motor; the film laminating mechanism 3 comprises an air pump 31, an air pipe 32 is arranged below the film roller 4, air nozzles 33 are uniformly arranged on the lower side of the air pipe 32, the air pipe 32 is connected with the air pump 31, the film laminating mechanism 3 is connected with the support frame 1, and pressure gas generated by the air pump 31 is conveyed to the air nozzles 33 through the air pipe 32 to press and laminate the film; the first double chain wheel 22 is the same as the second double chain wheel 23, the first auxiliary chain wheel 25 is the same as the second auxiliary chain wheel 27, the transmission shaft 24 is rotatably connected with the support frame 1, so that the first auxiliary chain wheel 25 and the second auxiliary chain wheel 27 have the same rotating speed, and the film is discharged synchronously in the advancing process; the air pipe 32 penetrates through the support frame 1 and is connected with the support frame 1 through the pipe hoop, and the air nozzle 33 is in threaded connection with the air pipe 32, so that the air pipe 32 is conveniently and fixedly installed on the support frame 1, and the air nozzle 33 is quickly installed on the air pipe 32.
Example 2
As shown in fig. 5-6, a film covering device for cement board comprises a support frame 1 for supporting and fixing, a film roller 4 and a handrail 5 arranged on the support frame 1, a power mechanism 2 arranged on the support frame 1 for providing power for the whole movement, and a film covering mechanism 3 arranged below the film roller 4 for directly pressing a film.
Preferably: the power mechanism 2 comprises a servo motor 21, the servo motor 21 is arranged above the support frame 1, the output end of the servo motor 21 is connected with a first double-chain wheel 22, one side of the servo motor 21 is provided with a transmission shaft 24, the front end and the rear end of the transmission shaft 24 are provided with second double-chain wheels 23, the lower end of the support frame 1 is provided with a moving wheel 26 positioned on one side of the transmission shaft 24, a rotating shaft is arranged in the moving wheel 26, the front end of the rotating shaft is provided with a first auxiliary chain wheel 25, one side of the lower end of the support frame 1, which is far away from the moving wheel 26, is provided with an auxiliary wheel, a support shaft is arranged in the film roller 4, the front end of the film roller 4 is provided with a second auxiliary chain wheel 27, power is provided through the servo motor; the film covering mechanism 3 comprises a film covering roller 34, connecting blocks 35 are arranged at the front end and the rear end of the film covering roller 34, a connecting rod 36 is arranged on the connecting block 35, the connecting rod 36 penetrates through the support frame 1, a spring 37 is arranged between the connecting block 35 and the support frame 1 and on the outer side of the connecting rod 36, the connecting block 35 is pushed downwards through the elastic force of the spring 37, the film covering roller 34 is pressed on a film, and the film is pressed in the advancing process; the first double chain wheel 22 is the same as the second double chain wheel 23, the first auxiliary chain wheel 25 is the same as the second auxiliary chain wheel 27, the transmission shaft 24 is rotatably connected with the support frame 1, so that the first auxiliary chain wheel 25 and the second auxiliary chain wheel 27 have the same rotating speed, and the film is discharged synchronously in the advancing process; the laminating roller 34 rotates with connecting block 35 and is connected, and connecting rod 36 and support frame 1 clearance connection are convenient for laminating roller 34 and in the moving as a whole in-process, cover the film through rotating.
The utility model discloses theory of operation and use flow: move the whole to the cement board top, drive first double sprocket 22 through servo motor 21, second double sprocket 23 rotates, make first auxiliary sprocket 25, second auxiliary sprocket 27 drive respectively and move wheel 26, membrane roller 4 rotates, make whole in-process moving forward, membrane roller 4 carries out the blowing in step, the pressure gas that air pump 31 produced makes film and cement board contact through jet head 33, or through the tectorial membrane roller 34 of being connected on support frame 1, make tectorial membrane roller 34 press the film on the cement board through spring 37 thrust, the efficiency of tectorial membrane has been improved, the manual labor intensity is reduced.
The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention.
Claims (5)
1. The utility model provides a tectorial membrane device for cement board, is including being used for supporting fixed support frame (1), sets up membrane roller (4), handrail (5) on support frame (1), its characterized in that: the film laminating machine is characterized by also comprising a power mechanism (2) which is arranged on the support frame (1) and provides power for the integral movement, and a film laminating mechanism (3) which is arranged below the film roller (4) and directly and indirectly presses a film;
the power mechanism (2) comprises a servo motor (21), the servo motor (21) is arranged above the support frame (1), the output end of the servo motor (21) is connected with a first double-chain wheel (22), one side of the servo motor (21) is provided with a transmission shaft (24), the front end and the rear end of the transmission shaft (24) are provided with second double-chain wheels (23), the lower end of the support frame (1) is positioned on one side of the transmission shaft (24) and is provided with a moving wheel (26), a rotating shaft is arranged in the moving wheel (26), the front end of the rotating shaft is provided with a first auxiliary chain wheel (25), one side of the lower end of the support frame (1) far away from the moving wheel (26) is provided with an auxiliary wheel, a support shaft is arranged in the film roller (4), and the;
the first double chain wheel (22) is the same as the second double chain wheel (23), the first auxiliary chain wheel (25) is the same as the second auxiliary chain wheel (27), and the transmission shaft (24) is in rotating connection with the support frame (1).
2. The laminating device for cement boards according to claim 1, wherein: tectorial membrane mechanism (3) include air pump (31), membrane roller (4) below is provided with trachea (32), trachea (32) downside evenly is provided with jet-propelled head (33), trachea (32) with air pump (31) are connected, tectorial membrane mechanism (3) with support frame (1) are connected.
3. The laminating device for cement boards according to claim 1, wherein: tectorial membrane mechanism (3) are including tectorial membrane roller (34), both ends are provided with connecting block (35) around tectorial membrane roller (34), be provided with connecting rod (36) on connecting block (35), connecting rod (36) pass support frame (1), connecting rod (36) outside is located connecting block (35) with be provided with spring (37) between support frame (1).
4. The laminating device for cement boards according to claim 2, wherein: the air pipe (32) penetrates through the support frame (1) and is connected with the support frame (1) through a pipe hoop, and the air spraying head (33) is in threaded connection with the air pipe (32).
5. A laminating device for cement boards according to claim 3, characterised in that: the laminating roller (34) is rotatably connected with the connecting block (35), and the connecting rod (36) is in clearance connection with the support frame (1).
