CN211725116U - Dust collector that building environmental engineering used - Google Patents
Dust collector that building environmental engineering used Download PDFInfo
- Publication number
- CN211725116U CN211725116U CN202020310017.8U CN202020310017U CN211725116U CN 211725116 U CN211725116 U CN 211725116U CN 202020310017 U CN202020310017 U CN 202020310017U CN 211725116 U CN211725116 U CN 211725116U
- Authority
- CN
- China
- Prior art keywords
- barrel
- cavity
- dust
- base
- water
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Filtering Of Dispersed Particles In Gases (AREA)
Abstract
The utility model discloses a dust removal device for building environmental engineering, which belongs to the technical field of building dust removal devices, and comprises a bottom plate, wherein the bottom end of the bottom plate is provided with rollers in bilateral symmetry, the middle part of the top end of the bottom plate is provided with a base, a barrel is placed at the top end of the base, a cavity is arranged in the base, a driving motor is installed in the cavity, an output shaft of the driving motor is fixedly connected with the bottom end of the barrel through a rotating shaft, the middle part of an inner cavity of the barrel is provided with a water filtering plate, the water filtering plate divides the inner cavity of the barrel into an upper cavity and a lower cavity, the utility model can remove dust in an up-and-down swinging manner through an arranged swinging dust collection mechanism, the barrel can be driven to rotate through the arranged driving motor, thereby realizing the surrounding type dust removal, increasing the dust removal working face, and accumulating a layer of water on the surface of the, thereby improving the dust removal effect and enabling the exhausted air to be cleaner.
Description
Technical Field
The utility model relates to a building dust collector technical field specifically is a dust collector that building environmental engineering used.
Background
Because of often using building materials such as lime, there will be very much dust on the building site, whenever personnel or vehicle move, will take the dirt soil to fly upward all the day, and the building dust that flies upward all has very big harm to human respiratory and eyes, can seriously threaten constructor's healthy, consequently, need with the help of dust collecting equipment for building environmental engineering to carry out dust removal purification to the building environment. The existing dust removal equipment for building environmental engineering is usually an external atomization device, atomizes water through the atomization device, and then sprays the water to the building environment to remove dust, so that the dust removal equipment has the effects of removing building dust in the building environment, but has low working efficiency and poor purification effect, and is relatively serious in water resource waste.
Patent number CN201821680580.3 discloses a dust collecting equipment for building environmental engineering, the on-line screen storage device comprises a base, one side fixedly connected with organism of base, the one end that the base was kept away from to the organism is equipped with the air outlet, the organism is equipped with the active carbon adsorption layer in being close to the one end of air outlet, the bottom side on active carbon adsorption layer is equipped with dry layer, be equipped with dust collector in the organism, dust collector includes first packing layer and second packing layer, first packing layer is located the below setting on dry layer, the setting of second packing layer is in the below of first packing layer. The utility model discloses a spray set and atomizing device purify the air twice to be provided with dry layer and active carbon adsorption layer, can carry out effectual absorption and clear away some harmful gas, peculiar smell, dust in the building environment, in addition, the water resource can flow back and recycle in the cistern, has practiced thrift the water resource, has avoided the waste.
However, in the device, the position of the dust suction port is fixed, the dust suction coverage is small, the effect of a water spraying dust removal mode is poor, and more dust still exists in the discharged air.
Based on this, the utility model designs a dust collector that building environmental engineering used to solve the above-mentioned problem that appears.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a dust collector that building environmental engineering used to solve the problem among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a dust removal device for building environmental engineering comprises a base plate, wherein rollers are symmetrically arranged at the left and right sides of the bottom end of the base plate, a base is arranged in the middle of the top end of the base, a barrel is placed at the top end of the base, a cavity is formed in the base, a driving motor is installed in the cavity, an output shaft of the driving motor is fixedly connected with the bottom end of the barrel through a rotating shaft, a water filter plate is arranged in the middle of an inner cavity of the barrel and divides the inner cavity of the barrel into an upper cavity and a lower cavity, a vertical pipe is installed on the right side of the top end of the barrel in a penetrating mode, a dust outlet cover is connected with the bottom end of the vertical pipe penetrating through the water filter plate, a swinging dust collection mechanism is installed on the upper portion of the right side of the barrel, an exhaust pipe is arranged on, the other end of the water pumping pipe penetrates through the side wall of the barrel and extends into the lower portion of the lower cavity, and a water drainage pipe is arranged on the lower portion of the right side wall of the barrel.
Preferably, the bottom of the cylinder body is provided with a ball, and the top surface of the base is provided with an annular ball groove corresponding to the ball.
Preferably, the water filtering plate comprises a disc plate, and water leakage holes are densely distributed in the disc plate.
Preferably, swing dust absorption mechanism is including the backup pad, backup pad fixed welding is on the barrel right side, backup pad top right side is equipped with the mounting panel, rotate on the mounting panel and install the suction hood, reciprocating motor is installed to the mounting panel front side, the rotation connecting axle of suction hood is connected to reciprocating motor's output, the slot end of suction hood is connected with the fan of bleeding, the end of giving vent to anger of the fan of bleeding is connected with folding pipeline.
Preferably, the flaring end of the dust hood is in threaded connection with a metal mesh filter hood.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a swing dust absorption mechanism who sets up can the up-and-down swing type remove dust, and driving motor through setting can drive the barrel rotatory to realize surrounding type dust removal, increased the dust removal working face, through adding water on water filtering plate upper strata, can be at water filtering plate one deck water of deposition on the surface, pass water filtering plate when dusty air and can fully contact with water, thereby improve dust removal effect, make the exhaust air cleaner.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

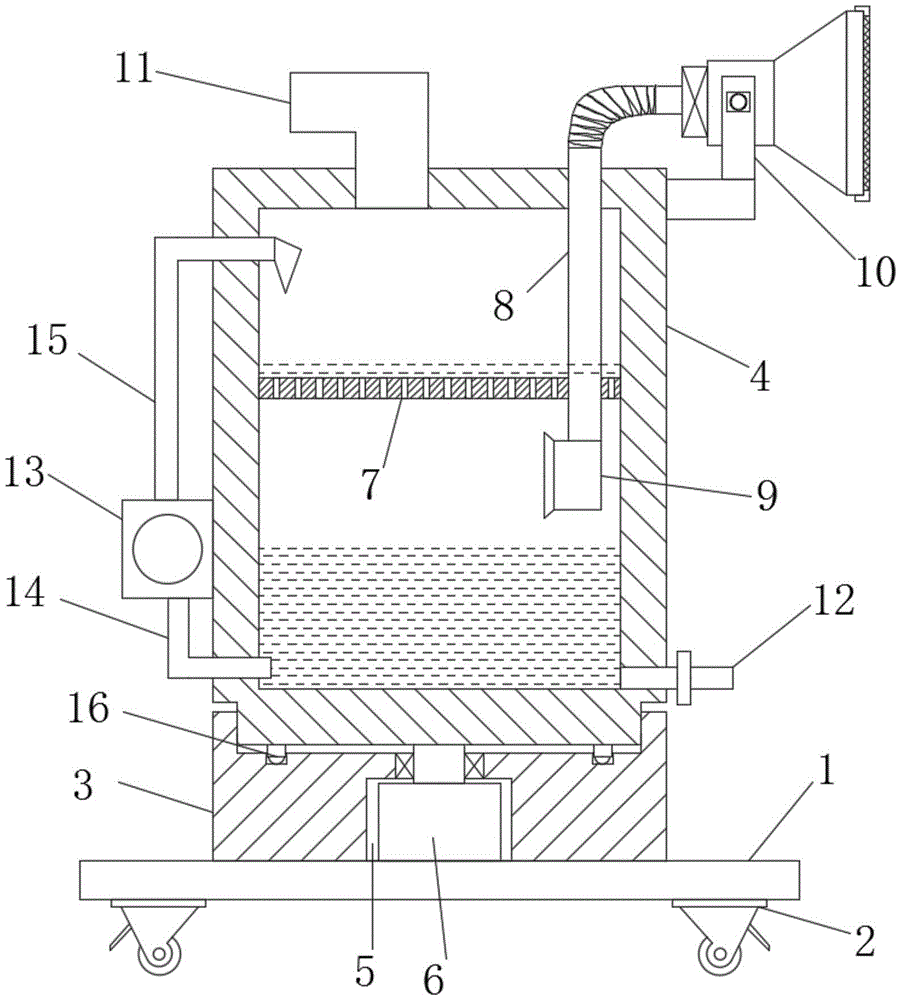

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the base of the present invention;
fig. 3 is a schematic view of the water filter plate of the present invention;
fig. 4 is a schematic structural view of the swing dust suction mechanism of the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1-bottom plate, 2-roller, 3-base, 4-cylinder, 5-cavity, 6-driving motor, 7-water filtering plate, 8-vertical pipe, 9-dust outlet cover, 10-swing dust suction mechanism, 11-exhaust pipe, 12-drain pipe, 13-water pump, 14-water pumping pipe, 15-water inlet pipe, 16-ball, 17-annular disc ball groove, 71-plate, 72-water leakage hole, 101-support plate, 102-mounting plate, 103-dust suction cover, 104-reciprocating motor, 105-air suction fan, 106-folding pipeline, 107-metal mesh filtering cover.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1 to 4, the present invention provides a technical solution: a dust removal device for building environmental engineering comprises a base plate 1, wherein rollers 2 are symmetrically arranged at the left and right sides of the bottom end of the base plate 1, a base 3 is arranged in the middle of the top end of the base plate 1, a barrel 4 is placed at the top end of the base 3, a cavity 5 is arranged in the base 3, a driving motor 6 is installed in the cavity 5, an output shaft of the driving motor 6 is fixedly connected with the bottom end of the barrel 4 through a rotating shaft, a water filtering plate 7 is arranged in the middle of an inner cavity of the barrel 4, the inner cavity of the barrel 4 is divided into an upper cavity and a lower cavity by the water filtering plate 7, a vertical pipe 8 is installed on the right side of the top end of the barrel 4 in a penetrating manner, the bottom end of the vertical pipe 8 penetrates through the bottom surface of the water filtering plate 7 and is connected with a dust outlet cover 9, a swinging dust collection mechanism 10 is, the other end of the water pumping pipe 14 penetrates through the side wall of the cylinder 4 and extends into the lower part of the lower cavity, and the lower part of the right side wall of the cylinder 4 is provided with a water drainage pipe 12.
Furthermore, the bottom end of the cylinder 4 is provided with a ball 16, and the top surface of the base 3 is provided with a ring-shaped ball groove 17 corresponding to the ball 16.
Further, the water filtering plate 7 comprises a disc plate 71, and water leakage holes 72 are densely distributed on the disc plate 71.
Further, swing dust absorption mechanism 10 is including backup pad 101, and backup pad 101 fixed welding is in the barrel 4 right side, and backup pad 101 top right side is equipped with mounting panel 102, rotates on mounting panel 102 and installs suction hood 103, and reciprocating motor 104 is installed to mounting panel 102 front side, and the rotation connecting axle of suction hood 103 is connected to reciprocating motor 104's output, and the slot end of suction hood 103 is connected with air extraction fan 105, and air outlet end of air extraction fan 105 is connected with folding pipeline 106.
Furthermore, the flaring end of the dust hood 103 is screwed with a metal mesh filter hood 107, which can prevent plastic belts, paper slips and the like from entering the cylinder 4.
Wherein, this scheme still can be equipped with filtration equipment at the water inlet department of suction pump 13, plays sewage purification effect, and the extension trades the water time.
The working principle is as follows: dust-containing air is sucked into the lower cavity of the cylinder 4 through the suction fan 105, purified water is pumped to the upper cavity of the cylinder 4 through the water suction pump 13, a layer of aqueous solution is retained on the water filter 7 due to the water blocking effect of the water filter 7, the dust-containing air is fully contacted with the aqueous solution through the water leakage holes 72 after entering the cylinder 4, the dust removal effect is well achieved, and the air is discharged from the exhaust pipe 11 after dust removal; in the dust removal process, the reciprocating motor 104 drives the dust hood 103 to swing up and down, and the driving motor 6 drives the cylinder 4 to rotate, so that multi-directional and multi-angle dust removal is realized.
The electric devices in the device are electrically connected with an external power supply through the external control switch.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The further embodiments of the present invention disclosed above are merely intended to help illustrate the present invention. Further embodiments are not exhaustive and do not limit the utility model to the specific embodiments described. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (5)
1. The utility model provides a dust collector that building environmental engineering used, including bottom plate (1), its characterized in that: the bottom end of the bottom plate (1) is provided with rollers (2) in a bilateral symmetry mode, the middle of the top end of the bottom plate (1) is provided with a base (3), the top end of the base (3) is provided with a barrel (4), a cavity (5) is arranged in the base (3), a driving motor (6) is arranged in the cavity (5), an output shaft of the driving motor (6) is fixedly connected with the bottom end of the barrel (4) through a rotating shaft, the middle of an inner cavity of the barrel (4) is provided with a water filtering plate (7), the inner cavity of the barrel (4) is divided into an upper cavity and a lower cavity by the water filtering plate (7), the right side of the top end of the barrel (4) is provided with a vertical pipe (8) in a penetrating mode, the bottom end of the vertical pipe (8) penetrates through the bottom surface of the water filtering plate (7) and is connected with a dust, go up the left side of cavity and be equipped with inlet tube (15), the other end of inlet tube (15) runs through barrel (4) outer wall connection and has suction pump (13), the input of suction pump (13) is connected with drinking-water pipe (14), the other end of drinking-water pipe (14) runs through the lower part that barrel (4) lateral wall stretched into cavity down, the right side wall lower part of barrel (4) is equipped with drain pipe (12).
2. The dust removing device for the construction environmental engineering according to claim 1, wherein: the bottom of barrel (4) is equipped with ball (16), the top surface of base (3) corresponds ball (16) and opens annular ball groove (17).
3. The dust removing device for the construction environmental engineering according to claim 1, wherein: the water filtering plate (7) comprises a disc plate (71), and water leakage holes (72) are densely distributed in the disc plate (71).
4. The dust removing device for the construction environmental engineering according to claim 1, wherein: swing dust absorption mechanism (10) is including backup pad (101), backup pad (101) fixed welding is on barrel (4) right side, backup pad (101) top right side is equipped with mounting panel (102), it installs suction hood (103) to rotate on mounting panel (102), reciprocating motor (104) are installed to mounting panel (102) front side, the rotation connecting axle of suction hood (103) is connected to the output of reciprocating motor (104), the tang of suction hood (103) is connected with aspirating fan (105), the end of giving vent to anger of aspirating fan (105) is connected with folding pipeline (106).
5. The dust removing device for the construction environmental engineering according to claim 4, wherein: the flaring end of the dust hood (103) is in threaded connection with a metal mesh filter hood (107).
