CN211722321U

CN211722321U - From intelligent balcony cabinet of taking infrared function of disinfecting of ozone

Info

Publication number: CN211722321U
Application number: CN202020043608.3U
Authority: CN
Inventors: 陈积宽
Original assignee: Chongqing Teaimei Intelligent Technology Co ltd
Current assignee: Chongqing Teaimei Intelligent Technology Co ltd
Priority date: 2020-01-09
Filing date: 2020-01-09
Publication date: 2020-10-23
Anticipated expiration: 2030-01-09

Abstract

The utility model relates to an intelligence furniture technical field just discloses an intelligence balcony cabinet from taking ozone infrared sterilization function, the intelligent power distribution cabinet comprises a cabinet body, the positive left side of the cabinet body has been seted up and has been deposited the mouth, the inside fixed mounting who deposits the mouth has the baffle, the inside of the cabinet body just is located the interior bottom jade wall of depositing the mouth and has seted up the vent, the positive movable mounting of the cabinet body has the switch door, the top fixed mounting of internal wall of cabinet has the mounting panel, the top fixed mounting of mounting panel has the ozone infrared sterilizer, the inside of the cabinet body just is located the below fixed mounting of mounting panel has the backup pad, the back lateral wall of the cabinet body just is located the back of backup pad and has seted up the thermovent. This from intelligent balcony cabinet of taking infrared sterilization function of ozone through setting up the infrared sterilizer of ozone to make the inside air of intelligent balcony cabinet keep wasing constantly, avoided leaving in the inside moldy condition of article appearance of intelligent balcony cabinet, the effectual practicality that improves intelligent balcony cabinet.

Description

From intelligent balcony cabinet of taking infrared function of disinfecting of ozone

Technical Field

The utility model relates to an intelligence furniture technical field specifically is an intelligence balcony cabinet from taking ozone infrared sterilization function.

Background

The intelligent furniture is based on modern fashion furniture, and skillfully integrates combined intelligence, electronic intelligence, mechanical intelligence and Internet of things intelligence into furniture products, so that the furniture is intelligentized, internationalized and fashionable, the home life is more convenient and comfortable, the intelligent furniture is an important component of a new and precious life style, and the intelligent furniture is a development trend and trend of future international furniture.

Intelligence balcony cabinet is deposited in the compartment of balcony for deposit some debris or clothing, but traditional balcony cabinet simple structure to inside is difficult to shine sunshine, and inside is comparatively moist, and clothing or debris are deposited and are produced bacterium or mould easily in the inside, and inside ventilation is relatively poor moreover, and long-term use can produce great peculiar smell, so provides one kind from taking the intelligent balcony cabinet of ozone infrared sterilization function.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a from intelligent balcony cabinet of taking ozone infrared sterilization function possesses infrared sterilization and dries and ventilation effect advantage such as good, has solved the balcony cabinet simple structure of system to inside is difficult to shine sunshine, and is inside comparatively moist, and clothing or debris leave the inside and produce bacterium or mould easily, and inside ventilation is relatively poor moreover, and long-term use can produce the problem of great peculiar smell.

(II) technical scheme

For the purpose that realizes that above-mentioned infrared stoving and ventilation effect are good that disinfects, the utility model provides a following technical scheme: an intelligent balcony cabinet with an ozone infrared sterilization function comprises a cabinet body, wherein a storage opening is formed in the left front side of the cabinet body, a partition plate is fixedly mounted inside the storage opening, a vent opening is formed in the inner bottom wall of the cabinet body and positioned at the storage opening, a switch door is movably mounted in the front of the cabinet body, a mounting plate is fixedly mounted at the top of the inner wall of the cabinet body, an ozone infrared sterilizer is fixedly mounted at the top of the mounting plate, a supporting plate is fixedly mounted in the cabinet body and positioned below the mounting plate, a heat dissipation opening is formed in the rear side wall of the cabinet body and positioned at the back side of the supporting plate, a fan is fixedly mounted in the heat dissipation opening, a rotating shaft is fixedly mounted on the rear side wall of the cabinet body and positioned at the left side of the heat dissipation opening, a cover plate is movably mounted in the front of the rotating shaft, and an electric sliding, the front fixed mounting of apron has the inserted bar, the inside of the cabinet body and the below fixed mounting that is located the backup pad have place the board, place the top of board and seted up the air intake.

Preferably, four storage chambers are formed in the front face of the cabinet body, and the number of the partition plates is two.

Preferably, the bottom of the ozone infrared sterilizer penetrates through the mounting plate and extends to the lower part of the mounting plate, and the number of the ozone infrared sterilizer is six.

Preferably, the number of the heat dissipation openings is six, and the diameter of the cover plate is larger than that of the heat dissipation openings.

Preferably, the cover plate is movably mounted on the back of the support plate, and the back of the inserted link penetrates through the cover plate and extends into the electric slide rail.

Preferably, the number of the placing plates is two, and the width of the air inlet is smaller than that of the placing plates.

(III) advantageous effects

Compared with the prior art, the utility model provides a from intelligent balcony cabinet of taking infrared function of disinfecting of ozone possesses following beneficial effect:

the intelligent balcony cabinet with the ozone infrared sterilization function only needs to start a power switch of the ozone infrared sterilizer when the inside of the intelligent balcony cabinet needs to be sterilized, so that the ozone infrared sterilizer can sterilize and dry the inside of the wardrobe body, prevent articles stored in the wardrobe body from mildewing due to bacteria, ventilate the inside of the wardrobe body after the sterilization of the inside of the wardrobe body is finished, only needs to start a power switch of the electric sliding rail when the ventilation is carried out, the electric sliding rail drives the inserted link to move upwards, the cover plate is driven to move leftwards and upwards around the rotating shaft when the inserted link moves upwards, the cover plate can be opened, then the fan is started, external air is pumped into the inside of the wardrobe body, the inside of the wardrobe body is subjected to ventilation treatment, and the air in the wardrobe body can be replaced, with fresh air suction to the inside of the cabinet body to make the inside air of intelligence balcony cabinet keep wasing constantly, avoided leaving in the inside article of intelligence balcony cabinet the moldy condition appears, the effectual practicality that improves intelligence balcony cabinet.

Drawings

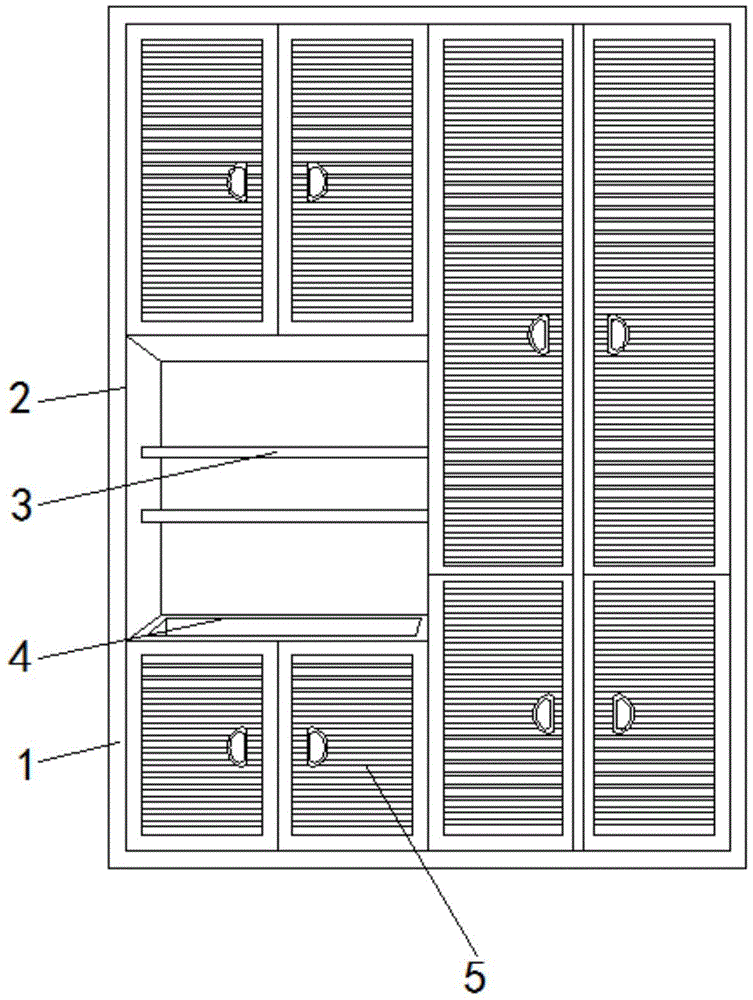

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a front sectional view of the present invention.

In the figure: 1 cabinet body, 2 storage openings, 3 baffle, 4 vents, 5 switch doors, 7 mounting panels, 8 ozone infrared sterilizer, 9 backup pads, 10 thermovents, 11 fans, 12 pivots, 13 apron, 14 electronic slide rails, 15 inserted bars, 16 place board, 17 air intakes.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, an intelligent balcony cabinet with ozone infrared sterilization function comprises a cabinet body 1, wherein a storage port 2 is formed in the left side of the front of the cabinet body 1, a partition plate 3 is fixedly installed inside the storage port 2, four storage chambers are formed in the front of the cabinet body 1, the number of the partition plates 3 is two, a vent 4 is formed in the inner portion of the cabinet body 1 and located on the inner bottom wall of the storage port 2, a switch door 5 is movably installed on the front of the cabinet body 1, a mounting plate 7 is fixedly installed on the top of the inner wall of the cabinet body 1, an ozone infrared sterilizer 8 is fixedly installed on the top of the mounting plate 7, the type of the ozone infrared sterilizer 8 can be FL-803A, the bottom of the ozone infrared sterilizer 8 penetrates through the mounting plate 7 and extends to the lower side of the mounting plate 7, the number of the ozone infrared sterilizer 8 is six, a support plate 9 is fixedly installed inside the cabinet body, a heat dissipation port 10 is formed in the rear side wall of the cabinet body 1 and located on the back side of the support plate 9, a fan 11 is fixedly installed inside the heat dissipation port 10, a rotating shaft 12 is fixedly installed on the rear side wall of the cabinet body 1 and located on the left side of the heat dissipation port 10, a cover plate 13 is movably installed on the front side of the rotating shaft 12, the number of the heat dissipation ports 10 is six, the diameter of the cover plate 13 is larger than that of the heat dissipation port 10, an electric slide rail 14 is fixedly installed on the rear side wall of the cabinet body 1 and located above the heat dissipation port 10, an insertion rod 15 is fixedly installed on the front side of the cover plate 13, the cover plate 13 is movably installed on the back side of the support plate 9, the back side of the insertion rod 15 penetrates through the cover plate 13 and extends into the electric slide rail 14, a placing plate 16 is fixedly installed inside the cabinet body 1 and located below the support plate 9, when the inside of the intelligent balcony cabinet needs to be sterilized, only the power switch of the ozone infrared sterilizer 8 needs to be started, so that the ozone infrared sterilizer 8 can sterilize and dry the inside of the cabinet body 1, and the phenomenon that the articles stored inside the cabinet body 1 mildew due to bacteria is prevented, after the sterilization of the inside of the cabinet body 1 is completed, the inside of the cabinet body 1 needs to be ventilated, when the ventilation is performed, only the power switch of the electric slide rail 14 needs to be started, the electric slide rail 14 drives the insert rod 15 to move upwards, when the insert rod 15 moves upwards, the cover plate 13 is driven to move leftwards and upwards around the rotating shaft 12, so that the cover plate 13 can be opened, then the fan 11 is started, external air is pumped into the inside of the cabinet body 1, the inside of the cabinet body 1 is ventilated, the air inside the cabinet body 1 is replaced, and fresh air is pumped into the inside of the cabinet body 1, therefore, the air in the intelligent balcony cabinet is kept to be cleaned all the time, the mildew of the articles stored in the intelligent balcony cabinet is avoided, and the practicability of the intelligent balcony cabinet is effectively improved.

When using, when the inside of intelligence balcony cabinet need disinfect, only need start the switch of ozone infrared sterilizer 8, make ozone infrared sterilizer 8 can disinfect the stoving to the inside of the cabinet body 1, after the completion of disinfecting of the internal portion of cabinet, still need ventilate the inside of the cabinet body 1, when ventilating, only need start the switch of electronic slide rail 14, let electronic slide rail 14 drive inserted bar 15 rebound, will drive apron 13 and move around this pivot 12 upper left side when inserted bar 15 rebound, just so can open apron 13, then fan 11 will start, with the inside of external air suction to the cabinet body 1, take a breath the processing to the inside of the cabinet body 1, the inside air of the cabinet body 1 will be changed.

In conclusion, according to the intelligent balcony cabinet with the ozone infrared sterilization function, by arranging the ozone infrared sterilizer 8, when the inside of the intelligent balcony cabinet needs to be sterilized, only the power switch of the ozone infrared sterilizer 8 needs to be started, so that the ozone infrared sterilizer 8 can sterilize and dry the inside of the wardrobe body 1, and the phenomenon that articles stored inside the wardrobe body 1 are mildewed due to bacteria is prevented, after the sterilization of the inside of the wardrobe body 1 is completed, the inside of the wardrobe body 1 also needs to be ventilated, when the ventilation is performed, only the power switch of the electric slide rail 14 needs to be started, so that the electric slide rail 14 drives the inserted link 15 to move upwards, when the inserted link 15 moves upwards, the cover plate 13 is driven to move leftwards and upwards around the rotating shaft 12, so that the cover plate 13 can be opened, then the fan 11 is started, and external air is pumped into the wardrobe body 1, the inside to the cabinet body 1 is taken a breath and is handled, the inside air of the cabinet body 1 will be changed, with fresh air suction to the inside of the cabinet body 1, thereby make the inside air of intelligence balcony cabinet keep washing constantly, avoided leaving the inside moldy condition of article appearance in intelligence balcony cabinet, the effectual practicality that improves intelligence balcony cabinet, the balcony cabinet simple structure of having solved the system, and inside is difficult to shine sunshine, inside is comparatively moist, clothing or debris are left and are produced bacterium or mould easily in the inside, and inside ventilation is relatively poor, long-term use can produce the problem of great peculiar smell.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a from intelligent balcony cabinet of taking infrared function of disinfecting of ozone, includes the cabinet body (1), its characterized in that: the utility model discloses a cabinet, including the cabinet body, the positive left side of the cabinet body (1) has been seted up and has been deposited mouthful (2), the inside fixed mounting who deposits mouthful (2) has baffle (3), the inside of the cabinet body (1) just is located the interior diapire that deposits mouthful (2) and has seted up vent (4), the positive movable mounting of the cabinet body (1) has switch door (5), the top fixed mounting of the internal wall of the cabinet body (1) has mounting panel (7), the top fixed mounting of mounting panel (7) has ozone infrared sterilizer (8), the inside of the cabinet body (1) just is located the below fixed mounting of mounting panel (7) has backup pad (9), the back lateral wall of the cabinet body (1) just is located the back of backup pad (9) and has seted up thermovent (10), the inside fixed mounting of thermovent (10) has fan (11), the back lateral wall of the cabinet body (1) just is located the left, the utility model discloses a cabinet, including the cabinet body, the front movable mounting of pivot (12) has apron (13), the rear side wall of the cabinet body (1) and the top fixed mounting that is located thermovent (10) have electronic slide rail (14), the front fixed mounting of apron (13) has inserted bar (15), the inside of the cabinet body (1) and the below fixed mounting that is located backup pad (9) have place board (16), place the top of board (16) and seted up air intake (17).

2. The intelligent balcony cabinet with the ozone infrared sterilization function as recited in claim 1, is characterized in that: four storage chambers are arranged on the front surface of the cabinet body (1), and the number of the partition plates (3) is two.

3. The intelligent balcony cabinet with the ozone infrared sterilization function as recited in claim 1, is characterized in that: the bottom of ozone infrared sterilizer (8) runs through mounting panel (7) and extends to the below of mounting panel (7), the quantity of ozone infrared sterilizer (8) is six.

4. The intelligent balcony cabinet with the ozone infrared sterilization function as recited in claim 1, is characterized in that: the number of the heat dissipation openings (10) is six, and the diameter of the cover plate (13) is larger than that of the heat dissipation openings (10).

5. The intelligent balcony cabinet with the ozone infrared sterilization function as recited in claim 1, is characterized in that: the cover plate (13) is movably mounted on the back surface of the support plate (9), and the back surface of the inserted rod (15) penetrates through the cover plate (13) and extends into the electric sliding rail (14).

6. The intelligent balcony cabinet with the ozone infrared sterilization function as recited in claim 1, is characterized in that: the number of the placing plates (16) is two, and the width of the air inlet (17) is smaller than that of the placing plates (16).
