Abstract

The utility model discloses a palace-warming underpants, comprising an underpants body, a heating sheet (1) is arranged on the front section of the underpants body, and the heating sheet and the underpants fabric are combined together after sewing; and the heating sheet is (1) A power cord is connected through the connection end (2), the power cord is connected to the power supply (3), and a controller (4) is arranged on the power cord.

Description

A kind of warm palace underwear

technical field

The utility model relates to underpants, in particular to women's palace-warming underpants.

Background technique

There are only two kinds of people in the world, men and women, and women will inevitably suffer once a month at a certain age, just like "crossing the calamity", and each woman may experience it to a different degree. Good quality and good conditioning will make it easy to pass, otherwise it will be much more painful, even like losing half of your life; due to the fast pace of life in today's society, the pressure of work and life is high, plus Irregular diet and rest, most women belong to the latter suffering.

When a woman's monthly "period" comes, the way most people may take to relieve pain is to drink more hot water, drugs, medicated meals, hot water bags, bed rest, etc.

In recent years, with the development of science and technology, an "artifact" has appeared, that is, the aunt artifact that has been widely circulated in the market - the palace-warming belt, which has now blossomed everywhere and has various kinds; this artifact has indeed brought good news to users, It has played a role in relieving pain, and it is very convenient and simple to use.

Although there are various types of warm palace belts on the market, ranging from cheap to expensive, there are various heating methods and styles, but they are almost all of the outer covering type, that is, the palace warm belt is directly draped on the navel. , and use it against the skin or through clothing. The advantage of this kind of palace warming belt is that it is very convenient to use and can be used immediately, but the disadvantages are also obvious: First, it is not easy to breathe when it is attached to the skin, which leads to easy sweating, and at the same time, it may easily burn the skin, and the thermal efficiency is not good if it is separated from the clothes. ; Second, it is not the actual position of the uterus that warms the palace and brings warmth. Although it is effective, it is not direct.

Utility model content

The technical scheme adopted by the utility model to solve the above-mentioned technical problems is as follows:

A palace-warming underpants, comprising an underpants body, the front section of the underpants body is provided with a heating sheet (1), the heating sheet and the underpants fabric are combined after sewing; and the heating sheet (1) is connected by The end (2) is connected to the power cord, the power cord is connected to the power supply (3), and a controller (4) is arranged on the power cord.

Preferably, the heating sheet (1) is a one-sided or linear heating substrate with infrared function.

Preferably, the connection end (2) is a magnetic connection end or a snap connection end.

Preferably, the power of the heating sheet (1) is 2-5W.

Preferably, the power source is a mobile power supply 5V or a direct lithium battery 3.7V power supply.

Preferably, the fabric of the underwear body is a modal outer crotch and an inner fairy shield antibacterial surface.

Preferably, the heat generating sheet is placed at the position of the uterus.

Preferably, the connecting end is placed on the upper right corner of the panty, and is firmly fixed to the panty fabric by sewing.

Preferably, the connecting end is first fixed on a piece of sewing cloth, and the sewing cloth and the underwear fabric are fixed together by bonding or sewing.

After the utility model adopts the above-mentioned scheme, the uterine warming panties directly heat the uterus to achieve a better uterine warming effect with lower energy efficiency. Safer palace warmer while keeping operation simple and easy to use.

Other features and advantages of the invention will be set forth in the description which follows, and in part will be apparent from the description, or may be learned by practice of the invention. The objectives and other advantages of the invention may be realized and attained by the structure particularly pointed out in the written description and appended drawings.

Description of drawings

The present utility model will be described in detail below with reference to the accompanying drawings, so as to make the above-mentioned advantages of the present utility model more clear.

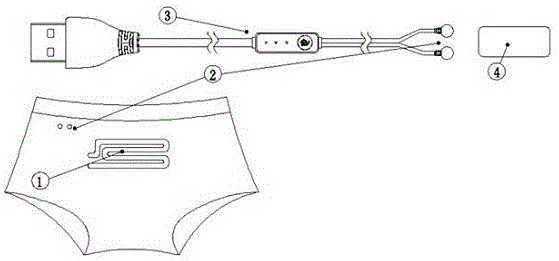

Fig. 1 is the structural representation of the utility model warm palace underwear;

FIG. 2 is a schematic view of the back of the palace warming panties of the present invention.

Detailed ways

The present utility model will be described in detail below with reference to specific embodiments.

The heat-generating sheet of the present invention adopts a light, thin and soft polyimide film or composite fiber with infrared effect as the heat-generating base material, and ensures that the heat-generating sheet is easy to breathe, bend-resistant, wash-resistant, flame-retardant, and heat-generating evenly during the production process. ; When the heating element is sewn to the underwear fabric, it is soft and comfortable, and the foreign body sensation is minimized; the power of the heating element is generally controlled at 2W ~ 5W according to the working voltage. Mobile power supply 5V or direct lithium battery 3.7V), control circuit (multi-speed control temperature or power control) to achieve temperature control heating function, the temperature is generally controlled at 40 ℃ ~ 50 ℃.

Specifically, a palace-warming underpants include an underpants body, the front section of the underpants body is provided with a heating sheet (1), and the heating sheet and the underpants fabric are combined after sewing; and, the heating sheet ( 1) Connect the power cord through the connection end (2), the power cord is connected to the power supply (3), and a controller (3) is arranged on the power cord.

Preferably, the heating sheet (1) is a one-sided or linear heating substrate with infrared function.

Preferably, the connection end (2) is a magnetic connection end or a snap connection end.

Preferably, the power of the heating sheet (1) is 2-5W.

Preferably, the power source is a mobile power supply 5V or a direct lithium battery 3.7V power supply.

Preferably, the fabric of the underwear body is a modal outer crotch and an inner fairy shield antibacterial surface.

Preferably, the heat generating sheet is placed at the position of the uterus.

Preferably, the connecting end is placed on the upper right corner of the panty, and is firmly fixed to the panty fabric by sewing.

Preferably, the connecting end is first fixed on a piece of sewing cloth, and the sewing cloth and the underwear fabric are fixed together by bonding or sewing.

The underwear fabric of the present invention adopts a modal material outer crotch and an inner fairy shield antibacterial fabric, and the modal outer crotch material has the characteristics of not easy to pilling, good moisture absorption, comfort and softness, and strong air permeability; the internal antibacterial fabric inhibits three major bacteria: Staphylococcus aureus, Candida albicans, Escherichia coli, can effectively lasting bacteriostasis, away from itching.

The heating sheet of the present invention is combined with the underwear fabric after sewing, the heating sheet is placed at the position of the uterus, the connecting end of the heating sheet is placed at a position that is convenient for operation (usually the upper right corner of the underwear), and then the two are sewn with the underwear fabric. Securely fastened. (The fixing method of the connection end is: the connection terminal is first fixed on a piece of sewing cloth, and then the sewing cloth and the underwear fabric are fixed by bonding or sewing)

The warm palace underwear of the present invention has the following advantages with respect to the common warm palace belt and other treatment methods on the market:

1. Low cost, compared to medical means, drug treatment, etc.;

2. Compared with the warm palace belt, the thermal efficiency is higher and the thermal efficiency is more direct, so the power can be lower, more power saving, and more comfortable;

3. Easy to use, underwear is for daily needs, just add a power supply to normal wear, avoiding the trouble of other methods, neither delaying life, leisure, nor work;

4. Timely and efficient, real-time improvement and alleviation of patients' pain anytime and anywhere according to the needs of patients.

1. It is a heating sheet, a one-sided or linear heating substrate with infrared function, 2W ~ 5W power, easy to breathe, resistant to bending, washable, flame retardant, uniform heating, soft and thin at the same time;

2. The connection end, magnetic attraction method or snap button method, ensures that its connection is convenient and not easy to fall off, and it is not oxidized or damaged by washing, and has good overcurrent capability;

3. Controller, multi-speed control temperature or adjust output power;

4. Power supply, generally 5V mobile power supply or 3.7V direct lithium battery;

5. The underwear fabric, comfortable and breathable, also has the function of sterilization;

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (7)

1. A palace-warming underpants, comprising an underpants body, characterized in that the front section of the underpants body is provided with a heating sheet (1), and the heating sheet and the underpants fabric are combined after sewing; The sheet (1) is connected to a power cord through a connection end (2), the power cord is connected to a power supply (3), and a controller (4) is arranged on the power cord, the connection end is placed in the upper right corner of the panties, and is connected with the panty fabric cart. The sewing is firmly fixed, which specifically includes: the connecting end is first fixed on a piece of sewing cloth, and the sewing cloth and the underwear fabric are combined and fixed together by means of pasting or sewing. 2 . The warm palace underwear according to claim 1 , wherein the heating sheet ( 1 ) is a one-sided or linear heating base material with infrared function. 3 . 3 . The warm palace underwear according to claim 1 or 2 , wherein the connecting end ( 2 ) is a magnetic suction connecting end or a snap connecting end. 4 . 4 . The warm palace underwear according to claim 1 , wherein the power of the heating sheet ( 1 ) is selected to be 2-5W. 5 . 5 . The warm palace underwear according to claim 1 , wherein the power source is a mobile power supply 5V or a direct lithium battery 3.7V power supply. 6 . 6 . The warm palace underwear according to claim 1 , wherein the fabric of the underwear body is a modal outer crotch and an inner fairy shield bacteriostatic surface. 7 . 7 . The uterine warming panties according to claim 1 , wherein the heat generating sheet is placed at the position of the uterus. 8 .
