Abstract
The utility model relates to the technical field of mechanical equipment, in particular to a full-automatic cutting and punching integrated machine which can effectively improve the working efficiency, enable the cutting of workpieces to be smoother, avoid influencing the processing quality of products and reduce the use limitation; including the workstation, the mount punches a hole, the pneumatic cylinder punches a hole, the head of punching a hole, cut the mount, hydraulic cylinder, the mounting panel, driving motor, cut the wheel, cut the fixed plate and punch a hole the fixed plate, the bottom of workstation is provided with four groups supporting legs, the bottom of the mount that punches a hole is connected with the top of workstation, the pneumatic cylinder fixed mounting that punches a hole is on the top of the mount that punches a hole, driving motor's output is provided with the drive shaft, the dismantled and assembled fixed mounting of wheel is in the drive shaft. The fixed plate that cuts and the equal fixed mounting in the top of workstation of fixed plate that punches a hole to the top of cutting the fixed plate is provided with a set of anchor clamps, and the top of the fixed plate that punches a hole is provided with two sets of anchor clamps.
Description
Technical Field
The utility model relates to a mechanical equipment's technical field especially relates to a full-automatic all-in-one that punches a hole that cuts.
Background
Sheet metal is a material that uses more commonly in machining, and in sheet metal processing usually, in order to facilitate realizing the equipment requirement, cut or punch a hole on the surface to panel usually, current processing equipment can not the integrated processing, discovers in the use, and work efficiency is low, cuts the unevenness, influences product processingquality, leads to the use limitation higher.
SUMMERY OF THE UTILITY MODEL
For solving the technical problem, the utility model provides a can effectively improve work efficiency, make the work piece cut more level and smooth, avoid causing the influence to the processingquality of product, reduce the full-automatic all-in-one that punches a hole that cuts that uses the limitation.
The utility model discloses a full-automatic cutting and punching integrated machine, which comprises a workbench, a punching fixing frame, a punching hydraulic cylinder, a punching head, a cutting fixing frame, a lifting hydraulic cylinder, a mounting plate, a driving motor, a cutting wheel, a cutting fixing plate and a punching fixing plate, wherein the bottom end of the workbench is provided with four groups of supporting legs, the bottom end of the punching fixing frame is connected with the top end of the workbench, the punching hydraulic cylinder is fixedly installed at the top end of the punching fixing frame, a punching piston rod is arranged in the punching hydraulic cylinder in a sliding manner, the punching head is detachably and fixedly installed at the bottom end of the punching piston rod, the bottom end of the cutting fixing frame is connected with the top end of the workbench, the lifting hydraulic cylinder is fixedly installed at the top end of the cutting fixing frame, the lifting piston rod is arranged, the output end of the driving motor is provided with a driving shaft, and the cutting wheel is fixedly mounted on the driving shaft in a detachable mode. The fixed plate that cuts and the equal fixed mounting in the top of workstation of fixed plate that punches a hole to the top of cutting the fixed plate is provided with a set of anchor clamps, and the top of the fixed plate that punches a hole is provided with two sets of anchor clamps.
The utility model discloses a full-automatic all-in-one that punches a hole that cuts still includes collecting box and turnover case, and the top of workstation is provided with the unloading through-hole, and collecting box fixed mounting is in the bottom of workstation unloading through-hole, and the inside of collecting box is provided with collects the chamber, and the inside bottom of collecting box is provided with two sets of spouts, and the bottom of turnover case is provided with two sets of draw runners, and the turnover case passes through the cooperation slidable mounting of two sets of draw runners and spout in the collection intracavity of collecting box.
The utility model discloses a full-automatic all-in-one that punches a hole that cuts still includes anti-skidding handle, anti-skidding handle fixed mounting is at the front end of turnover case.
The utility model discloses a full-automatic all-in-one that punches a hole that cuts still includes the protection casing, and protection casing fixed mounting is at the right-hand member of mounting panel to the protection casing cover is detained in the top of cutting the wheel.
The utility model discloses a full-automatic all-in-one that punches a hole that cuts still includes two sets of guide shaft cover, two sets of guide shaft cover respectively through with the cooperation fixed mounting of piston rod and the lifting piston rod circumference outer wall that punches a hole punch a hole the mount and cut the mount on.
The utility model discloses a full-automatic all-in-one that punches a hole that cuts still includes four group's reinforcing plates, and four group's reinforcing plates fixed mounting is both ends around punching a hole the mount inboard respectively to the bottom of four group's reinforcing plates all is connected with the top of workstation.
The utility model discloses a full-automatic all-in-one that punches a hole that cuts still includes four group's crossbeams, and four group's crossbeams are fixed mounting respectively on four group's supporting legs.
The utility model discloses a full-automatic all-in-one that punches a hole that cuts still includes four groups and adjusts the lower margin, and four groups adjust the lower margin and respectively fixed mounting in the bottom of four groups of supporting legs.
Compared with the prior art, the beneficial effects of the utility model are that: at first will treat that the machined part passes through anchor clamps to be fixed on cutting the fixed plate, through starting driving motor, driving motor drives the drive shaft and rotates, the drive shaft drives cuts the wheel rotation, it is flexible to drive the lifting piston pole through hydraulic cylinder, the completion is to cutting of work piece, the work piece after cutting is sent to the fixed plate that punches a hole, fix once more through anchor clamps, through starting the pneumatic cylinder that punches a hole, the pneumatic cylinder that punches a hole drives the piston pole that punches a hole reciprocal action from top to bottom, accomplish through the head of punching a hole and punch a hole, thereby realize cutting the integration that punches a hole, can effectively improve work efficiency, cut fixed plate and anchor clamps through setting up, can make the work piece fixed more firm, make the work piece cut more level.
Drawings

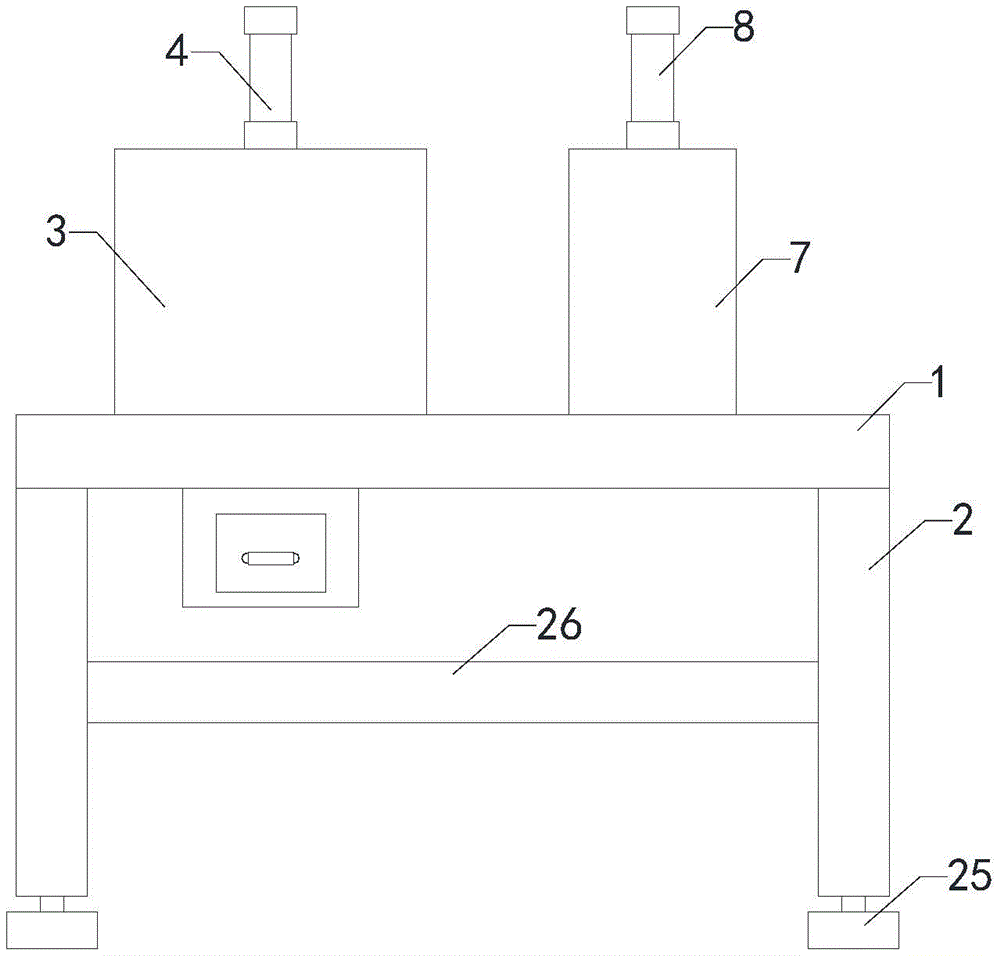

Fig. 1 is a front schematic view of the present invention;
fig. 2 is a schematic sectional structure of the present invention;
FIG. 3 is a schematic cross-sectional view of a transfer case of the present invention;
in the drawings, the reference numbers: 1. a work table; 2. supporting legs; 3. punching a fixing frame; 4. a punching hydraulic cylinder; 5. punching a piston rod; 6. a punching head; 7. cutting the fixing frame; 8. a lifting hydraulic cylinder; 9. a lifting piston rod; 10. mounting a plate; 11. a drive motor; 12. a drive shaft; 13. a cutting wheel; 14. cutting the fixing plate; 15. punching a fixing plate; 16. a clamp; 17. a collection box; 18. a turnover box; 19. a slide bar; 20. an anti-slip handle; 21. a protective cover; 22. a guide shaft sleeve; 23. a reinforcing plate; 24. a cross beam; 25. and (5) adjusting the ground feet.
Detailed Description
The following detailed description of the embodiments of the present invention is provided with reference to the accompanying drawings and examples. The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention.
As shown in figures 1 to 3, the utility model discloses a full-automatic cutting and punching integrated machine, which comprises a workbench 1, a punching fixing frame 3, a punching hydraulic cylinder 4, a punching head 6, a cutting fixing frame 7, a lifting hydraulic cylinder 8, a mounting plate 10, a driving motor 11, a cutting wheel 13, a cutting fixing plate 14 and a punching fixing plate 15, wherein the bottom end of the workbench 1 is provided with four groups of supporting legs 2, the bottom end of the punching fixing frame 3 is connected with the top end of the workbench 1, the punching hydraulic cylinder 4 is fixedly arranged at the top end of the punching fixing frame 3, a punching piston rod 5 is arranged inside the punching hydraulic cylinder 4 in a sliding manner, the punching head 6 is detachably and fixedly arranged at the bottom end of the punching piston rod 5, the bottom end of the cutting fixing frame 7 is connected with the top end of the workbench 1, the lifting hydraulic cylinder 8 is fixedly arranged at, the top end of the mounting plate 10 is connected with the bottom end of the lifting piston rod 9, the driving motor 11 is fixedly mounted on the mounting plate 10, the output end of the driving motor 11 is provided with a driving shaft 12, and the cutting wheel 13 is detachably and fixedly mounted on the driving shaft 12. The cutting fixing plate 14 and the punching fixing plate 15 are both fixedly installed at the top end of the workbench 1, a group of clamps 16 are arranged at the top end of the cutting fixing plate 14, and two groups of clamps 16 are arranged at the top end of the punching fixing plate 15; firstly, the workpiece to be machined is fixed on a cutting fixing plate 14 through a clamp 16, the driving motor 11 is started, the driving motor 11 drives a driving shaft 12 to rotate, the driving shaft 12 drives a cutting wheel 13 to rotate, the lifting piston rod 9 is driven to stretch through a lifting hydraulic cylinder 8, the cutting of the workpiece is completed, the cut workpiece is sent to a punching fixing plate 15, the workpiece is fixed again through the clamp 16, the punching hydraulic cylinder 4 is started, the punching hydraulic cylinder 4 drives a punching piston rod 5 to reciprocate up and down, the punching is completed through a punching head 6, the cutting and punching integration is realized, the working efficiency can be effectively improved, the fixing plate 14 and the clamp 16 are cut through the arrangement, the workpiece can be fixed more firmly, the workpiece is cut more smoothly, the influence on the machining quality of the product is avoided, and the use limitation is.
The utility model discloses a full-automatic cutting and punching integrated machine, still include collecting box 17 and turnover case 18, the top of workstation 1 is provided with the unloading through-hole, collecting box 17 is fixedly mounted in the bottom of workstation 1 unloading through-hole, the inside of collecting box 17 is provided with collects the chamber, the bottom of the inside of collecting box 17 is provided with two sets of spouts, the bottom of turnover case 18 is provided with two sets of draw runners 19, turnover case 18 is slidably mounted in the collection chamber of collecting box 17 through the cooperation of two sets of draw runners 19 and spouts; through setting up collecting box 17 and turnover case 18, can be convenient for collect and handle the sweeps that the drilling produced, make equipment surface cleaner, reduce and use the limitation.
The utility model discloses a full-automatic cutting and punching integrated machine, which also comprises an anti-skid handle 20, wherein the anti-skid handle 20 is fixedly arranged at the front end of a turnover box 18; through setting up anti-skidding handle 20, can make getting of turnover case 18 put convenient and fast more, the clearance of the turnover case 18 of being convenient for reduces and uses the limitation.
The utility model discloses a full-automatic cutting and punching integrated machine, which also comprises a protective cover 21, wherein the protective cover 21 is fixedly arranged at the right end of the mounting plate 10, and the protective cover 21 is covered and buckled above the cutting wheel 13; through setting up protection casing 21, can prevent the iron fillings departure of production when cutting the work piece, make the operation safer, avoid causing the injury to the personnel, reduce the use limitation.
The utility model discloses a full-automatic cutting and punching integrated machine, which also comprises two groups of guide shaft sleeves 22, wherein the two groups of guide shaft sleeves 22 are fixedly arranged on a punching fixing frame 3 and a cutting fixing frame 7 respectively through the matching with the circumferential outer walls of a punching piston rod 5 and a lifting piston rod 9; through setting up guide shaft sleeve 22, can make the slip of piston rod 5 and lift piston rod 9 of punching a hole more steady, improve the processingquality of work piece, improve the reliability of use.
The utility model discloses a full-automatic cutting and punching integrated machine, which also comprises four groups of reinforcing plates 23, wherein the four groups of reinforcing plates 23 are respectively and fixedly arranged at the front end and the rear end of the inner side of the punching fixing frame 3, and the bottom ends of the four groups of reinforcing plates 23 are connected with the top end of the workbench 1; through setting up reinforcing plate 23, can make the mount 3 that punches a hole more firm with being connected of workstation 1, it is more steady when making pneumatic cylinder 4 that punches a hole to move, avoids appearing the condition of rocking, improves and uses the reliability.
The utility model discloses a full-automatic cutting and punching integrated machine, which also comprises four groups of beams 24, wherein the four groups of beams 24 are respectively and fixedly arranged on four groups of supporting legs 2; through setting up crossbeam 24, can make supporting leg 2 link into an organic whole, reinforcing overall structure's stability improves and uses the reliability.
The utility model discloses a full-automatic cutting and punching integrated machine, which also comprises four groups of adjusting feet 25, wherein the four groups of adjusting feet 25 are respectively and fixedly arranged at the bottom ends of four groups of supporting legs 2; through setting up regulation lower margin 25, can conveniently adjust holistic level, make the working face remain the horizontality throughout for processing is more reliable and more stable, reduces and uses the limitation.
The utility model discloses a full-automatic all-in-one that punches a hole that cuts, it is at the during operation, at first will treat that the machined part passes through anchor clamps 16 to be fixed on cutting fixed plate 14, through starting driving motor 11, driving motor 11 drives drive shaft 12 and rotates, drive shaft 12 drives and cuts wheel 13 rotatory, it is flexible to drive elevator piston rod 9 through hydraulic lift cylinder 8, the completion is to cutting of work piece, the work piece after cutting is sent to on punching fixed plate 15, fix once more through anchor clamps 16, through starting punching hydraulic cylinder 4, punching hydraulic cylinder 4 drives piston rod 5 reciprocating motion from top to bottom of punching a hole, accomplish through the head of punching a hole 6 and punch a hole, the piece that produces that punches a hole falls into turnover case 18, regularly clear up.
The utility model discloses a full-automatic cutting and punching integrated machine, the installation mode, the connection mode or the setting mode of which are common mechanical modes, and the full-automatic cutting and punching integrated machine can be implemented as long as the beneficial effects can be achieved; the utility model discloses a full-automatic driving motor, hydraulic cylinder and the pneumatic cylinder that punches a hole that cuts all-in-one that punches a hole are purchase on the market, and this technical staff in industry only need according to its subsidiary specification install and operate can.
The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications and variations can be made without departing from the technical principle of the present invention, and these modifications and variations should also be regarded as the protection scope of the present invention.
Claims (8)
1. A full-automatic cutting and punching integrated machine is characterized by comprising a workbench (1), a punching fixing frame (3), a punching hydraulic cylinder (4), a punching head (6), a cutting fixing frame (7), a lifting hydraulic cylinder (8), a mounting plate (10), a driving motor (11), a cutting wheel (13), a cutting fixing plate (14) and a punching fixing plate (15), wherein four groups of supporting legs (2) are arranged at the bottom end of the workbench (1), the bottom end of the punching fixing frame (3) is connected with the top end of the workbench (1), the punching hydraulic cylinder (4) is fixedly arranged at the top end of the punching fixing frame (3), a punching piston rod (5) is arranged in the punching hydraulic cylinder (4) in a sliding manner, the punching head (6) is fixedly arranged at the bottom end of the punching piston rod (5) in a detachable manner, and the bottom end of the cutting fixing frame (7) is, lifting cylinder (8) fixed mounting is on the top of cutting mount (7), the inside slip of lifting cylinder (8) is provided with lifting piston rod (9), the top of mounting panel (10) is connected with the bottom of lifting piston rod (9), driving motor (11) fixed mounting is on mounting panel (10), the output of driving motor (11) is provided with drive shaft (12), the dismantled and assembled fixed mounting of cutting wheel (13) is on drive shaft (12), cut fixed plate (14) and the equal fixed mounting in the top of workstation (1) of fixed plate (15) that punches a hole, and the top of cutting fixed plate (14) is provided with a set of anchor clamps (16), the top of fixed plate (15) that punches a hole is provided with two sets of anchor clamps (16).
2. The full-automatic cutting and punching integrated machine according to claim 1, further comprising a collection box (17) and a turnover box (18), wherein a blanking through hole is formed in the top end of the workbench (1), the collection box (17) is fixedly installed at the bottom end of the blanking through hole of the workbench (1), a collection cavity is formed in the collection box (17), two sets of sliding grooves are formed in the bottom end of the interior of the collection box (17), two sets of sliding strips (19) are arranged at the bottom end of the turnover box (18), and the turnover box (18) is slidably installed in the collection cavity of the collection box (17) through the matching of the two sets of sliding strips (19) and the sliding grooves.
3. The full-automatic cutting and punching all-in-one machine according to claim 2, characterized by further comprising an anti-slip handle (20), wherein the anti-slip handle (20) is fixedly arranged at the front end of the turnover box (18).
4. A machine as claimed in claim 3, further comprising a protective cover (21), wherein the protective cover (21) is fixedly mounted at the right end of the mounting plate (10), and the protective cover (21) is covered and buckled above the cutting wheel (13).
5. The full-automatic cutting and punching integrated machine according to claim 4, further comprising two sets of guide shaft sleeves (22), wherein the two sets of guide shaft sleeves (22) are fixedly mounted on the punching fixing frame (3) and the cutting fixing frame (7) respectively through matching with the circumferential outer walls of the punching piston rod (5) and the lifting piston rod (9).
6. The full-automatic cutting and punching integrated machine according to claim 5, further comprising four groups of reinforcing plates (23), wherein the four groups of reinforcing plates (23) are respectively fixedly arranged at the front end and the rear end of the inner side of the punching fixing frame (3), and the bottom ends of the four groups of reinforcing plates (23) are connected with the top end of the workbench (1).
7. The full-automatic cutting and punching all-in-one machine as claimed in claim 6, further comprising four groups of beams (24), wherein the four groups of beams (24) are respectively fixedly arranged on the four groups of supporting legs (2).
8. A full-automatic cutting and punching all-in-one machine as claimed in claim 7, further comprising four groups of adjusting feet (25), wherein the four groups of adjusting feet (25) are respectively and fixedly arranged at the bottom ends of the four groups of supporting legs (2).
