CN211707658U - Lithium ion electrolyte finished product bucket belt cleaning device - Google Patents
Lithium ion electrolyte finished product bucket belt cleaning device Download PDFInfo
- Publication number
- CN211707658U CN211707658U CN202020051071.5U CN202020051071U CN211707658U CN 211707658 U CN211707658 U CN 211707658U CN 202020051071 U CN202020051071 U CN 202020051071U CN 211707658 U CN211707658 U CN 211707658U
- Authority
- CN
- China
- Prior art keywords
- cleaning
- rotating shaft
- pipe
- finished product
- connecting plate
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model relates to the technical field of lithium battery production, and discloses a cleaning device for a lithium ion electrolyte finished product barrel, which comprises a cleaning tank, wherein a cleaning assembly and a supporting ring plate are arranged in the cleaning tank, and the cleaning assembly comprises a rotating shaft, a cleaning inner tube, a cleaning brush and a cleaning outer tube; a water inlet cavity is arranged on the rotating shaft, the bottom end of the rotating shaft is connected with a rotary joint, and the cleaning brush is connected to the rotating shaft through a radial adjustable component; the supporting ring plate is connected to the inner wall of the cleaning tank through a lifting assembly and is arranged above the transverse pipe and between the rotating shaft and the vertical pipe. The utility model discloses can wash the electrolyte finished product bucket of co-altitude, different diameters, and the sanitization, thoroughly, no dead angle, efficient, degree of automation is high, can use manpower sparingly work, reduces the cost of labor, and application scope is wide, and the practicality is strong.
Description
Technical Field
The utility model relates to a lithium cell production technical field especially relates to a lithium ion electrolyte finished product bucket belt cleaning device.
Background
The electrolyte is one of four raw materials consisting of lithium batteries, the packaging and transportation of the electrolyte have high environmental requirements, and the cleanliness of an electrolyte finished product barrel must be ensured in order to ensure the quality of the electrolyte. Therefore, the finished electrolyte barrel is usually required to be cleaned before use, the inner wall and the outer wall are required to be cleaned when the finished electrolyte barrel is cleaned, the cleaning requirement of the inner wall is higher than that of the outer wall, the existing finished electrolyte barrel is mostly cleaned manually, the defects of incomplete cleaning, uneven cleaning, low efficiency and high labor intensity of workers exist, and the finished electrolyte barrel is not suitable for modern production requirements.
SUMMERY OF THE UTILITY MODEL
In order to solve the prior technical problem, the utility model provides a lithium ion electrolyte finished product bucket belt cleaning device.
In order to achieve the above object, the utility model provides a following technical scheme: a cleaning device for a finished lithium ion electrolyte barrel comprises a cleaning tank, wherein the cleaning tank is connected with a drain pipe, a cleaning assembly and a supporting ring plate are arranged in the cleaning tank, and the cleaning assembly comprises a rotating shaft, a cleaning inner pipe, a cleaning brush and a cleaning outer pipe;
the rotary shaft is rotatably and hermetically connected to the inner wall of the bottom of the cleaning tank, a water inlet cavity is formed in the rotary shaft, a water inlet communicated with the water inlet cavity is formed in the bottom end of the rotary shaft, the bottom end of the rotary shaft penetrates through the cleaning tank and extends to the outer side of the cleaning tank and is connected with a rotary joint, a cleaning water pipe is connected to the inlet of the rotary joint, the outlet of the rotary joint is communicated with the water inlet, and the rotary shaft;
the cleaning inner pipe is connected to one side of the upper part of the rotating shaft and communicated with the water inlet cavity, a cleaning inner spray head is arranged on the cleaning water pipe, and the spraying direction of the cleaning inner spray head is upward or radial to the rotating shaft;
the cleaning brush is in an inverted L shape, bristles are arranged on the cleaning brush, and the cleaning brush is arranged on the other side of the upper part of the rotating shaft and is connected to the rotating shaft through a radial adjustable component;
the cleaning outer pipe comprises a transverse pipe and a vertical pipe, one end of the transverse pipe is connected to the rotating shaft and communicated with the water inlet cavity, and the vertical pipe is connected with the other end of the transverse pipe and provided with a cleaning outer spray head;
the supporting ring plate is coaxially arranged on the outer side of the rotating shaft and connected to the inner wall of the cleaning tank through a lifting assembly, and the supporting ring plate is arranged above the transverse pipe and arranged between the rotating shaft and the vertical pipe.
Preferably, the lifting assembly comprises a fixing plate and a lifting cylinder, the fixing plate is connected to the inner wall of the top of the cleaning tank, the lifting cylinder is connected to the fixing plate, and a piston rod of the lifting cylinder is connected with the supporting ring plate.
Preferably, the driving mechanism comprises a driving motor, a first bevel gear and a second bevel gear, the driving motor is fixed at the bottom end of the cleaning tank, the first bevel gear is in transmission connection with an output shaft of the driving motor, and the second bevel gear is coaxially fixed on the rotating shaft and meshed with the first bevel gear.
Preferably, be equipped with axial spout in the pivot, radial adjustable subassembly is including first connecting plate and the second connecting plate of cross arrangement, and the junction of first connecting plate and second connecting plate is articulated through the round pin axle, and the top of first connecting plate is articulated with the top of pivot, and the bottom articulates on the brush of washing, and the top of second connecting plate is articulated with the washing brush, and the bottom articulates on the slider, slider and spout sliding fit just are connected with electric telescopic handle, electric telescopic handle fixes in the pivot.
The utility model discloses can wash the electrolyte finished product bucket of co-altitude, different diameters, and the sanitization, thoroughly, no dead angle, efficient, degree of automation is high, can use manpower sparingly work, reduces the cost of labor, and application scope is wide, and the practicality is strong.
Drawings

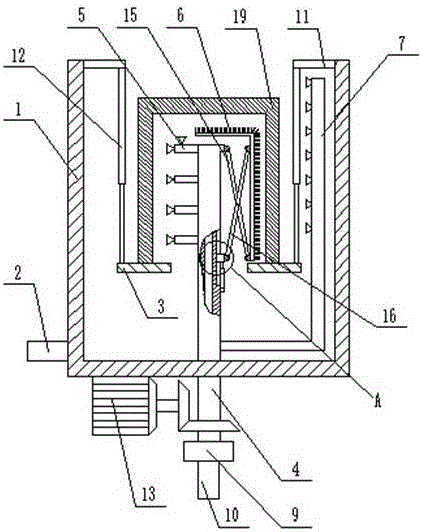

Fig. 1 is a schematic structural diagram of the present embodiment.
Fig. 2 is an enlarged schematic view at a in fig. 1.
In the figure: 1 washing tank, 2 drain pipes, 3 support ring boards, 4 rotating shafts, 5 washing inner pipes, 6 washing brushes, 7 washing outer pipes, 8 water inlet cavities, 9 rotary joints, 10 washing water pipes, 11 fixing plates, 12 lifting cylinders, 13 driving motors, 14 sliding chutes, 15 first connecting plates, 16 second connecting plates, 17 sliding blocks, 18 electric telescopic rods and 19 electrolyte finished product barrels.
Detailed Description
The embodiments of the present invention will be further explained with reference to the drawings.
Examples
Referring to fig. 1-2, a cleaning device for a lithium ion electrolyte finished product barrel 19 comprises a cleaning tank 1, wherein the cleaning tank 1 is connected with a drain pipe 2, a cleaning assembly and a supporting ring plate 3 are arranged in the cleaning tank 1, and the cleaning assembly comprises a rotating shaft 4, a cleaning inner pipe 5, a cleaning brush 6 and a cleaning outer pipe 7.
The rotary shaft 4 is connected on the inner wall of the bottom of the cleaning tank 1 in a rotating and sealing manner, the water inlet cavity 8 is formed in the rotary shaft 4, the water inlet communicated with the water inlet cavity 8 is formed in the bottom end of the rotary shaft 4, the bottom end of the rotary shaft penetrates through the cleaning tank 1 to extend to the outer side of the cleaning tank and is connected with the rotary joint 9, the inlet of the rotary joint 9 is connected with the cleaning water pipe 10, the outlet is communicated with the water inlet, and the rotary shaft 4 is.
Wash inner tube 5 and connect in one side on 4 upper portions of pivot and communicate with intake antrum 8, be equipped with on the washing water pipe 10 and wash interior shower nozzle, the direction of injection of shower nozzle is top or pivot 4 radially in the washing.
The cleaning brush 6 is of an inverted L shape, bristles are arranged on the cleaning brush 6, and the cleaning brush 6 is arranged on the other side of the upper portion of the rotating shaft 4 and is connected to the rotating shaft 4 through a radial adjustable component.
The cleaning outer pipe 7 comprises a transverse pipe and a vertical pipe, one end of the transverse pipe is connected to the rotating shaft 4 and communicated with the water inlet cavity 8, and the vertical pipe is connected with the other end of the transverse pipe and provided with a cleaning outer spray head.
Supporting ring board 3 is coaxial to be located 4 outsides of pivot and to be connected on washing tank 1 inner wall through liftable subassembly, and supporting ring board 3 is located violently the pipe top and is located between pivot 4 and the standpipe.
The lifting assembly comprises a fixing plate 11 and a lifting cylinder 12, the fixing plate 11 is connected to the inner wall of the top of the cleaning tank 1, the lifting cylinder 12 is connected to the fixing plate 11, and a piston rod of the lifting cylinder 12 is connected with the supporting ring plate 3.
The driving mechanism comprises a driving motor 13, a first bevel gear and a second bevel gear, the driving motor 13 is fixed at the bottom end of the cleaning tank 1, the first bevel gear is in transmission connection with an output shaft of the driving motor 13, and the second bevel gear is coaxially fixed on the rotating shaft 4 and meshed with the first bevel gear.
Be equipped with axial spout 14 on the pivot 4, radial adjustable subassembly is including first connecting plate 15 and the second connecting plate 16 of cross arrangement, and the junction of first connecting plate 15 and second connecting plate 16 is articulated through the round pin axle, and the top of first connecting plate 15 is articulated with the top of pivot 4, and the bottom articulates on washing brush 6, and the top of second connecting plate 16 is articulated with washing brush 6, and the bottom articulates on slider 17, slider 17 just is connected with electric telescopic handle 18 with 14 sliding fit in spout, electric telescopic handle 18 fixes in pivot 4.
The utility model discloses a theory of operation: to treat that abluent electrolyte finished product bucket 19 is coaxial to be placed on supporting ring board 3, adjust the position of wasing brush 6 through radial adjustable subassembly, make the brush hair of wasing brush 6 and the inside wall contact of electrolyte finished product bucket 19, then start driving motor 13, pivot 4 is rotatory under actuating mechanism's drive, wash in water gets into the intake antrum 8 of pivot 4 through rotary joint 9 from washing water pipe 10, thereby get into and wash inner tube 5 and wash outer tube 7, finally from washing interior shower nozzle and washing outer shower nozzle blowout, wash the inner wall and the outer wall of electrolyte finished product bucket 19, the sewage that forms after the washing flows into in washing tank 1 and discharges from drain pipe 2. During cleaning, the cleaning inner tube 5 and the cleaning outer tube 7 rotate along with the rotating shaft 4, so that the inner wall and the outer wall of the electrolyte finished product barrel 19 can be uniformly and thoroughly cleaned without dead angles, the cleaning speed is high, and the cleaning effect is good. Meanwhile, the piston rod of the lifting cylinder 12 continuously contracts and extends to drive the supporting ring plate 3 to continuously lift, so that the vertical positions of the electrolyte finished product barrel 19 relative to the cleaning inner tube 5 and the cleaning outer tube 7 are continuously changed, the cleaning uniformity is further improved, the cleaning speed is accelerated, and the cleaning effect is improved.
During the washing, the brush hair on the washing brush 6 rubs the inner wall of the finished electrolyte barrel 19, scrapes the impurity adhered to the inner wall of the finished electrolyte barrel 19, and the effect of brushing off the impurity while washing the inner wall of the finished electrolyte barrel 19 is realized, so that the washing is quicker, and the cleanliness of the finished electrolyte barrel 19 is ensured.
The cleaning brush 6 is designed to be of an inverted L shape, so that the contact friction between the inner bottom wall and the inner side wall of the finished electrolyte barrel 19 can be avoided, and the cleaning dead angle is avoided.
The action principle of the radial adjustable component is as follows: the electric telescopic rod 18 extends or contracts, so that the sliding block 17 axially moves upwards or downwards along the rotating shaft 4 in the sliding groove 14, the included angle between the first connecting plate 15 and the second connecting plate 16 is increased or decreased along with the movement of the sliding block 17, and therefore, the distance between the cleaning brush 6 and the rotating shaft 4 is increased or decreased, and finally, the cleaning brush is positioned at a position matched with the inner diameter of the finished electrolyte barrel 19 to be cleaned.
The utility model discloses in, the setting of radial adjustable subassembly can be scrubbed the electrolyte finished product bucket 19 of different internal diameters, and the supporting ring board 3 goes up and down when wasing through the liftable subassembly, can wash not co-altitude electrolyte finished product bucket 19.
The utility model discloses in, the standpipe top is located to fixed plate 11, and pivot 4 and standpipe are all located to supporting ring board 3, lift cylinder 12 between, and when pivot 4, standpipe were rotatory along with pivot 4, fixed plate 11, supporting ring board 3 and lift cylinder 12 can not cause the hindrance to pivot 4 and standpipe.
The foregoing description of the embodiments of the invention has been presented for purposes of illustration and not limitation, and is not intended to be exhaustive or limited to the embodiments disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art without departing from the scope and spirit of the illustrated embodiments.
Claims (4)
1. The utility model provides a lithium ion electrolyte finished product bucket belt cleaning device, includes the washing tank, its characterized in that: the cleaning tank is connected with a drain pipe, a cleaning assembly and a supporting ring plate are arranged in the cleaning tank, and the cleaning assembly comprises a rotating shaft, a cleaning inner pipe, a cleaning brush and a cleaning outer pipe;
the rotary shaft is rotatably and hermetically connected to the inner wall of the bottom of the cleaning tank, a water inlet cavity is formed in the rotary shaft, a water inlet communicated with the water inlet cavity is formed in the bottom end of the rotary shaft, the bottom end of the rotary shaft penetrates through the cleaning tank and extends to the outer side of the cleaning tank and is connected with a rotary joint, a cleaning water pipe is connected to the inlet of the rotary joint, the outlet of the rotary joint is communicated with the water inlet, and the rotary shaft;
the cleaning inner pipe is connected to one side of the upper part of the rotating shaft and communicated with the water inlet cavity, a cleaning inner spray head is arranged on the cleaning water pipe, and the spraying direction of the cleaning inner spray head is upward or radial to the rotating shaft;
the cleaning brush is in an inverted L shape, bristles are arranged on the cleaning brush, and the cleaning brush is arranged on the other side of the upper part of the rotating shaft and is connected to the rotating shaft through a radial adjustable component;
the cleaning outer pipe comprises a transverse pipe and a vertical pipe, one end of the transverse pipe is connected to the rotating shaft and communicated with the water inlet cavity, and the vertical pipe is connected with the other end of the transverse pipe and provided with a cleaning outer spray head;
the supporting ring plate is coaxially arranged on the outer side of the rotating shaft and connected to the inner wall of the cleaning tank through a lifting assembly, and the supporting ring plate is arranged above the transverse pipe and arranged between the rotating shaft and the vertical pipe.
2. The lithium ion electrolyte finished product barrel cleaning device of claim 1, wherein: the lifting assembly comprises a fixing plate and a lifting cylinder, the fixing plate is connected to the inner wall of the top of the cleaning tank, the lifting cylinder is connected to the fixing plate, and a piston rod of the lifting cylinder is connected with the supporting ring plate.
3. The lithium ion electrolyte finished product barrel cleaning device of claim 1, wherein: the driving mechanism comprises a driving motor, a first bevel gear and a second bevel gear, the driving motor is fixed at the bottom end of the cleaning tank, the first bevel gear is in transmission connection with an output shaft of the driving motor, and the second bevel gear is coaxially fixed on the rotating shaft and meshed with the first bevel gear.
4. The lithium ion electrolyte finished product barrel cleaning device of claim 1, wherein: the improved hair brush cleaning machine is characterized in that an axial sliding groove is formed in the rotating shaft, the radial adjustable assembly comprises a first connecting plate and a second connecting plate which are arranged in a crossed mode, the crossed position of the first connecting plate and the second connecting plate is hinged through a pin shaft, the top end of the first connecting plate is hinged to the top end of the rotating shaft, the bottom end of the first connecting plate is hinged to a cleaning brush, the top end of the second connecting plate is hinged to the cleaning brush, the bottom end of the second connecting plate is hinged to a sliding block, the sliding block is in sliding fit with the sliding groove and is.
