Abstract
The utility model discloses a solar street lamp based on photoelectric integration in the technical field of street lamps, a solar cell panel is installed at the top of a lamp post, the lamp post is close to a top side wall horizontal fixed connection fixed support, a hollow connecting ring is fixedly connected at the bottom of the lamp shade, a fixed block is fixedly arranged on the side wall of the lamp post below the fixed support, a first motor is fixedly arranged at one side of the bottom surface of a bar-shaped transverse plate, an output shaft of the first motor penetrates through the bar-shaped transverse plate and is fixedly connected with a driving gear, the driving gear is meshed with a driven gear, a protective cover is fixedly connected at the top of a threaded shaft, the utility model can lead the protective cover to be in threaded connection with the connecting ring at the bottom of the lamp shade when the street lamp is not used in daytime, thereby playing a protective role on a street lamp body, the service life of the street lamp is prolonged.
Description
Technical Field
The utility model relates to a street lamp technical field specifically is a solar street lamp based on optoelectronic integration.
Background
The solar street lamp is powered by a crystalline silicon solar cell, the maintenance-free valve-controlled sealed storage battery stores electric energy, and the ultra-high-brightness LED lamp is used as a light source and is controlled by the intelligent charging and discharging controller and used for replacing the traditional public power lighting street lamp.
The illumination part of the existing solar street lamp is continuously exposed in the environment for a long time, even if the illumination part is also exposed in the environment when not used, the weather of the environment is complex and changeable, if the street lamp is protected when not used in daytime, the service life of the street lamp can be prolonged undoubtedly, and the maintenance cost can be reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a solar street lamp based on optoelectronic integration to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a solar street lamp based on photoelectric integration comprises a lamp post, wherein a solar cell panel is installed at the top of the lamp post, a fixing support is horizontally and fixedly connected to the side wall of the lamp post close to the top end of the lamp post, a cylindrical lampshade of a street lamp body is arranged in a fixed connection inner cavity at one end of the bottom surface of the fixing support, a connecting ring of a hollow structure is fixedly connected to the bottom of the lampshade, a fixing block is fixedly arranged on the side wall of the lamp post below the fixing support, a horizontal strip-shaped transverse plate is movably arranged on the fixing block, one end of the strip-shaped transverse plate is inserted into the inner cavity of the fixing block and penetrates through a rotating shaft arranged in the inner cavity of the fixing block, a motor I is fixedly arranged on one side of the bottom surface of the strip-shaped transverse plate, an output, the threaded shaft is inserted into the inner cavity of the threaded rod sleeve in a threaded manner, and the top of the threaded shaft is fixedly connected with the protective cover.
Further, the top of the fixing block is provided with a second motor, the end part of an output shaft of the second motor is connected with a positioning shaft through a coupler, the positioning shaft penetrates through one end of the L-shaped connecting rod, and the other end of the L-shaped connecting rod is fixedly connected with the top surface of the strip-shaped transverse plate.
Furthermore, the inner diameter of the protective cover is equal to the outer diameter of the connecting ring, an inner thread is formed in the inner wall of the protective cover, an outer thread is formed in the outer wall of the connecting ring, and the protective cover completely covers the illumination position, below the lampshade, of the street lamp body.
Further, the end of the fixed support is provided with an ambient light sensor, the output end of the ambient light sensor is electrically connected with a control box installed on the lamp post, and the control box is electrically connected with the first motor and the second motor.
Further, the lamp pole lateral wall level of fixed block top is provided with the apron with protection casing looks adaptation, the bottom surface height of apron equals with the top surface height when the protection casing can move the lowest position.
Furthermore, the outer side wall of the protective cover is movably embedded in a sliding block on the surface and connected with a guide rod vertically arranged, and the guide rod is movably inserted into the strip-shaped transverse plate.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model has the advantages of simple structure, and reasonable design, detect the environment brightness through environment light sensor, if when bright intensity reaches the setting value, work through controller two and motor one in proper order in the control box, motor two drives the connecting rod and rotates, order about the bar diaphragm and remove, make the protection casing remove under the lamp shade, order about the gear train through motor one afterwards and rotate, make the threaded shaft drive protection casing rotate and rise, until protection casing and clamping ring threaded connection, thereby protect the street lamp body, alleviate when not using, the damage problem of environmental factor to the street lamp, the cost of maintenance is reduced, and service life is prolonged.
Drawings

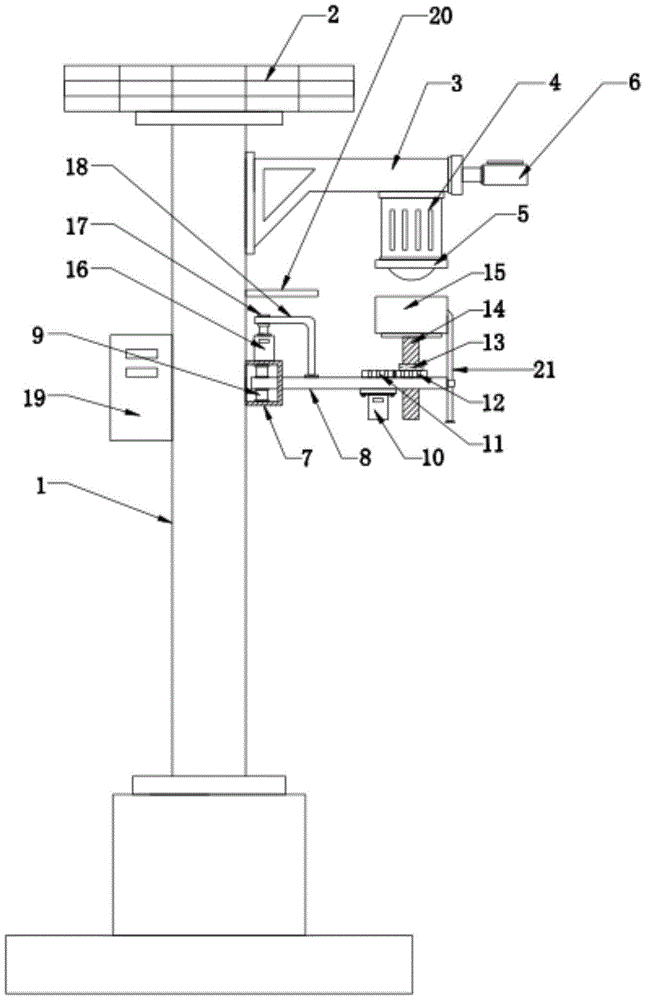

Fig. 1 is a schematic structural diagram of the present invention.
In the figure: 1. a lamp post; 2. a solar panel; 3. fixing a bracket; 4. a lamp shade; 5. a connecting ring; 6. an ambient light sensor; 7. a fixed block; 8. a strip-shaped transverse plate; 9. a rotating shaft; 10. a first motor; 11. a drive gear; 12. a driven gear; 13. a threaded rod sleeve; 14. a threaded shaft; 15. a protective cover; 16. a second motor; 17. positioning the shaft; 18. an L-shaped connecting rod; 19. a control box; 20. a cover plate; 21. a guide rod.
The drawings are for illustrative purposes only and are not to be construed as limiting the patent; for the purpose of better illustrating the embodiments, certain features of the drawings may be omitted, enlarged or reduced, and do not represent the size of an actual product; it will be understood by those skilled in the art that certain well-known structures in the drawings and descriptions thereof may be omitted.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a solar street lamp based on photoelectric integration, which can lead the protective cover to be connected with the connecting ring thread at the bottom of the lampshade when the street lamp is not used in daytime, thus playing a protective role on the street lamp body, reducing the loss of environmental factors to the street lamp, reducing the maintenance cost and prolonging the service life of the street lamp;
referring to fig. 1, a solar cell panel 2 is mounted on the top of a lamp post 1, the technology of converting light energy into electric energy by the solar cell panel 2 is widely used, related structural components used in the application are mentioned, the prior art is used, a fixing support 3 is horizontally and fixedly connected to the side wall of the top end of the lamp post 1, a cylindrical lampshade 4 of a street lamp body is fixedly connected to one end of the bottom surface of the fixing support 3, and the street lamp body is arranged so as not to affect the irradiation of a light source;
referring to fig. 1, the bottom of the lampshade 4 is fixedly connected with a connecting ring 5 with a hollow structure, the thickness of the side wall of the connecting ring 5 is smaller than that of the side wall of the lampshade 4, the inner ring surface of the connecting ring 5 is flush with the inner ring surface of the lampshade 4, the connecting ring 5 is made of stainless steel, and the connecting ring 5 is fixedly connected with the bottom surface of the lampshade 4 through a plurality of fastening bolts;
referring to fig. 1, a fixing block 7 is fixedly arranged on the side wall of a lamp post 1 below a fixing support 3, the fixing block 7 has a certain length and can rotate with a strip-shaped transverse plate 8, a groove for rotating the strip-shaped transverse plate 8 is formed in the side wall of the fixing block 7, the fixing block 7 is fixedly welded with the lamp post 1, the fixing block 7 is movably provided with the horizontal strip-shaped transverse plate 8, one end of the strip-shaped transverse plate 8 is inserted into an inner cavity of the fixing block 7 and is penetrated through by a rotating shaft 9 arranged in the inner cavity of the fixing block 7, namely, when the strip-;
referring to fig. 1, a first motor 10 is fixedly arranged on one side of the bottom surface of a strip-shaped transverse plate 8, the first motor 10 is fixed on the bottom surface of the strip-shaped transverse plate 8 through a base plate and a plurality of fastening bolts, an output shaft of the first motor 10 penetrates through the strip-shaped transverse plate 8 and is fixedly connected with a driving gear 11, the driving gear 11 is arranged on the top surface of the strip-shaped transverse plate, grooves matched with two groups of gears are formed in the top surface of the strip-shaped transverse plate 8, rotating rings (not shown in the figure and preventing the gears from directly contacting with the strip-shaped transverse plate 8;
referring to fig. 1, a screw rod sleeve 13 is fixedly connected in the inner gear port of the driven gear 12, when mounting, a shell can be additionally arranged on the outer side of two groups of gears, the gear is protected, the threaded shaft 14 is inserted into the inner cavity of the threaded rod sleeve 13 in a threaded manner, the threaded shaft 14 can move up and down through the rotation of the threaded rod sleeve 13, thereby driving the protective cover 15 to rotate and lift, the top of the threaded shaft 14 is fixedly connected with the protective cover 15, when the protective cover 15 moves to the position right below the lampshade 4, the driving gear 11 and the driven gear 12 are driven to rotate by the first motor 10, so that the threaded rod sleeve 13 drives the threaded shaft 14 to rotate and rise, the protective cover 15 is synchronously driven to rotate and rise until the protective cover 15 is in threaded connection with the connecting ring 5 to cover the street lamp protective cover, when the street lamp protective cover is not used, the damage problem of the environmental factor to the street lamp reduces the maintenance cost and prolongs the service life.
7 tops of fixed block are provided with motor two 16, motor two 16 output shaft tip passes through coupling joint location axle 17, location axle 17 runs through in the one end of L type connecting rod 18, the other end and the 8 top surfaces fixed connection of bar diaphragm of L type connecting rod 18, when the bright intensity of environment surpassed the setting value, make motor two 16 work, it rotates to drive L type connecting rod 18, thereby order about bar diaphragm 8 and rotate, move to lamp shade 4 and stop under, all be provided with the inductor (not shown in the figure) on protection casing 15 and the lamp shade 4, be used for controlling the protection casing to move to the assigned position and stop.
The internal diameter of protection casing 15 equals the external diameter of clamping ring 5, and protection casing 15 inner wall sets up there is the internal thread, and the external screw thread has been seted up to clamping ring 5 outer wall, and the protection casing 15 of being convenient for rises action and 5 threaded connection of clamping ring through the rotation, realizes the protection to the street lamp, and environmental factor includes rainwater, dust and highlight to the loss of street lamp, and the illumination position of lamp shade 4 below is located to the street lamp body is covered completely to protection casing 15.
Referring to fig. 1, an ambient light sensor 6 is disposed at an end of a fixing bracket 3, the ambient light sensor 6 can be used in an APDS-9005-.
Referring to fig. 1, a cover plate 20 adapted to the protective cover 15 is horizontally disposed on a side wall of the lamp post 1 above the fixing block 7, so that when the street lamp is not protected, the protective cover 15 is completely covered by the cover plate 20 to prevent other magazines from entering an inner cavity of the protective cover 15, a plurality of through holes are formed in the bottom of the protective cover 15, and the height of the bottom surface of the cover plate 20 is equal to the height of the top surface of the protective cover 15 at the lowest position where the protective cover 15 can move.
Referring to fig. 1, the outer side wall of the protective cover 15 is connected with the vertically arranged guide rod 21 through the slide block movably embedded on the surface, the outer wall of the protective cover 15 is provided with an annular groove, and the guide rod 21 is movably inserted on the strip-shaped transverse plate 8, so that the stability of the protective cover 15 during moving is improved.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a solar street lamp based on optoelectronic integration, includes lamp pole (1), its characterized in that: the solar street lamp is characterized in that a solar cell panel (2) is installed at the top of the lamp pole (1), the lamp pole (1) is close to a top side wall and is horizontally and fixedly connected with a fixed support (3), a cylindrical lampshade (4) of a street lamp body is arranged in a fixed connection inner cavity at one end of the bottom surface of the fixed support (3), a connecting ring (5) of a hollow structure is fixedly connected at the bottom of the lampshade (4), a fixed block (7) is fixedly arranged on the side wall of the lamp pole (1) below the fixed support (3), a horizontal bar-shaped transverse plate (8) is movably arranged on the fixed block (7), one end of the bar-shaped transverse plate (8) is inserted into the inner cavity of the fixed block (7) and penetrates through a rotating shaft (9) arranged in the inner cavity of the fixed block (7), a first motor (10) is fixedly arranged on one side of the bottom, the driving gear (11) is meshed with the driven gear (12) and is connected with the driven gear (12), a threaded rod sleeve (13) is fixedly connected in a wheel port in the inner side of the driven gear (12), a threaded shaft (14) is inserted into an inner cavity of the threaded rod sleeve (13) in a threaded mode, and the top of the threaded shaft (14) is fixedly connected with a protective cover (15).
2. The solar street lamp based on optoelectronic integration according to claim 1, wherein: the fixed block (7) top is provided with motor two (16), motor two (16) output shaft tip passes through coupling joint location axle (17), location axle (17) run through in the one end of L type connecting rod (18), the other end and bar diaphragm (8) top surface fixed connection of L type connecting rod (18).
3. The solar street lamp based on optoelectronic integration according to claim 1, wherein: the inner diameter of the protective cover (15) is equal to the outer diameter of the connecting ring (5), inner threads are formed in the inner wall of the protective cover (15), outer threads are formed in the outer wall of the connecting ring (5), and the protective cover (15) completely covers the lighting position, below the lampshade (4), of the street lamp body.
4. The solar street lamp based on optoelectronic integration according to claim 1, wherein: the lamp post is characterized in that an ambient light sensor (6) is arranged at the end of the fixed support (3), the output end of the ambient light sensor (6) is electrically connected with a control box (19) installed on the lamp post (1), and the control box (19) is electrically connected with a first motor (10) and a second motor (16).
5. The solar street lamp based on optoelectronic integration according to claim 1, wherein: the lamp post (1) lateral wall level of fixed block (7) top is provided with apron (20) with protection casing (15) looks adaptation, the bottom surface height of apron (20) equals with the top surface height when protection casing (15) portable lowest position.
6. The solar street lamp based on optoelectronic integration according to claim 1, wherein: the outer side wall of the protective cover (15) is movably embedded in a sliding block on the surface and is connected with a guide rod (21) which is vertically arranged, and the guide rod (21) is movably inserted into the strip-shaped transverse plate (8).
