Abstract
The utility model provides a rely on platform of rack door plant, platform's one end is followed with the rack door plant the length direction sliding connection of rack door plant, platform is last with one section distance department in rack door plant interval rotates with a dead lever to be connected, the dead lever is kept away from platform's one end with the rack door plant rotates to be connected. By the technical scheme, the storage platform can be added, and convenience is brought to equipment debugging and maintenance work.
Description
Technical Field
The utility model relates to a rack field specifically indicates a rely on platform of rack door plant.
Background
Cabinets are used for storing computers and related control equipment in a wide variety of applications, providing protection for the stored equipment and facilitating maintenance of the equipment. When debugging equipment, the prior technical scheme is that a computer is placed on the ground or a chair is touched or any article is padded up, the height is not well controlled, and the debugging efficiency and the debugging mood are influenced by an operator due to the height problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a rely on the platform of putting of rack door plant, increase platform, facilitate for equipment debugging maintenance work.
In order to solve the technical problem, the utility model provides a rely on storage platform of rack door plant, storage platform's one end is followed with the rack door plant the length direction sliding connection of rack door plant, on the storage platform with one section distance department in rack door plant interval rotates with a dead lever to be connected, the dead lever is kept away from storage platform's one end with the rack door plant rotates to be connected.
In a preferred embodiment, the rotation direction of the fixing rod and the object placing platform and the rotation direction of the fixing rod and the cabinet door panel are on the same plane; the sliding direction of the object placing platform and the cabinet door plate and the rotating direction of the fixed rod and the cabinet door plate are on the same plane.
In a preferred embodiment, sliding grooves are formed in two sides of the cabinet door panel, sliding parts slidably connected with the sliding grooves are formed in two sides of the object placing platform, and the sliding parts are inserted into the sliding grooves and slidably connected with the sliding grooves.
In a preferred embodiment, two sides of the cabinet door panel are provided with first connection holes, and the fixing rod is rotatably connected with the first connection holes through a first rotating member.
In a preferred embodiment, the two sides of the platform are provided with second connecting holes, and the fixing rod is rotatably connected with the second connecting holes through a second rotating member; use the second connecting hole is the center of rotation, the one end of slider is in when upwards sliding in the sliding tray, the one end that thing platform was provided with the slider upwards overturns, the one end that thing platform kept away from the slider overturns downwards, the sliding tray is followed thing platform's upset radian sets up certain radian.
In a preferred embodiment, one end of the platform slides along the sliding groove to the upper end of the sliding groove, and meanwhile, through rotation of the fixing rod, an included angle between the platform and the cabinet door panel is smaller and smaller until the included angle is zero.
In a preferred embodiment, a limiting opening extends from the upper end of the sliding groove along a direction which is spaced from the cabinet door panel by a certain angle; the first rotating piece moves upwards in the sliding groove until the included angle between the object placing platform and the cabinet door panel is zero, and the first rotating piece is arranged in the limiting opening; the limiting port is provided with a limiting table along the vertical direction, and the second rotating part is abutted against the limiting table, so that the second rotating part and the limiting port are limited in the vertical direction; when the first rotating piece slides to the lower end of the sliding groove, the object placing platform is horizontally arranged.
In a preferred embodiment, two sides of the cabinet door panel are respectively provided with an opening, and when an included angle between the object placing platform and the cabinet door panel is zero, one end of the second rotating member is arranged in the opening.
In a preferred embodiment, a receiving cavity is further fixed on a side of the platform facing away from the operator.
In a preferred embodiment, the platform is provided with a through opening. Compared with the prior art, the technical scheme of the utility model possess following beneficial effect:
the utility model provides a rely on storage platform of rack door plant, through setting up storage platform, this scheme can overcome prior art scheme's not enough to improve work efficiency. When the storage platform is used, the storage platform is only required to be turned downwards to the horizontal direction, a computer or other tools can be placed on the storage platform, and when the storage platform is not required, the storage platform is turned upwards to the same plane as the cabinet door plate, so that the storage of the storage platform can be completed. The storage platform is arranged along with the cabinet, can be folded, has small requirement on space, and solves the problem that the cabinet cannot be debugged due to limited space; the computer can be placed without additionally carrying tools such as other chairs when the worker debugs, convenience is brought to debugging and maintenance work, and the working efficiency is improved. The rear part of the object placing platform is additionally provided with the accommodating cavity for storing related file data, so that the object placing platform is convenient and can effectively utilize space.
Drawings

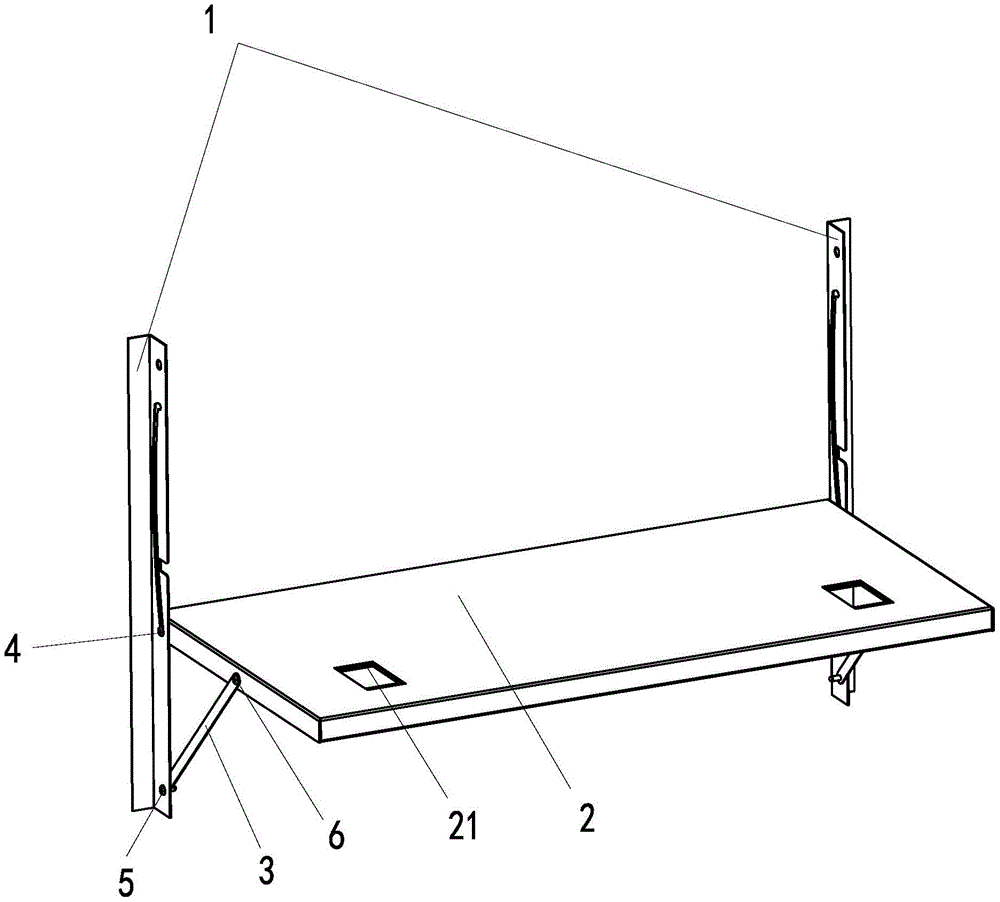

Fig. 1 is a schematic structural view of a storage platform in a horizontal arrangement according to a preferred embodiment of the present invention;
fig. 2 is a partially enlarged schematic view of a structure in which a platform is horizontally disposed according to a preferred embodiment of the present invention;
FIG. 3 is a schematic structural view of the storage platform in the storage state according to the preferred embodiment of the present invention;
fig. 4 is a partially enlarged schematic view of the storage platform in the storage state according to the preferred embodiment of the present invention;
fig. 5 is a side view of the storage platform in the storage position according to the preferred embodiment of the present invention.
Detailed Description
The invention is further described with reference to the drawings and the detailed description.
Referring to fig. 1 to 5, one end of a storage platform 2 is slidably connected with a cabinet door panel 1 along the length direction of the cabinet door panel 1, a fixed rod 3 is rotatably connected to the storage platform 2 and the cabinet door panel 1 at a certain distance, and one end of the fixed rod 3, which is far away from the storage platform 2, is rotatably connected with the cabinet door panel 1. The rotating directions of the fixed rod 3 and the object placing platform 2 and the rotating directions of the fixed rod 3 and the cabinet door panel 1 are on the same plane; the sliding direction of the object placing platform 2 and the cabinet door panel 1 and the rotating direction of the fixed rod 3 and the cabinet door panel 1 are on the same plane.
Specifically, sliding grooves 11 are formed in two sides of the cabinet door panel 1, sliding pieces 4 slidably connected with the sliding grooves 11 are formed in two sides of the storage platform 2, and the sliding pieces 4 are inserted into the sliding grooves 11 and slidably connected with the sliding grooves 11. The two sides of the cabinet door panel 1 are provided with first connecting holes, and the fixing rod 3 is rotatably connected with the first connecting holes through a first rotating piece 5. Second connecting holes are formed in the two sides of the object placing platform 2, and the fixed rod 3 is rotatably connected with the second connecting holes through a second rotating piece 6; use the second connecting hole is center of rotation, the one end of slider 4 is in when upwards sliding in the sliding tray 11, the one end that storage platform 2 was provided with slider 4 upwards overturns, the one end that storage platform 2 kept away from slider 4 overturns downwards, sliding tray 11 is followed storage platform 2's upset radian sets up certain radian. In this embodiment, the sliding member 4, the first rotating member 5 and the second rotating member 6 are all screws, a screw hole is formed on the object placing platform 2, and the sliding member 4 is fixedly connected with the screw hole; the two ends of the fixed rod 3 are respectively provided with a rotating hole, the first connecting hole and the second connecting hole are both screw holes, and the first rotating piece 5 and the second rotating piece 6 sequentially penetrate through the rotating holes and the screw holes to be rotatably connected with the object placing platform 2.
Specifically, one end of the platform 2 slides to the upper end of the sliding groove 11 along the sliding groove 11, and meanwhile, through rotation of the fixing rod 3, an included angle between the platform 2 and the cabinet door panel 1 is smaller and smaller until the included angle is zero; the two sides of the cabinet door panel 1 are respectively provided with an opening 12, when the included angle between the object placing platform 2 and the cabinet door panel 1 is zero, one end of the second rotating part 6 is arranged in the opening 12. So far, the storage of the object placing platform 2 is completed when the object placing platform is idle. A limiting opening 111 extends from the upper end of the sliding groove 11 in a direction which is spaced from the cabinet door panel 1 by a certain angle; when the first rotating member 5 moves upwards in the sliding groove 11 until the included angle between the article placing platform 2 and the cabinet door panel 1 is zero, the first rotating member 5 is placed in the limiting opening 111; the limiting port 111 is provided with a limiting table in the vertical direction, and the second rotating part 6 is abutted to the limiting table, so that the second rotating part 6 and the limiting port 111 are limited in the vertical direction; when the first rotating member 5 slides to the lower end of the sliding groove 11, the object placing platform 2 is horizontally arranged.
Specifically, a holding cavity is further fixed on one side of the placement platform 2, which faces away from the operator. The storage box is used for storing related file data, and is convenient and can effectively utilize space. The storage platform 2 is further provided with a through opening 1221, so that an operator can conveniently grip the storage platform 2 and turn the storage platform 2.
The utility model provides a rely on storage platform of rack door plant, through setting up storage platform 2, this scheme can overcome prior art scheme's not enough to improve work efficiency. When the storage platform 2 is used, the storage platform 2 only needs to be turned downwards to the horizontal direction, a computer or other tools can be placed on the storage platform, and when the storage platform 2 does not need to be turned upwards, the storage platform 2 is turned upwards to the same plane as the cabinet door plate 1, so that the storage of the storage platform 2 can be completed. The storage platform 2 is arranged in a random cabinet, can be folded, has low requirement on space, and solves the problem that the cabinet cannot be debugged due to limited space; the computer can be placed without additionally carrying tools such as other chairs when the worker debugs, convenience is brought to debugging and maintenance work, and the working efficiency is improved. The rear part of the object placing platform 2 is additionally provided with an accommodating cavity for storing related file data, so that the object placing platform is convenient and can effectively utilize space.
The above, only be the preferred embodiment of the present invention, but the design concept of the present invention is not limited to this, and any skilled person familiar with the technical field is in the technical scope disclosed in the present invention, and it is right to utilize this concept to perform insubstantial changes to the present invention, all belong to the act of infringing the protection scope of the present invention.
Claims (10)
1. The object placing platform is supported on a cabinet door plate, and is characterized in that one end of the object placing platform is connected with the cabinet door plate in a sliding mode along the length direction of the cabinet door plate, a position, which is spaced from the cabinet door plate by a certain distance, on the object placing platform is rotatably connected with a fixed rod, and one end, which is far away from the object placing platform, of the fixed rod is rotatably connected with the cabinet door plate.
2. The cabinet door panel-based storage platform of claim 1, wherein the direction of rotation of the fixed rods and the storage platform is in the same plane as the direction of rotation of the fixed rods and the cabinet door panel; the sliding direction of the object placing platform and the cabinet door plate and the rotating direction of the fixed rod and the cabinet door plate are on the same plane.
3. The cabinet door panel-based storage platform according to claim 2, wherein sliding grooves are formed in two sides of the cabinet door panel, sliding parts slidably connected with the sliding grooves are formed in two sides of the storage platform, and the sliding parts are inserted into the sliding grooves and slidably connected with the sliding grooves.
4. The storage platform depending on the cabinet door panel as claimed in claim 3, wherein the cabinet door panel is provided with first connection holes at both sides thereof, and the fixing rod is rotatably connected to the first connection holes by a first rotating member.
5. The storage platform depending on the cabinet door panel as claimed in claim 4, wherein second connection holes are formed in both sides of the storage platform, and the fixing rod is rotatably connected with the second connection holes through a second rotating member; use the second connecting hole is the center of rotation, the one end of slider is in when upwards sliding in the sliding tray, the one end that thing platform was provided with the slider upwards overturns, the one end that thing platform kept away from the slider overturns downwards, the sliding tray is followed thing platform's upset radian sets up certain radian.
6. The storage platform depending on the cabinet door panel as claimed in claim 5, wherein an angle between the storage platform and the cabinet door panel is gradually reduced to zero by rotation of the fixing rod while one end of the storage platform slides along the sliding groove to the upper end of the sliding groove.
7. The storage platform depending on the cabinet door panel of claim 6, wherein a limit opening extends from the upper end of the sliding groove in a direction spaced at an angle from the cabinet door panel; the first rotating piece moves upwards in the sliding groove until the included angle between the object placing platform and the cabinet door panel is zero, and the first rotating piece is arranged in the limiting opening; the limiting port is provided with a limiting table along the vertical direction, and the second rotating part is abutted against the limiting table, so that the second rotating part and the limiting port are limited in the vertical direction; when the first rotating piece slides to the lower end of the sliding groove, the object placing platform is horizontally arranged.
8. The storage platform depending on the cabinet door panel as claimed in claim 6, wherein an opening is respectively formed at both sides of the cabinet door panel, and when an included angle between the storage platform and the cabinet door panel is zero, one end of the second rotating member is disposed in the opening.
9. The storage platform depending on the cabinet door panel as claimed in any one of claims 1 to 8, wherein a receiving chamber is further fixed on a side of the storage platform facing away from an operator.
10. A platform depending from any one of claims 1 to 8 wherein the platform is provided with a through opening.
