The utility model relates to the technical field of electrical construction hoisting, in particular to an electrical construction hoisting frame, which solves the defects of poor universality and instability of the existing electrical construction hoisting frame, comprising a connecting sleeve, wherein a hoisting frame sleeve is fixedly sleeved in the connecting sleeve through a bolt, a hoisting ring is arranged at the top of the hoisting frame sleeve, a hoisting stabilizing frame is movably connected at the top of the connecting sleeve, a support plate is welded at the top of the hoisting frame sleeve and the hoisting stabilizing frame, a loop bar is fixedly arranged at the outer side of the support plate through a bolt, an adjusting rod is connected at the inner wall of one end of the loop bar through a bearing, a telescopic rod is sleeved at the outer side of the adjusting rod, a sucker is sleeved at the tail end of the telescopic rod, two sides of an electrical cabinet are fixed by utilizing the hoisting frame sleeve, the other two sides of the electrical cabinet are fixed by the hoisting stabilizing frame, the electrical cabinet is not easy to generate side turning, and the, the storage is convenient, and the occupied space is small.
Description
Technical Field
The utility model relates to an electrical construction hoist and mount technical field especially relates to an electrical construction hoist and mount frame.
Background
Electrical equipment such as a plurality of electrical cabinets and the like is often designed to have huge volume and heavy weight. In the hoisting process, a hoisting ring is mounted at the top of electrical equipment such as an electrical cabinet, the condition that the top plate of the electrical cabinet is deformed and unhooked often occurs, so that products are dropped and damaged, and even personnel accidents occur. The simple hoisting bracket structure can support the bottom surface of the electrical cabinet to prevent unhooking during hoisting, but the electrical cabinet is difficult to fix from the side surface during hoisting, the electrical equipment such as the electrical cabinet with different widths cannot be adapted, the universality is poor, and the electrical cabinet cannot be prevented from toppling over.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the current electrical construction hoist and mount frame commonality poor, and unstable shortcoming, and the electrical construction hoist and mount frame that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides an electrical construction hoist and mount frame, includes the adapter sleeve, the inside of adapter sleeve cup joints through the bolt and is fixed with the hoist and mount cover, the top of hoist and mount cover is provided with rings, and there is hoist and mount stabilizing frame top of adapter sleeve still swing joint, and the extension board has all been welded in the top outside of hoist and mount cover and hoist and mount stabilizing frame, the outside of extension board has the loop bar through the bolt fastening, the one end inner wall of loop bar is connected with the regulation pole through the bearing, the outside cover of adjusting the pole is equipped with the telescopic link, the sucking disc has been cup jointed to the.
Preferably, the inner side of the top of the connecting sleeve is connected with a rotating shaft through a bearing, and the rotating shaft is used for fixedly welding the hoisting stabilizing frame.
Preferably, the surface of the adjusting rod is provided with threads, and the inner wall of the telescopic rod is provided with a thread groove corresponding to the threads on the surface of the adjusting rod.
Preferably, the inner wall welding of loop bar has the limiting plate, the spout that corresponds with the limiting plate is seted up in the one end outside of telescopic link.
Preferably, the hanging ring is of a circular ring structure.
Preferably, the material of the sucking disc is rubber.
The utility model has the advantages that:
1. the hoisting frame sleeves are utilized to fix two sides of the electric cabinet, the hoisting stabilizing frame fixes the other two sides of the electric cabinet, and the electric cabinet is not prone to side turning.
2. When not in use, the hoisting stabilizing frame can be rotated to the inner part of the hoisting frame sleeve to be in the same horizontal line with the hoisting frame sleeve, so that the storage is convenient and the occupied space is small.
3. The rotating adjusting rod drives the sucker which drives the tail end to adjust through the telescopic rod connected with the screw thread to stretch out and draw back, the distance between the sucker and the electrical cabinet is adjusted, the universality is strong, the sucker is used for adsorbing and fixing the electrical cabinet, and the fixing function is achieved.
4. The hoisting ring is welded at the top end of the hoisting frame sleeve, so that the hoisting is convenient during the construction of the electrical cabinet.
Drawings

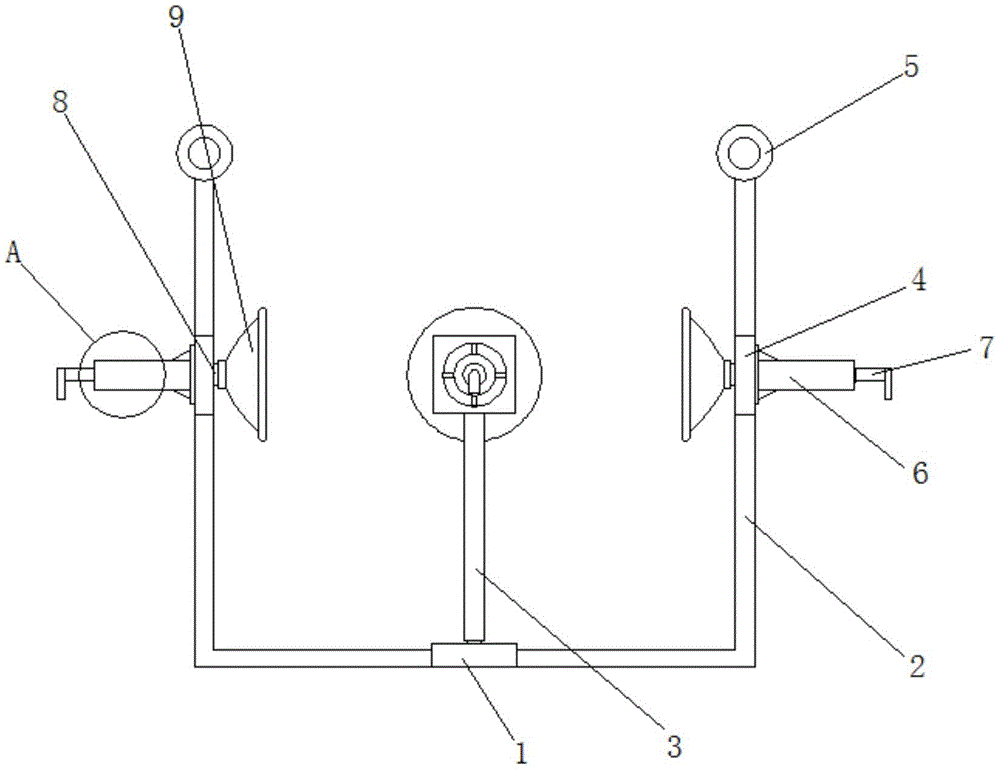

Fig. 1 is a schematic structural view of an electrical construction hoisting frame provided by the utility model;
fig. 2 is a schematic view of a partial overlooking structure of the hoisting frame for electrical construction provided by the utility model;
fig. 3 is a partial sectional structural view at a in fig. 1.
In the figure: the device comprises a connecting sleeve 1, a hoisting frame sleeve 2, a hoisting stabilizing frame 3, a supporting plate 4, a hoisting ring 5, a loop bar 6, an adjusting rod 7, an expansion rod 8, a sucking disc 9, a limiting plate 10 and a rotating shaft 11.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, an electrical construction hoisting frame comprises a connecting sleeve 1, a hoisting frame sleeve 2 is fixedly sleeved inside the connecting sleeve 1 through bolts, a hanging ring 5 is arranged at the top of the hoisting frame sleeve 2, a hoisting stabilizing frame 3 is movably connected to the top of the connecting sleeve 1, supporting plates 4 are welded on the outer sides of the tops of the hoisting frame sleeve 2 and the hoisting stabilizing frame 3, a loop bar 6 is fixed on the outer sides of the supporting plates 4 through bolts, an adjusting rod 7 is connected to the inner wall of one end of the loop bar 6 through a bearing, a telescopic rod 8 is sleeved on the outer side of the adjusting rod 7, and a sucker 9 is sleeved at the tail end of the;
the top inboard of adapter sleeve 1 is connected with pivot 11 through the bearing, and it is through pivot 11 welded fastening hoist and mount stabilizing support 3, and the surface of adjusting pole 7 is equipped with the screw thread, and the thread groove that corresponds with adjusting 7 surperficial screw threads is seted up to the inner wall of telescopic link 8, and the inner wall welding of loop bar 6 has limiting plate 10, and the spout that corresponds with limiting plate 10 is seted up in the one end outside of telescopic link 8, and rings 5 are the ring structure, and the material of sucking disc 9 is rubber.
In this embodiment, the fixed hoisting frame sleeve 2 is sleeved on the inner bolt of the connecting sleeve 1, and the hoisting stabilizing frame 3 is connected to the middle bearing of the connecting sleeve, the hoisting frame sleeve 2 is used to fix two sides of the electrical cabinet, the hoisting stabilizing frame 3 is used to fix the other two sides of the electrical cabinet, and the electrical cabinet is not prone to side turning.
When not in use, the hoisting stabilizing frame 3 can be rotated to the inside of the hoisting frame sleeve 2 and is in the same horizontal line with the hoisting frame sleeve, the storage is convenient, and the occupied space is small.
And a hoisting ring 5 is welded at the top end of the hoisting frame sleeve 2, so that the hoisting is convenient during the construction of the electrical cabinet.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides an electrical construction hoist and mount frame, includes adapter sleeve (1), its characterized in that, the inside of adapter sleeve (1) is cup jointed through the bolt and is fixed with hoist and mount cover (2), the top of hoist and mount cover (2) is provided with rings (5), and swing joint has hoist and mount steady rest (3) still at the top of adapter sleeve (1), and extension board (4) have all been welded in the top outside of hoist and mount cover (2) and hoist and mount steady rest (3), the outside of extension board (4) has loop bar (6) through the bolt fastening, the one end inner wall of loop bar (6) is connected with through the bearing and adjusts pole (7), the outside cover of adjusting pole (7) is equipped with telescopic link (8), sucking disc (9) have been cup jointed to the end of telescopic link (.
2. An electrical construction hoisting frame according to claim 1, characterized in that the top inner side of the connecting sleeve (1) is connected with a rotating shaft (11) through a bearing, and the hoisting stabilizing frame (3) is welded and fixed through the rotating shaft (11).
3. The electrical construction hoisting frame of claim 1, wherein the surface of the adjusting rod (7) is provided with threads, and the inner wall of the telescopic rod (8) is provided with thread grooves corresponding to the threads on the surface of the adjusting rod (7).
4. The electrical construction hoisting frame according to claim 1, wherein a limiting plate (10) is welded on the inner wall of the loop bar (6), and a sliding groove corresponding to the limiting plate (10) is formed in the outer side of one end of the telescopic bar (8).
5. An electrical construction sling rack according to claim 1, wherein said sling (5) is of circular ring construction.
6. An electrical construction sling rack according to claim 1, wherein said suction cup (9) is made of rubber.
