Abstract
The utility model relates to a high-efficient rounding machine for automobile wheel hub production, including the chassis, erect the mount table on the chassis, be used for bearing wheel hub's base, install the feeding mechanism who is used for the propelling movement base on the chassis, the removal cavity has still been seted up on the mount table, be provided with two compression roller mechanisms that are vertical arranging on the mount table, one of them compression roller mechanism is located the removal cavity, the terminal surface still is provided with two propelling movement mechanisms of distribution in compression roller mechanism both sides before the mount table. The utility model has the advantages that: the base that sets up is used for bearing the wheel hub of required processing, can realize the promotion to wheel hub to the compression roller mechanism of below through the feeding mechanism who sets up, under the propelling movement that promotes the cylinder to accomplish whole material loading process, solved artifical material loading intensity of labour big, the problem that material loading efficiency is low.
Description
Technical Field
The utility model relates to an automobile wheel hub production technical field specifically is a high-efficient rounding machine for automobile wheel hub production.
Background
The hub is the part of the wheel center where the axle is installed, namely the rim or steel ring. The hub is easily stained with dirt, and if the hub is not cleaned for a long time, the hub is possibly corroded and deformed, so that a safety hazard is caused, and special attention needs to be paid to maintenance of the hub.
Wheel hub needs to carry out the rounding processing to wheel hub in process of production to control wheel hub shaping precision, general rounding equipment carries out the rounding processing in-process, needs the manual work to promote to the rounding equipment on, inconvenient operation, and production efficiency is low, and the compression roller carries out extruded in-process to wheel hub, and the skew easily takes place for the wheel hub position, influences the fashioned accurate degree of wheel hub easily.
SUMMERY OF THE UTILITY MODEL
The utility model discloses to the technical problem who exists among the prior art, provide a high-efficient rounding machine for automobile wheel hub production and solve the aforesaid and carry out the rounding processing procedure, need the manual work to promote to the rounding equipment on, inconvenient operation, production efficiency is low, and the compression roller carries out the extruded in-process to wheel hub, and the skew easily takes place for the wheel hub position, influences the problem of the fashioned accurate degree of wheel hub easily.
The utility model provides an above-mentioned technical problem's technical scheme as follows: a high-efficiency rounding machine for producing automobile hubs comprises an underframe, an installation platform erected on the underframe, a base used for bearing hubs, and a feeding mechanism installed on the underframe and used for pushing the base, wherein a movable cavity is further formed in the installation platform;
the utility model discloses a pressure roller mechanism, including mount table, fixed part and bearing plate, the back end face installation of mount table is located two spacing portions of removal cavity left and right sides, the back end face of mount table still is provided with the removal portion that is used for fixed pressure roller mechanism in being located the removal cavity, the back end face of mount table still is provided with the fixed part that is used for fixed another pressure roller mechanism, and wherein the back end face fixed connection of fixed part and mount table in spacing portion is followed to the left and right sides of removal portion along the slip joint, the bearing plate that is located the removal portion below is still installed to the back end face of mount table, install the promotion cylinder that is used for propelling movement.
Further, the compression roller mechanism comprises a fixed cylinder and a transmission shaft, the transmission shaft penetrates through the fixed cylinder, a transmission wheel is installed at the inner end of the transmission shaft, and a compression roller is installed at the outer end of the transmission shaft.
Further, a first driving motor for driving the corresponding driving wheel is further installed on the fixed portion, and a second driving motor for driving the corresponding driving wheel is further installed on the moving portion.
Further, push mechanism includes the installation department, the inner chamber has been seted up in the installation department, wear to be equipped with the push rod that is located the inner chamber left and right sides in the installation department, two push rods deviate from the one end of auxiliary roller subassembly and install the push pedal, the intracavity is provided with the propelling movement cylinder that is used for propelling movement push pedal.
Further, the auxiliary roller assembly comprises a fixing frame, a fixing shaft is installed on the inner side wall of the cavity of the fixing frame, the auxiliary roller is sleeved outside the fixing shaft, and the fixing frame is connected with the other ends of the two push rods.
Furthermore, feeding mechanism is including bearing the rail, bear the rail and go up the symmetry and erect and be equipped with two locating levers, the base wears to establish on two locating levers, still install the pay-off cylinder that is used for propelling movement base along the locating lever skew on bearing the rail.
The utility model has the advantages that:
(1) the base that sets up is used for bearing the wheel hub of required processing, can realize the promotion to wheel hub to the compression roller mechanism of below through the feeding mechanism who sets up, under the propelling movement that promotes the cylinder to accomplish whole material loading process, solved artifical material loading intensity of labour big, the problem that material loading efficiency is low.
(2) Two push mechanism through setting up carry out the rounding to the wheel hub and handle, and two auxiliary roller subassembly of propelling movement respectively of setting are to the wheel hub laminating for wheel hub is carrying out the in-process that the rounding was handled, can effectively avoid it to appear squinting by a wide margin because of rocking, guarantees the stability that the rounding was handled.
Drawings

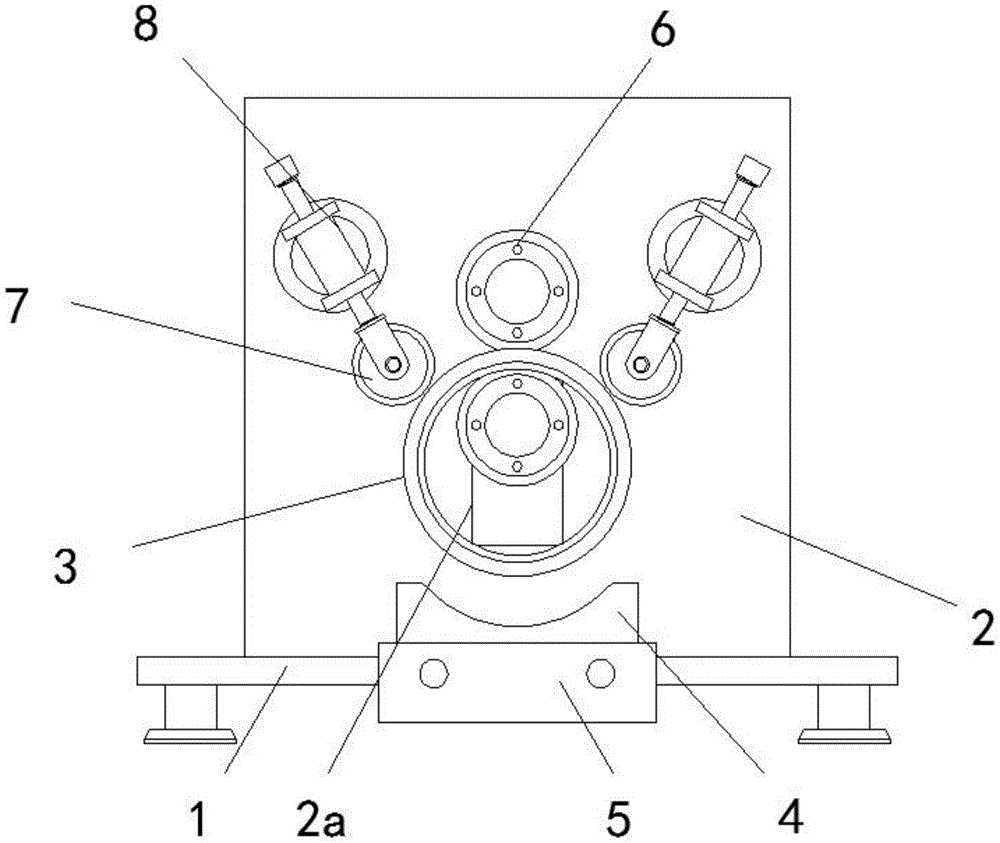

FIG. 1 is a front view of the structure principle of the present invention;
FIG. 2 is a back view of the structure principle of the present invention;
FIG. 3 is a schematic structural diagram of the feeding mechanism of the present invention;
FIG. 4 is a schematic view of a connection structure of the auxiliary roller assembly and the pushing mechanism of the present invention;
fig. 5 is a schematic structural diagram of the compression roller mechanism of the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. the device comprises a base frame, 2, an installation platform, 2a, a moving cavity, 3, a hub, 4, a base, 5, a feeding mechanism, 51, a bearing rail, 52, a positioning rod, 53, a feeding cylinder, 6, a compression roller mechanism, 61, a fixing cylinder, 62, a transmission shaft, 63, a compression roller, 64, a transmission wheel, 7, an auxiliary roller assembly, 71, a fixing frame, 72, a fixing shaft, 73, an auxiliary roller, 8, a pushing mechanism, 81, an installation part, 81a, an inner cavity, 82, a push rod, 83, a push plate, 84, a pushing cylinder, 9, a fixing part, 9a, a first driving motor, 10, a moving part, 10a, a second driving motor, 11, a limiting part, 12, a bearing plate, 12a and a lifting cylinder.
Detailed Description
The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.
The utility model also provides an preferred embodiment
As shown in fig. 1-5, the high-efficiency rounding machine for producing automobile wheel hubs in the present invention comprises an underframe 1, a mounting table 2 erected on the underframe 1, a base 4 for bearing wheel hub 3, install feeding mechanism 5 that is used for propelling movement base 4 on chassis 1, feeding mechanism 5 is including bearing rail 51, bear and to erect two locating levers 52 on rail 51, base 4 wears to establish on two locating levers 52, it still installs the feeding cylinder 53 that is used for propelling movement base 4 along the skew of locating lever 52 to bear on the rail 51, removal cavity 2a has still been seted up on mount table 2, be provided with two compression roller mechanism 6 that are vertical arranging on mount table 2, compression roller mechanism 6 includes solid fixed cylinder 61 and transmission shaft 62, transmission shaft 62 wears to establish in solid fixed cylinder 61, drive wheel 64 is installed to transmission shaft 62's the inner, compression roller 63 is installed to transmission shaft 62's outer end.
One of the roller mechanisms 6 is located in the movable cavity 2a, the lower roller mechanism 6 can be lifted along the movable cavity 2a through the arranged movable cavity 2a, the front end surface of the mounting table 2 is further provided with two pushing mechanisms 8 distributed on two sides of the roller mechanism 6, each pushing mechanism 8 comprises a mounting portion 81, an inner cavity 81a is formed in each mounting portion 81, push rods 82 located on the left side and the right side of the inner cavity 81a penetrate through the mounting portions 81, one ends of the two push rods 82, which are far away from the auxiliary roller assembly 7, are provided with push plates 83, a pushing cylinder 84 used for pushing the push plates 83 is arranged in each inner cavity 81a, the auxiliary roller assembly 7 is arranged at one end, which is close to the roller mechanism 6, of each pushing mechanism 8 and used for pushing the auxiliary roller assembly 7 to be close to the hub 3, each auxiliary roller assembly 7 comprises a fixing, the fixed frame 71 is connected to the other ends of the two push rods 82.
The back end face of the mounting table 2 is provided with two limiting parts 11 positioned on the left side and the right side of the movable cavity 2a, the back end face of the mounting table 2 is further provided with a movable part 10 fixedly positioned on the inner pressure roller mechanism 6 in the movable cavity 2a, the movable part 10 is further provided with a second driving motor 10a used for driving the corresponding driving wheel 64, the back end face of the mounting table 2 is further provided with a fixed part 9 used for fixing another pressure roller mechanism 6, the fixed part 9 is further provided with a first driving motor 9a used for driving the corresponding driving wheel 64, the left side and the right side of the movable part 10 are clamped in the limiting parts 11 in a sliding mode, the fixed part 9 is fixedly connected with the back end face of the mounting table 2, the back end face of the mounting table 2 is further provided with a bearing plate 12 positioned below the movable part 10, and the bearing plate 12 is provided with a lifting cylinder.
The working process of the utility model is as follows:
firstly, place the wheel hub 3 that needs the processing on base 4, the pay-off cylinder 53 shrink this moment, drive whole base 4 along locating lever 52 inward movement for whole wheel hub 3 effectively erects on the compression roller mechanism 6 of below, makes the compression roller mechanism 6 of below promote wheel hub 3 to promote through the promotion cylinder 12a propelling movement portion 10 that sets up.
Then, when the hub 3 is lifted between the pressing rollers 63 of the two pressing roller mechanisms 6, the pushing cylinder 84 in the pushing mechanism 8 is contracted at this time, so that the pushing plate 83 pushes the pushing rod 82 to move downwards, and the auxiliary roller 73 in the auxiliary roller assembly 7 is attached to the hub 3.
Finally, the two driving wheels 64 are respectively driven by the first driving motor 9a and the second driving motor 10a, the rotation directions of the two driving wheels 64 are opposite, the driving shaft 62 is driven to rotate along the fixed cylinder 61, the press roller 63 is driven to operate, the rounding processing of the hub 3 is realized, in the rounding processing process, the auxiliary roller assembly 7 is attached to the hub 3, the rotation stability of the hub 3 is guaranteed, and the efficient rounding processing of the hub 3 is realized.
The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.
Claims (6)
1. A high-efficiency rounding machine for producing automobile hubs is characterized by comprising an underframe (1), a mounting table (2) erected on the underframe (1), a base (4) used for bearing the hubs (3), and a feeding mechanism (5) arranged on the underframe (1) and used for pushing the base (4), a movable cavity (2a) is also arranged on the mounting table (2), two vertically arranged compression roller mechanisms (6) are arranged on the mounting table (2), one of the compression roller mechanisms (6) is positioned in the movable cavity (2a), the front end surface of the mounting platform (2) is also provided with two pushing mechanisms (8) which are distributed at two sides of the compression roller mechanism (6), one end of the pushing mechanism (8) close to the compression roller mechanism (6) is provided with an auxiliary roller assembly (7) which is used for pushing the auxiliary roller assembly (7) to be close to the hub (3);
the back end face installation of mount table (2) is located two spacing portion (11) of removal cavity (2a) left and right sides, the back end face of mount table (2) still is provided with and is used for fixed removal portion (10) that are located removal cavity (2a) internal compression roller mechanism (6), the back end face of mount table (2) still is provided with fixed part (9) that are used for fixed another compression roller mechanism (6), and wherein the left and right sides of removal portion (10) along the slip joint in spacing portion (11), the back end face fixed connection of fixed part (9) and mount table (2), loading board (12) that are located removal portion (10) below are still installed to the back end face of mount table (2), install promotion cylinder (12a) that are used for propelling movement portion (10) on loading board (12).
2. The efficient rounding machine for the production of automobile hubs according to claim 1 is characterized in that the compression roller mechanism (6) comprises a fixed cylinder (61) and a transmission shaft (62), the transmission shaft (62) penetrates through the fixed cylinder (61), a transmission wheel (64) is installed at the inner end of the transmission shaft (62), and a compression roller (63) is installed at the outer end of the transmission shaft (62).
3. The efficient rounding machine for the production of the automobile hubs according to claim 1, characterized in that a first driving motor (9a) for driving the corresponding driving wheel (64) is further mounted on the fixed portion (9), and a second driving motor (10a) for driving the corresponding driving wheel (64) is further mounted on the moving portion (10).
4. The efficient rounding machine for the production of automobile hubs according to claim 1 is characterized in that the pushing mechanism (8) comprises an installation part (81), an inner cavity (81a) is formed in the installation part (81), push rods (82) located on the left side and the right side of the inner cavity (81a) are arranged in the installation part (81) in a penetrating mode, a push plate (83) is installed at one end, deviating from the auxiliary roller assembly (7), of the two push rods (82), and a pushing cylinder (84) used for pushing the push plate (83) is arranged in the inner cavity (81 a).
5. The efficient rounding machine for the automobile hub production according to claim 4, characterized in that the auxiliary roller assembly (7) comprises a fixing frame (71), a fixing shaft (72) is mounted on the inner side wall of the cavity of the fixing frame (71), an auxiliary roller (73) is sleeved outside the fixing shaft (72), and the fixing frame (71) is connected with the other ends of two push rods (82).
6. The efficient rounding machine for the production of automobile hubs according to claim 1, characterized in that the feeding mechanism (5) comprises a bearing rail (51), two positioning rods (52) are symmetrically erected on the bearing rail (51), the base (4) is arranged on the two positioning rods (52) in a penetrating manner, and a feeding cylinder (53) for pushing the base (4) to deviate along the positioning rods (52) is further installed on the bearing rail (51).
