Abstract

The utility model provides an artery puncture pressing hemostasis device. The arteriopuncture presses hemostasis device includes: a hemostatic inclusion block; the first groove is formed in the top of the hemostatic containing block; the second groove is formed in the bottom of the hemostatic containing block; the third groove is formed in the top of the hemostatic containing block; the first through hole is formed in the inner wall of the bottom of the first groove; the first connecting post is slidably mounted in the first through hole, and the bottom end of the first connecting post extends into the second groove; the first deep groove is formed in the first connecting column. The utility model provides an artery puncture presses hemostasis device has convenient operation, possesses not need patient and medical personnel artificial advantage of pressing hemostasis.

Description

Artery puncture presses hemostasis device
Technical Field
The utility model relates to a medical treatment technical field that stanchs especially relates to an artery puncture presses hemostasis device.
Background
In the diagnosis and treatment process, a blood sample needs to be collected from a patient in order to know the physical condition of the patient. The collection of a blood sample often requires puncturing a vein or artery of a patient, and the wound has the potential to continue bleeding after the blood sample is collected. Generally, a patient or a medical staff needs to locally press for hemostasis, but the hemostasis method may cause infection of a puncture point, and the hemostasis mode which requires the patient or the medical staff to manually press a wound for a long time may influence the follow-up diagnosis and treatment behaviors.
Therefore, there is a need to provide a new arterial puncture compression hemostasis device to solve the above technical problems.
SUMMERY OF THE UTILITY MODEL
The technical problem solved by the utility model is to provide a convenient operation possesses the arterial puncture pressing hemostasis device who does not need patient and medical personnel to artificially press hemostasis.
In order to solve the technical problem, the utility model provides an arteriopuncture presses hemostasis device includes: a hemostatic inclusion block; the first groove is formed in the top of the hemostatic containing block; the second groove is formed in the bottom of the hemostatic containing block; the third groove is formed in the top of the hemostatic containing block; the first through hole is formed in the inner wall of the bottom of the first groove; the first connecting post is slidably mounted in the first through hole, and the bottom end of the first connecting post extends into the second groove; the first deep groove is formed in the first connecting column; the limiting rod is slidably mounted in the first deep groove, and one end of the limiting rod extends out of the first deep groove and is in contact with the inner wall of the first through hole; the connecting frame is arranged in the second groove and fixedly mounted at the bottom end of the first connecting column; the curved flexible board is fixedly arranged on the connecting frame; the second deep groove is formed in the inner wall of the bottom of the third groove; the second connecting column is slidably mounted in the second deep groove, and the bottom end of the second connecting column is an inclined plane; the second through hole is formed in the inner wall of the first deep groove and connected with the second deep groove; the third connecting column is slidably mounted in the second through hole, and one end, far away from the first connecting column, of the third connecting column extends into the second deep groove and is in contact with the second connecting column.
Preferably, two first chutes are symmetrically formed in the inner wall of the first through hole, a first slip ring is fixedly sleeved on the first connecting column, the first slip ring and the two first chutes are connected in a sliding mode, a first fixing ring is fixedly mounted on the inner wall of the first through hole, the first connecting column penetrates through the first fixing ring and is movably connected with the inner ring of the first fixing ring, a first spring is sleeved on the first connecting column, the top end of the first spring is fixedly connected with the first slip ring, and the bottom end of the first spring is fixedly connected with the first fixing ring.
Preferably, two second chutes are symmetrically formed in the inner wall of the second deep groove, a second sliding ring is fixedly sleeved on the second connecting column, the second sliding ring is connected with the two second chutes in a sliding mode, a second fixing ring is fixedly mounted on the inner wall of the second deep groove, the second connecting column penetrates through the second fixing ring and is movably connected with the inner ring of the second fixing ring, a second spring is sleeved on the second connecting column, the top end of the second spring is fixedly connected with the second sliding ring, and the bottom end of the second spring is fixedly connected with the second fixing ring.
Preferably, two third chutes are symmetrically formed in the inner wall of the second through hole, a third sliding ring is fixedly sleeved on the third connecting column, the third sliding ring and the two third chutes are connected in a sliding mode, a third fixing ring is fixedly mounted on the inner wall of the second through hole, the third connecting column penetrates through the third fixing ring and is movably connected with an inner ring of the third fixing ring, a third spring is sleeved on the third connecting column, one end of the third spring is fixedly connected with the third sliding ring, and the other end of the third spring is fixedly connected with the third fixing ring.
Preferably, two fourth chutes are formed in the inner walls of the two sides of the first deep groove, two sliders are fixedly mounted on the limiting rod, the sliders are connected with the fourth chutes in a sliding manner, a fourth spring is arranged in the first deep groove, one end of the fourth spring is fixedly connected with the limiting rod, and the other end of the fourth spring is fixedly connected with the inner wall of one side of the fourth chute.
Preferably, a plurality of fifth springs are arranged between the connecting frame and the curved soft board, the top ends of the fifth springs are fixedly connected with the inner wall of the top of the connecting frame, the bottom ends of the fifth springs are fixedly installed on the curved soft board, and the curved soft board is movably connected with the inner wall of the connecting frame.
Preferably, the top fixed mounting of first spliced pole has first circular button, first circular button with first recess looks adaptation, the top fixed mounting of second spliced pole has the circular button of second, circular button with third recess looks adaptation.
Preferably, the outer walls of the two sides of the hemostatic containing block are respectively and fixedly provided with two bandages, and the two bandages are respectively and fixedly provided with adhesive bandages.
Compared with the prior art, the utility model provides an arteriopuncture presses hemostasis device has following beneficial effect:
during the use, scribble hemostatic medicine on the curve soft board, then aim at the wound and press hemostatic containing piece, then bind with the bandage, later press first circular button, first spliced pole moves down thereupon, push into the second through-hole with spacing stick on the first spliced pole, let first spliced pole fix in first through-hole, the curve soft board can extrude the wound under the effect of first spliced pole, in order to reach the purpose of pressing hemostatic, after when suitable time, press the second button, extrude the second through-hole with spacing stick under the effect of second spliced pole and third spliced pole, let first spliced pole resume original position, later untie the bandage, take off hemostatic containing piece, accomplish hemostasis, this kind of press hemostatic device simple structure, and convenient for operation, can be without long-time people for pressing the wound, medical personnel's nursing time has been practiced thrift.
Drawings

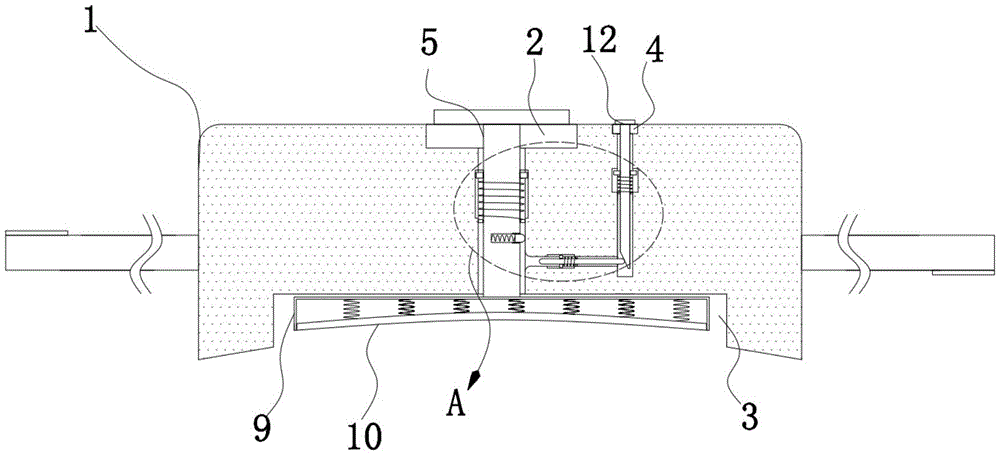

Fig. 1 is a schematic structural view of a preferred embodiment of an arteriopuncture compression hemostasis device provided by the present invention;
FIG. 2 is an enlarged view of portion A of FIG. 1;
fig. 3 is an enlarged view of the portion B shown in fig. 2.
Reference numbers in the figures: 1. the hemostatic container comprises a block, 2, a first groove, 3, a second groove, 4, a third groove, 5, a first through hole, 6, a first connecting column, 7, a first deep groove, 8, a limiting rod, 9, a connecting frame, 10, a curved soft board, 11, a second deep groove, 12, a second connecting column, 13, a second through hole, 14 and a third connecting column.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
Please refer to fig. 1, fig. 2 and fig. 3, wherein fig. 1 is a schematic structural view of a preferred embodiment of the arteriopuncture compression hemostasis device provided by the present invention; FIG. 2 is an enlarged view of portion A of FIG. 1; fig. 3 is an enlarged view of the portion B shown in fig. 2. The hemostasis device is pressed in arteriopuncture includes: a hemostatic inclusion block 1; the first groove 2 is arranged at the top of the hemostatic containing block 1; the second groove 3 is arranged at the bottom of the hemostatic containing block 1; the third groove 4 is arranged at the top of the hemostatic containing block 1; the first through hole 5 is formed in the inner wall of the bottom of the first groove 2; the first connecting post 6 is slidably mounted in the first through hole 5, and the bottom end of the first connecting post 6 extends into the second groove 3; the first deep groove 7 is formed in the first connecting column 6, and the first deep groove 7 is formed in the first connecting column 6; the limiting rod 8 is installed in the first deep groove 7 in a sliding mode, and one end of the limiting rod 8 extends out of the first deep groove 7 and is in contact with the inner wall of the first through hole 5; the connecting frame 9 is arranged in the second groove 3, and the connecting frame 9 is fixedly arranged at the bottom end of the first connecting column 6; the curved flexible board 10 is fixedly arranged on the connecting frame 9; the second deep groove 11 is formed in the inner wall of the bottom of the third groove 4; the second connecting column 12 is slidably mounted in the second deep groove 11, and the bottom end of the second connecting column 12 is an inclined surface; the second through hole 13 is formed in the inner wall of the first deep groove 7, and the second through hole 13 is connected with the second deep groove 11; a third connecting column 14, wherein the third connecting column 14 is slidably installed in the second through hole 13, and one end of the third connecting column 14 far away from the first connecting column 6 extends into the second deep groove 11 and is in contact with the second connecting column 12.
Two first chutes are symmetrically formed in the inner wall of the first through hole 5, a first sliding ring is arranged on the first connecting column 6 in a fixed sleeve mode, the first sliding ring is connected with the first chutes in a sliding mode, a first fixing ring is fixedly mounted on the inner wall of the first through hole 5, the first connecting column 6 penetrates through the first fixing ring and is movably connected with the inner ring of the first fixing ring, a first spring is sleeved on the first connecting column 6, the top end of the first spring is fixedly connected with the first sliding ring, and the bottom end of the first spring is fixedly connected with the first fixing ring.
Two second chutes have been seted up to the symmetry on the inner wall of second deep groove 11, fixed cover is equipped with the second sliding ring on the second spliced pole 12, the second sliding ring with two the equal sliding connection of second chute, fixed mounting has the solid fixed ring of second on the inner wall of second deep groove 11, second spliced pole 12 runs through the solid fixed ring of second and with the solid fixed ring's of second inner circle swing joint, the cover is equipped with the second spring on the second spliced pole 12, the top of second spring with second sliding ring fixed connection, just the bottom of second spring with the solid fixed ring fixed connection of second.
Two third chutes are symmetrically formed in the inner wall of the second through hole 13, a third sliding ring is fixedly sleeved on the third connecting column 14 and is connected with the two third chutes in a sliding mode, a third fixing ring is fixedly mounted on the inner wall of the second through hole 13, the third connecting column 14 penetrates through the third fixing ring and is movably connected with the inner ring of the third fixing ring, a third spring is sleeved on the third connecting column 14, one end of the third spring is fixedly connected with the third sliding ring, and the other end of the third spring is fixedly connected with the third fixing ring.
Two fourth chutes are formed in the inner walls of the two sides of the first deep groove 7, two sliding blocks are fixedly mounted on the limiting rod 8 and are in sliding connection with the fourth chutes, a fourth spring is arranged in the first deep groove 7, one end of the fourth spring is fixedly connected with the limiting rod 8, and the other end of the fourth spring is fixedly connected with the inner wall of one side of the fourth chute.
The connecting frame 9 with be provided with a plurality of fifth springs between the soft board 10 of curve, the top of fifth spring with the top inner wall fixed connection of connecting frame 9, just the bottom of fifth spring with the soft board 10 fixed mounting of curve, the soft board 10 of curve with the inner wall swing joint of connecting frame 9.
The top fixed mounting of first spliced pole 6 has first circular button, first circular button with 2 looks adaptations of first recess, the top fixed mounting of second spliced pole 12 has the circular button of second, circular button with 4 looks adaptations of third recess.
Two bandages are fixedly arranged on the outer walls of two sides of the hemostatic containing block 1 respectively, and adhesive bandages are fixed on the two bandages.
The utility model provides an artery puncture presses hemostasis device's theory of operation as follows:
during the use, scribble hemostatic medicine on the soft board of curve 10, then aim at the wound and press hemostasis containing block 1, bind with the bandage of hemostasis containing block 1 both sides, later press first circular button, first circular button drives first spliced pole 6 downwards, and first spliced pole 6 can drive the carriage 9 downwards in second recess 3, then drives the soft board of curve 10 and presses the wound downwards. Because the first connecting column 6 is provided with the limiting rod 8, the limiting rod 8 extends into the second through hole 13 under the action of the fourth spring, so that the first connecting column 6 is fixed, and because a plurality of fifth springs are fixedly arranged between the connecting frame 9 and the curved soft board 10, the connecting frame 9 drives the curved soft board 10 to have a buffer effect when downwards, because of the action of the first connecting column 6, the curved soft board 10 can be always contacted with the skin at the wound, so that the wound does not need to be pressed for a long time, after a proper time, the second button is pressed, the second connecting column 12 is driven to downwards move in the second deep groove 11, because the inclined plane at the bottom end of the second connecting column 12 is contacted with the third connecting column 14, when the second connecting column 12 downwards moves, the third connecting column 14 is driven to move in the second through hole 13, the limiting rod 8 originally positioned in the second through hole 13 is extruded into the second through hole 13, leave second through-hole 13 back at spacing stick 8, first spliced pole 6 can rise in first through-hole 5 under the effect of first spring, get back to original position, then loosen the circular button of second, second spliced pole 12 can resume original position under the effect of second spring, third spliced pole 14 also can resume original position under the effect of third spring, later untie the bandage, take off hemostasis and contain piece 1, accomplish hemostasis, this kind of press hemostasis device simple structure, high durability and convenient operation, can be without the long-time artificial wound of pressing, medical personnel's nursing time has been practiced thrift.
Compared with the prior art, the utility model provides an arteriopuncture presses hemostasis device has following beneficial effect:
when in use, the curve soft board 10 is coated with hemostatic drugs, then the hemostatic containing block 1 is pressed aiming at a wound, then the wound is bound by a bandage, then the first circular button is pressed, the first connecting column 6 moves downwards along with the first circular button, the limit rod 8 on the first connecting column 6 is pushed into the second through hole 13, the first connecting column 6 is fixed in the first through hole 5, the curve soft board 10 is extruded to the wound under the action of the first connecting column 6 to achieve the purpose of pressing hemostasis, after the proper time passes, the second button is pressed, the limit rod 8 is extruded out of the second through hole 13 under the action of the second connecting column 12 and the third connecting column 14, the first connecting column 6 is restored to the original position, then the bandage is untied, the hemostatic containing block 1 is taken down to complete hemostasis, the hemostatic pressing hemostatic device has simple structure and convenient operation, and a long-time human is not needed to press the wound, the nursing time of medical staff is saved.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.

Claims (8)

1. An arterial puncture compression hemostasis device, comprising:
a hemostatic inclusion block;
the first groove is formed in the top of the hemostatic containing block;
the second groove is formed in the bottom of the hemostatic containing block;
the third groove is formed in the top of the hemostatic containing block;
the first through hole is formed in the inner wall of the bottom of the first groove;
the first connecting post is slidably mounted in the first through hole, and the bottom end of the first connecting post extends into the second groove;
the first deep groove is formed in the first connecting column;
the limiting rod is slidably mounted in the first deep groove, and one end of the limiting rod extends out of the first deep groove and is in contact with the inner wall of the first through hole;
the connecting frame is arranged in the second groove and fixedly mounted at the bottom end of the first connecting column;
the curved flexible board is fixedly arranged on the connecting frame;
the second deep groove is formed in the inner wall of the bottom of the third groove;
the second connecting column is slidably mounted in the second deep groove, and the bottom end of the second connecting column is an inclined plane;
the second through hole is formed in the inner wall of the first deep groove and connected with the second deep groove;
and the third connecting column is slidably mounted in the second through hole, and one end, far away from the first connecting column, of the third connecting column extends into the second deep groove and is in contact with the second connecting column.
2. The arteriopuncture compression hemostasis device according to claim 1, wherein two first sliding grooves are symmetrically formed in an inner wall of the first through hole, a first sliding ring is fixedly sleeved on the first connecting post and slidably connected with both of the two first sliding grooves, a first fixing ring is fixedly mounted on the inner wall of the first through hole, the first connecting post penetrates through the first fixing ring and is movably connected with an inner ring of the first fixing ring, a first spring is sleeved on the first connecting post, a top end of the first spring is fixedly connected with the first sliding ring, and a bottom end of the first spring is fixedly connected with the first fixing ring.
3. The arteriopuncture pressing hemostasis device according to claim 1, wherein two second sliding grooves are symmetrically formed in an inner wall of the second deep groove, a second sliding ring is fixedly sleeved on the second connecting post, the second sliding ring is slidably connected with both of the two second sliding grooves, a second fixing ring is fixedly mounted on the inner wall of the second deep groove, the second connecting post penetrates through the second fixing ring and is movably connected with an inner ring of the second fixing ring, a second spring is sleeved on the second connecting post, a top end of the second spring is fixedly connected with the second sliding ring, and a bottom end of the second spring is fixedly connected with the second fixing ring.
4. The arteriopuncture pressing hemostasis device as claimed in claim 1, wherein two third sliding grooves are symmetrically formed in an inner wall of the second through hole, a third sliding ring is fixedly sleeved on the third connecting post, the third sliding ring is slidably connected with both of the two third sliding grooves, a third fixing ring is fixedly mounted on the inner wall of the second through hole, the third connecting post penetrates through the third fixing ring and is movably connected with an inner ring of the third fixing ring, a third spring is sleeved on the third connecting post, one end of the third spring is fixedly connected with the third sliding ring, and the other end of the third spring is fixedly connected with the third fixing ring.
5. The arteriopuncture pressing hemostasis device according to claim 1, wherein two fourth sliding grooves are formed in inner walls of two sides of the first deep groove, two sliding blocks are fixedly mounted on the limit rod and are slidably connected with the fourth sliding grooves, a fourth spring is arranged in the first deep groove, one end of the fourth spring is fixedly connected with the limit rod, and the other end of the fourth spring is fixedly connected with an inner wall of one side of the fourth sliding groove.
6. The arteriopuncture compression hemostasis device of claim 1, wherein a plurality of fifth springs are arranged between the connection frame and the curved soft plate, the top ends of the fifth springs are fixedly connected with the top inner wall of the connection frame, the bottom ends of the fifth springs are fixedly mounted with the curved soft plate, and the curved soft plate is movably connected with the inner wall of the connection frame.
7. The arteriopuncture pressing hemostasis device of claim 1, wherein a first circular button is fixedly mounted at the top end of the first connecting post, the first circular button is matched with the first groove, a second circular button is fixedly mounted at the top end of the second connecting post, and the circular button is matched with the third groove.
8. The arteriopuncture compression hemostasis device according to claim 1, wherein two binding bands are respectively and fixedly mounted on the outer walls of two sides of the hemostasis containing block, and an adhesive bandage is fixed on each of the two binding bands.
