CN211645701U

CN211645701U - Supporting positioner that uses of ironing equipment

Info

Publication number: CN211645701U
Application number: CN201922379977.XU
Authority: CN
Inventors: 赵海岚
Original assignee: Shijiazhuang Baoyuan Clothing Co ltd
Current assignee: Shijiazhuang Baoyuan Clothing Co ltd
Priority date: 2019-12-26
Filing date: 2019-12-26
Publication date: 2020-10-09
Anticipated expiration: 2029-12-26

Abstract

The utility model discloses a positioning device matched with ironing equipment, belonging to the technical field of ironing, comprising a workbench, a threaded rod, a guide rod, a second chute, a hydraulic rod, an ironing main body, a connecting rod and a compression roller, wherein the left side above the workbench is provided with the first chute, the threaded rod is sleeved with a threaded sleeve, and the middle of the right side of the threaded sleeve is provided with a sliding rod; the sliding rod is provided with a sliding sleeve, a handle is arranged above the supporting plate, and the handle is provided with an anti-skidding rubber sleeve; connecting plates are installed on the left side and the right side of the connecting sleeve, and sliding holes are formed in one sides, far away from the connecting sleeve, of the connecting plates. The utility model discloses a cooperation between crank, threaded rod and the thread bush that sets up is used, can drive the slide bar back-and-forth movement, and the slide bar can play the effect of location to ironing the main part for iron the main part and iron in proper order from the front to the back, can prevent that user's manual movement from causing same position to iron repeatedly, and lead to ironing inhomogeneous.

Description

Supporting positioner that uses of ironing equipment

Technical Field

The utility model belongs to the technical field of iron, specifically a supporting positioner that uses of ironing equipment.

Background

Ironing equipment is a utensil that irones clothing or surface fabric through the mode of heating, can make the surface of clothing or surface fabric become more pleasing to the eye, is one of the domestic appliance that commonly uses in daily life, also is one of the essential common equipment of clothing factory. Most of the existing ironing equipment are single in structure, a user generally holds a handle of the ironing equipment to iron and flatten clothes or fabric back and forth, however, due to the fact that no positioning jig is arranged, some areas are often ironed for several times, and some areas are not ironed, so that the clothes or fabric are not ironed uniformly, the ironing effect is poor, particularly in a clothes factory, the work efficiency is reduced due to repeated ironing, the fabric is easy to age and deform, and the quality of the produced clothes is affected.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a positioner is used in supporting of ironing device to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a positioning device matched with ironing equipment comprises a workbench, a threaded rod, a guide rod, a second chute, a hydraulic rod, an ironing main body, a connecting rod and a compression roller, wherein the left side above the workbench is provided with the first chute; the ironing machine comprises a sliding rod, a support plate, a handle, an anti-skidding rubber sleeve, a hydraulic rod, a connecting sleeve and an ironing main body, wherein the sliding rod is installed on the sliding rod, the support plate is installed on the front side of the sliding sleeve, the handle is installed above the support plate, the anti-skidding rubber sleeve is installed on the handle, the hydraulic rod is installed below the support plate, the connecting sleeve is sleeved below the hydraulic rod, and the ironing main; connecting plates are installed on the left side and the right side of the connecting sleeve, sliding holes are formed in the sides, far away from the connecting sleeve, of the connecting plates, connecting rods are inserted in the sliding holes, second limiting blocks are arranged above the connecting rods, and supporting blocks are installed in the middle of the connecting rods.

As a further aspect of the present invention: the guide rod is installed to the below of thread bush, and first slider is installed to the below of guide rod, and first slider is installed on first spout.

As a further aspect of the present invention: and a second sliding block is arranged on the right side of the sliding rod and is arranged on a second sliding groove.

As a further aspect of the present invention: a first limiting block is arranged below the hydraulic rod and installed in the connecting sleeve, and a first spring is installed between the lower portion of the first limiting block and the connecting sleeve.

As a further aspect of the present invention: a second spring is arranged between the supporting block and the connecting plate, a press roller is arranged below the connecting rod, and the height of the press roller is lower than that of the ironing main body.

Compared with the prior art, the utility model can drive the slide bar to move back and forth through the matching use among the crank, the threaded rod and the threaded sleeve, the slide bar can play a role in positioning the ironing main body, so that the ironing main body can be sequentially ironed from front to back, and the phenomenon that the same part is repeatedly ironed due to the manual movement of a user and the ironing is uneven can be prevented; the ironing main body can be buffered by the arranged first spring, so that the situation that the ironing main body crushes the fabric due to overlarge pressure of the hydraulic rod is prevented; when the main body is ironed, the pressing roller can push the fabric on the workbench to be flat and pressed, so that the ironing effect is better.

Drawings

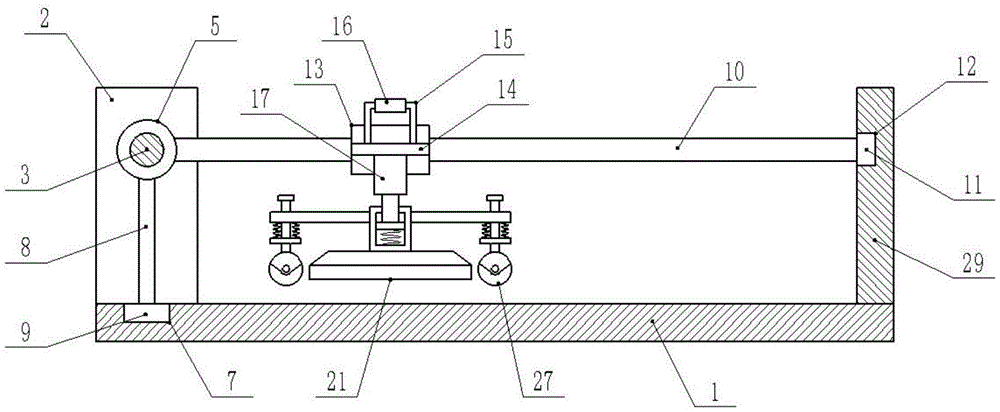

Fig. 1 is a schematic structural view of a positioning device used with an ironing apparatus.

Fig. 2 is a schematic top view of a positioning device for an ironing device.

Fig. 3 is an enlarged schematic view of a positioning device for ironing equipment.

Fig. 4 is a schematic top view of a connecting plate and a slide hole of a positioning device for an ironing device.

In the figure: 1. a work table; 2. a first fixing plate; 3. a threaded rod; 4. a shaft sleeve; 5. a threaded sleeve; 6. a crank; 7. a first chute; 8. a guide bar; 9. a first slider; 10. a slide bar; 11. a second slider; 12. a second chute; 13. a sliding sleeve; 14. a support plate; 15. a handle; 16. an anti-slip rubber sleeve; 17. a hydraulic lever; 18. connecting sleeves; 19. a first stopper; 20. a first spring; 21. ironing the main body; 22. a connecting plate; 23. a connecting rod; 24. a second limiting block; 25. a support block; 26. a second spring; 27. a compression roller; 28. a slide hole; 29. and a second fixing plate.

Detailed Description

The technical solution of the present patent will be described in further detail with reference to the following embodiments.

Referring to fig. 1-4, a positioning device for an ironing apparatus includes a table 1, a threaded rod 3, a guide rod 8, a second chute 12, a hydraulic rod 17, an ironing main body 21, a connecting rod 23 and a pressing roller 27; the left side of the upper part of the workbench 1 is provided with a first chute 7, the left front side and the back side of the workbench 1 are provided with first fixed plates 2, a threaded rod 3 is arranged between the first fixed plates 2 at the front side and the back side, a shaft sleeve 4 is arranged between the threaded rod 3 and the first fixed plates 2, a crank 6 is arranged at the front side of the threaded rod 3, a threaded sleeve 5 is sleeved on the threaded rod 3, a guide rod 8 is arranged below the threaded sleeve 5, a first slide block 9 is arranged below the guide rod 8, the first slide block 9 is arranged on the first chute 7, the threaded rod 3 can be driven to rotate by rotating the crank 6 anticlockwise or clockwise, the threaded sleeve 5 can move back and forth on the threaded rod 3 through the matching transmission between the threaded rod 3 and the threaded sleeve 5, the right side of the upper part of the workbench 1 is provided with a second fixed plate 29, and a second chute 12 is arranged above, a sliding rod 10 is arranged in the middle of the right side of the threaded sleeve 5, a second sliding block 11 is arranged on the right side of the sliding rod 10, and the second sliding block 11 is arranged on a second sliding groove 12.

The ironing machine is characterized in that a sliding sleeve 13 is installed on the sliding rod 10, a supporting plate 14 is installed on the front side of the sliding sleeve 13, a handle 15 is installed above the supporting plate 14, an anti-skid rubber sleeve 16 is installed on the handle 15, a hydraulic rod 17 is installed below the supporting plate 14, the type of the hydraulic rod 17 is MYT3-23, a first limiting block 19 is arranged below the hydraulic rod 17, a connecting sleeve 18 is sleeved below the hydraulic rod 17, the first limiting block 19 is installed in the connecting sleeve 18, a first spring 20 is installed between the lower portion of the first limiting block 19 and the connecting sleeve 18, an ironing main body 21 is installed below the connecting sleeve 18, the position of the ironing main body 21 can be adjusted up and down through the arrangement of the hydraulic rod 17, the arranged first spring 20 can play a buffering role in buffering the ironing main body 21, and the phenomenon that the ironing main body 21 crushes fabrics due to overla.

Connecting plates 22 are installed on the left side and the right side of the connecting sleeve 18, sliding holes 28 are formed in one sides, far away from the connecting sleeve 18, of the connecting plates 22, connecting rods 23 are inserted in the sliding holes 28, second limiting blocks 24 are arranged above the connecting rods 23, supporting blocks 25 are installed in the middle of the connecting rods 23, second springs 26 are installed between the supporting blocks 25 and the connecting plates 22, pressing rollers 27 are installed below the connecting rods 23, the heights of the pressing rollers 27 are lower than that of the ironing main body 21, when the ironing main body 21 is ironed through the arrangement of the pressing rollers 27, fabric on the workbench 1 can be pushed flat and pressed tightly, and the ironing effect is better.

In the use process of the utility model, firstly, the fabric to be ironed is flattened and placed on the workbench 1, the thread bush 5 is moved to the foremost side of the threaded rod 3 through the crank 6, then the connecting sleeve 18 is driven to move downwards through the hydraulic rod 17, the connecting sleeve 18 drives the ironing main body 21 and the connecting plate 22 to move downwards, the connecting plate 22 drives the compression roller 27 to move downwards, the compression roller 27 is firstly in contact with the fabric on the workbench 1 before the ironing main body 21, the compression roller 27 stops moving downwards after being in contact with the fabric, the ironing main body 21 continues to move downwards, the fabric is ironed when the ironing main body 21 is in contact with the fabric, at the moment, the operator holds the handle 15 with hands, the handle 15 is pushed at a constant speed from left to right, the handle 15 drives the ironing main body 21 to iron the fabric from left to right, when the ironing main body 21 is ironed to the rightmost side, the crank, the threaded rod 3 drives the threaded sleeve 5 to move backwards by the width of the ironing main body 21, then the handle 15 is held to move from right to left, and the ironing main body 21 irons the fabric from right to left, so that the fabric is sequentially ironed from front to back and from back to back.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.

Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.

Claims

1. A positioning device matched with ironing equipment comprises a workbench (1), a threaded rod (3), a guide rod (8), a second chute (12), a hydraulic rod (17), an ironing main body (21), a connecting rod (23) and a press roller (27), and is characterized in that a first chute (7) is arranged on the left side above the workbench (1), first fixing plates (2) are arranged on the front side and the rear side of the left side of the workbench (1), the threaded rod (3) is arranged between the first fixing plates (2) on the front side and the rear side, a shaft sleeve (4) is arranged between the threaded rod (3) and the first fixing plate (2), a crank (6) is arranged on the front side of the threaded rod (3), a threaded sleeve (5) is sleeved on the threaded rod (3), a second fixing plate (29) is arranged on the right side above the workbench (1), the second chute (12) is arranged on the left side above the second fixing plate, a sliding rod (10) is arranged in the middle of the right side of the threaded sleeve (5); a sliding sleeve (13) is installed on the sliding rod (10), a supporting plate (14) is installed on the front side of the sliding sleeve (13), a handle (15) is installed above the supporting plate (14), an anti-skidding rubber sleeve (16) is installed on the handle (15), a hydraulic rod (17) is installed below the supporting plate (14), a connecting sleeve (18) is sleeved below the hydraulic rod (17), and an ironing main body (21) is installed below the connecting sleeve (18); connecting plates (22) are installed on the left side and the right side of the connecting sleeve (18), sliding holes (28) are formed in one sides, far away from the connecting sleeve (18), of the connecting plates (22), connecting rods (23) are inserted in the sliding holes (28), second limiting blocks (24) are arranged above the connecting rods (23), and supporting blocks (25) are installed in the middle of the connecting rods (23).

2. The supporting positioner of ironing equipment of claim 1, characterized in that, the screw thread cover (5) is equipped with the guide bar (8) below, the guide bar (8) is equipped with the first slider (9) below, the first slider (9) is equipped on the first runner (7).

3. The supporting positioning device of ironing equipment according to claim 1, characterized in that the right side of the sliding rod (10) is provided with a second sliding block (11), and the second sliding block (11) is arranged on a second sliding chute (12).

4. The supporting positioner that uses of ironing equipment according to claim 1, characterized in that, the below of hydraulic stem (17) is provided with first stopper (19), and first stopper (19) is installed in adapter sleeve (18), installs first spring (20) between the below of first stopper (19) and adapter sleeve (18).

5. The supporting positioning device of an ironing apparatus as claimed in claim 1, characterized in that a second spring (26) is installed between the supporting block (25) and the connecting plate (22), and a pressing roller (27) is installed below the connecting rod (23), wherein the height of the pressing roller (27) is lower than that of the ironing main body (21).
