Abstract
The utility model discloses a medical disinfection cabinet relates to disinfection cabinet technical field. The utility model comprises an outer cabinet, a base plate is fixedly connected between the inner surfaces of the outer cabinet; the top surface of the base plate is respectively and fixedly provided with a hot air generating assembly, a moisture discharging assembly and a temperature probe, one surface of the hot air generating assembly is fixedly communicated with an air inlet assembly, and the other surface of the outer cabinet is respectively and fixedly connected with an ultraviolet disinfection lamp and an illuminating lamp from top to bottom; the middle part of the base plate is also fixedly connected with an electric louver fan communicated with the hot air generating assembly; a heat return pipe is fixedly communicated with one surface of the substrate; one end of the heat return pipe is communicated with the air inlet assembly; the bottom surface of the outer cabinet is fixedly connected with a sealing cover. The utility model discloses a design of outer cabinet and interior cabinet becomes the monomer formula structure of traditional sterilizer and is the binary formula structure, when needs are cleaned the cabinet body, the interior cabinet can wholly take out through the pull structure, then convenient cleanness to the interior cabinet.
Description
Technical Field
The utility model belongs to the technical field of the sterilizer, especially relate to a medical sterilizer.
Background
The medical disinfection cabinet is special disinfection equipment for the hospital to disinfect medical instruments. The medical instrument disinfecting and sterilizing device can sterilize, disinfect and dehumidify medical instruments, is simple and convenient to operate, and has a good disinfecting effect, so that the medical instrument disinfecting and sterilizing device is widely applied to various hospitals, and medical record folders, forceps, medical gloves and the like in the hospitals need to be disinfected in time.
The sterilizer among the prior art is mostly the monomer formula structure, and this kind of monomer formula structure often is not convenient for clean the sterilizer, and current sterilizer volume is mostly fixed, when treating that disinfection article are less and still adopt big volume to carry out the operation, can cause the waste of the energy undoubtedly.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a medical sterilizer through the design of outer cabinet, interior cabinet, has solved the current sterilizer and is not convenient for clean and the nonadjustable problem of volume.
In order to solve the technical problem, the utility model discloses a realize through following technical scheme:
the utility model relates to a medical disinfection cabinet, which comprises an outer cabinet, wherein a substrate is fixedly connected between the inner surfaces of the outer cabinet; the top surface of the base plate is respectively and fixedly provided with a hot air generating assembly, a moisture discharging assembly and a temperature probe, one surface of the hot air generating assembly is fixedly communicated with an air inlet assembly, and the other surface of the outer cabinet is respectively and fixedly connected with an ultraviolet disinfection lamp and an illuminating lamp from top to bottom;
the middle position of the base plate is also fixedly connected with an electric louver fan communicated with the hot air generating assembly; a heat return pipe is fixedly communicated with one surface of the substrate; one end of the heat return pipe is communicated with the air inlet assembly;
the bottom surface of the outer cabinet is fixedly connected with a sealing cover; two groups of guide rods which are symmetrically arranged are fixedly connected to one surface of the outer cabinet; one surface of the outer cabinet is connected with the inner cabinet in a sliding way through a guide rod; the inner wall of the sealing cover is matched with the inner cabinet through a sealing ring; two side surfaces of the inner cabinet are fixedly connected with a group of guide rails which are distributed in a linear array; a group of object placing plates and a volume adjusting plate are respectively connected between the opposite surfaces of the two groups of guide rails in a sliding manner; the peripheral side surfaces of the two groups of guide rods are in threaded connection with limiting pieces matched with the inner cabinet; the top surface of the inner cabinet is provided with a through hole matched with the electric louver; the inner cabinet is provided with notches corresponding to the ultraviolet disinfection lamp and the illuminating lamp.
Preferably, a cabinet door is hinged to one surface of the outer cabinet; and a sealing element matched with the inner cabinet and the volume adjusting plate is fixedly arranged on one surface of the cabinet door relative to the outer cabinet.
Preferably, a control panel is fixedly mounted on the top surface of the outer cabinet; the dehumidifying component comprises a dehumidifying panel; one surface of the dehumidifying panel is communicated with a dehumidifying pipe; an exhaust fan is fixedly arranged on the inner wall of the moisture exhaust pipe; and a first sealing valve is fixedly arranged on the peripheral side surface of the moisture exhaust pipe.
Preferably, the peripheral side surfaces of the heat return pipe and the air inlet assembly are fixedly provided with second sealing valves; the air inlet assembly comprises an air inlet pipe and an air inducing cover; one end of the air inlet pipe is communicated with the induced draft cover; one end of the induced draft cover is communicated with the outer cabinet; one end of the air inlet pipe is communicated with the hot air generating assembly.
Preferably, the hot air generating assembly includes a housing; the inner wall of the shell is fixedly connected with a fan and an electric heating wire from top to bottom respectively.
Preferably, the surface of the storage plate is provided with ventilation holes distributed in a linear array; and the end surface of the inner cabinet is provided with a limit baffle ring matched with the outer cabinet.
The utility model discloses following beneficial effect has:
the utility model discloses a design of outer cabinet and interior cabinet, the monomer formula structure that becomes traditional sterilizer is binary structure, when needs are cleaned the cabinet body, the interior cabinet can wholly take out through the pull structure, then convenient cleanness to the interior cabinet, through the volume regulating plate, the design of sealing member and sealing ring, then become the fixed volume of the traditional cabinet body and be adjustable volume, through changing the position of volume regulating plate at interior cabinet, can change the device's volume of being heated, then make the volume of being heated and wait to dry article quantity phase-match, through adjustable volumetric realization, be favorable to improving the rate of rising temperature on the one hand, on the other hand helps reducing energy loss.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

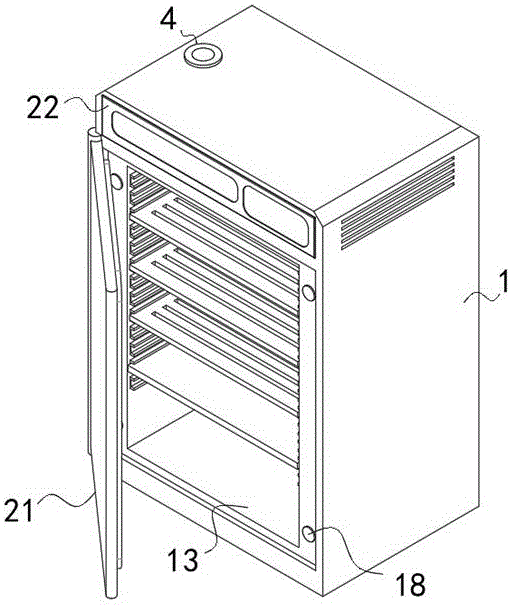

FIG. 1 is a schematic view of a medical sterilizer;
FIG. 2 is a schematic cross-sectional view of FIG. 1;
FIG. 3 is an enlarged view of a portion of FIG. 2 at A;
FIG. 4 is a schematic structural diagram of a substrate, a hot air generating assembly, a moisture discharging assembly and an air intake assembly;
FIG. 5 is a schematic view of the structure of FIG. 4 from another angle;
FIG. 6 is a schematic structural view of the outer cabinet, the limiting member, the volume adjusting plate and the object placing plate;
FIG. 7 is a schematic front view of the structure of FIG. 6;
FIG. 8 is a schematic view of the structure of the guide bar;
FIG. 9 is a schematic structural view of the inner cabinet;
in the drawings, the components represented by the respective reference numerals are listed below:
1. an outer cabinet; 2. a substrate; 3. a hot air generating assembly; 4. a moisture removal assembly; 5. a temperature probe; 6. an air intake assembly; 7. an ultraviolet disinfection lamp; 8. an illuminating lamp; 9. an electric louver fan; 10. a heat recovery pipe; 11. a sealing cover; 12. a guide bar; 13. an inner cabinet; 14. a seal ring; 15. a guide rail; 16. a storage plate; 17. a volume adjusting plate; 18. a limiting member; 19. a through hole; 20. a notch; 21. a cabinet door; 22. a control panel; 23. and a limit stop ring.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
Referring to fig. 1-9, the utility model relates to a medical disinfection cabinet, which comprises an outer cabinet 1, wherein a base plate 2 is fixedly connected between the inner surfaces of the outer cabinet 1; the hot air generating assembly 3, the dehumidifying assembly 4 and the temperature probe 5 are fixedly mounted on the top surface of the substrate 2 respectively, an air inlet assembly 6 is fixedly communicated with one surface of the hot air generating assembly 3, an ultraviolet disinfection lamp 7 and an illuminating lamp 8 are fixedly connected to one surface of the outer cabinet 1 from top to bottom respectively, a PLC (programmable logic controller) of a common model is also fixedly mounted on the top surface of the substrate 2, the temperature probe 5 is used for monitoring temperature data in the inner cabinet 13 in real time, the temperature probe 5 feeds the monitored real-time data back to the controller, the controller controls the working state of the hot air generating assembly 3 according to the data feedback of the temperature probe 5, and during working, the hot air generating assembly 3 is matched with the heat return pipe 10 to rapidly heat the inner cabinet 13 in an internal circulation mode, and the model of the temperature probe 5 is DS18B 20;
the middle position of the base plate 2 is fixedly connected with an electric louver fan 9 communicated with the hot air generating assembly 3, the electric louver fan 9 is an existing mechanism, and details are not repeated here, the electric louver fan 9 is used for changing the air outlet angle of the hot air generating assembly 3, so that swinging air outlet during heating is realized, single-point wind overheating during heating is avoided, the temperature of the inner cabinet 13 is uniformly increased, and a surface of the base plate 2 is fixedly communicated with a heat return pipe 10; one end of the heat return pipe 10 is communicated with the air inlet assembly 6;
the bottom surface of the outer cabinet 1 is fixedly connected with a sealing cover 11; two groups of guide rods 12 which are symmetrically arranged are fixedly connected to one surface of the outer cabinet 1; an inner cabinet 13 is connected to one surface of the outer cabinet 1 in a sliding manner through a guide rod 12; the inner wall of the sealing cover 11 is matched with the inner cabinet 13 through a sealing ring 14; through the sealing ring 14 and the sealing piece at the position of the cabinet door 21, the leakage rate of the hot air generating assembly 3 during air outlet is avoided;
two side surfaces of the inner cabinet 13 are fixedly connected with a group of guide rails 15 which are distributed in a linear array; a group of object placing plates 16 and a volume adjusting plate 17 are respectively connected between the opposite surfaces of the two groups of guide rails 15 in a sliding manner, and the volume adjusting plate 17 is used for changing the heating volume of the device;
the limiting pieces 18 matched with the inner cabinet 13 are connected to the peripheral side surfaces of the two groups of guide rods 12 through threads, the limiting pieces 18 can be disassembled, the inner cabinet 13 can be taken out, and the top surface of the inner cabinet 13 is provided with a through hole 19 matched with the electric louver 9; breach 20 has all been seted up to the position that interior cabinet 13 corresponds ultraviolet disinfection lamp 7 and light 8, and breach 20 department is provided with the choke cover of elastic material, and the laminating of choke cover and ultraviolet disinfection lamp 7 and light 8 guarantees the leakproofness of its junction then.
Further, a cabinet door 21 is hinged to one surface of the outer cabinet 1; and a sealing piece matched with the inner cabinet 13 and the volume adjusting plate 17 is fixedly arranged on one surface of the cabinet door 21 relative to the outer cabinet 1.
Further, a control panel 22 is fixedly mounted on the top surface of the outer cabinet 1; the dehumidifying component 4 comprises a dehumidifying panel; one surface of the dehumidifying panel is communicated with a dehumidifying pipe; an exhaust fan is fixedly arranged on the inner wall of the moisture exhaust pipe; and a first sealing valve is fixedly arranged on the peripheral side surface of the moisture exhaust pipe.
Further, the peripheral side surfaces of the heat return pipe 10 and the air inlet assembly 6 are both fixedly provided with a second sealing valve; the air inlet assembly 6 comprises an air inlet pipe and an induced draft cover; one end of the air inlet pipe is communicated with the induced draft cover; one end of the induced draft cover is communicated with the outer cabinet 1; one end of the air inlet pipe is communicated with the hot air generating assembly 3.
Further, the hot air generating assembly 3 comprises a housing; the inner wall of the shell is fixedly connected with a fan and an electric heating wire from top to bottom respectively.
Furthermore, ventilation holes distributed in a linear array are formed in the surface of the object placing plate 16; and the end surface of the inner cabinet 13 is provided with a limit stop ring 23 matched with the outer cabinet 1.
The device is characterized in that the fixed volume of the traditional disinfection cabinet is changed into the adjustable volume, the inner cabinet 13 is fixed in the outer cabinet 1 through the limiting piece 18 in the normal use mode, and when the device works, the hot air generating assembly 3 is matched with the temperature probe 5 and the heat return pipe 10 to realize heating and drying inside the inner cabinet 13 in an internal circulation mode, and simultaneously the hot air generating assembly 3 works to enable the electric louver fan 9 to work in a reciprocating mode to further realize swinging air outlet of the hot air generating assembly 3, so that the temperature of the inner cabinet 13 is uniformly raised, single point wind overheating during drying is avoided, the dehumidifying assembly 4 can be started timely to discharge dried moisture during heating and drying, when the heating volume of the device needs to be changed, the position of the volume adjusting plate 17 in the inner cabinet 13 is changed, the heating and disinfecting speed in the small volume use mode is improved, when the inner cabinet 13 needs to be cleaned, the limit piece 18 is removed, and then the inner cabinet 13 can be taken out, and then the inner cabinet 13 is rapidly cleaned.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (6)
1. A medical disinfection cabinet comprises an outer cabinet (1), wherein a base plate (2) is fixedly connected between the inner surfaces of the outer cabinet (1); base plate (2) top surface respectively fixed mounting have hot-blast emergence subassembly (3), hydrofuge subassembly (4) and temperature probe (5), hot-blast emergence subassembly (3) fixed surface intercommunication has air inlet subassembly (6), outer cabinet (1) surface from top to bottom respectively fixedly connected with ultraviolet disinfection lamp (7) and light (8), its characterized in that:
the middle part of the base plate (2) is also fixedly connected with an electric louver fan (9) communicated with the hot air generating assembly (3); a regenerative tube (10) is fixedly communicated with one surface of the substrate (2); one end of the heat return pipe (10) is communicated with the air inlet assembly (6);
the bottom surface of the outer cabinet (1) is fixedly connected with a sealing cover (11); one surface of the outer cabinet (1) is fixedly connected with two groups of guide rods (12) which are symmetrically arranged; one surface of the outer cabinet (1) is connected with an inner cabinet (13) in a sliding way through a guide rod (12); the inner wall of the sealing cover (11) is matched with the inner cabinet (13) through a sealing ring (14); two side surfaces of the inner cabinet (13) are fixedly connected with a group of guide rails (15) which are distributed in a linear array; a group of object placing plates (16) and a volume adjusting plate (17) are respectively connected between the opposite surfaces of the two groups of guide rails (15) in a sliding manner; the peripheral side surfaces of the two groups of guide rods (12) are in threaded connection with limiting pieces (18) matched with the inner cabinet (13); the top surface of the inner cabinet (13) is provided with a through hole (19) matched with the electric louver fan (9); the inner cabinet (13) is provided with notches (20) corresponding to the positions of the ultraviolet disinfection lamp (7) and the illuminating lamp (8).
2. A medical disinfection cabinet as claimed in claim 1, characterized in that said outer cabinet (1) is hinged with a cabinet door (21) on one surface; and a sealing element matched with the inner cabinet (13) and the volume adjusting plate (17) is fixedly arranged on one surface of the cabinet door (21) relative to the outer cabinet (1).
3. A medical disinfection cabinet as claimed in claim 1, wherein a control panel (22) is fixedly mounted on the top surface of said outer cabinet (1); the dehumidifying component (4) comprises a dehumidifying panel; one surface of the dehumidifying panel is communicated with a dehumidifying pipe; an exhaust fan is fixedly arranged on the inner wall of the moisture exhaust pipe; and a first sealing valve is fixedly arranged on the peripheral side surface of the moisture exhaust pipe.
4. The medical disinfection cabinet of claim 1, wherein the peripheral sides of the heat return pipe (10) and the air inlet assembly (6) are fixedly provided with second sealing valves; the air inlet assembly (6) comprises an air inlet pipe and an air inducing cover; one end of the air inlet pipe is communicated with the induced draft cover; one end of the induced draft cover is communicated with the outer cabinet (1); one end of the air inlet pipe is communicated with the hot air generating assembly (3).
5. A medical disinfection cabinet as claimed in claim 1, characterized in that said hot air generating assembly (3) comprises a housing; the inner wall of the shell is fixedly connected with a fan and an electric heating wire from top to bottom respectively.
6. The medical disinfection cabinet according to claim 1, wherein the surface of the object placing plate (16) is provided with ventilation holes distributed in a linear array; the end face of the inner cabinet (13) is provided with a limit stop ring (23) matched with the outer cabinet (1).
