Abstract
The utility model discloses a L type lighting panel subassembly, by L type lamp box, the light source, reflective paper, arc light guide plate and arc diffuser plate are constituteed, this L type lighting panel subassembly is in order to improve the aesthetic property and the practicality of whole lamps and lanterns, innovative designs into L type structure with the lamp box, and install the light source on L type lamp box, in the in-service use process, the light source that the light source produced diffuses along arc light guide plate, and combine reflective paper's effect to launch the light source downwards, and combine the effect of arc diffuser plate, can prevent effectively that the LED light source from producing dazzling glare, make whole panel subassembly luminous even. The L-shaped lighting panel component has the characteristics of firm installation, attractive and elegant structure, uniform light emission and large light emitting area.
Description
Technical Field
The utility model relates to a lighting apparatus technical field, concretely relates to L type lighting panel subassembly.
Background
The LED lamp has luminous intensity and high luminous efficiency, but the traditional LED lamp has luminous point illumination intensity, so that the problems of uneven luminous area, dazzling light rays and glare are caused. In addition, the existing household LED lighting lamp panel is designed into a circular or square planar structure, the lamp panel of the planar structure is simple in structure and poor in overall aesthetic property, and the requirement of lighting market consumers on product diversity cannot be met, so that the problems existing at present are solved, the diversity and comprehensive requirements of people on lighting aesthetic property and practicability are further met, the structure is designed to be attractive and elegant, the light emitting effect is good, and a large-area light emitting and uniform lighting assembly is necessary.
SUMMERY OF THE UTILITY MODEL
To the not enough of prior art, the utility model aims at providing a L type lighting panel subassembly.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
an L-shaped lighting panel assembly comprises an L-shaped lamp box, a light source, reflective paper, an arc light guide plate and an arc diffusion plate, wherein the L-shaped lamp box comprises an upper curved wall, a front plane wall, a lower plane wall, a middle vertical wall, a light source mounting groove, an upper plane wall, a rear plane wall, a bottom plane wall, a headless screw mounting hole and a countersunk screw mounting hole, the front plane wall and the middle vertical wall are respectively and vertically connected with the upper plane wall and the lower plane wall, the middle vertical wall is positioned at the rear end of the front plane wall, the light source mounting groove is of a rectangular groove structure and is positioned on the inner side wall of the upper curved wall, the upper plane wall and the bottom plane wall are respectively and fixedly connected with the upper curved wall and the rear plane wall, the bottom plane wall is positioned below the upper plane wall, the headless screw mounting holes are mounted at the left side and the right side of the front end of the horizontal plane wall of the upper curved wall, and a plurality of groups of countersunk screw mounting holes are mounted on the, light source fixed mounting is in the light source mounting groove of L type lamp box, and the below position at L type lamp box is installed to reflection of light paper, and the below position at reflection of light paper is installed to the arc light guide plate, and the below position at the arc light guide plate is installed to the arc diffuser plate.
Furthermore, the L-shaped lamp box is of an L-shaped plate structure, and the length range of the whole L-shaped lamp box is between 100 mm and 6000 mm.
Furthermore, the reflective paper, the arc light guide plate and the arc diffusion plate are all L-shaped plate structures, and the length ranges are all between 100 and 6000 mm.
The utility model discloses following beneficial effect has:
the utility model relates to a L type illumination panel assembly, by L type lamp box, the light source, the reflection of light paper, the arc light guide plate, the arc diffuser plate is constituteed, in order to improve the aesthetic property and the practicality of this panel assembly, at first innovative design the L type lamp box of L type structure, the light source mounting groove that is used for installing the light source has been designed on L type lamp box, and in order to improve the installation fastness, the position of installing the light source on L type lamp box is provided with the headless screw mounting hole, through installing the headless screw can firmly install strip light source subassembly in the headless screw mounting hole. Secondly, the same simple to operate of other subassemblies, accomplish the back on L type lamp box with the light source installation, assemble reflection of light paper in proper order below L type lamp box, arc light guide plate and arc diffuser plate are fixed with countersunk screw locking, and left side apron and right cover plate have been installed to the position in both sides, wherein connecting block under the left side of left cover plate, the connecting block inserts respectively in the left side recess on the L type lamp box on the left side, connecting block under the right side of right cover plate, the connecting block inserts respectively in the right side recess on the L type lamp box on the right side. When the lamp is used, after the lamp is electrified, the light source generated by the light source is diffused along the arc-shaped light guide plate, and is emitted downwards under the action of the reflecting paper, and the dazzling glare generated by the LED light source can be effectively prevented under the action of the arc-shaped diffusion plate, so that the whole panel assembly emits light uniformly. Simultaneously, the device has installed left side apron and right side apron in the left and right sides of L type lamp box respectively, and left side apron and right side apron are fixed through headless screw and L type lamp box locking respectively, and this L type lighting panel subassembly has the installation firmly, structure elegant appearance, the even and big characteristics of light-emitting area of light-emitting.
Drawings

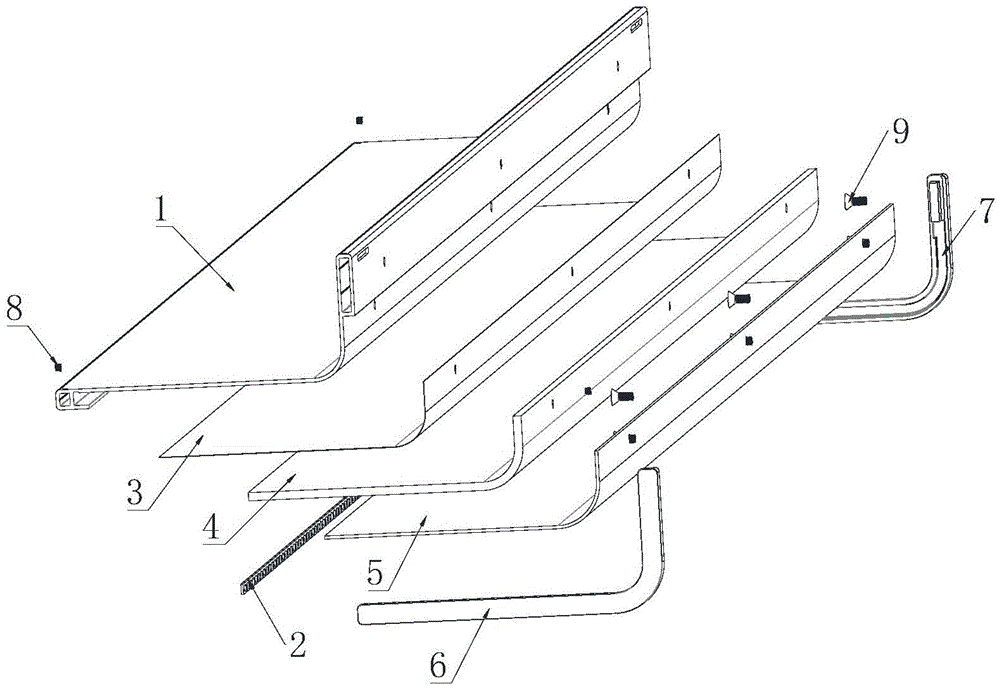

Fig. 1 is an exploded view of an L-shaped lighting panel assembly according to the present invention;
fig. 2 is an assembly view of the overall structure of an L-shaped lighting panel assembly according to the present invention;
fig. 3 is a schematic view of an overall structure of an L-shaped lamp box of an L-shaped lighting panel assembly according to the present invention;
fig. 4 is a schematic view of the overall structure of the reflective paper of the L-shaped lighting panel assembly of the present invention;
fig. 5 is a schematic view of the overall structure of the arc light guide plate of the L-shaped lighting panel assembly of the present invention;
fig. 6 is a schematic view of an overall structure of an arc-shaped diffusion plate of an L-shaped illumination panel assembly according to the present invention;
fig. 7 is a schematic view of the overall structure of the left cover plate of the L-shaped lighting panel assembly according to the present invention;
fig. 8 is a schematic view of the overall structure of the right cover plate of the L-shaped lighting panel assembly of the present invention.
In the figure: 1. an L-shaped lamp box; 2. a light source; 3. reflective paper; 4. an arc light guide plate; 5. an arc-shaped diffusion plate; 6. a left cover plate; 7. a right cover plate; 8. headless screws; 9. countersunk screws; 101. an upper curved wall; 102. a front planar wall; 103. a lower planar wall; 104. a middle vertical wall; 105. a light source mounting groove; 106. an upper planar wall; 107. a rear planar wall; 108. a bottom planar wall; 109. headless screw mounting holes; 110. countersunk head screw mounting holes; 601. a left end plate; 602. a left lower connecting block; 603. a left side mounting groove; 604. a left side support plate; 605. a connecting block is arranged on the left side; 701. a right side end plate; 702. a right lower connecting block; 703. a right mounting groove; 704. a right side supporting plate; 705. a connecting block on the right side.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and specific embodiments so as to more clearly understand the technical idea claimed in the present invention.
As shown in fig. 1 to 8, the present invention relates to an L-shaped lighting panel assembly, which comprises an L-shaped light box 1, a light source 2, a reflective paper 3, an arc light guide plate 4 and an arc diffuser plate 5, wherein the L-shaped light box 1 is composed of an upper curved wall 101, a front planar wall 102, a lower planar wall 103, a middle vertical wall 104, a light source installation groove 105, an upper planar wall 106, a rear planar wall 107, a bottom planar wall 108, a headless screw installation hole 109 and a countersunk screw installation hole 110, the front planar wall 102 and the middle vertical wall 104 are respectively vertically connected to the upper planar wall 106 and the lower planar wall 103, the middle vertical wall 104 is located at the rear end of the front planar wall 102, the light source installation groove 105 is rectangular and located on the inner side wall of the upper curved wall 101, the upper planar wall 106 and the bottom planar wall 108 are respectively vertically and fixedly connected to the upper curved wall 101 and the rear planar wall 107, the bottom planar wall 108 is located below the upper planar wall 106, headless screw mounting holes 109 are mounted on the left and right sides of the upper front end of the horizontal plane wall of the upper curved wall 101, multiple sets of countersunk screw mounting holes 110 are mounted on the vertical plane wall of the upper curved wall 101, the light source 2 is fixedly mounted in the light source mounting groove 105 of the L-shaped lamp box 1, the reflective paper 3 is mounted at the lower position of the L-shaped lamp box 1, the arc-shaped light guide plate 4 is mounted at the lower position of the reflective paper 3, and the arc-shaped diffusion plate 5 is mounted at the lower position of the arc-shaped light guide plate 4.
Specifically, the L-shaped lamp box 1 is of an L-shaped plate structure, and the length range of the whole L-shaped lamp box 1 is between 100 mm and 6000 mm. The reflective paper 3, the arc light guide plate 4 and the arc diffusion plate 5 are all L-shaped plate structures, and the length ranges are all between 100 and 6000 mm.
The utility model discloses a theory of operation does: in order to improve the aesthetic property and the practicability of the panel component, firstly, the L-shaped lamp box 1 with the L-shaped structure is innovatively designed, the light source installation groove 105 for installing the light source 2 is designed on the L-shaped lamp box 1, in order to improve the installation firmness, the headless screw installation hole 109 is arranged at the position of the L-shaped lamp box 1 for installing the light source 2, and the light source 2 component with the strip-shaped structure can be firmly installed by installing the headless screw 8 in the headless screw installation hole 109. Secondly, the same simple to operate of other subassemblies, after installing light source 2 on L type lamp box 1 and accomplish, assemble reflection of light paper 3 in proper order below L type lamp box 1, arc light guide plate 4 and arc diffuser plate 5 and lock fixedly with countersunk screw 9, and installed left side apron 6 and right side apron 7 in both sides position, wherein connecting block 602 under the left side of left side apron 6, connecting block 605 inserts respectively in the left side recess on L type lamp box 1 on the left side, connecting block 702 under the right side of right side apron 7, connecting block 703 inserts respectively in the right side recess on L type lamp box 1 on the right side. When the lamp is used, after the lamp is powered on, the light source generated by the light source 2 is diffused along the arc-shaped light guide plate 4, and is emitted downwards under the action of the reflecting paper 3, and the glare generated by the LED light source can be effectively prevented under the action of the arc-shaped diffusion plate 5, so that the whole panel assembly can uniformly emit light. Simultaneously, the device has installed left side apron 6 and right side apron 7 respectively in the left and right sides of L type lamp box 1, and left side apron 6 and right side apron 7 are fixed with L type lamp box 1 locking through headless screw 8 respectively, and this L type lighting panel subassembly has the installation firmly, structure elegant appearance, the even and big characteristics of light-emitting area of light-emitting.
Various other changes and modifications may be made by those skilled in the art based on the above-described technical solutions and concepts, and all such changes and modifications should fall within the scope of the present invention.
Claims (3)
1. An L-shaped lighting panel assembly, characterized in that: the LED lamp comprises an L-shaped lamp box (1), a light source (2), reflective paper (3), an arc light guide plate (4) and an arc diffusion plate (5), wherein the L-shaped lamp box (1) consists of an upper curved wall (101), a front plane wall (102), a lower plane wall (103), a middle vertical wall (104), a light source installation groove (105), an upper plane wall (106), a rear plane wall (107), a bottom plane wall (108), a headless screw installation hole (109) and a countersunk screw installation hole (110), the front plane wall (102) and the middle vertical wall (104) are respectively and vertically connected with the upper plane wall (106) and the lower plane wall (103), the middle vertical wall (104) is positioned at the rear end of the front plane wall (102), the light source installation groove (105) is of a rectangular groove structure and positioned on the inner side wall of the upper curved wall (101), the upper plane wall (106) and the bottom plane wall (108) are respectively and vertically and fixedly connected with the upper curved wall (101) and the rear plane wall (107), the bottom plane wall (108) is located at the lower position of the upper plane wall (106), headless screw mounting holes (109) are mounted at the left side and the right side of the front end of the horizontal plane wall of the upper curved surface wall (101), a plurality of groups of countersunk screw mounting holes (110) are mounted on the vertical plane wall of the upper curved surface wall (101), the light source (2) is fixedly mounted in a light source mounting groove (105) of the L-shaped lamp box (1), the reflective paper (3) is mounted at the lower position of the L-shaped lamp box (1), the arc light guide plate (4) is mounted at the lower position of the reflective paper (3), and the arc diffusion plate (5) is mounted at the lower position of the arc light guide plate (4).
2. An L-shaped illumination panel assembly according to claim 1, wherein: the L-shaped lamp box (1) is of an L-shaped plate structure, and the length range of the whole L-shaped lamp box (1) is between 100 mm and 6000 mm.
3. An L-shaped illumination panel assembly according to claim 1, wherein: the reflective paper (3), the arc light guide plate (4) and the arc diffusion plate (5) are all L-shaped plate structures, and the length ranges are all between 100 and 6000 mm.
