Abstract

The utility model discloses a power-on detection device for cloud stickers, which comprises a support table, a fixing mechanism, a driving motor and a vertical plate. A receiving groove is defined in the middle part of the upper surface of the support table, and one side wall of the receiving groove is fixed A vertical plate is installed, the vertical plate closes the accommodating groove, and a charging port facing the fixing mechanism is also installed on the vertical plate. The fixing mechanism at least includes a moving table, a pressing plate and a bearing plate, and the bearing plate is parallel to the pressing plate distributed, and the pressure plate is arranged above the bearing plate, the bearing plate is elastically arranged, the upper surface of the upper surface of the pressure plate is vertically fixedly connected with a column, and the upper center of the mobile platform is provided with a vertical column for the column to pass through. The inner wall of the hole is provided with a slot with an L-shaped cross-section, and two sets of U-structured fixing plates are arranged symmetrically inside the column. The power-on detection equipment of the cloud sticker has reasonable structure, good detection effect and high efficiency, and can be widely used.

Description

A cloud sticker power-on detection device

technical field

The utility model belongs to the technical field of cloud stickers, in particular to a power-on detection device for cloud stickers.

Background technique

With the development of society, office workers are facing computer desk work every day, and shoulder and neck problems have become occupational diseases. The symptoms of shoulder and neck pain can be relieved by going to the hospital for massage, cupping, and acupuncture. However, the cost of going to the hospital for treatment is relatively high, and it is also very cumbersome, so the smart cloud sticker pain relief instrument is derived. Had a small masseuse.

The host of the cloud sticker needs to be charged to store energy when it is in use, so the smart cloud sticker needs to be powered on and tested during production, otherwise it will bring unnecessary trouble to consumers. Most of the existing tests are manual detection. The labor force is high, the efficiency is slow, and further improvement is needed.

Utility model content

The purpose of the present invention is to provide a power-on detection device for cloud stickers, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a power-on detection device for cloud stickers, including a support table, a fixing mechanism, a driving motor and a vertical plate, and a receiving groove is provided in the middle part of the upper surface of the support table, and the A vertical plate is fixedly installed on one side wall of the accommodating slot, the vertical plate closes the accommodating slot, and a charging port facing the fixing mechanism is also installed on the vertical plate, and the fixing mechanism at least includes a moving table, a pressing plate and a carrying plate , the bearing plate and the pressure plate are distributed in parallel, and the pressure plate is arranged above the bearing plate, the bearing plate is elastically arranged, the upper surface of the upper surface of the pressure plate is vertically fixedly connected with a column, and the upper center of the mobile platform is opened There is a hole for the vertical column to pass through, and the inner wall of the hole is provided with a slot with an L-shaped cross-section. The interior of the column is symmetrically distributed and fixed with two sets of U-structured fixing plates, which are elastically installed on the fixing plates. There is a clamping rod, the clamping rod is horizontally arranged, and the end away from the fixing plate extends to the outside through the column wall of the upright column, and is fitted and clamped with the clamping slot, and the clamping rod is located at one end of the inner rod wall of the fixing plate. Two sets of tie rods are distributed symmetrically on the side, and the tie rods pass through the wall of the fixed plate and slide laterally along the fixed plate. The tie rods are arranged horizontally, and the end near the center of the interior of the column is fixedly connected to the top of the vertical rod. The vertical rod is perpendicular to the pull rod, and the bottom of the vertical rod extends into the interior of the pressure plate, the outer wall of the pressure plate is provided with a moving groove, the bottom of the vertical rod is fixedly connected with the pull block, and passes through the moving groove along its transverse direction. slide.

Preferably, the pull blocks are symmetrically arranged in two groups, and the pull blocks are driven to move out along the interior of the groove by sliding the pull blocks, the pull blocks are perpendicular to the vertical rod, and the two components are L-shaped.

Preferably, one end of the clamping rod facing the interior of the fixing plate is also fixedly connected to a second spring, the second spring is arranged horizontally, and the other end is fixedly connected to the inner wall of the fixing plate, and the second spring is parallel to the fixing plate.

Preferably, the bottom of the carrier plate is embedded into the inside of the placement slot, and the placement slot is opened above the table top of the mobile platform.

Preferably, the bottom of the carrier plate is fixedly connected with a plurality of groups of first springs arrayed inside the placement slot.

Preferably, the two side walls of the accommodating groove are also provided with grooves for placing the screw rods horizontally, the screw rods are connected to the drive motor fixedly installed outside the support table, and the outer body of the screw rods is also sleeved with The protruding blocks are arranged on both sides of the bottom of the moving table, and the protrusions are provided with threaded holes for the screw rods to pass through.

The technical effects and advantages of the utility model: the power-on detection device of the cloud sticker moves toward the charging port through the fixing mechanism to perform power-on detection on the cloud sticker host, and relies on the driving motor to drive the screw to rotate, so that the mobile platform slides laterally along the support table, saving energy Time-saving and labor-saving, the cloud sticker host is clamped and fixed on the table top of the mobile platform by pressing the moving pressure plate, which is convenient to operate. By pulling the pull block, the column can be separated from the mobile platform, and then the cloud sticker host can be removed without excessive manual participation. , Effectively save manpower. The power-on detection equipment of the cloud sticker has reasonable structure, good detection effect and high efficiency, and can be widely used.

Description of drawings

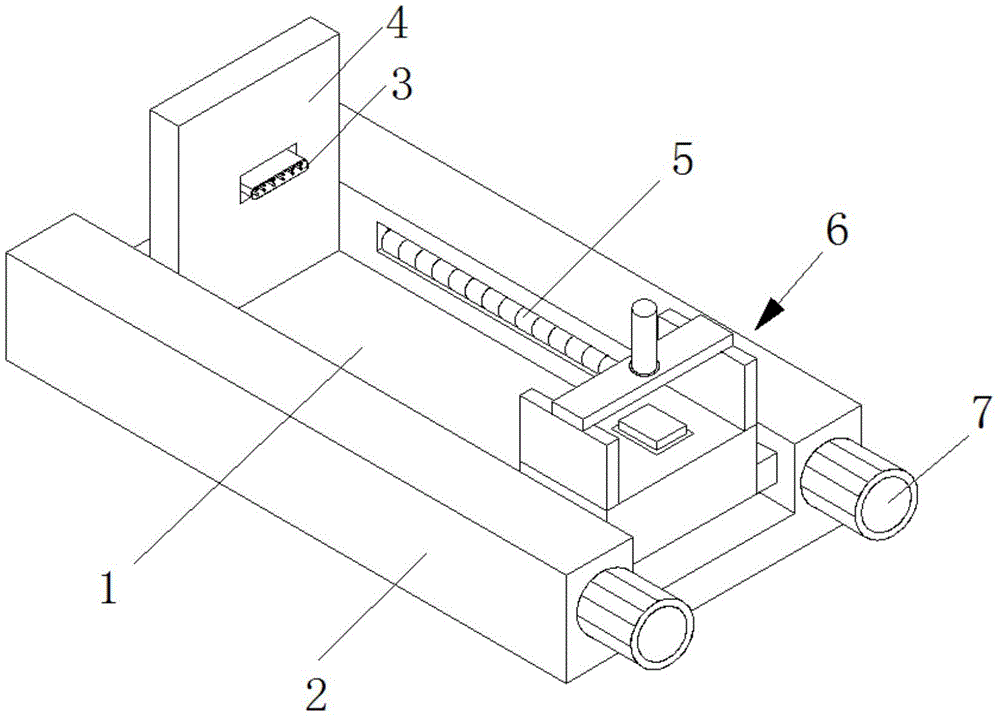

Fig. 1 is the structural representation of the utility model;

2 is a schematic structural diagram of a mobile station of the present invention;

FIG. 3 is an enlarged schematic view of the structure at A in FIG. 2 of the present invention.

In the figure: 1 accommodating slot, 2 supporting table, 3 charging port, 4 vertical plate, 5 screw rod, 6 fixing mechanism, 7 driving motor, 8 first spring, 9 placing slot, 10 carrying plate, 11 pressing plate, 12 column, 13 mobile table, 14 bump, 15 pull block, 16 mobile slot, 17 card slot, 18 card rod, 19 second spring, 20 pull rod, 21 fixed plate.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The utility model provides a cloud sticker power-on detection device as shown in Figures 1-3, including a support table 2, a fixing mechanism 6, a driving motor 7 and a vertical plate 4, and the upper surface of the support table 2 is opened in the middle part The accommodating slot 1, a side wall of the accommodating slot 1 is fixedly installed with a vertical plate 4, the vertical plate 4 closes the accommodating slot 1, and the charging port 3 facing the fixing mechanism 6 is also installed on the vertical plate 4, The fixing mechanism 6 at least includes a moving table 13, a pressure plate 11 and a bearing plate 10. The bearing plate 10 and the pressure plate 11 are distributed in parallel, and the pressure plate 11 is arranged above the bearing plate 10. The bearing plate 10 is elastically arranged, and the The upper surface of the pressing plate 11 is vertically and fixedly connected with the upright column 12 , the upper center of the moving table 13 is provided with a hole for the upright column 12 to pass through vertically, and the inner wall of the hole is provided with a slot with an L-shaped cross section. 17. Two sets of U-structured fixing plates 21 are arranged symmetrically in the interior of the upright column 12. The fixing plates 21 are elastically installed with clamping rods 18, and the clamping rods 18 are arranged horizontally and away from one end of the fixing plate 21. Passing through the column wall of the upright column 12 and extending to the outside, and engaging with the card slot 17, the clamping rod 18 is symmetrically distributed with two sets of pull rods 20 on the upper and lower sides of one end of the rod wall inside the fixed plate 21, and the pull rods 20 pass through. The tie rod 20 is horizontally arranged, and one end close to the inner center of the upright column 12 is fixedly connected to the top end of the vertically arranged vertical rod, and the vertical rod is perpendicular to the tie rod 20 , and the bottom of the vertical rod protrudes into the interior of the pressing plate 11, the outer wall of the pressing plate 11 is provided with a moving groove 16, the bottom of the vertical rod is fixedly connected with the pull block 15, and passes through the moving groove 16. , and the power-on detection of the cloud sticker host is performed by moving the fixing mechanism 6 toward the charging port 3 .

Specifically, two sets of the pull blocks 15 are symmetrically distributed. By sliding the pull blocks 15, the clamping rods 18 are driven to move out along the interior of the clamping grooves 17. The pull blocks 15 are perpendicular to the vertical rods, and the two are L-shaped. .

Specifically, one end of the clamping rod 18 facing the inside of the fixing plate 21 is also fixedly connected to the second spring 19 , the second spring 19 is arranged horizontally, and the other end is fixedly connected to the inner wall of the fixing plate 21 , and the second spring 19 is parallel to the On the fixing plate 21 , the clamping rod 18 is pushed out of the upright post 12 by the elastic force of the second spring 19 .

Specifically, the bottom of the carrier plate 10 is embedded into the inside of the placement slot 9 , and the placement slot 9 is opened above the table top of the moving table 13 .

Specifically, the bottom of the carrier plate 10 is fixedly connected with a plurality of groups of first springs 8 arrayed inside the placement slot 9 . Since the carrier plate 10 and the placement slot 9 are elastically connected, the carrier plate 10 will have a certain toughness. .

Specifically, two side walls of the accommodating slot 1 are also provided with slots for placing the screw rod 5 in horizontally. The outer body is also sleeved with protruding blocks 14 arranged on both sides of the bottom of the mobile table 13. The protrusions 14 are provided with threaded holes for the screw rod 5 to pass through. The driving motor 7 drives the screw rod 5 to rotate, so that the mobile table 13. Slide laterally along the support table 2, saving time and effort.

Specifically, when the cloud sticker power-on detection device is in use, first place the cloud sticker host on the inner side of the carrier plate 10 of the mobile platform 13, and then press the upright column 12, the clamping rod 18 slides down along the card slot 17, When the clamping rod 18 is flush with the bottom of the clamping slot 17, the clamping rod 18 is pushed out by the elastic force of the second spring 19, the clamping rod 18 is limited and fixed, and the column 12 is fixed, and then the pressure plate 11 fixes the cloud sticker host, Since the carrier plate 10 is elastically connected with the placement slot 9, the carrier plate 10 will have a certain toughness to avoid damage caused by the pressing plate 11 pressing the cloud sticker host. The block 14 moves along the screw rod 5, and drives the mobile platform 13 to approach the vertical plate 4, so that the charging slot on the clamped cloud sticker host is plugged into the charging port 3, and the charging port 3 is connected to the power supply. Observe whether the cloud sticker host can be After normal charging, the reverse rotation of the screw rod 5 drives the cloud sticker host to move back to its original position, and relatively pulls two sets of pull blocks 15. The pull blocks 15 drive the pull rod 20 to move, and the pull rod 20 pulls the clamp rod 18 to retract the column. Inside 12, the clamping rod 18 leaves the clamping slot 17, the second spring 19 contracts, and then the upright column 12 can be moved up to remove the cloud sticker host. The power-on detection equipment of the cloud sticker has a reasonable structure, good detection effect and high efficiency. Can be widely used.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of its technical features, any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model, All should be included within the protection scope of the present invention.

Claims (6)

1. The utility model provides an circular telegram check out test set that cloud pasted, includes brace table (2), fixed establishment (6), driving motor (7) and riser (4), its characterized in that: the upper surface of the supporting table (2) is provided with a holding tank (1) in the middle, a vertical plate (4) is fixedly mounted on one side wall of the holding tank (1), the holding tank (1) is sealed by the vertical plate (4), a charging port (3) facing to a fixing mechanism (6) is further mounted on the vertical plate (4), the fixing mechanism (6) at least comprises a moving table (13), a pressing plate (11) and a bearing plate (10), the bearing plate (10) and the pressing plate (11) are distributed in parallel, the pressing plate (11) is arranged above the bearing plate (10), the bearing plate (10) is elastically arranged, the upper surface of the pressing plate (11) is vertically and fixedly connected with a stand column (12) in the middle, a hole for the stand column (12) to vertically pass through is formed in the middle of the upper part of the moving table (13), a clamping groove (17) with an L-shaped section is formed in the inner wall of the hole, and two groups of fixing plates (21) with U, a clamping rod (18) is elastically installed on the fixing plate (21), the clamping rod (18) is horizontally arranged, and one end far away from the fixed plate (21) passes through the column wall of the upright column (12) and extends to the outside, and is adaptive and clamped with the clamping groove (17), two groups of pull rods (20) are symmetrically distributed on the upper side and the lower side of the rod wall of one end of the clamping rod (18) in the fixed plate (21), the pull rods (20) penetrate through the plate wall of the fixed plate (21), and transversely slides along the fixed plate (21), the pull rod (20) is horizontally arranged, and one end of the upright post (12) close to the middle part inside is fixedly connected with the top end of a vertical post which is vertically arranged, the vertical post is vertical to the pull rod (20), the bottom of the vertical rod extends into the pressing plate (11), the outer wall of the pressing plate (11) is provided with a moving groove (16), the bottom of the vertical rod is fixedly connected with the pulling block (15) and passes through the moving groove (16) to slide along the transverse direction of the moving groove.

2. The cloud-attached energization detecting device according to claim 1, wherein: draw piece (15) symmetric distribution to be provided with two sets ofly, draw piece (15) through the slip, drive kelly (18) and follow inside the shifting out of draw-in groove (17), draw piece (15) perpendicular to montant, the constitution shape between them is L shape.

3. The cloud-attached energization detecting device according to claim 1, wherein: one end of the clamping rod (18) facing the inside of the fixing plate (21) is fixedly connected with a second spring (19), the second spring (19) is horizontally arranged, the other end of the clamping rod is fixedly connected with the inner wall of the fixing plate (21), and the second spring (19) is parallel to the fixing plate (21).

4. The cloud-attached energization detecting device according to claim 1, wherein: the bottom of the bearing plate (10) is embedded into the placing groove (9), and the placing groove (9) is arranged above the table top of the mobile table (13).

5. The cloud-attached energization detecting device according to claim 1, wherein: the bottom of the bearing plate (10) is fixedly connected with a plurality of groups of first springs (8) which are distributed in the placing groove (9) in an array mode.

6. The cloud-attached energization detecting device according to claim 1, wherein: the groove that supplies lead screw (5) to put into is seted up to the level still on the both sides wall of holding tank (1), lead screw (5) link to each other with driving motor (7) of fixed mounting in brace table (2) outside, and the outer body of lead screw (5) still overlaps and is equipped with protrusion setting lug (14) in mobile station (13) bottom both sides, sets up the screw hole that supplies lead screw (5) to pass on lug (14).
