The utility model discloses a multifunctional air conditioner outdoor unit protection device, which comprises a shell and a fixed frame, wherein the fixed frame is fixed on the rear side surface of the shell, the shell comprises a rain baffle and a movable door which are fixedly arranged at the top of the shell, the movable door is provided with a vent, and a movable plate is arranged on the outer side of the vent; the bottom in the shell is provided with a mounting frame, and an air conditioner external unit is fixedly arranged on the mounting frame; a second sliding groove is formed in the bottom in the shell, a second pulley is arranged in the second sliding groove, and a second rotating shaft coaxially connected with the second pulley is arranged at one end of the mounting frame; the outer side of the movable door is provided with a lock catch. The utility model aims at providing this need not to open protector can freely ventilate, makes things convenient for workman's maintenance, the outer quick-witted protector of multi-functional air conditioner that protecting effect is good.
Description
Technical Field
The utility model belongs to outer quick-witted installation field of air conditioner, especially an outer quick-witted protector of multi-functional air conditioner.
Background
The outdoor unit of the air conditioner is installed outdoors and is subjected to wind and rain. And when the outer machine of air conditioner broke down, needed the workman to climb to installation department from the floor outside and maintain, because the outer machine of air conditioner generally installs in the wall body outside through the mount, the unable foot that falls during workman's maintenance, maintenance operation is very inconvenient, now urgently needs a multi-functional outer machine of air conditioner protection device. The protection device of the existing air conditioner external unit is generally a sealing structure, when the external unit works, the protection device needs to be opened to expose the external unit, and the external unit still has no protection effect if severe weather occurs. And when outer machine trouble, the workman has the workman to fall the foot point in the protector, and the workman still need just carry out the dismouting operation to the protection, makes the maintenance operation inconvenient.
SUMMERY OF THE UTILITY MODEL
For solving the not enough of prior art, the utility model aims at providing this kind need not to open protector can freely ventilate, makes things convenient for workman's maintenance, the outer quick-witted protector of multi-functional air conditioner that protecting effect is good.
In order to achieve the above object, the utility model adopts the following technical scheme:
the multifunctional air conditioner outdoor unit protection device comprises a shell and a fixed frame, wherein the fixed frame is fixed on the rear side surface of the shell, the shell comprises a rain baffle and a movable door which are fixedly arranged at the top of the shell, a vent is formed in the movable door, and a movable plate is arranged on the outer side of the vent; the bottom in the shell is provided with a mounting frame, and an air conditioner external unit is fixedly arranged on the mounting frame; a second sliding groove is formed in the bottom in the shell, a second pulley is arranged in the second sliding groove, and a second rotating shaft coaxially connected with the second pulley is arranged at one end of the mounting frame; the outer side of the movable door is provided with a lock catch.
Preferably, the rain baffle is further provided with a rain guide groove.
Preferably, one end of the movable plate is fixed on the movable door through a third rotating shaft, a gear is coaxially arranged on the third rotating shaft, and the gear is connected with the output end of the motor through a screw rod.
Preferably, an isolation net is arranged on the inner side of the ventilation opening.
Preferably, the upper portion is equipped with first spout in the casing, is equipped with first pulley in the first spout, the dodge gate upper end is provided with the first pivot with first pulley coaxial coupling.
Preferably, a pedal is arranged below the shell and fixedly connected to the bottom of the shell through a telescopic rod.
Preferably, the telescopic rod is provided with a locking device.
Preferably, the air conditioner external unit is fixedly arranged on the mounting frame through a spring cushion block.
Preferably, the middle part of one end of the mounting frame, which is close to the second pulley, is fixedly connected with a T-shaped connecting block, a third chute is formed in the bottom surface of the casing, which corresponds to the T-shaped connecting block, and the T-shaped connecting block is clamped in the third chute
Compared with the prior art, the utility model discloses the beneficial effect who has does:
1. the upper end of the movable door is provided with a first rotating shaft coaxially connected with the first pulley, so that the movable door can be lifted upwards along the first sliding groove and clamped in the first sliding groove, namely, the movable door is in an open state when clamped in the first sliding groove, and convenience is provided for maintenance of an air conditioner outdoor unit.
2. The third rotating shaft is coaxially provided with a gear, the gear is connected with the output end of the motor through a screw rod, the positive and negative rotation of the motor can be transmitted to the third rotating shaft through the screw rod and the gear, and then the movable plate is driven to rotate through the third rotating shaft, so that the opening and closing operation of the ventilation opening is realized.
3. The inner side of the ventilation opening is provided with the isolation net, so that sundries can be effectively prevented from entering the shell.
4. When the air conditioner outdoor unit breaks down and needs to be maintained by workers, the pedal can be pulled out from the bottom of the shell through the telescopic rod, and a foot-falling platform is provided for the maintenance operation of the workers; be equipped with locking device on the telescopic link, can prevent effectively that the telescopic link from taking place the slip phenomenon, effectively improved the security of workman maintenance operation on the footboard.
5. The second pulley that sets up through the second spout can drive the mounting bracket and slide in the second spout, and when the outer machine of needs maintenance air conditioner, can pull out the mounting bracket outside the dodge gate pull-out casing through opening through the cooperation of second pulley and second spout, has made things convenient for maintenance personal's maintenance operation.
6. T nature connecting block card is established in the third spout, can prevent that the mounting bracket from pulling out when the casing is external, because the phenomenon of toppling takes place for the action of gravity mounting bracket, has effectively guaranteed the structural stability of mounting bracket.
Drawings

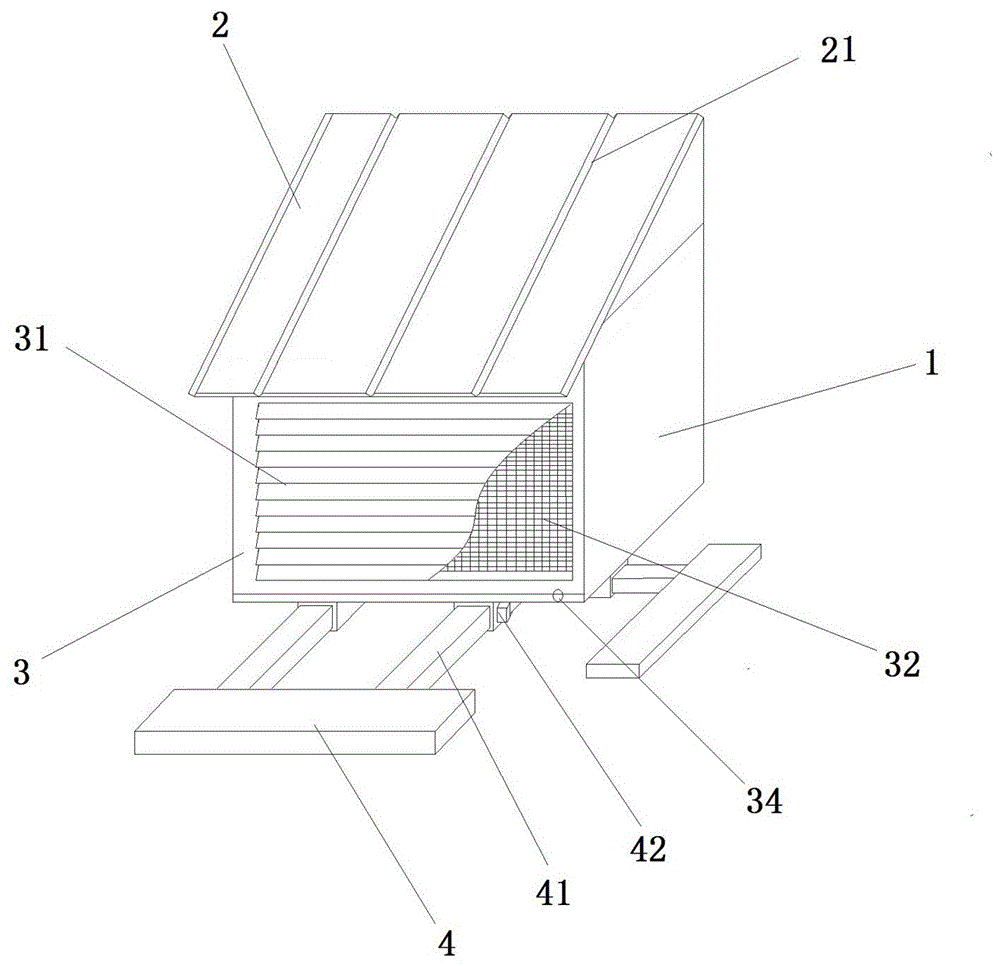

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the mounting rack of the present invention;
fig. 3 is a top view of the mounting bracket of the present invention;
fig. 4 is a schematic view of the structure of the movable door of the present invention.
Detailed Description
As shown in fig. 1 to 4, the multifunctional air conditioner external unit protection device comprises a casing 1 and a fixing frame 7, wherein the fixing frame 7 is fixed on the rear side surface of the casing 1, and the casing 1 is fixed on an external wall body through the fixing frame 7. The shell 1 comprises a rain baffle 2 and a movable door 3 which are fixedly arranged at the top of the shell 1, and a rain guide groove 21 is also formed in the rain baffle 2 and plays a role in guiding rainwater. The upper portion is equipped with first spout 11 in the casing 1, is equipped with first pulley 33 in the first spout 11, and the upper end of dodge gate 3 is provided with the first pivot with first pulley 33 coaxial coupling, makes dodge gate 3 can upwards lift and the joint in first spout 11 along first spout 11, is the open mode when the joint of dodge gate 3 is in first spout 11 promptly, provides convenience for the maintenance of the outer machine 6 of air conditioner. The outer side of the movable door 3 is provided with a lock catch 34 for locking the movable door 3.
The movable door 3 is provided with a vent, a movable plate 31 is arranged on the outer side of the vent, and one end of the movable plate 31 is fixed on the movable door 3 through a third rotating shaft, so that the vent is closed by the movable plate 31 in a shutter structure when the movable plate 31 is closed. The gear 35 is coaxially arranged on the third rotating shaft, the gear 35 is connected with the output end of the motor 37 through the screw rod 36, the forward and reverse rotation of the motor 37 can be transmitted to the third rotating shaft through the screw rod 36 and the gear 35, and then the movable plate 31 is driven to rotate through the third rotating shaft, so that the opening and closing operation of the ventilation opening is realized. The inner side of the ventilation opening is provided with an isolation net 32 which can effectively prevent sundries from entering the shell 1.
The pedal 4 is arranged below the shell 1, the pedal 4 is fixedly connected to the bottom of the shell 1 through the telescopic rod 41, and when the air conditioner external unit 6 breaks down and needs to be maintained by workers, the pedal 4 can be pulled out of the bottom of the shell 1 through the telescopic rod 41, so that a foot-falling platform is provided for the maintenance operation of the workers; the locking device 42 is arranged on the telescopic rod 41, so that the telescopic rod 41 can be effectively prevented from sliding, and the safety of maintenance operation of workers on the pedal 4 is effectively improved.
Be equipped with mounting bracket 5 on the bottom in the casing 1, outer machine 6 of air conditioner sets firmly on mounting bracket 5 through spring cushion 52, can reduce the vibration transmission of outer machine 6 during operation of air conditioner to casing 1 on, increase casing 1's stability. Bottom is equipped with second spout 12 in casing 1, be equipped with second pulley 51 in the second spout 12, the one end of mounting bracket 5 is provided with the second pivot with second pulley 51 coaxial coupling, second pulley 51 through setting up in the second spout 12 can drive mounting bracket 5 and slide in second spout 12, when the outer machine 6 of needs maintenance air conditioner, can be through the cooperation of second pulley 51 with second spout 12, pull out mounting bracket 5 outside casing 1 is pulled out through the dodge gate 3 of opening, maintenance personnel's maintenance operation has been made things convenient for. Mounting bracket 5 is close to second pulley 51's one end middle part fixedly connected with T type connecting block 53, has seted up third spout 13 on the bottom surface in the casing 1 that corresponds the position with T type connecting block 53, and T nature connecting block card is established in third spout 13, can prevent that mounting bracket 5 from pulling out casing 1 when outer, because the phenomenon of toppling takes place for gravity action mounting bracket 5, has effectively guaranteed mounting bracket 5's structural stability.
Use the utility model discloses the time, when the outer machine 6 during operation of air conditioner, starter motor 37, control fly leaf 31 rotates to horizontal position, makes the vent be in the open mode, makes things convenient for the outer machine 6 ventilation of air conditioner. When the air conditioner outdoor unit 6 stops, the motor 37 rotates reversely to control the movable plate 31 to rotate reversely to a closed state, so that the air conditioner outdoor unit 6 is protected. When the air conditioner outdoor unit 6 fails, a worker with safety protection equipment pulls the pedal 4 out of the bottom of the shell 1 at the installation position, the telescopic rod 41 is locked and fixed through the locking device 42, and the pedal 4 provides a foot landing point for the worker; the movable door 3 is upwards lifted and clamped in the first sliding groove, and then the air conditioner external unit 6 on the mounting frame 5 is pulled out for maintenance, so that the maintenance operation of workers is greatly facilitated.
Claims (9)
1. The utility model provides an outer quick-witted protector of multi-functional air conditioner, includes casing and mount, the mount is fixed at casing trailing flank, its characterized in that: the shell comprises a rain baffle and a movable door which are fixedly arranged at the top of the shell, the movable door is provided with a vent, and a movable plate is arranged on the outer side of the vent; the bottom in the shell is provided with a mounting frame, and an air conditioner external unit is fixedly arranged on the mounting frame; a second sliding groove is formed in the bottom in the shell, a second pulley is arranged in the second sliding groove, and a second rotating shaft coaxially connected with the second pulley is arranged at one end of the mounting frame; the outer side of the movable door is provided with a lock catch.
2. The protector for an outdoor unit of a multifunctional air conditioner as claimed in claim 1, wherein: the rain baffle is also provided with a rain guide groove.
3. The protector for an outdoor unit of a multifunctional air conditioner as claimed in claim 1, wherein: one end of the movable plate is fixed on the movable door through a third rotating shaft, a gear is coaxially arranged on the third rotating shaft, and the gear is connected with the output end of the motor through a screw rod.
4. The outdoor unit protector of claim 3, wherein: and an isolation net is arranged on the inner side of the ventilation opening.
5. The protector for outdoor unit of multifunctional air conditioner as claimed in claim 4, wherein: the upper portion is equipped with first spout in the casing, is equipped with first pulley in the first spout, the dodge gate upper end is provided with the first pivot with first pulley coaxial coupling.
6. The protector for an outdoor unit of a multifunctional air conditioner as claimed in claim 1, wherein: the pedal is arranged below the shell and fixedly connected to the bottom of the shell through a telescopic rod.
7. The protector for outdoor unit of air conditioner as claimed in claim 6, wherein: and the telescopic rod is provided with a locking device.
8. The protector for an outdoor unit of a multifunctional air conditioner as claimed in claim 1, wherein: the air conditioner outer unit is fixedly arranged on the mounting frame through the spring cushion block.
9. The protector for an outdoor unit of a multifunctional air conditioner as claimed in claim 1, wherein: the mounting bracket is close to the one end middle part fixedly connected with T type connecting block of second pulley, has seted up the third spout on the bottom surface in the casing of T type connecting block corresponding position, and T nature connecting block card is established in the third spout.
