Abstract

The utility model relates to a hanging file folder, which relates to the technical field of office supplies. The problem to be solved is to provide a file file that can be hung beside a computer screen to improve the office efficiency of users. The main technical scheme is: a hanging fixing device, which It includes a fixing device with a fixing surface and a flexible bracket, the fixing surface is a soft material; a file display board is connected with the fixing device through the flexible bracket; a file holding device is connected with the file display board. The utility model is mainly used for users to read files.

Description

A hanging display folder and its hanging fixing device

technical field

The utility model belongs to the technical field of office supplies, in particular to a hanging display folder.

Background technique

The use of computers has greatly improved the efficiency of people's production and life. When the office people use computers to process a large amount of information and materials, they always inevitably look at the materials and then tap the keyboard a few times, which makes people frequently bow their heads and look up. Browsing between the desktop and the computer screen not only makes people dizzy, but also reduces work efficiency more easily. If you can hang the paper materials in your hand next to the computer screen, it is bound to greatly improve the office efficiency.

There are many folders in the prior art. For example, Chinese patent CN207549786U discloses a multifunctional teaching file holder. However, even if the extension rod 16 and the fixed column 17 are changed to flexible brackets, they cannot be directly used as a computer monitor folder. In addition, there are also literature reports that it is specially used as a computer monitor folder. For example, China CN20092027674 discloses a liquid crystal display folder, but it needs to connect a universal wheel to the display screen, which will cause damage to the display screen, especially the notebook display screen, and the user Unwilling to accept it; Chinese patent CN105318166A discloses a fixed folder installed on the display, however, its complex structure also requires structures such as slide rails, and cannot be flexibly adjusted according to the weight of the paper and the degree of fastening to the display.

SUMMARY OF THE INVENTION

In view of this, the embodiments of the present invention provide a hanging display folder, the main purpose of which is to provide a folder that can be hung next to the computer screen, so as to improve the office efficiency of the user.

To achieve the above object, the utility model mainly provides the following technical solutions:

The embodiment of the present utility model provides a hanging display folder, including:

A suspension fixing device, which includes a fixing device with a fixing surface and a bendable bracket, and the fixing surface is a soft material;

a file display board, connected with the fixing device through a bendable bracket;

The file holding device is connected with the file display board.

As mentioned above, the fixing device includes a rigid area connected with the bendable bracket, an elastic area connected with the rigid area and can be bent at will, and a first lock for locking and fixing the rigid area Fastening parts;

The rigid area is a first snap groove, a plurality of elastic slits are arranged on the elastic area, and the fixing surface is arranged on the inner surface of the first snap groove and the inner surface of the slit.

As mentioned above, the fixing device includes a second slot connected to the flexible bracket and a second locking fixture for locking and fixing the second slot, and the fixing surface is provided on the first slot. on the inner surface of the second card slot.

As mentioned above, the second card slot is a horizontal card slot or a vertical card slot or a corner card slot.

As mentioned above, the bendable stent includes a metal inner core and a rubber layer surrounding the metal inner core.

As mentioned above, the metal inner core is a flexible and bendable aluminum alloy material.

As mentioned above, the document display board is made of hard plastic material.

As mentioned above, the file holding device includes a fixed shaft fixed on the file display board and a clip connected with the fixed shaft through an elastic connecting piece and can rotate 360 degrees on the fixed shaft.

As mentioned above, the document display board is provided with an iron core layer, and the clips are clips with magnets.

As mentioned above, the folder holding device is a folder.

The utility model also provides a hanging display folder, comprising:

The second fixing device 41, the second fixing device 41 is provided with a plurality of connecting female grooves 411; the second flexible bracket 42, the second flexible bracket 42 includes the connection line 421 and the connection between the two ends of the connection line 421 A male groove 422 , the connecting male groove 422 can be inserted into the connecting female groove 411 .

When the document to be clamped is not too heavy, the second flexible bracket 42 is one.

When the document to be clamped is heavy, the number of the second flexible brackets 42 is three.

The connecting male groove 422 and the connecting female groove 411 of the present invention both have metal groove walls, wherein the metal groove wall of the connecting female groove 411 is embedded in the groove, and the metal groove wall of the connecting male groove 422 is exposed outside; the connecting male groove 422 The interior includes male slot inserts, and the connecting female slot 411 includes female slot inserts inside; the connecting male slot 422 and the metal slot walls of the connecting female slot 411 are both provided with elastic pieces.

The connecting female slot 411 and the connecting male slot 422 of the present invention are selected from a USB interface, a MICRO-USB, and a type-C interface.

The beneficial effect of the present utility model is that, by setting the hanging fixing device including a fixing device with a fixing surface and a flexible bracket, and setting the fixing surface to be a soft material, the document display board is connected with the fixing device through the flexible bracket, so that the utility model has the advantages of When the new type is fixed on a fragile product like a monitor, it can prevent the fixing device from damaging the monitor, and the user can freely bend the angle of the file display board through the flexible bracket according to their own needs, which is convenient for the user to use and provides the user's office efficiency. In addition, the unique design of the second fixing device 41 and the second flexible bracket 42 for the display screen enables the user to flexibly adjust according to the weight of the paper and the degree of tightening of the display screen, and the operation is simple and does not affect the display screen. screen damage.

Description of drawings

1 is a schematic structural diagram of a hanging display folder provided by an embodiment of the present invention;

2 is a front view of the structure of a fixing device provided by an embodiment of the present invention;

3 is an expanded view of the structure of a fixing device provided by an embodiment of the present invention;

4 is a schematic structural diagram of another fixing device provided by an embodiment of the present invention;

5 is a schematic structural diagram of another fixing device provided by an embodiment of the present invention;

6 is a schematic structural diagram of another fixing device provided by an embodiment of the present invention;

7 is a schematic structural diagram of a second curved support provided by an embodiment of the present invention;

FIG. 8 is a schematic diagram of clamping a lighter document provided by an embodiment of the present invention;

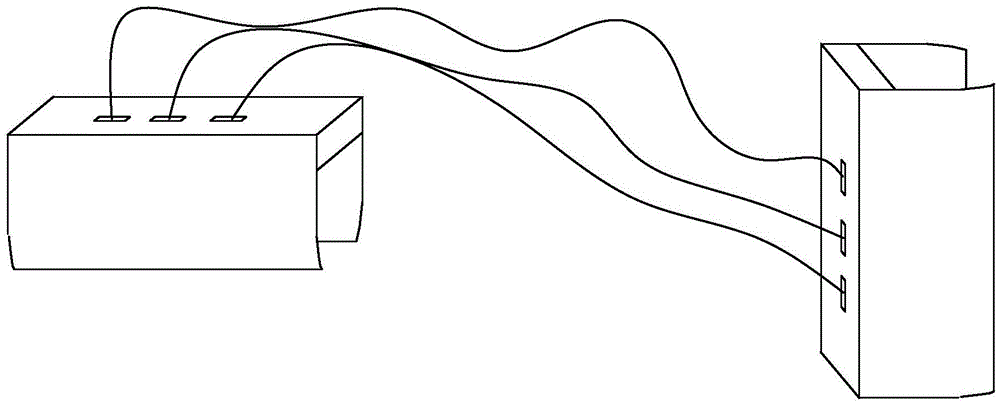

9 is a schematic diagram of clamping a heavier document provided by an embodiment of the present invention;

10 is a top view of the connecting male groove provided by the embodiment of the present invention;

11 is a top view of a connection female groove provided by an embodiment of the present invention;

12 is a schematic structural diagram of another fixing device provided by an embodiment of the present invention;

Detailed ways

As shown in FIG. 1, an embodiment of the present invention provides a hanging display file folder, which includes: a hanging fixing device 1, a file display board 2 and a file holding device 3, wherein,

As shown in FIG. 1 to FIG. 5 , the hanging fixing device 1 includes a fixing device 11 having a fixing surface 111 and a flexible bracket 12 , and the fixing device 11 is fixed on the display 4 or the desktop or other suitable fixing devices 11 to be fixed. When the fixing device is fixed on the display 4 or the desktop, the fixing surface 111 is in contact with the display 4 or the desktop. Specifically, the fixing device 11 may be a structure enclosing both corners of the display. As shown in FIG. 2 and FIG. 3 , the fixing device 11 includes a rigid area 112 connected to the bendable bracket 12 , which is connected to the flexible bracket 12 . The rigid area 112 is connected to an elastic area 113 that can be bent at will and a first locking fixture 114 for locking and fixing the rigid area, wherein the rigid area 112 is a first slot, the elastic The area 113 is provided with a plurality of elastic gaps 1131, the fixing surface 111 is arranged on the inner surface of the first slot and the inner surface of the gap 1131, and the first locking and fixing member 114 is For locking the bolt, the first locking and fixing member 114 is connected with the first card slot through a screw thread. The fixing device 11 can also be other structures, for example, the fixing device 11 can also be a structure fixed on the horizontal side of the display or the vertical side of the display or the corner of the display, specifically, as shown in FIG. 4 and FIG. 5 . , the fixing device 11 includes a second slot 115 connected to the flexible bracket 12 and a second locking member 116 for locking and fixing the second slot 115, the fixing surface 111 is arranged on the On the inner surface of the second slot 115, the second slot 115 is a horizontal slot, a vertical slot or a corner slot, and the second locking member 116 is a locking bolt. The second locking and fixing member 116 and the second locking groove 115 are connected by screws. Of course, the fixing device can also be other structures, and the specific embodiments of the present invention are not limited to this, as long as it can fix the file display board on the monitor or the desk or other fixed objects through the flexible bracket The protection scope of the embodiments of the present invention. The bendable bracket 12 includes a metal inner core (not shown in the figure) and a rubber layer (not shown in the figure) surrounding the metal inner core, wherein the metal inner core is made of a flexible and bendable aluminum alloy material.

As shown in FIG. 1 , the document display board 2 is connected to the fixing device 11 through a bendable bracket 12. Specifically, the document display board 2 is made of hard plastic material. Of course, the document display board 2 can also be a file display board of other materials. For example, the document display board 2 can also be a file display board with an iron core layer inside, which is not limited by the specific embodiment of the present invention, as long as it can place documents, it belongs to the protection scope of the embodiment of the present invention.

As shown in FIG. 1 , the file holding device 3 is connected to the file display board 2. Specifically, the file holding device 3 includes a fixed shaft 31 fixed on the file display board 2 and an elastic connecting piece. (not shown in the figure) a clip 32 that is connected to the fixed shaft 31 and can be rotated 360 degrees on the fixed shaft 31. When the document display board 2 is a file display board with an iron core layer inside, the clip The piece 32 is a clip with a magnet. Of course, the folder holding device 3 can also have other structures. For example, in order to reduce the production cost of the present invention and facilitate the flexible use of the user, the folder holding device 3 can also be a folder. Restriction, as long as it can hold documents, it belongs to the protection scope of the embodiments of the present invention.

In the embodiment of the present utility model, the suspension fixing device includes a fixing device with a fixing surface and a flexible bracket, and the fixing surface is made of soft material, and the document display board is connected with the fixing device through the flexible bracket, so that the utility model is fixed on the When mounted on a fragile product such as a monitor, it can prevent the fixing device from damaging the monitor, and the user can freely bend the angle of the file display board through the bendable bracket according to his own needs, which is convenient for the user to use.

As shown in FIG. 6 , the fixing device 41 is an elastic clip, and the materials for preparing the elastic clip include but are not limited to metal or polymer material wrapping the elastic sheet of the metal frame, the open end of which can clamp the edge of the liquid crystal display screen (preferably a notebook computer). In order to clamp liquid crystal displays or documents of different thicknesses, it is a conventional choice to adjust the effective clamping thickness of the fixing device 41, which is not limited in the present invention, such as the clamping of two fixing devices 41. The thickness is 0.5-1CM and 1-1.5CM respectively. Continuing to refer to FIG. 6 , it can be seen that the ridge or the top of the cross-section of the fixing device 41 is provided with a plurality of connecting female grooves 411 , and in some embodiments, they can also be provided at other positions individually or simultaneously. As shown in FIG. 7 , the second bendable bracket 42 includes connecting wires 421 and connecting male grooves 422 at both ends, wherein the connecting wires 421 are selected from a metal inner core (not shown in the figure) and a rubber layer (not shown in the figure) wrapping the metal inner core not shown), wherein the metal inner core is a flexible and bendable aluminum alloy material. As shown in FIG. 8 , when the document to be clamped is not too heavy, such as A4 paper under 5 pages, only one second flexible bracket 42 can be used. When in use, the fixing device 41 on the left can clamp the document, and the fixing device 41 on the right can clamp the document. The device 41 can be clamped on the liquid crystal display screen, and then the connecting male grooves 422 at both ends of the connection line 421 can be inserted into the connecting female grooves 411 of the left and right fixing devices 41 respectively. Therefore, this connection method is simple, does not damage the liquid crystal display screen, and has a compact and reasonable structure.

As shown in FIG. 9 , when the document to be clamped is heavy, such as 100 pages of A4 paper, three second flexible brackets 42 can be used, which can quickly strengthen the supporting force without major adjustment.

Both the connecting male groove 422 and the connecting female groove 411 have metal groove walls that are nearly rectangular, wherein the metal groove wall of the connecting female groove 411 is embedded in the groove, and the metal groove wall of the connecting male groove 422 is exposed outside. As shown in FIG. 10 , the connecting male slot 422 includes a male slot insert, and as shown in FIG. 11 , the connecting female slot 411 includes a female slot insert. In order to make the connection male groove 422 and the connection female groove 411 more secure after being inserted, some elastic pieces can be arranged on the metal groove wall of the connection male groove 422 or the connection female groove 411. Further referring to FIG. Two elastic pieces 412 are provided on one side of the metal groove wall. The implementation of the elastic pieces 412 is not limited. In a preferred embodiment, the corresponding metal groove wall can be cut into a certain arc, and then the cut part can be protruded inward. Continuing to refer to FIG. 11 , the elastic piece 413 is arranged on the other side of the metal groove wall of the connecting female groove 411 . The above is only an exemplary description, and other structures that can ensure that the connecting male groove 422 is inserted into the connecting female groove 411 to be fastened and can be easily pulled out are all within the concept of the present invention. Mainstream data line interfaces such as USB and type-C interface are related structures for realizing socket clamping. Therefore, mainstream data line interfaces such as USB interface, MICRO-USB, and type-C interface are all used as a reference in the present invention to realize connecting male slots. 422 and connecting female groove 411. It should be pointed out that a certain data cable of a computer user, such as a type-C interface data cable, is bundled with the connection cable 421 and inserted into the connection female slot 411 with the type-C interface, which can be used as a display folder.

The above-mentioned embodiments are only the preferred embodiments of the present utility model to describe, and do not limit the scope of the present utility model. On the premise of not departing from the design spirit of the present utility model, those of ordinary skill in the art can make the technical solutions of the present utility model. Various deformations and improvements of the invention should fall within the protection scope determined by the claims of the present utility model.

Claims (7)

1. A hanging display file comprising:

the suspension fixing device comprises a fixing device with a fixing surface and a bendable bracket, wherein the fixing surface is made of soft materials; the bendable bracket comprises a metal inner core and a rubber layer wrapping the metal inner core; the fixing device is a structure for surrounding two corners of the display;

the file display board is connected with the fixing device through a bendable bracket;

the file clamping device is connected with the file display board; the file clamping device comprises a fixed shaft fixed on the file display board and a clamping piece which is connected with the fixed shaft through an elastic connecting piece and can rotate on the fixed shaft for 360 degrees;

the fixing device comprises a rigid area connected with the bendable bracket, an elastic area which is connected with the rigid area and can be bent freely, and a first locking fixing piece for locking and fixing the rigid area;

the rigid area is a first clamping groove, a plurality of elastic openings are formed in the elastic area, and the fixing surfaces are arranged on the inner surface of the first clamping groove and the inner surfaces of the openings;

the metal inner core is made of an aluminum alloy material which can be flexibly bent; the file display board is made of hard plastic;

an iron core layer is arranged in the file display board, and the clamping piece is a clamping piece with a magnet;

the document retaining device is a document clip.

2. A suspension fixing device of a suspension display file folder is characterized by comprising a fixing device with a fixing surface and a bendable bracket, wherein the fixing surface is made of soft materials; the bendable bracket comprises a metal inner core and a rubber layer wrapping the metal inner core; the fixing device is a structure for surrounding two corners of the display;

the fixing device comprises a rigid area connected with the bendable bracket, an elastic area which is connected with the rigid area and can be bent freely, and a first locking fixing piece for locking and fixing the rigid area;

the rigid area is a first clamping groove, a plurality of elastic openings are formed in the elastic area, and the fixing surfaces are arranged on the inner surface of the first clamping groove and the inner surfaces of the openings;

the metal inner core is made of aluminum alloy material which can be flexibly bent.

3. A hanging display file comprising:

the second fixing device (41), a plurality of connecting female slots (411) are arranged on the second fixing device (41);

the second bendable support (42), the second bendable support (42) include line (421) and connect public groove (422) at line (421) both ends, connect public groove (422) can insert in connect female groove (411).

4. A hanging display file according to claim 3, wherein said second bendable bracket (42) is one when the file to be held is light.

5. A hanging display file according to claim 3, wherein there are three of said second bendable brackets (42) when the file to be held is heavy.

6. A suspended display file as claimed in claim 3, characterized in that the male connecting slot (422) and the female connecting slot (411) each have a metal slot wall, wherein the metal slot wall of the female connecting slot (411) is embedded in the slot and the metal slot wall of the male connecting slot (422) is exposed to the outside; the connecting male slot (422) comprises a male slot inserting sheet, and the connecting female slot (411) comprises a female slot inserting sheet; and elastic sheets are arranged on the metal groove walls of the connecting male groove (422) and the connecting female groove (411).

7. A hanging display file according to claim 3, characterized in that the female connection slot (411) and the male connection slot (422) are selected from the group consisting of USB interface, MICRO-USB, type-C interface.
