Abstract

The utility model discloses a paediatrics clinical infusion protector, including fixed plate, dactylotheca, protection pad and buckle, one side fixedly connected with dactylotheca of fixed plate upper surface, the quantity of dactylotheca is five, the opposite side fixedly connected with protection pad of fixed plate upper surface, the equal fixedly connected with buckle in both sides of fixed plate, the quantity of buckle are two, one of them the fixed surface of buckle is connected with the rubber band, and one side fixedly connected with of fixed plate connects the rope, connects the one end fixedly connected with bandage that the fixed plate was kept away from to the rope. This pediatrics infusion protector can place infant's hand on the fixed plate through the cooperation setting between fixed plate, dactylotheca and the protection pad to the nurse of being convenient for infuses and pricks the needle, and the setting of protection pad can laminate infant's palm simultaneously, improves it and uses the travelling comfort, and through the cooperation between fixed plate, bandage and the magic subsides, can be in the same place fixed plate and arm are fixed through the bandage.

Description

Pediatric clinical transfusion protector
Technical Field
The utility model relates to the technical field of medical auxiliary equipment, specifically a pediatric clinical infusion protector.
Background
Infusion is also called infusion or water hanging, a large dose of injection is infused into a body by intravenous drip, infusion is a common method for treating diseases, infusion treatment is that a puncture needle is punctured into a hand of a patient, particularly, the needle is easy to be pricked and deviated for an unconscious infant patient due to the movement of the hand, the needle is directly thrown off when the arm is swung in the process of infusion sometimes, so that the infusion cannot be carried out, therefore, when the infant patient is infused, medical care personnel or family members of the patient must take care of the infusion to avoid accidents, so the labor intensity of nursing is greatly improved, the existing measures for protecting the infusion process are that the infant is prevented from moving disorderly by fixing the arm, but the infant feels great discomfort due to fixing the arm, therefore, under the condition that the arm movement of the infant is not hindered in the infusion process, it is particularly important that the needle is not thrown away.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a pediatric clinical infusion protector, which solves the problem of the prior art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a paediatrics clinical infusion protector, includes the fixed plate, one side fixedly connected with dactylotheca of fixed plate upper surface, the quantity of dactylotheca is five, the opposite side fixedly connected with protection pad of fixed plate upper surface, the equal fixedly connected with buckle in both sides of fixed plate, the quantity of buckle is two, one of them the fixed surface of buckle is connected with the rubber band, one side fixedly connected with of fixed plate connects the rope, the one end fixedly connected with bandage of fixed plate is kept away from to the connection rope.
Optionally, a fixing box is fixedly connected to the surface of the binding band.
Optionally, both ends of the binding band are fixedly connected with magic tapes.
Optionally, a fixed cylinder is clamped on the inner wall of the fixed box, and an infusion tube is fixedly connected to the inner wall of the fixed cylinder.
Optionally, the inner side wall of the fixed box is movably connected with a clamping block.
Optionally, one side of the clamping block is fixedly connected with a spring and a pulling block.
(III) advantageous effects
The utility model provides a paediatrics clinical infusion protector possesses following beneficial effect:
1. this pediatrics infusion protector can place infant's hand on the fixed plate through the cooperation setting between fixed plate, dactylotheca and the protection pad to the nurse of being convenient for infuses and pricks the needle, and infant's palm can be laminated to the setting of protection pad simultaneously, improves it and uses the travelling comfort.
2. This pediatrics infusion protector, through the cooperation between fixed plate, bandage and magic subsides, can be in the same place fixed plate and arm are fixed through the bandage, and through the cooperation setting between fixed box, fixture block, spring, pulling piece and the fixed cylinder, can carry out the joint through the fixture block with the fixed cylinder to the position of fixed transfer line, the device can make the infant can carry out waving of a small margin to the arm through the relative position between fixed transfer line and the palm, can not influence the effect of infusion yet.
Drawings

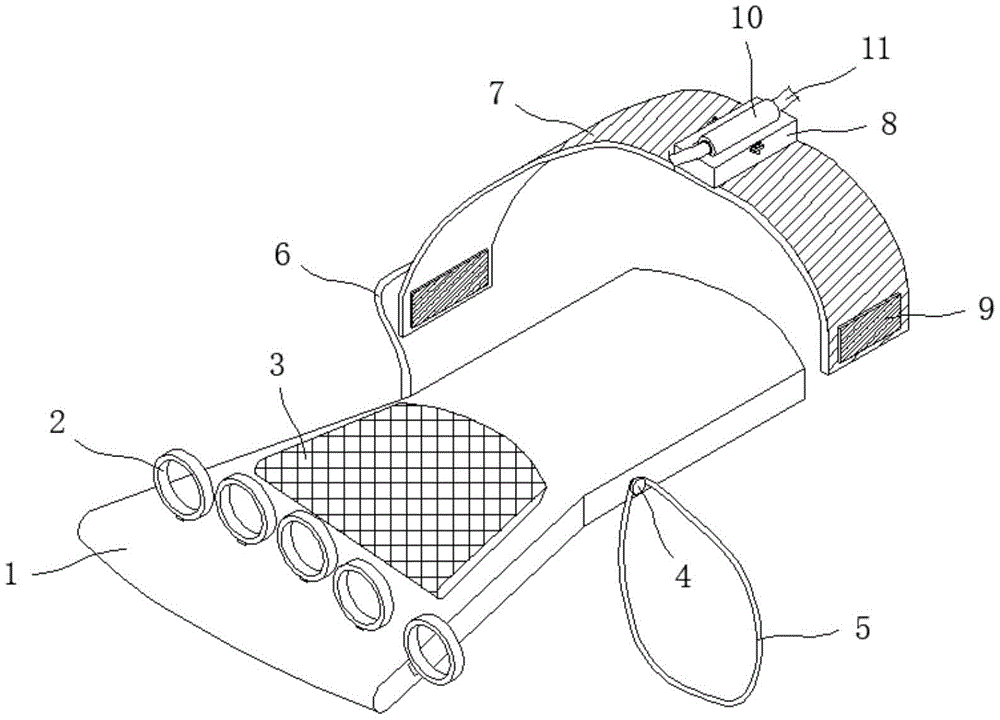

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the fixing cylinder of the present invention;
fig. 3 is a schematic structural view of the fixing box of the present invention;
fig. 4 is a schematic structural diagram of the fixture block of the present invention.
In the figure: 1. a fixing plate; 2. finger stall; 3. a pad; 4. buckling; 5. a rubber band; 6. connecting ropes; 7. binding bands; 8. a fixing box; 9. magic tape; 10. a fixed cylinder; 11. a transfusion tube; 12. a clamping block; 13. A spring; 14. and pulling the block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 4, the present invention provides a technical solution: a pediatric clinical infusion protector comprises a fixing plate 1, wherein one side of the upper surface of the fixing plate 1 is fixedly connected with finger sleeves 2, and the number of the finger sleeves 2 is five;
in order to facilitate the needle insertion of nurses, a protection pad 3 is fixedly connected to the other side of the upper surface of a fixing plate 1, the hands of infants can be placed on the fixing plate 1 through the matching arrangement of the fixing plate 1, a finger sleeve 2 and the protection pad 3, so that the nurses can conveniently perform the needle insertion for the infusion, meanwhile, the protection pad 3 can be arranged to be attached to the palms of the infants to improve the use comfort, two buckles 4 are fixedly connected to two sides of the fixing plate 1, a rubber band 5 is fixedly connected to the surface of one buckle 4, a connecting rope 6 is fixedly connected to one side of the fixing plate 1, a binding belt 7 is fixedly connected to one end, far away from the fixing plate 1, of the connecting rope 6, a fixing box 8 is fixedly connected to the surface of the binding belt 7, magic tapes 9 are fixedly connected to two ends of the binding belt 7, and through the matching between the fixing, the fixing plate 1 and the arm can be fixed together by the binding band 7;
in order to make the device can fix the relative position between the infusion tube 11 and the palm, and then make the infant can remove the arm, and do not influence going on of infusion, consequently there is a fixed cylinder 10 at the inner wall joint of fixed box 8, the inner wall fixedly connected with infusion tube 11 of fixed cylinder 10, the inside wall swing joint of fixed box 8 has a fixture block 12, one side fixedly connected with spring 13 and the pulling block 14 of fixture block 12, through fixed box 8, fixture block 12, spring 13, the cooperation setting between pulling block 14 and the fixed cylinder 10, can carry out the joint with fixed cylinder 10 through fixture block 12, thereby fix the position of infusion tube 11, the device passes through the relative position between fixed infusion tube 11 and the palm, can make the infant can carry out the waving of small-amplitude to the arm, also can not influence the effect of infusion.
In conclusion, when the pediatric clinical transfusion protector is used, the hands of infants can be placed on the fixing plate 1 through the matching arrangement among the fixing plate 1, the finger cot 2 and the protection pad 3, thereby facilitating the transfusion and needle insertion of nurses, meanwhile, the arrangement of the protective pad 3 can be attached to the palm of the infant, the use comfort is improved, through the matching among the fixing plate 1, the bandage 7 and the magic tape 9, the fixing plate 1 and the arm can be fixed together through the bandage 7, through the matching arrangement of the fixed box 8, the fixture block 12, the spring 13, the pulling block 14 and the fixed cylinder 10, the fixed cylinder 10 can be clamped through the fixture block 12, thereby fixing the position of the infusion tube 11, the device can enable the infant to swing the arm in a small range by fixing the relative position between the infusion tube 11 and the palm, and the infusion effect cannot be influenced.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims (6)

1. The utility model provides a paediatrics clinical infusion protector, includes fixed plate (1), its characterized in that: the utility model discloses a fixing device for the finger stall, including fixed plate (1), one side fixedly connected with dactylotheca (2) of fixed plate (1) upper surface, the quantity of dactylotheca (2) is five, opposite side fixedly connected with protection pad (3) of fixed plate (1) upper surface, the equal fixedly connected with buckle (4) in both sides of fixed plate (1), the quantity of buckle (4) is two, one of them the fixed surface of buckle (4) is connected with rubber band (5), one side fixedly connected with of fixed plate (1) connects rope (6), the one end fixedly connected with bandage (7) of fixed plate (1) are kept away from in connection rope (6).
2. The pediatric clinical infusion protector as defined in claim 1, wherein: the surface of the binding band (7) is fixedly connected with a fixing box (8).
3. The pediatric clinical infusion protector as defined in claim 1, wherein: both ends of the binding band (7) are fixedly connected with magic tapes (9).
4. The pediatric clinical infusion protector as defined in claim 2, wherein: the inner wall of the fixed box (8) is clamped with a fixed cylinder (10), and the inner wall of the fixed cylinder (10) is fixedly connected with an infusion tube (11).
5. The pediatric clinical infusion protector as defined in claim 2, wherein: the inner side wall of the fixed box (8) is movably connected with a clamping block (12).
6. The pediatric clinical infusion protector as defined in claim 5, wherein: one side of the clamping block (12) is fixedly connected with a spring (13) and a pulling block (14).
