CN211584425U - Degassing unit for internal medicine - Google Patents
Degassing unit for internal medicine Download PDFInfo
- Publication number
- CN211584425U CN211584425U CN201920847933.2U CN201920847933U CN211584425U CN 211584425 U CN211584425 U CN 211584425U CN 201920847933 U CN201920847933 U CN 201920847933U CN 211584425 U CN211584425 U CN 211584425U
- Authority
- CN
- China
- Prior art keywords
- ozone generator
- box
- vacuum pump
- ozone
- box body
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Apparatus For Disinfection Or Sterilisation (AREA)
Abstract
The utility model provides a pair of degassing unit for internal medicine, including box and ozone generator, set up ozone above the box and take place the room, ozone takes place indoor ozone generator that is equipped with, ozone generator outlet duct and box internal connection, the ozone generator next door sets up the vacuum pump, vacuum pump outlet duct and box external connection, vacuum pump intake pipe and box internal connection, and the box lower part sets up the stock solution room. The utility model discloses degassing unit for the internal medicine can utilize several rounds of evacuation to realize the inside adsorbed gas exchange of clothes to take out the inside germ of clothes and by thorough disinfection, utilize ozone generator to implement in good time disinfection, guaranteed operation clothing safety and sanitation, utilize moreover to spray the mechanism and to the inside thorough cleaning of device, made things convenient for the cleanness to device itself, solved the easy dirty problem of device itself, had extensive suitability in medical field.
Description
Technical Field
The utility model relates to the field of medical equipment, it is specific, the utility model relates to a disinfection device.
Background
The internal medicine operation is more, and the operation clothes all need to use through special disinfection. Most of the existing disinfection tools are clothes disinfection cabinets which are used for preparing disinfected and used clothes at the time of operation, and the existing clothes disinfection cabinets are tools for sterilizing and disinfecting underwear, underwear and other underclothes, outer coats, bedsheets, bedding, doctor working clothes, beauty and hairdressing tools, medical instruments and other articles in a low-temperature disinfection mode of ultraviolet rays and ozone. The appearance is generally cabinet case form, and the cabinet body most material is stainless steel. The disinfection cabinet is an electrical appliance product invented and created by China, and is widely applied to places such as families, hotels, schools, armies and the like.
However, the existing disinfection cabinet can not exchange gas, germs in pores of clothes can not be effectively killed, and a structure for cleaning the inside of the cabinet body is not provided, so that the viruses can be infected when the clothes are hung for a long time after disinfection is finished, and hidden troubles are caused to safe operations.
SUMMERY OF THE UTILITY MODEL
The utility model discloses can not carry out gas exchange to current sterilizer, can not effectively kill the germ in the clothing pore, and also do not have the structure to cabinet body the inside is clean for hang the clothing for a long time after the disinfection and still can cause the virus to infect, cause the technical problem of hidden danger for the operation, the utility model provides a degassing unit for internal medicine utilizes ozone generator to provide ozone and disinfects cleanly for the clothing, and the mechanism that utilizes the evacuation is through the cycle of several evacuation guarantee the clothing inside and outside all by thorough disinfection, can disinfect to degassing unit inside itself moreover, has extensive suitability in the medical field.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a pair of degassing unit for internal medicine, including box and ozone generator, set up ozone above the box and take place the room, ozone takes place indoor ozone generator that is equipped with, ozone generator outlet duct and box internal connection, the ozone generator next door sets up the vacuum pump, vacuum pump outlet duct and box external connection, vacuum pump intake pipe and box internal connection, and the box lower part sets up the stock solution room.
The utility model discloses in, the stock solution room is equipped with the admission pipe with the stock solution outside intercommunication, and the admission pipe stretches into stock solution room bottom.
The utility model discloses in, be equipped with the intercommunicating pore between stock solution room and the box.
The utility model discloses in, box upper portion is equipped with the shower nozzle, is equipped with the water pump in the stock solution room, and water pump and shower nozzle lead to pipe to be connected.
The utility model discloses in, be equipped with the outlet duct on the ozone generator, the outlet duct stretches into the bottom half, and the mouth of pipe of giving vent to anger is equipped with out the gas net.
In the utility model, the upper part of the box body is provided with a clothes rack.
The utility model discloses in, the liquid reserve room lateral wall is equipped with the lookout window.
The utility model discloses in, clothes hanger and box upper portion swing joint.
The utility model discloses in, be equipped with first solenoid valve in the vacuum pump intake pipe, be equipped with the second solenoid valve on the outlet duct.
In the utility model, the side wall of the ozone generating chamber is provided with an exhaust fan.
The utility model discloses a following beneficial effect has:
the utility model discloses degassing unit for the internal medicine can utilize several rounds of evacuation to realize the inside adsorbed gas exchange of clothes to take out the inside germ of clothes and by thorough disinfection, utilize ozone generator to implement in good time disinfection, guaranteed operation clothing safety and sanitation, utilize moreover to spray the mechanism and to the inside thorough cleaning of device, made things convenient for the cleanness to device itself, solved the easy dirty problem of device itself, had extensive suitability in medical field.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor.
Fig. 1 shows a schematic view of the three-dimensional structure of the present invention.

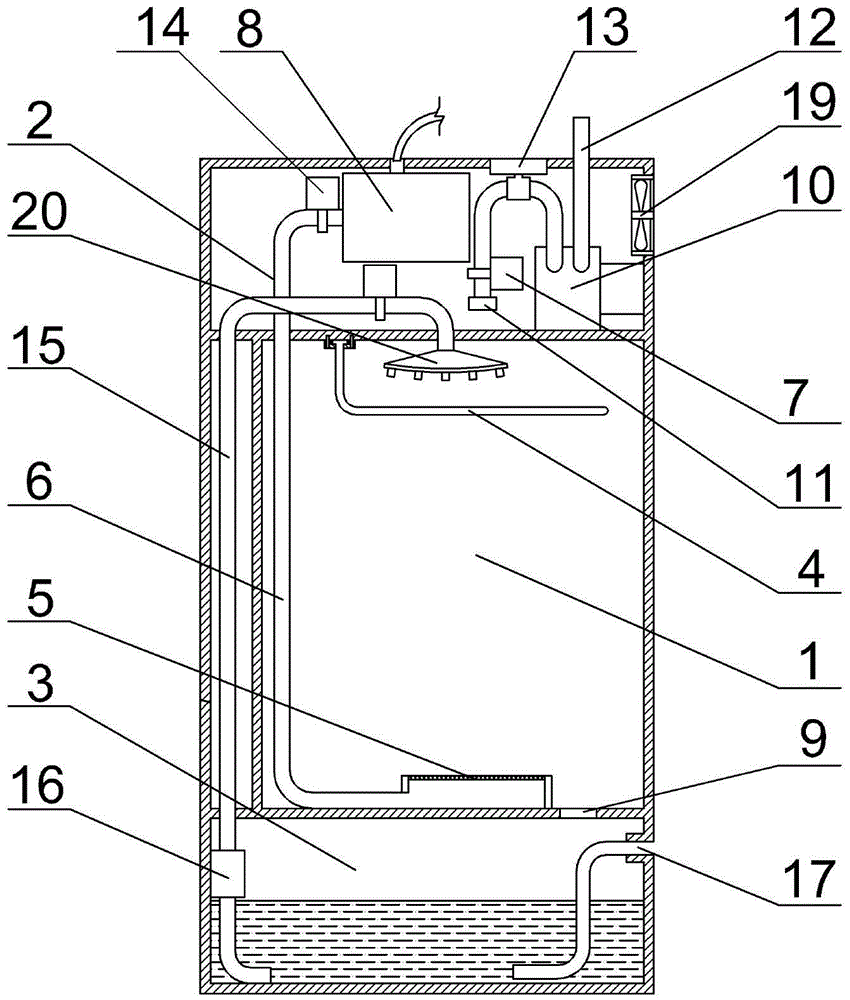

Fig. 2 is a schematic sectional view of the present invention.
In FIGS. 1-2: 1-box body, 2-ozone generating chamber, 3-liquid storage chamber, 4-clothes rack, 5-air outlet net, 6-air outlet pipe, 7-first electromagnetic valve, 8-ozone generator, 9-communicating hole, 10-vacuum pump, 11-vacuum pump air inlet pipe, 12-vacuum pump air outlet pipe, 13-barometer, 14-second electromagnetic valve, 15-water pipe, 16-water pump, 17-inlet pipe, 18-observation window, 19-exhaust fan, 20-nozzle, 21-sealing strip.
Detailed Description
The following description of the present invention will be made in further detail with reference to the accompanying drawings 1-2 and examples, but the present invention is not limited to the following examples.
In the present invention, for convenience of description, the description of the relative position relationship of the components of a medical disinfecting device is described according to the layout pattern of fig. 2, such as: the positional relationship of up, down, left, right, etc. is determined according to the layout direction of fig. 2.
The utility model discloses used box 1, ozone generation chamber 2, stock solution room 3, clothes hanger 4, play gas net 5, outlet duct 6, first solenoid valve 7, ozone generator 8, vacuum pump 10, vacuum pump intake pipe 11, vacuum pump outlet duct 12, barometer 13, second solenoid valve 14, outlet duct 6, water pump 16, admission pipe 17, watch out window 18, air discharge fan 19, shower nozzle 20, sealing strip 21 etc. can both purchase through the market approach and obtain. The ozone generator is a ceramic wafer type ozone generator of the type of the Chuangpu TCB66100 CLL.
The utility model provides a pair of degassing unit for internal medicine, including box 1 and ozone generator 8, set up ozone above the box 1 and take place room 2, ozone takes place to be equipped with ozone generator 8 in the room 2, ozone generator 8's outlet duct 6 and box 1 internal connection, and ozone generator 8 next door sets up vacuum pump 10, vacuum pump outlet duct 12 and box 1 external connection, vacuum pump intake pipe 11 and box 1 internal connection, and box 1 lower part sets up stock solution room 3.
The utility model discloses in, be equipped with barometer 13 on the vacuum pump outlet duct 12, be convenient for know the inside atmospheric pressure of box 1 directly perceivedly, avoid meeting accident.
The utility model discloses in, stock solution room 3 is equipped with the admission pipe 17 with 3 outside intercommunications in stock solution room, and admission pipe 17 stretches into 3 bottoms in stock solution room, realizes the inside adsorbed gas exchange of clothes
In the utility model, a communicating hole 9 is arranged between the liquid storage chamber 3 and the box body 1, which can be used for cleaning the seepage and maintaining the air pressure.
The utility model discloses in, 1 upper portion of box is equipped with shower nozzle 20, is equipped with water pump 16 in the stock solution room 3, and water pump 16 and shower nozzle 20 lead to pipe 15 to be connected, use shower nozzle 20 to disinfect to 1 inside of box.
The utility model discloses in, be equipped with outlet duct 6 on the ozone generator 8, outlet duct 6 stretches into 1 bottom of box, and 6 mouths of outlet duct are equipped with out gas net 5, can prevent that the foreign matter from blockking up outlet duct 6 when ozone is arranged.
The utility model discloses in, 1 upper portion of box is equipped with clothes hanger 4, is convenient for hang the clothing, prevents to pile up, promotes the disinfection effect.
The utility model discloses in, 3 lateral walls of stock solution room are equipped with and look out observation window 18, look out and establish 8 other scales that set up, can in time know the residual capacity of hydrogen peroxide solution antiseptic solution, are convenient for in time supply.
The utility model discloses in, clothes hanger 4 and 1 upper portion swing joint of box are convenient for hang the clothing through rotatory clothes hanger.
The utility model discloses in, be equipped with first solenoid valve 7 in the vacuum pump intake pipe 11, be equipped with second solenoid valve 14 on the outlet duct 6, intake pipe 11 and 6 gas leakage of outlet duct when preventing to take out the vacuum.
In the utility model, the side wall of the ozone generating chamber 2 is provided with an exhaust fan 19.
The utility model discloses in, vacuum pump 10 and 8 outsides of ozone generator are equipped with time relay, and time relay and external power source are connected.
The utility model discloses in, 1 lateral wall of box is equipped with the chamber door, is equipped with sealing strip 21 between chamber door and the box 1, and the time disinfection region forms sealed environment, prevents gas leakage, is convenient for realize the inside adsorbed gas exchange of clothes.
When being suitable for the utility model discloses during the device, hang the clothes that will disinfect in box 1, add low concentration hydrogen peroxide solution from 3 admission pipes 17 of stock solution room, ozone generator 8 power is opened and is constantly made ozone, input ozone to in the box 1, the clothes are disinfected in the box 1, disinfect one can the back, vacuum pump 10 is opened, bleed in to box 1, because liquid seal, the gas that is mingled with in the clothes can be taken out, it can be emitted from the hydrogen peroxide pond bottom to take out the certain time outside air, the air is through the disinfection and can not improve the interior oxygen concentration of box 1, it is infected with by mould to reduce the clothes, exhaust fan 19 above the ozone generation room 2 lasts and cools off ozone generator 8 and vacuum pump 10.
The utility model discloses can utilize ozone to disinfect to the clothes in the box, can also utilize hydrogen peroxide solution to disinfect and wash 1 inboard of box, can utilize liquid reserve room 3 to carry out filter sterilization to the air moreover, guarantee the clean sterile environment of clothing in the box 1, have extensive suitability in medical field.
The technical solutions provided by the embodiments of the present invention are described in detail above, and the principles and embodiments of the present invention are explained herein by using specific examples, and the descriptions of the above embodiments are only applicable to help understand the principles of the embodiments of the present invention; meanwhile, for a person skilled in the art, according to the embodiments of the present invention, there may be variations in the specific implementation manners and application ranges, and in summary, the content of the description should not be construed as a limitation to the present invention.
Claims (8)
1. The utility model provides a degassing unit for internal medicine, includes box and ozone generator, its characterized in that: the ozone generator is arranged on the box body, the ozone generator is arranged in the ozone generator, an air outlet pipe of the ozone generator is connected with the interior of the box body, a spray head is arranged on the upper portion of the box body, a water pump is arranged in the liquid storage chamber, the water pump is connected with the spray head through a water pipe, a vacuum pump is arranged beside the ozone generator, an air outlet pipe of the vacuum pump is connected with the exterior of the box body, an air inlet pipe of the vacuum pump is connected with the box body, the liquid storage chamber is arranged on the lower portion of the box body, an.
2. The medical sterilizing apparatus as set forth in claim 1, wherein a communication hole is provided between said reservoir and said case.
3. The medical disinfection device as claimed in claim 1, wherein the ozone generator is provided with an air outlet pipe, the air outlet pipe extends into the bottom of the box body, and an air outlet net is arranged at an opening of the air outlet pipe.
4. The medical sterilizing device as set forth in claim 1, wherein a clothes rack is provided on an upper portion of the case.
5. The medical disinfecting device of claim 1, wherein the side wall of the liquid storage chamber is provided with an observation window.
6. The medical disinfecting device of claim 4, wherein the clothes hanger is movably connected with the upper part of the box body.
7. The medical disinfection device as claimed in any one of claims 1, 4 and 5, wherein a first electromagnetic valve is arranged on the air inlet pipe of the vacuum pump, and a second electromagnetic valve is arranged on the air outlet pipe.
8. The medical sterilizing apparatus according to claim 1, wherein the ozone generating chamber has an exhaust fan on a side wall thereof.
