Abstract

The utility model is applicable to the technical field of lighting, and provides a night light, which comprises a base, a light-emitting element provided with a luminous body, a connecting piece, a lampshade and a face cover. In the accommodating space and sandwiched between the base and the connecting piece, the lampshade is sleeved on the connecting piece, the face cover and the connecting piece are snap-connected and the lampshade is fixed between the base and the face cover; the side of the connecting piece is provided with a reflective mirror surface The side of the lampshade is provided with a light-emitting area relatively spaced from the reflecting mirror surface, the light-emitting body is located between the reflecting mirror surface and the light-emitting area, and the reflecting mirror surface reflects the light beam of the light-emitting body to the light-emitting area. The night light provided by the utility model can be assembled without glue or screws, which is convenient for the disassembly and assembly of the night light, and the outer surface of the night light has no screws, the appearance of the product is neat, and the production process is simplified; The mirror surface reflects the light beam of the lamp bead to the lampshade, so that the light of the lampshade is uniform, and the user experience is improved.

Description

a night light

technical field

The utility model relates to the technical field of lighting, in particular to a night light.

Background technique

Night lights are mainly installed in aisles, doorways, bedsides, bedsides and other places for night lighting. With the continuous advancement of lighting technology, people have higher and higher requirements for the lighting effect and aesthetics of night lights.

In the prior art, the lampshade of the night light is usually fixed on the base by glue or screws, but if it is fixed by glue, it is inconvenient to disassemble and assemble the night light; The overall aesthetics is beautiful, and the number of screws required is large, the screws are cumbersome to screw, and it is inconvenient to disassemble and assemble the night light. If it is smaller, the brightness of the corresponding lamp bead position on the lampshade will be brighter than other positions, so that the light distribution on the lampshade will be uneven.

Utility model content

The utility model provides a night light, which aims to solve the problems of inconvenient disassembly and assembly of the prior art night light and uneven distribution of light on the lampshade.

The utility model is realized in this way, and provides a night light, which includes a base, a light-emitting element provided with a luminous body, a connecting piece, a lampshade and a face cover, the base is snap-connected with the connecting piece, and the base is connected with the connecting piece. An accommodating space is formed between the connecting pieces, the light-emitting element is arranged in the accommodating space and sandwiched between the base and the connecting piece, the lampshade is sleeved on the connecting piece, the The face cover is snap-connected with the connector and the lampshade is fixed between the base and the face cover;

The side surface of the connecting piece is provided with a reflective mirror surface, the side surface of the lampshade is provided with a light-emitting area relatively spaced from the reflective mirror surface, the illuminant is located between the reflective mirror surface and the light-emitting area, and the reflective mirror surface The light beam of the light-emitting body is reflected to the light-emitting area.

Preferably, the reflecting mirror surface is a circular arc mirror surface concave toward the center of the connecting piece.

Preferably, the reflecting mirror surfaces are distributed in a ring shape along the side surface of the connecting piece, the illuminating body is arranged around the reflecting mirror surface, and the light-emitting area is arranged around the illuminating body.

Preferably, the light-emitting element is a lamp bead circuit board, and the light-emitting body is a plurality of lamp beads arranged on the lamp bead circuit board.

Preferably, the light-emitting element is provided with a mounting surface perpendicular to the light-emitting region, and the light-emitting body is provided on the mounting surface.

Preferably, the bottom of the connecting piece is provided with an annular flange, the light-emitting element is sandwiched between the annular flange and the base, and the annular flange is provided with a passage corresponding to the position of the light-emitting body. a hole, and the light-emitting body is accommodated in the via hole.

Preferably, the base is provided with several buckle platforms, and the base is fastened to the annular flange through the buckle platforms.

Preferably, the top of the connector is provided with a plurality of snap grooves, the face cover is provided with a plurality of snaps matched with the snap grooves, and the face cover is connected to the connector through the snap buttons. The card slot is snap-connected.

Preferably, the top of the base is provided with a first limiting groove, the bottom of the lampshade is provided with a first limiting protrusion that cooperates with the first limiting groove, and the first limiting groove of the lampshade The protrusion is embedded in the first limiting groove of the base.

Preferably, the bottom of the face cover is provided with a second limit groove, the top of the lampshade is provided with a second limit protrusion matched with the second limit groove, and the second limit of the lampshade is provided with a second limit protrusion. The positioning protrusion is embedded in the second limiting groove of the surface cover.

The night light provided by the utility model is provided with a connecting piece, and the base, the light-emitting element, the connecting piece, the lampshade and the face cover of the night light are connected into one body through the connecting piece, and the lampshade is directly sleeved on the connecting piece and fixed on the base and the cover. Between the face covers, the entire night light can be assembled without glue or screws, which is convenient for the disassembly and assembly of the night light, and realizes screwless assembly, so that the outer surface of the night light has no screws, and the appearance of the product is clean and simplified. At the same time, by setting the reflective mirror surface on the side of the connector to reflect the light beam of the lamp bead to the light-emitting area, the reflective mirror surface of the connector is used to reflect the light beam of the lamp bead to the lampshade, so that the light of the lampshade is uniform, soft, and improved. The user experience is improved, and the multi-purpose function of the connector is realized. The use of the connector not only simplifies the production process, facilitates the disassembly and assembly of the night light, and reduces the production cost; Use experience.

Description of drawings

1 is a three-dimensional structural diagram of a night light provided by an embodiment of the present utility model;

2 is an exploded view of a three-dimensional structure of a night light provided by an embodiment of the present utility model;

3 is a perspective structural view of a connector in a night light provided by an embodiment of the present invention;

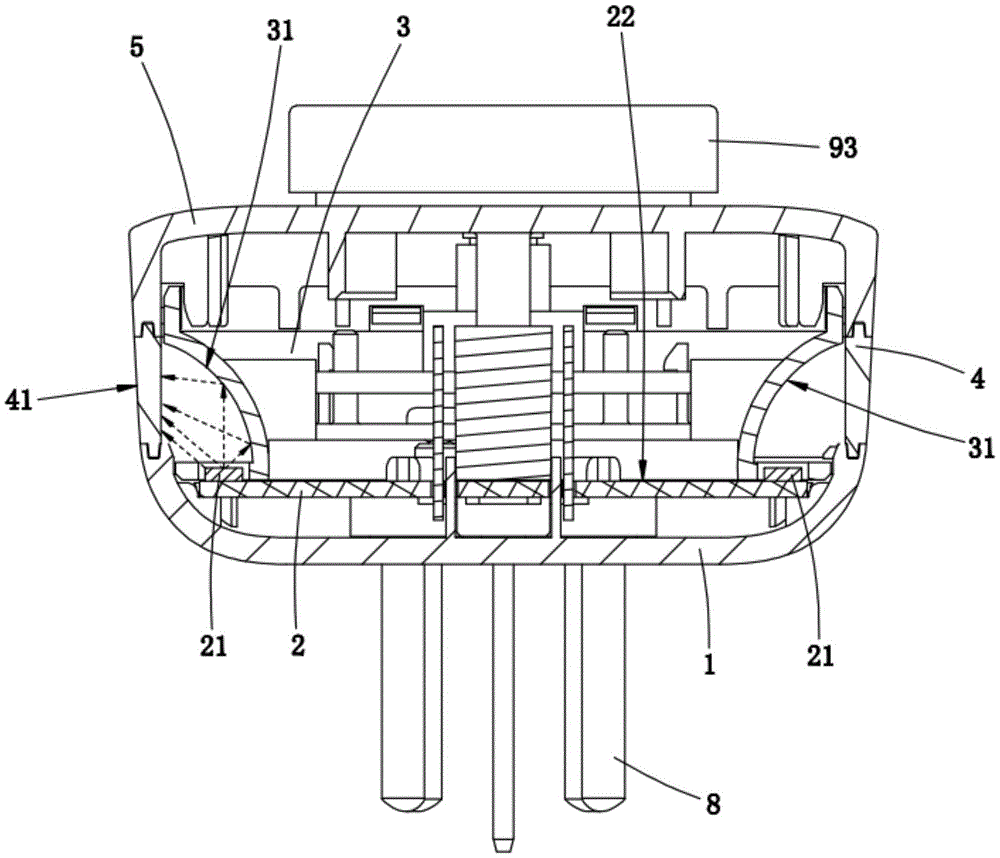

4 is a schematic cross-sectional structure diagram of a night light provided by an embodiment of the present invention;

5 is a schematic structural diagram of a light-emitting element of a night light provided by an embodiment of the present invention;

6 is a schematic cross-sectional structure diagram of the light-emitting element of the night light provided by the embodiment of the present invention when the connector is matched;

7 is a three-dimensional structural diagram of a partial structure of a night light provided by an embodiment of the present invention;

FIG. 8 is a perspective structural view of the structure shown in FIG. 7 from another perspective.

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model more clearly understood, the present utility model will be further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, and are not intended to limit the present invention.

The night light provided by the embodiment of the present invention is provided with a connecting piece, and the base of the night light, the light-emitting element, the connecting piece, the lampshade and the face cover are connected into one by the connecting piece, and the whole night light can be realized without glue or screws. The assembly of the lamp facilitates the disassembly and assembly of the night lamp, and realizes screwless assembly, so that the outer surface of the night lamp has no screws, the appearance of the product is neat, and the production process is simplified; The light beam of the bead is reflected to the reflective mirror surface of the light-emitting area, and the reflective mirror surface of the connector is used to reflect the light beam of the lamp bead to the lampshade, so that the light of the lampshade is uniform and soft, which improves the user experience and realizes the multi-purpose function of the connector. The use of the connector simplifies the production process, facilitates the disassembly and assembly of the night light, and reduces the production cost; and makes the light of the lampshade uniform and soft, improving the user experience.

1-4, the night light provided by the embodiment of the present invention includes a base 1, a light-emitting element 2 provided with a light-emitting body 21, a connecting piece 3, a lampshade 4 and a face cover 5, and the base 1 and the connecting piece 3 are buckled connected, and a accommodating space is formed between the base 1 and the connecting piece 3, the light-emitting element 2 is arranged in the accommodating space and sandwiched between the base 1 and the connecting piece 3, the lampshade 4 is sleeved on the connecting piece 3, the face cover 5 and the The connector 3 is snap-connected and the lampshade 4 is fixed between the base 1 and the cover 5 .

The side surface of the connector 3 is provided with a reflective mirror surface 31 , the side surface of the lampshade 4 is provided with a light-emitting area 41 relatively spaced from the reflective mirror surface 31 , the luminous body 21 is located between the reflective mirror surface 31 and the luminous area 41 , and the reflective mirror surface 31 makes the luminous body 21 . The light beam is reflected to the light emitting area 41 .

The night light of the embodiment of the present invention is provided with a connecting piece 3. When installing the night light, the light-emitting element 2 is first placed on the base 1, and then the base 1 and the connecting piece 3 are snap-connected, so that the light-emitting element 2 It is clamped and fixed between the base 1 and the connecting piece 3; , so that the whole night light is connected into one body through the connecting piece 3, the whole night light can be assembled without glue or screws, and the whole night light is connected into one piece by the connecting piece 3, which is convenient for the installation of the night light. It can be disassembled and assembled, and screwless assembly is realized, so that the outer surface of the night light has no screws, the appearance of the product is neat, and the production process of the night light is simplified.

In the embodiment of the present invention, the light emitting area 41 located on the side of the luminous body 21 is arranged on the side of the lampshade 4, so that the light beam of the luminous body 21 is emitted from the side of the lampshade 4, that is, through the side of the lampshade 4, so as to avoid the light beam of the lampshade 4. Direct light into the user's eyes causes discomfort to the user. By arranging a reflective mirror surface 31 on the side of the connector 3 to reflect the light beam of the light-emitting body 21 to the light-emitting area 41, the light beam of the light-emitting body 21 enters the light-emitting area 41 of the lampshade 4 in the direction indicated by the arrow in FIG. The reflective mirror surface 31 reflects the light beam of the light emitting body 21 that is not directly emitted by the lampshade 4 to the light emitting area 41, so that the light beam of the light emitting body 21 can enter the position of the light emitting area 41 that is not corresponding to the light emitting body 21, and avoid the position corresponding to the light emitting body 21 on the lampshade 4 Compared with other positions, the brightness is brighter and the phenomenon of alternating light and dark occurs, so that the light distribution of the light emitting area 41 of the lampshade 4 is uniform and soft, and the user experience is improved. Therefore, in the present invention, by cleverly arranging the connecting piece 3, a multi-purpose function is realized, which simplifies the production process, facilitates the disassembly and assembly of the night light, reduces the production cost, and makes the light of the lampshade uniform and soft, and makes the The light of the lampshade 4 is more uniform, which improves the user experience.

As an embodiment of the present invention, the base 1 is provided with a cavity 14, an accommodation space is formed between the cavity 14 and the connector 3, and the light-emitting element 2 is accommodated in the cavity 14 of the base 1, so that the light-emitting element can be reduced in size The occupied space of 2 is conducive to reducing the overall thickness and size of the night light. Wherein, the connector 3 is accommodated in the accommodation space enclosed by the base 1 , the lampshade 4 and the face cover 5 , so as to encapsulate the connector 3 .

In the embodiment of the present invention, the light-emitting area 41 is made of a light-transmitting material, and both the base 1 and the cover 5 are made of an opaque material.

As an embodiment of the present invention, the mirror surface 31 is a circular arc mirror surface concave toward the center of the connector 3 . By setting the reflective mirror surface 31 as a circular arc mirror surface, on the one hand, it is convenient for the light beams of different angles of the luminous body 21 that do not directly enter the light emitting area 41 to be reflected to the light emitting area 41 of the lampshade 4 through the reflective mirror surface 31 , so that the luminous body 21 can be fully utilized. The generated light beam makes the light distribution of the light-emitting area 41 of the lampshade 4 more uniform and bright; on the other hand, since the reflecting mirror surface 31 is recessed toward the center of the connector 3, under the premise of a certain size of the night light, the illuminant 21 It can be arranged in the center direction of the connector 3 as much as possible, thereby increasing the distance between the light-emitting body 21 and the light-emitting area 41, thereby avoiding the phenomenon that the light-emitting area 41 highlights the light-emitting body 21, so that the light-emitting area 41 of the lampshade 4 is illuminated. more uniform. Besides, the reflecting mirror surface 31 can also be set in other shapes, such as irregular curved surfaces or planes.

As an embodiment of the present invention, the reflecting mirror surfaces 31 are annularly distributed along the side surface of the connector 3 .

In this embodiment, the lampshade 4 is annular as a whole, and the lampshade 4 is made of light-transmitting material as a whole. Since the light emitting area 41 is arranged around the illuminating body 21, that is, by setting the illuminating area 41 in a ring shape, and setting the reflecting mirror surface 31 in a ring shape, the illuminating body 21 is arranged around the reflecting mirror surface 31, so that the annular side surface of the lampshade 4 emits light and illuminates. The effect is good and the user experience is improved. Among them, part of the light beam generated by the illuminant 21 directly enters the light emitting area 41 of the lampshade 4, and another part of the light beam generated by the illuminator 21 enters the light emitting area 41 of the lampshade 4 through the reflection of the reflecting mirror surface 31, so that the light emitting area 41 on the lampshade 4 is The light distribution is uniform, avoiding the situation of alternating light and dark, so that the light on the entire lampshade 4 is uniform and soft, and the user experience is good.

The light-emitting body 21 may be integrally provided on the light-emitting element 2 , or may be detachably fixed on the light-emitting element 2 .

As an embodiment of the present invention, the light-emitting element 2 is a lamp bead circuit board, and the light-emitting body 21 is a plurality of lamp beads arranged on the lamp bead circuit board.

In this embodiment, a plurality of lamp beads are arranged around the reflecting mirror surface 31, and the light-emitting area 41 is arranged around a plurality of lamp beads. In addition to this embodiment, the light-emitting body 21 can also be a light strip that matches the shape of the light-emitting area 41. For example, the shape of the light-emitting area 41 is annular, and the light-emitting body 21 is a ring-shaped light strip; In a plane shape, the light-emitting body 21 is a linear light strip.

In this embodiment, several lamp beads are arranged at equal intervals, so that the light emitted by the light emitting area 41 is more uniform, and the number of lamp beads is not limited, and can be set according to actual needs.

In the embodiment of the present invention, the shape of the light-emitting area 41 matches the arrangement of the lamp beads. For example, when a number of lamp beads are arranged in a straight line, the shape of the light-emitting area 41 is flat; when a number of lamp beads are arranged in a ring, the shape of the light-emitting area 41 is a ring; when a number of lamp beads are in a semicircle When arranged in an arc shape, the shape of the light emitting area 41 is a semi-circular arc shape.

As shown in FIGS. 4 and 6 , in the embodiment of the present invention, the light-emitting area 41 of the lampshade 4 is located in the light-emitting area of the lamp bead, so that the lamp bead can illuminate the light-emitting area 41 of the lampshade 4 . In this embodiment, the lamp bead is an LED patch lamp, and its light-emitting angle α is 120°, and the astigmatism effect is good, which makes the light of the lampshade 4 softer. In practical application, according to the light-emitting area and beam angle of the lamp bead, adjust the position and arrangement spacing of the lamp bead so that the light-emitting area 41 of the lampshade 4 of the product is located in the light-emitting area of the lamp bead, so that the light-emitting area 41 of the lampshade 4 is located in the light-emitting area of the lamp bead. There is no dark area to avoid affecting the lighting effect of the lampshade 4.

As an embodiment of the present invention, the light-emitting element 2 is provided with a mounting surface 22 arranged perpendicular to the light-emitting area 41, and the light-emitting body 21 is arranged on the mounting surface 22 to prevent the vertical beam of the light-emitting body 21 from directly irradiating the light-emitting area 41, thereby realizing Shade side glows.

In this embodiment, several lamp beads are arranged on the same mounting surface 22 of the light-emitting element 2, and the mounting surface 22 is arranged perpendicular to the light-emitting area 41, that is, the light-emitting area 41 is not opposite to the front of the lamp bead, so that the side of the lampshade can emit light, avoiding The vertical light beam of the lamp bead directly illuminates the light-emitting area 41, so as to avoid highlighting the position of the lamp bead on the lampshade 4, so that the light of the lampshade 4 is more uniform and soft.

7-8 again, as an embodiment of the present utility model, the bottom of the connector 3 is provided with an annular flange 32, the light-emitting element 2 is sandwiched between the annular flange 32 and the base 1, and the annular flange 32 is provided with an annular flange 32. There are via holes 321 corresponding to the positions of the light-emitting bodies 21 , and the light-emitting bodies 21 are accommodated in the via holes 321 . The annular flange 32 is provided with a through hole 321 corresponding to the position of the light emitting body 21, so that the light emitting body 21 can be easily accommodated in the through hole 321, so that the connector 3 can be closely attached to the light emitting element 2, so that the light emitting element 2 can be stably fixed to the base 1 and connector 3. The light beam of the light-emitting body 21 may directly enter the light-emitting area 41 from the via hole 321 or be reflected to the light-emitting area 41 through the reflecting mirror surface 31 .

In this embodiment, each lamp bead is correspondingly provided with one via hole 321 , and each lamp bead is correspondingly accommodated in one via hole 321 .

As an embodiment of the present invention, the base 1 is provided with a plurality of buckle platforms 11 , and the base 1 is fastened to the annular flange 32 by means of the buckle platforms 11 . Among them, there are a plurality of buckle platforms 11 , and the plurality of buckle platforms 11 are arranged at intervals along the inner wall of the base 1 . The base 1 is fastened to the annular flange 32 by the plurality of buckle platforms 11 , so that the base 1 and the connecting member 3 are fastened. Stable and fixed.

In this embodiment, when the base 1 and the connector 3 are assembled, the base 1 is snapped on the annular flange 32 to realize the snap connection between the base 1 and the connector 3, thereby fixing the light-emitting element 2 on the base 1 and connecting the between pieces 3. In order to prevent the light-emitting element 2 from loosening when the night light falls, a screw for fixing the light-emitting element 2 can be added inside, so that the light-emitting element 2 can be fixed more firmly, and the entire outer surface of the night light has no screws.

As an embodiment of the present utility model, the top of the connector 3 is provided with a plurality of snap grooves 33 , the face cover 5 is provided with a number of snaps 51 matched with the snap slots 33 , and the face cover 5 is connected to the connector 3 through the snap buttons 51 . The card slot 33 is snap-connected. When the face cover 5 and the connector 3 are assembled, the snap of the face cover 5 is snapped into the slot 33 of the connector 3 to realize the snap connection between the base 1 and the connector 3, and the disassembly and assembly of the face cover 5 and the connector 3 is simple Easy and screw-free assembly.

As an embodiment of the present invention, the top of the base 1 is provided with a first limiting groove 12 , the bottom of the lampshade 4 is provided with a first limiting protrusion 42 that cooperates with the first limiting groove 12 , and the first limiting groove 12 of the lampshade 4 The limiting protrusion 42 is embedded in the first limiting groove 12 of the base 1 . The first limiting groove 12 is provided along the top edge of the base 1 , and the first limiting protrusion 42 is provided along the bottom edge of the lampshade 4 . The base 1 and the lampshade 4 play a role of mutual restriction through the mutual cooperation between the first limiting protrusion 42 and the first limiting groove 12 , so that the base 1 and the lampshade 4 are stably assembled into one.

As an embodiment of the present invention, the bottom of the face cover 5 is provided with a second limiting groove 52 , the top of the lampshade 4 is provided with a second limiting protrusion 43 matched with the second limiting groove 52 , the The two limiting protrusions 43 are inserted into the second limiting grooves 52 of the face cover 5 . In this embodiment, the second limiting groove 52 is provided along the bottom edge of the face cover 5 , and the second limiting protrusion 43 is provided along the top edge of the lampshade 4 . The face cover 5 and the lampshade 4 play the role of mutual restriction through the mutual cooperation between the second limit protrusion 43 and the second limit groove 52, so that the base 1, the lampshade 4 and the face cover 5 are stably assembled into one. .

Referring to FIG. 2 again, as an embodiment of the present utility model, the night light further includes a socket 6 fixed to the light-emitting element 2, the cover 5 is provided with a socket 53 corresponding to the socket 6; the connector 3 is provided with a socket 53. In the accommodating cavity 34 , the insert sleeve 6 is accommodated in the accommodating cavity 34 . By setting the jack 53 on the face cover 5, it is convenient for the user to use the night light as a socket, and the plug of the electrical equipment is inserted into the jack 53 and connected with the socket 6 to realize the power supply of the electrical equipment. At the same time, by providing an accommodating cavity 34 in the connector 3 and accommodating the plug sleeve 6 in the accommodating cavity 34, it is beneficial to the miniaturization of the night light.

As an embodiment of the present invention, the night light further includes a protective door assembly 7 corresponding to the socket 6. The protective door assembly 7 protects the socket 6 when the plug of the electrical equipment is not inserted into the socket 53 to prevent the user's fingers from stretching The insertion hole 53 is in contact with the socket 6, thereby improving the safety performance of the night light.

As an embodiment of the present invention, the night light further includes a plug 8 fixed to the light-emitting element 2. The plug 8 is used to supply power to the light-emitting body 21 and the socket 6 on the light-emitting element 2. The plug 8 can be directly inserted into the The power supply of the night light is realized on the power socket, which is convenient for the plugging and unplugging of the night light. The base 1 is provided with through holes 13 corresponding to the plug pins 8 , and the plug pins 8 protrude outward through the through holes 13 .

As an embodiment of the present invention, the night light further includes a control circuit board 91 electrically connected to the light-emitting element 2, a switch rotating shaft 92 arranged on the control circuit board 91 and used to control the power on and off and adjust the brightness of the light-emitting body 21. The rotating shaft 10 passes through the face cover 5 and is connected with a switch knob 93 . In this embodiment, the power of the entire night light is turned on or off by pressing the switch knob 93 , and the brightness of the lamp beads on the lamp bead circuit board is adjusted by rotating the switch knob 93 , thereby adjusting the light brightness of the entire lamp shade 4 .

In this embodiment, the control circuit board 91 is fixed on the mounting platform 36 of the connector 3 through the buckle structure 35 , which facilitates the installation of the control circuit board 91 and also does not require screws to fix the control circuit board 91 .

When assembling the night light of the embodiment of the present invention, first place the light-emitting element 2 on the base 1, make the plug pin 8 pass through the corresponding through hole 13 on the base 1, and then insert the plug sleeve 6, the control circuit board 91, and the protection door. The assembly 7 is installed on the light-emitting element 2, and the base 1 is snapped onto the connecting piece 3, so that the light-emitting element 2 is clamped and fixed between the base 1 and the connecting piece 3, and the socket 6 and the protective door assembly 7 are accommodated in the connecting piece 3. In the accommodating cavity 34 of the base 1, the lampshade 4 is sleeved on the connector 3, and the first limit protrusion 42 of the lampshade 4 is embedded in the first limit groove 12 of the base 1, and then the face cover 5 is snapped on Connect the connector 3, and make the second limit protrusion 43 of the lampshade 4 fit into the second limit groove 52 of the cover 5, so that the lampshade 4 is fixed between the base 1 and the cover 5, and then the switch knob 93 is connected to the cover 5. The switch rotating shaft 10 is connected to complete the assembly of the entire night light. The assembly of the entire night light realizes screwless assembly, which facilitates the disassembly and assembly of the night light, and makes the outer surface of the night light without screws. The appearance of the product is clean and simplified. the production process.

The night light provided by the utility model is provided with a connecting piece, and the base, the light-emitting element, the connecting piece, the lampshade and the face cover of the night light are connected into one body through the connecting piece, and the lampshade is directly sleeved on the connecting piece and fixed on the base and the cover. Between the face covers, the entire night light can be assembled without glue or screws, which is convenient for the disassembly and assembly of the night light, and realizes screwless assembly, so that the outer surface of the night light has no screws, and the appearance of the product is clean and simplified. At the same time, by setting the reflective mirror surface on the side of the connector to reflect the light beam of the lamp bead to the light-emitting area, the reflective mirror surface of the connector is used to reflect the light beam of the lamp bead to the lampshade, so that the light of the lampshade is uniform, soft, and improved. The user experience is improved, and the multi-purpose function of the connector is realized. The use of the connector not only simplifies the production process, but also facilitates the disassembly and assembly of the night light; it also makes the light of the lampshade uniform and soft, and improves the user experience.

The above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present utility model shall be included in the present utility model. within the scope of protection.

Claims (10)

1. A night light, characterized in that it comprises a base, a light-emitting element provided with a luminous body, a connector, a lampshade and a face cover, the base is snap-connected with the connector, and the base is connected with the connection An accommodating space is formed between the parts, the light-emitting element is arranged in the accommodating space and sandwiched between the base and the connecting piece, the lampshade is sleeved on the connecting piece, and the face cover is connected to the connecting piece. The connector is snap-connected and the lampshade is fixed between the base and the face cover; The side surface of the connecting piece is provided with a reflective mirror surface, the side surface of the lampshade is provided with a light-emitting area relatively spaced from the reflective mirror surface, the illuminant is located between the reflective mirror surface and the light-emitting area, and the reflective mirror surface The light beam of the light-emitting body is reflected to the light-emitting area. 2 . The night light according to claim 1 , wherein the reflecting mirror surface is a circular arc mirror surface concave toward the center of the connecting piece. 3 . 3 . The night light according to claim 1 , wherein the reflective mirror surface is distributed in a ring shape along the side surface of the connecting piece, the illuminant is arranged around the reflective mirror surface, and the light emitting area surrounds the luminous area. 4 . body settings. 4 . The night light according to claim 1 or 3 , wherein the light-emitting element is a lamp bead circuit board, and the light-emitting body is a plurality of lamp beads disposed on the lamp bead circuit board. 5 . 5 . The night light according to claim 1 , wherein the light-emitting element is provided with a mounting surface perpendicular to the light-emitting area, and the light-emitting body is provided on the mounting surface. 6 . 6 . The night light according to claim 1 , wherein an annular flange is provided at the bottom of the connecting piece, the light-emitting element is sandwiched between the annular flange and the base, and the annular The flange is provided with a via hole corresponding to the position of the light-emitting body, and the light-emitting body is accommodated in the via hole. 7 . The night light according to claim 6 , wherein the base is provided with a plurality of buckles, and the base is fastened to the annular flange by means of the buckles. 8 . 8 . The night light according to claim 1 , wherein the top of the connector is provided with a plurality of card slots, the surface cover is provided with a plurality of buckles matched with the card slots, and the surface The cover is snap-connected with the snap-fit slot of the connector through the snap-fit. 9 . The night light according to claim 1 , wherein the top of the base is provided with a first limiting groove, and the bottom of the lampshade is provided with a first limiting groove that cooperates with the first limiting groove. 10 . The first limiting protrusion of the lampshade is embedded in the first limiting groove of the base. 10 . The night light according to claim 1 or 9 , wherein the bottom of the face cover is provided with a second limiting groove, and the top of the lampshade is provided with a second limiting groove matching with the second limiting groove. 11 . Two limiting protrusions, the second limiting protrusions of the lampshade are embedded in the second limiting grooves of the face cover.
