Abstract

The utility model discloses a novel tea set suit, include: the packing box comprises a box body and a box cover, and the box body is detachably connected with the box cover; the teapot comprises a pot body and a pot cover, the pot cover is sealed and is installed at the top of the pot body in a matching mode, and the pot body and the pot cover are both arranged inside the box body; the circumferential end face of the filtering piece is mounted at the circumferential edge of the top of the kettle body in a matched mode, and the bottom of the filtering piece is provided with a filtering hole; a teacup, which is arranged in the kettle body. The utility model discloses a novel tea set suit, not only reasonable in design, simple structure, the appearance is pleasing to the eye moreover, and portable has fully satisfied the tea personage of love and has drunk the tea demand of tea in the travel process, has effectively solved among the prior art teapot and has carried inconvenient and the problem that tea is stale in the thermos, has wide market perspective.

Description

Novel tea set suit
Technical Field
The utility model relates to a food and beverage tea set technical field, more specifically the utility model relates to a novel tea set suit that says so.
Background
Along with the continuous improvement of the life quality of people, the trip play gradually becomes a current common leisure mode of people, and although the trip play brings great life pleasure for people who like to travel, in the process of the trip play, for friends who like to drink tea, certain vexation exists, because fragrant tea water can not be drunk in time when people want to drink tea in the field. At present, although some teapots are sold in the market, the existing teapot is very easy to leak in the process of being carried outside, so that the teapot is inconvenient to carry and travel, and some people like to place tea in the thermos for carrying, but the tea can generate a lot of adverse effects on tea after being soaked in hot water for a long time, so that people can not enjoy fresh tea with faint scent.
Therefore, the problem that the technical personnel in the field need to solve urgently is to provide a novel tea set which is convenient to carry and can meet the requirement of people for drinking tea anytime and anywhere.
SUMMERY OF THE UTILITY MODEL
In view of this, in order to solve the problem that the teapot is inconvenient to carry and the tea in the thermos is not fresh in the prior art, the utility model provides a novel tea set suit which is convenient to carry and can meet the demand of drinking tea anytime and anywhere.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a novel teathings suite, comprising:
the packaging box comprises a box body and a box cover, and the box body is detachably connected with the box cover;
the teapot comprises a pot body and a pot cover, the pot cover is sealed and is installed at the top of the pot body in a matching mode, and the pot body and the pot cover are both arranged inside the box body;
the circumferential end face of the filter element is mounted at the circumferential edge of the top of the kettle body in a matched manner, and the bottom of the filter element is provided with a filter hole;
the teacup comprises a first teacup and a second teacup which are identical in shape, the first teacup is arranged inside the kettle body and is positioned between the filter element and the kettle body, the second teacup is arranged on the top of the kettle cover in an inverted mode, and the first teacup and the second teacup are arranged inside the box body and the box cover;
the first teacup and the second teacup are both of a conical structure, and the bottoms of the first teacup and the second teacup are integrally connected with a support bottom.
According to the technical scheme, compare with prior art scheme, the utility model discloses a novel tea set suit is through locating the teapot, filter piece and teacup inside box body and the lid to make this tea set suit volume less and portable, utilize the teapot of locating the packing carton inside, teacup and filter the piece, make the people in field trip can drink fresh and fragrant tea everywhere at any time, satisfied the personage of love and drink the tea demand of drinking of tea in the travel, effectively solved among the prior art teapot carry inconvenient and the heat preservation kettle in the problem that the tea is stale. The utility model discloses a novel tea set suit, not only reasonable in design, simple structure, the appearance is pleasing to the eye moreover, portable has wide market perspective.
Furthermore, a lifting handle is further arranged on the box cover, and the lifting handle is arranged in the center of the top of the box cover and fixedly connected with the box cover.
The beneficial effect who adopts above-mentioned technical scheme to produce is for this teathings suit's packing carton portable carrying of being convenient for has improved the convenience that this teathings suit carried.
Further, the box body with the material that the lid adopted is one of nylon meshbelt, PP meshbelt or ya keli meshbelt.
The beneficial effect who adopts above-mentioned technical scheme to produce is for the structure of packing carton is more firm and durable, has prolonged the life of packing carton, has still improved the aesthetic property of this teathings suit simultaneously.
Furthermore, a spout is formed on the top side wall of the kettle body, and the spout is integrally connected with the kettle body and extends outwards along the side wall of the kettle body.
The beneficial effects that adopt above-mentioned technical scheme to produce are that, be convenient for pour out the tea that soaks from the kettle body, improved the enjoyment of drinking tea of tourists outside, guaranteed the fragrant of the interior tea of kettle body simultaneously and overflow.
Furthermore, a sealing ring is further arranged on the kettle cover and fixed on the buckling surface of the kettle cover and the kettle body.
The beneficial effect that adopts above-mentioned technical scheme to produce is, has improved the leakproofness of pot lid and the lock of the kettle body to the emergence of the condition of leaking has effectively been prevented.
Further, the material that the sealing washer adopted is one of rubber or silica gel material.
The beneficial effects that adopt above-mentioned technical scheme to produce are, effectively improved the sealing performance of pot lid and the buckle department of the kettle body, can effectively prevent that the internal water of kettle from spilling.
Further, the filtering holes are multiple, and the multiple filtering holes are uniformly arranged on the bottom end face of the filtering piece.
The beneficial effect who adopts above-mentioned technical scheme to produce is, can effectively separate the tea and the tealeaves of the internal tea of kettle, has guaranteed the purity of tea.
Furthermore, the tea cups comprise a first tea cup and a second tea cup which are identical in shape, the first tea cup is arranged inside the kettle body and is positioned between the filter element and the kettle body, the second tea cup is arranged on the top of the kettle cover in an inverted mode, and the first tea cup and the second tea cup are arranged inside the box body and the box cover.
The tea set has the advantages that the structural design is more reasonable, and reasonable storage space is provided for the first tea cup and the second tea cup.
Furthermore, the first teacup and the second teacup are both of a conical structure, and the bottoms of the first teacup and the second teacup are integrally connected with a support bottom.
The technical scheme has the beneficial effect that the stability of placing the first teacup and the second teacup on the plane is improved.
Furthermore, the kettle body, the kettle cover, the tea cup and the filter piece are made of one of ceramic, purple sand or glass.
The beneficial effect who adopts above-mentioned technical scheme to produce is, has effectively guaranteed that people can drink fresh and fragrant tea that overflows in the in-process of field trip to the enjoyment of going out to travel has been increased.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings required to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the provided drawings without creative efforts.

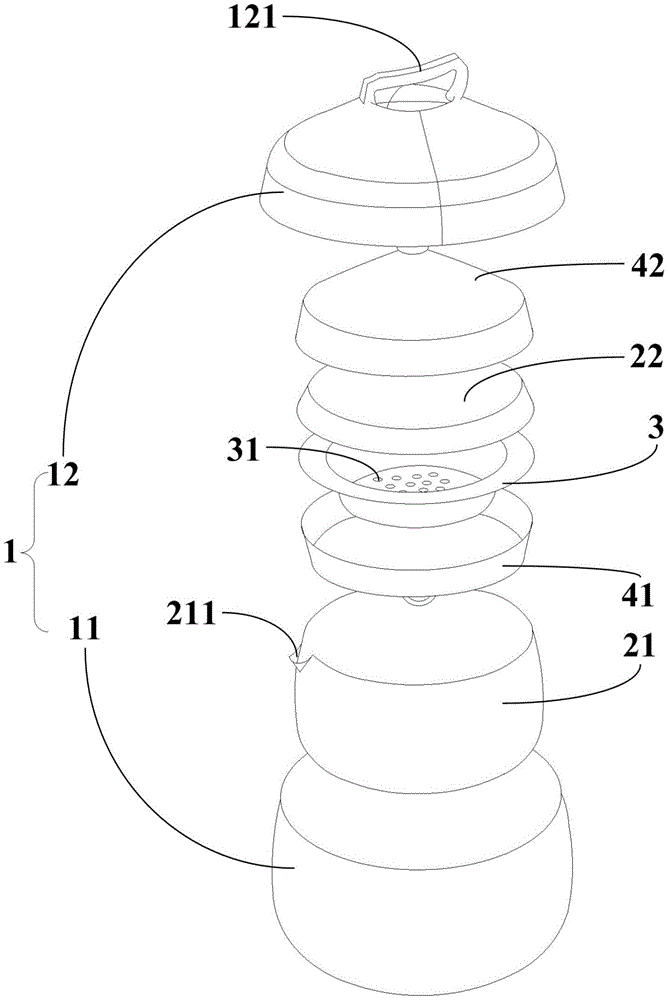

FIG. 1 is an exploded view of a novel tea set according to the present invention;
FIG. 2 is an exploded view of a novel tea set according to the present invention;
fig. 3 is an exploded view of a structure of a novel tea set sleeve provided by the present invention in another state;
FIG. 4 is a schematic structural view of a packing box in the novel tea set provided by the present invention;
fig. 5 is a schematic structural diagram of the packing box in the novel teathings set in another state according to the present invention.
Wherein: 1-packaging box, 11-box body, 12-box cover, 121-handle, 2-teapot, 21-pot body, 211-spout, 22-pot cover, 3-filter, 31-filter hole, 4-tea cup, 41-first tea cup, 42-second tea cup and 43-support bottom.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary and intended to be used for explaining the present invention, and should not be construed as limiting the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
In the present disclosure, unless expressly stated or limited otherwise, the first feature "on" or "under" the second feature may comprise direct contact between the first and second features, or may comprise contact between the first and second features not directly. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
The utility model discloses a novel tea set suit, include:
the packing box 1 comprises a box body 11 and a box cover 12, wherein the box body 11 is detachably connected with the box cover 12;
the teapot 2 comprises a pot body 21 and a pot cover 22, wherein the pot cover 22 is hermetically and adaptively installed at the top of the pot body 21, and the pot body 21 and the pot cover 22 are both arranged in the box body 11;
the circumferential end face of the filter member 3 is fittingly installed at the circumferential edge of the top of the kettle body 21, and the bottom of the filter member 3 is provided with a filter hole 31;
the teacup 4, the teacup 4 includes a first teacup 41 and a second teacup 42 with the same shape, the first teacup 41 is arranged inside the pot body 21 and is located between the filter element 3 and the pot body 21, the second teacup 42 is arranged on the top of the pot cover 22 in an inverted manner, and the first teacup 41 and the second teacup 42 are both arranged inside the box body 11 and the box cover 12;
the first teacup 41 and the second teacup 42 are both in a conical structure, and the bottoms of the first teacup 41 and the second teacup 42 are both integrally connected with a support bottom 43.
As shown in fig. 1-5, according to an optional embodiment of the present invention, a handle 121 is further disposed on the box cover 12, and the handle 121 is disposed at the top center of the box cover 12 and is fixedly connected to the box cover 12, so that the packaging box of the teathings set is portable, and the convenience of carrying the teathings set is improved.
According to the utility model discloses an optional embodiment, the material that box body 11 and lid 12 adopted is the nylon meshbelt to make the structure of packing carton more firm and durable, prolonged the life of packing carton, still improved the aesthetic property of this tea set suit simultaneously.
As shown in fig. 1-3, according to an optional embodiment of the present invention, a spout 211 is further formed on the top side wall of the kettle body 21, the spout 211 is integrally connected with the kettle body 21 and extends outward along the side wall of the kettle body 21, so as to pour out the soaked tea from the kettle body, thereby improving the tea drinking fun of the travelers outside, and simultaneously ensuring the fragrance of the tea in the kettle body.
According to the utility model discloses an optional embodiment still is equipped with the sealing washer on pot lid 22, and the sealing washer is fixed on pot lid 22 and the lock face of the kettle body 21 to improve the leakproofness of pot lid and the lock of the kettle body, effectively prevented the emergence of the condition of leaking.
According to the utility model discloses an optional embodiment, the material that the sealing washer adopted is silica gel to effectively improved the sealing performance of pot lid and kettle body lock department, can effectively prevent that the internal water of kettle from spilling.
As shown in fig. 1 and 3, according to an optional embodiment of the present invention, there are a plurality of filtering holes 31, and the filtering holes 31 are uniformly disposed on the bottom end surface of the filtering member 3, so as to effectively separate the tea water in the kettle body from the tea leaves, thereby ensuring the purity of the tea water.
As shown in fig. 1-3, according to an optional embodiment of the present invention, the teacup 4 includes a first teacup 41 and a second teacup 42 with the same shape, the first teacup 41 is disposed inside the pot body 21 and is located between the filtering member 3 and the pot body 21, the second teacup 42 is disposed on the top of the pot cover 22 in an inverted state, and the first teacup 41 and the second teacup 42 are both disposed inside the box body 11 and the box cover 12, so that the structural design of the tea set is more reasonable, and a reasonable storage space is provided for the first teacup and the second teacup.
As shown in fig. 1 to 3, according to an alternative embodiment of the present invention, the first cup 41 and the second cup 42 are both of a cone-shaped structure, and the bottoms of the first cup 41 and the second cup 42 are integrally connected with the bottom support 43, so that the stability of placing the first cup and the second cup on a plane is improved.
According to the utility model discloses an optional embodiment, the material that the kettle body 21, pot lid 22, teacup 4 and filter 3 adoption is the ceramic material to effectively guaranteed that people can drink fresh and fragrant tea that overflows at field trip's in-process, increased people's enjoyment of going out to travel.
The utility model discloses a novel tea set suit is through locating the teapot, filter piece and teacup inside box body and the lid to make this tea set suit volume less and portable, utilize the teapot, teacup and the filter piece of locating the packing carton inside, make the people in field trip can drink fresh and fragrant tea everywhere anytime and anywhere, satisfied the tea personage's of love and drink the demand of drinking tea in the travel, effectively solved among the prior art teapot carry inconvenient and the heat preservation kettle in the problem that the tea is stale. The tea set has the advantages of reasonable design, simple structure, attractive appearance, convenience in carrying and wide market application prospect.
In the description herein, references to the description of the term "one embodiment," "some embodiments," "an example," "a specific example," or "some examples," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above are not necessarily intended to refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, various embodiments or examples described in this specification can be combined and combined by those skilled in the art.
Although embodiments of the present invention have been shown and described, it is understood that the above embodiments are exemplary and should not be construed as limiting the present invention, and that variations, modifications, substitutions and alterations can be made to the above embodiments by those of ordinary skill in the art without departing from the scope of the present invention.

Claims (8)

1. A novel teathings suit, its characterized in that includes:
the packaging box (1) comprises a box body (11) and a box cover (12), and the box body (11) is detachably connected with the box cover (12);
the teapot (2) comprises a pot body (21) and a pot cover (22), the pot cover (22) is hermetically and adaptively mounted at the top of the pot body (21), and the pot body (21) and the pot cover (22) are both arranged in the box body (11);
the circumferential end face of the filter element (3) is mounted at the circumferential edge of the top of the kettle body (21) in a matching manner, and the bottom of the filter element (3) is provided with a filter hole (31);
the teacup (4) comprises a first teacup (41) and a second teacup (42) which are identical in shape, the first teacup (41) is arranged inside the pot body (21) and is positioned between the filter element (3) and the pot body (21), the second teacup (42) is arranged on the top of the pot cover (22) in an inverted mode, and the first teacup (41) and the second teacup (42) are arranged inside the box body (11) and the box cover (12);
the first teacup (41) and the second teacup (42) are both in a conical structure, and the bottoms of the first teacup (41) and the second teacup (42) are integrally connected with a support bottom (43).
2. A new teathings suite according to claim 1, characterised in that a handle (121) is further provided on the lid (12), the handle (121) being centrally provided on the top of the lid (12) and fixedly connected to the lid (12).
3. The novel teathings set according to claim 1 or 2, characterized in that the box body (11) and the box cover (12) are made of one of nylon braid, PP braid or acrylic braid.
4. The new teathings suite according to claim 1, characterized in that a spout (211) is further formed on a top side wall of the pot body (21), and the spout (211) is integrally connected with the pot body (21) and extends outwards along the side wall of the pot body (21).
5. The tea set as claimed in claim 1, wherein the pot lid (22) is further provided with a sealing ring, and the sealing ring is fixed on a buckling surface of the pot lid (22) and the pot body (21).
6. The novel teathings set according to claim 5, wherein the sealing ring is made of one of rubber and silica gel.
7. A new teathingsuite according to claim 1, characterized in that the filtering holes (31) are provided in plurality, and the filtering holes (31) are arranged uniformly on the bottom end face of the filtering member (3).
8. The new tea set according to any one of claims 1-2 and 4-7, characterized in that the material used for the pot body (21), the pot lid (22), the cup (4) and the filter element (3) is one of ceramic, purple sand or glass.
