Abstract

The utility model relates to a garden insecticide sprayer, in particular to a garden insecticide reuse type sprayer. The technical problem to be solved is: to provide a garden insecticide reusable sprayer that can reduce labor intensity and protect health. The technical scheme is: a garden insecticide multiplexing type sprayer, comprising a base plate, a first support rod, a support block, an installation sleeve, a hollow block, a first stopper, a second stopper, a third stopper, and a fourth stopper Blocks, mounting rods, return springs, etc.; a first support rod for supporting is installed on the left side of the top of the bottom plate, the support block is set at the top of the first support rod, the installation sleeve is fixed on the top of the hollow block, and the first stopper is fixed Attached to the top of the hollow block. The utility model can transport the medicinal liquid in the transparent tank to the long rigid tube through the pump body, and then spray the medicinal liquid through the nozzle, so that it is not necessary to carry the sprayer manually to spray different medicinal liquids, thereby reducing labor strength.

Description

A garden insecticide multiplexing sprayer

technical field

The utility model relates to a garden insecticide sprayer, in particular to a garden insecticide reuse type sprayer.

Background technique

In summer gardens, a variety of different pests will appear to damage the trees in the garden. Therefore, it is necessary to spray the trees in the garden with liquid medicine. At present, when spraying the liquid medicine on the trees in the garden, it is usually carried out manually with the sprayer on the back. For spraying the liquid medicine, due to the different types of pests, it is necessary to manually spray one liquid medicine, and then spray another liquid medicine, which will increase the labor intensity of the labor, and when the sprayer is manually moved on its back, the sprayer The liquid medicine in the sprayer will overflow, which will wet the clothes of the workers and cause harm to the workers. In order to prevent the liquid medicine in the sprayer from overflowing, the storage of the liquid medicine in the sprayer will be reduced manually, so it needs to be sprayed manually many times The same liquid medicine will increase the workload of workers.

Utility model content

In order to overcome the shortcomings of manually spraying different medicinal liquids with the sprayer on the back, which will increase labor intensity, and the medicinal liquid will overflow the sprayer when moving, which will wet the clothes and cause harm to the workers' bodies. The technical problem to be solved is: to provide The utility model relates to a garden insecticide reusable sprayer capable of reducing labor intensity and protecting health.

The technical scheme is: a garden insecticide multiplexing sprayer, comprising a bottom plate, a first support rod, a support block, an installation sleeve, a hollow block, a first stopper, a second stopper, a third stopper, and a fourth stopper Block, mounting rod, return spring, first connecting port, second connecting port, third connecting port, fourth connecting port, first connecting rod, tie rod, second supporting rod, second connecting rod, fixing sleeve, transparent tank , top cover, handle, drain pipe, valve, 1st hose, 2nd hose, 3rd hose, 4th hose, placement plate, hook, long rigid pipe, spray head and pump body, bottom plate top A first support rod is installed on the left side for supporting, the support block is arranged on the top of the first support rod, the installation sleeve is fixed on the top of the hollow block, the first stopper is fixedly connected to the top of the hollow block, and the inside of the installation sleeve is fixed from the top of the hollow block. A first block, a second block, a third block and a fourth block are provided in sequence sliding from bottom to top, and the rear sides of the first block, the second block, the third block and the fourth block A mounting rod is fixedly connected between them. A hollow groove for the flow of the medicinal liquid is opened in the inner center of the mounting rod. The upper and lower sides of the left wall of the mounting rod are provided with liquid holes for the medicinal liquid to flow to. The liquid hole is connected with the hollow groove. A return spring is connected between the fourth stop and the hollow block. One end of the return spring is connected to the top of the fourth stop, and the other end of the return spring is connected to the top of the hollow block. The first connection port is fixedly connected to the right side of the installation sleeve. The upper part of the wall, the second connection port is fixedly connected to the lower part of the right wall of the installation sleeve, the third connection port is fixedly connected to the upper part of the left wall of the installation sleeve, the fourth connection port is fixedly connected to the lower part of the left wall of the installation sleeve, and the middle part of the support block is open. There is a first cavity, the top of the support block has a first through hole for guiding, the first through hole communicates with the first cavity, the left part of the support block has a second through hole for guiding, the second The through hole is communicated with the first through hole, the first through hole is slidably fitted with a first connecting rod, the top of the first connecting rod is fixedly connected with the bottom of the first stopper, and the pull rod is connected to the second connecting rod in a rotating manner. On the rear side of the through hole, the right end of the pull rod is hingedly connected with the bottom end of the first connecting rod, the top of the hollow block is provided with a second support rod that plays a supporting role, and there are four second connecting rods, which are respectively arranged on the second support rod The right side is connected with the installation sleeve and the left side of the support block. The fixed sleeve is fixedly connected to the second connecting rod. A transparent tank is placed in the two fixed sleeves. The top cover is installed on the top of the transparent tank in a rotating manner. It is fixedly connected to the top of the top cover, the bottom of the left transparent tank is fixedly connected with a drain pipe, a valve is installed on the drain pipe, a first hose is connected between the first connection port and the right transparent tank, and the first soft One end of the tube is communicated with the first connection port, the other end of the first hose is communicated with the right transparent tank, the third connection port is connected with a second hose, one end of the second hose is communicated with the third connection port, the second The connection port is connected with a third hose, one end of the third hose is connected with the second connection port, a fourth hose is connected between the fourth connection port and the left transparent tank, and one end of the fourth hose is connected with the fourth hose The other end of the fourth hose is connected to the left transparent tank, the placing plate is installed on the right side of the top of the bottom plate, and there are four hooks, which are respectively arranged on the front and rear sides of the right side of the placing plate. placed between There is a long rigid pipe for transporting the liquid medicine. The rear end of the long rigid pipe is equipped with a nozzle for spraying the liquid medicine. The front end of the long rigid pipe is equipped with a pump body for extracting the liquid medicine. The fourth hose The other end of the second hose is communicated with the upper pump body, and the other end of the second hose is communicated with the lower pump body.

As a further preferred solution, a baffle plate and a sliding block are also included, a sliding groove with sliding function is opened on the fixed sleeve, a sliding block is arranged in the sliding groove, and the baffle plate is installed on the top of the sliding block.

When it is necessary to use the utility model to exterminate the garden, manually hold the pull rod by hand and swing it upward, the pull rod swings upward through the first connecting rod to move the first block downward, and the first block moves downward through the installation rod Move the second stopper, the third stopper and the fourth stopper downward, so that the first connection port, the second connection port, the third connection port and the fourth connection port can be opened, and the return spring is stretched accordingly, and then Manually start the pump body, so that the liquid medicine in the transparent tanks on the left and right sides can be pumped into the installation sleeve through the first hose and the third hose respectively, and then the liquid medicine can be transported through the second hose and the fourth hose into the pump body, then input into the nozzle through a long rigid pipe, and finally sprayed out from the nozzle, so that two different liquids can be sprayed at the same time, so that there is no need to manually carry the sprayer to spray the liquid, which can reduce labor intensity , and can reduce the amount of manual labor. When the liquid medicine is sprayed, manually close the pump body and release the pull rod. Under the action of the elastic force of the return spring, the pull rod can be reset, and the pull rod can be manually swayed down by hand, so that the first The stopper, the second stopper, the third stopper and the fourth stopper move upward, so that the liquid medicine in the upper transparent tank can flow into the lower transparent tank, and then the valve is manually opened, and the liquid in the lower transparent tank can be opened. The liquid medicine flows out through the drain pipe, and then manually pours clean water into the transparent tank on the upper side for cleaning. The cleaned water flows out through the drain pipe, and then the valve is manually closed, which can prevent the liquid medicine from falling on the workers' clothes. , so as to protect the health of the body.

When the transparent tank needs to be removed, manually move the transparent tank upwards to move the slider out of the chute, which facilitates manual cleaning of the transparent tank, and the baffle plays a fixed role.

Compared with the prior art, the utility model has the following advantages: the utility model can transport the medicinal liquid in the transparent tank to the long rigid tube through the pump body, and then spray the medicinal liquid through the nozzle, so that no manual backing is required. The sprayer sprays different medicinal liquids, which can reduce the labor intensity, thereby reducing the amount of manual labor, and at the same time, it can prevent the medicinal liquid from falling on the workers' clothes, which can protect the health of the body. The transparent tank can be removed, which facilitates manual cleaning of the transparent tank.

Description of drawings

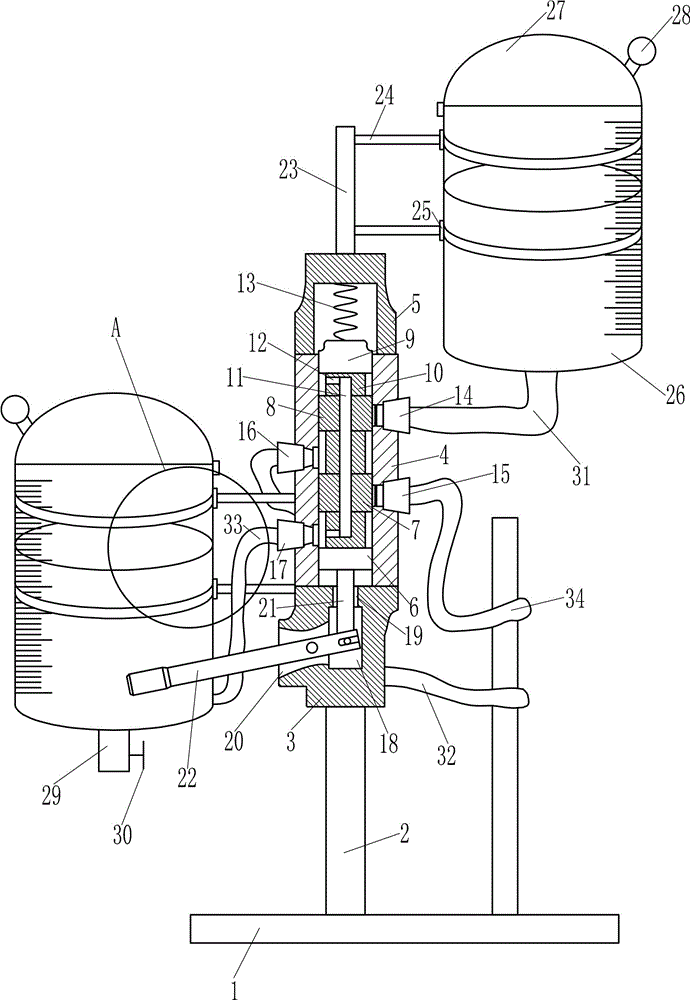

Fig. 1 is the front view structure schematic diagram of the utility model.

FIG. 2 is a partial right-side structural schematic diagram of the utility model.

FIG. 3 is a schematic view of the enlarged structure of the utility model A. FIG.

The markings of the parts in the accompanying drawings are as follows: 1, the bottom plate, 2, the first support rod, 3, the support block, 4, the mounting sleeve, 5, the hollow block, 6, the first stopper, 7, the second stopper, 8. Third stop, 9, Fourth stop, 10, Mounting rod, 11, Hollow groove, 12, Liquid hole, 13, Return spring, 14, First connection port, 15, Second connection port, 16, third connection port, 17, fourth connection port, 18, first cavity, 19, first through hole, 20, second through hole, 21, first link, 22, pull rod, 23, second support rod , 24, second connecting rod, 25, fixed sleeve, 26, transparent tank, 27, top cover, 28, handle, 29, drain pipe, 30, valve, 31, first hose, 32, second hose , 33, the third hose, 34, the fourth hose, 35, the placing plate, 36, the hook, 37, the long rigid tube, 38, the nozzle, 39, the pump body, 40, the chute, 41, the baffle , 42, slider.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example 1

A garden insecticide reusable sprayer, as shown in Figures 1-3, includes a base plate 1, a first support rod 2, a support block 3, an installation sleeve 4, a hollow block 5, a first stopper 6, and a second stopper. Block 7, third stop 8, fourth stop 9, mounting rod 10, return spring 13, first connection port 14, second connection port 15, third connection port 16, fourth connection port 17, first connection port Rod 21, pull rod 22, second support rod 23, second connecting rod 24, fixed sleeve 25, transparent tank 26, top cover 27, handle 28, drain pipe 29, valve 30, first hose 31, second soft Pipe 32, third hose 33, fourth hose 34, placing plate 35, hook 36, long hard pipe 37, spray head 38 and pump body 39, the left side of the top of the bottom plate 1 is installed with a first supporting function The support rod 2, the support block 3 are arranged on the top of the first support rod 2, the installation sleeve 4 is fixed on the top of the hollow block 5, the first stopper 6 is fixedly connected to the top of the hollow block 5, and the installation sleeve 4 is from bottom to top A first stop 6, a second stop 7, a third stop 8 and a fourth stop 9, a first stop 6, a second stop 7, a third stop 8 and a fourth stop are provided in sequence. A mounting rod 10 is fixedly connected between the rear sides of the mounting rod 10 , a hollow groove 11 for the flow of the medicinal liquid is opened in the inner center of the mounting rod 10 , and the upper and lower sides of the left wall of the mounting rod 10 are provided with liquid holes for the medicinal liquid to flow to. 12. The liquid hole 12 is communicated with the hollow groove 11. A return spring 13 is connected between the fourth stopper 9 and the hollow block 5. One end of the return spring 13 is connected to the top of the fourth stopper 9, and the other end of the return spring 13 is connected to the The top of the hollow block 5 is connected, the first connection port 14 is fixedly connected to the upper part of the right wall of the installation sleeve 4, the second connection port 15 is fixedly connected to the lower part of the right wall of the installation sleeve 4, and the third connection port 16 is fixedly connected to the installation sleeve. 4, the fourth connection port 17 is fixedly connected to the lower part of the left wall of the installation sleeve 4, the middle of the support block 3 is provided with a first cavity 18, and the top of the support block 3 is provided with a first through hole for guiding 19. The first through hole 19 communicates with the first cavity 18. The left part of the support block 3 is provided with a second through hole 20 for guiding. The second through hole 20 communicates with the first through hole 19. The first through hole A first connecting rod 21 is slidably fitted in the 19. The top end of the first connecting rod 21 is fixedly connected with the bottom of the first stopper 6. The pull rod 22 is connected to the rear side of the second through hole 20 in a rotating manner. The right end of 22 is hingedly connected with the bottom end of the first connecting rod 21, and the top of the hollow block 5 is provided with a second supporting rod 23 that plays a supporting role. The side and the left side of the installation sleeve 4 and the support block 3, the fixed sleeve 25 is fixedly connected to the second connecting rod 24, the transparent tank 26 is placed in the two fixed sleeves 25, and the top cover 27 is rotatably installed on the On the top of the transparent tank 26, the handle 28 is fixedly connected to the top of the top cover 27, the bottom of the left transparent tank 26 is fixedly connected with a drain pipe 29, and a valve 30 is installed on the drain pipe 29. The first connection port 14 is connected to the right side. A first hose 31 is connected between the transparent tanks 26, and one end of the first hose 31 Connected with the first connection port 14, the other end of the first hose 31 is connected with the right transparent tank 26, the third connection port 16 is connected with a second hose 32, and one end of the second hose 32 is connected with the third connection port 16 is connected, a third hose 33 is connected to the second connection port 15, one end of the third hose 33 is connected to the second connection port 15, and a fourth soft tube is connected between the fourth connection port 17 and the left transparent tank 26. Pipe 34, one end of the fourth hose 34 is communicated with the fourth connection port 17, the other end of the fourth hose 34 is communicated with the left transparent tank 26, the placing plate 35 is installed on the right side of the top of the bottom plate 1, and the hook 36 is four. They are respectively arranged on the front and rear sides of the right side of the placing plate 35. Between the front and rear two hooks 36 are placed long rigid pipes 37 for transporting the medicinal liquid. The rear end of the long rigid pipes 37 is installed with The spray head 38 for spraying the liquid medicine, the front end of the long rigid tube 37 is installed with a pump body 39 for extracting the liquid medicine, the other end of the fourth hose 34 communicates with the upper pump body 39, and the other end of the second hose 32 It communicates with the lower pump body 39 .

Example 2

A garden insecticide reusable sprayer, as shown in Figures 1-3, includes a base plate 1, a first support rod 2, a support block 3, an installation sleeve 4, a hollow block 5, a first stopper 6, and a second stopper. Block 7, third stop 8, fourth stop 9, mounting rod 10, return spring 13, first connection port 14, second connection port 15, third connection port 16, fourth connection port 17, first connection port Rod 21, pull rod 22, second support rod 23, second connecting rod 24, fixed sleeve 25, transparent tank 26, top cover 27, handle 28, drain pipe 29, valve 30, first hose 31, second soft Pipe 32, third hose 33, fourth hose 34, placing plate 35, hook 36, long hard pipe 37, spray head 38 and pump body 39, the left side of the top of the bottom plate 1 is installed with a first supporting function The support rod 2, the support block 3 are arranged on the top of the first support rod 2, the installation sleeve 4 is fixed on the top of the hollow block 5, the first stopper 6 is fixedly connected to the top of the hollow block 5, and the installation sleeve 4 is from bottom to top A first stop 6, a second stop 7, a third stop 8 and a fourth stop 9, a first stop 6, a second stop 7, a third stop 8 and a fourth stop are provided in sequence. A mounting rod 10 is fixedly connected between the rear sides of the mounting rod 10 , a hollow groove 11 for the flow of the medicinal liquid is opened in the inner center of the mounting rod 10 , and the upper and lower sides of the left wall of the mounting rod 10 are provided with liquid holes for the medicinal liquid to flow to. 12. The liquid hole 12 is communicated with the hollow groove 11. A return spring 13 is connected between the fourth stopper 9 and the hollow block 5. One end of the return spring 13 is connected to the top of the fourth stopper 9, and the other end of the return spring 13 is connected to the The top of the hollow block 5 is connected, the first connection port 14 is fixedly connected to the upper part of the right wall of the installation sleeve 4, the second connection port 15 is fixedly connected to the lower part of the right wall of the installation sleeve 4, and the third connection port 16 is fixedly connected to the installation sleeve. 4, the fourth connection port 17 is fixedly connected to the lower part of the left wall of the installation sleeve 4, the middle of the support block 3 is provided with a first cavity 18, and the top of the support block 3 is provided with a first through hole for guiding 19. The first through hole 19 communicates with the first cavity 18. The left part of the support block 3 is provided with a second through hole 20 for guiding. The second through hole 20 communicates with the first through hole 19. The first through hole A first connecting rod 21 is slidably fitted in the 19. The top end of the first connecting rod 21 is fixedly connected with the bottom of the first stopper 6. The pull rod 22 is connected to the rear side of the second through hole 20 in a rotating manner. The right end of 22 is hingedly connected with the bottom end of the first connecting rod 21, and the top of the hollow block 5 is provided with a second supporting rod 23 that plays a supporting role. The side and the left side of the installation sleeve 4 and the support block 3, the fixed sleeve 25 is fixedly connected to the second connecting rod 24, the transparent tank 26 is placed in the two fixed sleeves 25, and the top cover 27 is rotatably installed on the On the top of the transparent tank 26, the handle 28 is fixedly connected to the top of the top cover 27, the bottom of the left transparent tank 26 is fixedly connected with a drain pipe 29, and a valve 30 is installed on the drain pipe 29. The first connection port 14 is connected to the right side. A first hose 31 is connected between the transparent tanks 26, and one end of the first hose 31 Connected with the first connection port 14, the other end of the first hose 31 is connected with the right transparent tank 26, the third connection port 16 is connected with a second hose 32, and one end of the second hose 32 is connected with the third connection port 16 is connected, a third hose 33 is connected to the second connection port 15, one end of the third hose 33 is connected to the second connection port 15, and a fourth soft tube is connected between the fourth connection port 17 and the left transparent tank 26. Pipe 34, one end of the fourth hose 34 is communicated with the fourth connection port 17, the other end of the fourth hose 34 is communicated with the left transparent tank 26, the placing plate 35 is installed on the right side of the top of the bottom plate 1, and the hook 36 is four. They are respectively arranged on the front and rear sides of the right side of the placing plate 35, and between the front and rear two hooks 36 are placed long rigid pipes 37 for transporting the liquid medicine. The spray head 38 for spraying the liquid medicine, the front end of the long rigid tube 37 is installed with a pump body 39 for extracting the liquid medicine, the other end of the fourth hose 34 communicates with the upper pump body 39, and the other end of the second hose 32 It communicates with the lower pump body 39 .

It also includes a baffle 41 and a sliding block 42 , a sliding groove 40 with sliding function is opened on the fixed sleeve 25 , a sliding block 42 is arranged in the sliding groove 40 , and the baffle 41 is installed on the top of the sliding block 42 .

When the utility model needs to be used to exterminate the garden, manually hold the pull rod 22 and swing it upward, the pull rod 22 swings upward through the first connecting rod 21 to move the first stopper 6 downward, and the first stopper 6 moves toward the The downward movement moves the second stopper 7, the third stopper 8 and the fourth stopper 9 downward through the installation rod 10, so that the first connection port 14, the second connection port 15, the third connection port 16 and the The four connecting ports 17 are opened, the return spring 13 is stretched accordingly, and then the pump body 39 is manually activated, so that the liquid medicine in the transparent tanks 26 on the left and right sides can be pumped into and installed through the first hose 31 and the third hose 33 respectively. Then the liquid medicine is transported into the pump body 39 through the second hose 32 and the fourth hose 34, and then into the spray head 38 through the long rigid tube 37, and finally sprayed out by the spray head 38, so that it can be simultaneously Two different liquids are sprayed, so that there is no need to manually carry the sprayer to spray the liquid, so that the labor intensity can be reduced, and the amount of manual labor can be reduced. When the liquid spraying is completed, the pump body 39 is manually closed and released. The pull rod 22 can reset the pull rod 22 under the action of the elastic force of the return spring 13, and manually swing the pull rod 22 downward, so that the first block 6, the second block 7, the third block 8 and the fourth block can be made The block 9 moves upward, so that the medicinal liquid in the upper transparent tank 26 can flow into the lower transparent tank 26, and then the valve 30 is manually opened, and the medicinal liquid in the lower transparent tank 26 flows out through the drain pipe 29. Then manually pour clean water into the upper transparent tank 26 for cleaning, the cleaned water flows out through the drain pipe 29, and then manually close the valve 30, which can prevent the medicinal liquid from falling on the worker's clothes, thereby protecting the health of the worker.

When the transparent tank 26 needs to be removed, manually move the transparent tank 26 upwards to move the slider 42 out of the chute 40 , so that the transparent tank 26 can be easily cleaned manually, and the baffle 41 plays a fixed role.

The above are only the preferred embodiments of the present invention. It should be pointed out that for those skilled in the art, without departing from the principles of the present invention, several improvements and modifications can be made. These improvements and Retouching should also be regarded as the protection scope of the present invention.

Claims (2)

1. A garden insecticide multiplexing type sprayer, comprising a base plate, a first support rod, a support block, a mounting sleeve and a hollow block, a first support rod for supporting is installed on the left side of the top of the base plate, and the support block is arranged on the The top of the first support rod, the mounting sleeve is fixed on the top of the hollow block, and it is characterized in that: it also includes a first stop, a second stop, a third stop, a fourth stop, an installation rod, a return spring, a first stop A connection port, a second connection port, a third connection port, a fourth connection port, a first connecting rod, a pull rod, a second supporting rod, a second connecting rod, a fixed sleeve, a transparent tank, a top cover, a handle, a drain pipe , valve, first hose, second hose, third hose, fourth hose, placing plate, hook, long rigid pipe, spray head and pump body, the first stopper is fixedly connected to the top of the hollow block , the first block, the second block, the third block and the fourth block, the first block, the second block, the third block and the fourth block are slid from bottom to top in the mounting sleeve. A mounting rod is fixedly connected between the rear sides of the block. The inner center of the mounting rod is provided with a hollow groove for the flow of the liquid medicine. The upper and lower sides of the left wall of the mounting rod are provided with liquid holes for the liquid medicine to flow to. The hollow groove is connected, a return spring is connected between the fourth stopper and the hollow block, one end of the return spring is connected with the top of the fourth stopper, the other end of the return spring is connected with the top of the hollow block, and the first connection port is fixedly connected On the upper part of the right wall of the installation sleeve, the second connection port is fixedly connected to the lower part of the right wall of the installation sleeve, the third connection port is fixedly connected to the upper part of the left wall of the installation sleeve, and the fourth connection port is fixedly connected to the lower part of the left wall of the installation sleeve, The middle part of the support block is provided with a first cavity, the top of the support block is provided with a first through hole for guiding, the first through hole communicates with the first cavity, and the left part of the support block is provided with a second guiding role. A through hole, the second through hole is communicated with the first through hole, a first connecting rod is slidably fitted in the first through hole, the top end of the first connecting rod is fixedly connected with the bottom of the first stopper, and the pull rod is rotatable. It is connected to the rear side of the second through hole, the right end of the pull rod is hingedly connected with the bottom end of the first connecting rod, the top of the hollow block is equipped with a second support rod that plays a supporting role, and there are four second connecting rods, which are respectively set On the right side of the second support rod, the installation sleeve and the left side of the support block, the fixing sleeve is fixedly connected to the second connecting rod, a transparent tank is placed in the two fixing sleeves, and the top cover is rotatably installed on the transparent On the top of the tank, the handle is fixedly connected to the top of the top cover, and the bottom of the left transparent tank is fixedly connected with a drain pipe, a valve is installed on the drain pipe, and a first flexible connection is connected between the first connection port and the right transparent tank. One end of the first hose is connected to the first connection port, the other end of the first hose is connected to the right transparent tank, the third connection port is connected with a second hose, and one end of the second hose is connected to the third The second connection port is connected with a third hose, one end of the third hose is connected with the second connection port, and a fourth hose is connected between the fourth connection port and the left transparent tank, and the fourth hose is One end is communicated with the fourth connection port, the other end of the fourth hose is communicated with the left transparent tank, the placing plate is installed on the right side of the top of the bottom plate, and there are four hooks, which are respectively arranged on the front and rear sides of the right side of the placing plate. Two hangings front and rear Between the hooks, there are long rigid pipes for transporting the liquid medicine. , the other end of the fourth hose is communicated with the upper pump body, and the other end of the second hose is communicated with the lower pump body. 2. A garden insecticide multiplexing type sprayer as claimed in claim 1, characterized in that: it also comprises a baffle plate and a sliding block, the fixed sleeve is provided with a sliding chute with sliding action, and a sliding chute is provided in the chute block, the baffle is mounted on top of the slider.
