Abstract
The utility model discloses a show shelf is used in teaching of art specialty, include: the adjustable shelf with be used for carrying out the support frame that supports to the adjustable shelf, wherein: the movable frame is formed by sequentially hinging n display plates end to end, wherein n is an even number greater than 4; the inner side of the movable frame is provided with a first telescopic rod which is horizontally arranged, and two ends of the first telescopic rod are respectively and fixedly connected with two opposite display plates in the movable frame; the support frame is located the below of first telescopic link and is connected with first telescopic link. The utility model discloses can satisfy multiple show demand, and convenient operation is nimble fast.
Description
Technical Field
The utility model relates to a display device technical field especially relates to a show shelf is used in teaching of art specialty.
Background
In the teaching of art specialty, often need show outstanding paintings and explain the student, show paintings just need with the help of the show shelf. The existing movable frame is simple in structure, fixed in structure and limited in use for different display requirements.
SUMMERY OF THE UTILITY MODEL
Based on the technical problem that above-mentioned background art exists, the utility model provides a show shelf is used in teaching of art specialty.
The utility model provides a show shelf is used in teaching of art specialty, include: the adjustable shelf with be used for carrying out the support frame that supports to the adjustable shelf, wherein:
the movable frame is formed by sequentially hinging n display plates end to end, wherein n is an even number greater than 4; the inner side of the movable frame is provided with a first telescopic rod which is horizontally arranged, and two ends of the first telescopic rod are respectively and fixedly connected with two opposite display plates in the movable frame;
the support frame is located the below of first telescopic link and is connected with first telescopic link.
Preferably, the display board is provided with a display groove on the outer side surface, the display groove is recessed towards the inner side surface, the display board is provided with a clamping cover which is clamped with the display groove and covers the display groove, and the clamping cover is made of transparent material.
Preferably, the inner side of the display board is provided with a display auxiliary board which can be folded towards one side of the display board and is positioned on the same plane with the display board after being folded.
Preferably, one side of the display auxiliary plate is hinged to the side edge of the display plate, a clamping head is arranged on the display auxiliary plate, and a clamping groove for the clamping head to be clamped in is formed in the inner side of the display plate.
Preferably, the display board is provided with a fixing mechanism for fixing the exhibit.
Preferably, n is 6.
Preferably, the light filling lamp is arranged above the movable frame and connected with the first telescopic rod through the universal pipe.
Preferably, install the camera on the adjustable shelf and be used for driving the second telescopic link that the camera goes up and down, and the camera passes through the elbow and is connected with the second telescopic link.
Preferably, the first telescopic rod comprises a sleeve and a movable rod, one end of the movable rod extends into the sleeve and can slide in and out of the sleeve, an inner cavity of the sleeve is a rectangular cavity, an anti-slip cushion layer attached to the inner wall of the sleeve is arranged on the inner wall of the sleeve, and a locking mechanism used for locking the movable rod is arranged on the sleeve; the cross section of the movable rod is rectangular.
Preferably, the support frame rotates with first telescopic link to be connected, and the support frame is height-adjustable's adjustable shelf, and the gyro wheel is installed to the bottom of support frame.
The utility model discloses in, through setting the adjustable shelf to by a plurality of show boards end to end articulated structure in proper order, and set up first telescopic link in the inboard of adjustable shelf, and make the both ends of first telescopic link respectively with two relative show board fixed connection in the adjustable shelf, so that contained angle between each show board can change along with the flexible production along with first telescopic link in the adjustable shelf, and then make the adjustable shelf can form various show shapes, in order to satisfy multiple show demands, and convenient operation is nimble.
Drawings

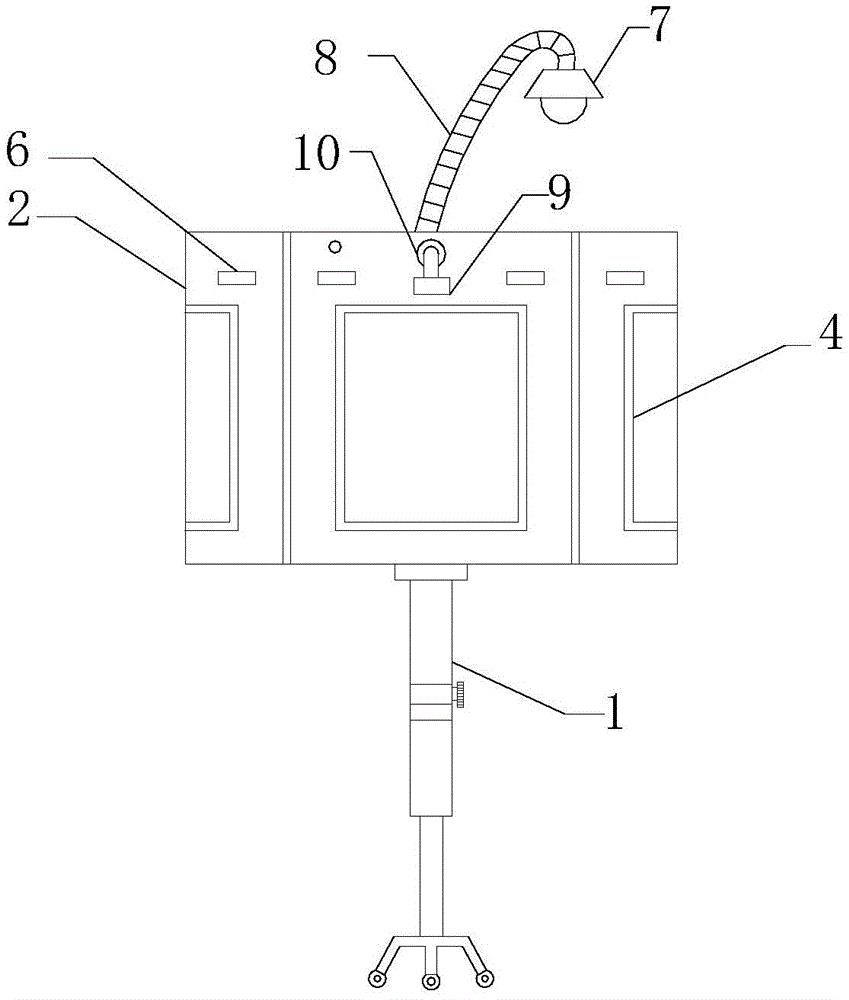

Fig. 1 is a schematic structural view of a display stand for teaching artistic professions in an embodiment of the present invention;
fig. 2 is a top view of the movable frame in the art teaching display stand according to the embodiment of the present invention;
fig. 3 is the utility model discloses in the show shelf is used in art specialty teaching assembly sketch between show subplate and the show board.
Detailed Description
The following describes embodiments of the present invention in detail with reference to the accompanying drawings and examples.
As shown in fig. 1-3, fig. 1 is a schematic structural view of a display stand for teaching artistic profession in an embodiment of the present invention; fig. 2 is a top view of the movable frame in the art teaching display stand according to the embodiment of the present invention; fig. 3 is the utility model discloses in the show shelf is used in art specialty teaching assembly sketch between show subplate and the show board.
Referring to fig. 1-3, the utility model relates to a show shelf is used in teaching of art specialty, include: the adjustable shelf and the support frame 1 that is used for supporting the adjustable shelf, wherein:
the movable frame is formed by sequentially hinging n display plates 2 end to end, wherein n is 6; the inboard of adjustable shelf is equipped with the first telescopic link 3 that the level was arranged, and the both ends of first telescopic link 3 respectively with two relative show boards 2 fixed connection in the adjustable shelf to contained angle between each show board 2 can change along with the flexible of first telescopic link 3 in making the adjustable shelf, and then make the adjustable shelf can form various show shapes, in order to satisfy multiple show demand. The support frame 1 is located below the first telescopic rod 3 and connected with the first telescopic rod 3 so as to avoid interference between the support frame 1 and the display board 2.
In addition, in this embodiment, a display slot recessed towards the inner side of the display board 2 is disposed on the outer side of the display board 2, a card cover 4 clamped with the display slot and covering the display slot is disposed on the display board 2, and the card cover 4 is made of a transparent material. For some exhibits needing special protection, the exhibits can be placed in the display groove and protected by the clamping cover 4.
In this embodiment, the display sub-board 5 is disposed on the inner side of the display board 2, and can be folded toward one side of the display board and be in the same plane with the display board 2 after being folded, and when the area of the display article is large, the display sub-board 5 can be folded from the inner side of the display board 5, so that the display sub-board 5 and the display board 2 are in the same plane to increase the placement area.
In this embodiment, one side of show subplate 5 is articulated with the side of show board 2 to make show subplate 5 can turn over and roll over, be equipped with dop 51 on the show subplate 5, the inboard of show board 2 is equipped with the confession the draw-in groove that dop 51 card was gone into turns over when showing subplate 5 turns over to show board 2 inboard, utilizes draw-in groove cooperation on dop 51 and the show board 2 on the show subplate 5 to fix.
In this embodiment, be equipped with on show board 2 and be used for fixing the fixed establishment 6 to the showpiece to directly fix on show board 2.
In this embodiment, the top of adjustable shelf is equipped with light filling lamp 7, and light filling lamp 7 passes through universal pipe 8 and is connected with first telescopic link 3. Through the cooperation use of universal pipe 8 and light filling lamp 7, can be for watching and admiring needs adjustment light source angle and light source intensity to reinforcing ornamental effect.
In this embodiment, install camera 9 and the second telescopic link 10 that is used for driving camera 9 to go up and down on the adjustable shelf, and camera 9 passes through the elbow and is connected with second telescopic link 10, thereby camera 9's setting can be shot the showpiece with the help of multimedia playing, does benefit to many people and imparts knowledge to students and uses.
In this embodiment, the first telescopic rod 3 includes a sleeve 31 and a movable rod 32, one end of which extends into the sleeve 31 and can slide in and out of the sleeve 31, an inner cavity of the sleeve 31 is a rectangular cavity, an anti-slip cushion layer attached to the inner wall of the sleeve 31 is arranged on the inner wall of the sleeve 31, and a locking mechanism for locking the movable rod 32 is arranged on the sleeve 31; the cross-sectional shape of the movable rod 32 is rectangular. The arrangement of this structure can effectively strengthen first telescopic link 3 and stretch out and draw back the action stationarity and the stability under the fixed state under the flexible state.
In this embodiment, support frame 1 rotates with first telescopic link 3 to be connected, and support frame 1 is height-adjustable's adjustable shelf, and the gyro wheel is installed to the bottom of support frame 1. The structure can not only enable the movable frame to rotate, but also enable the height of the movable frame to be adjustable, and meanwhile, the movable frame is convenient to move.
During specific work, an operator can adjust the telescopic amount of the first telescopic rod 3 according to the number of paintings to be displayed and the display requirement so as to adjust the included angle between the six display plates 2; for example: three display boards 2 in the six display boards 2 are adjusted to a plane by retracting the first telescopic rod 3, so that three paintings can be displayed at a time; for example: through stretching first telescopic link 3, prop up six show boards 2 and open in order to form standard hexagon to can show six paintings respectively in turn. An operator can open the rectangular clamping cover 4, precious paintings are placed inside the display groove, and the precious paintings are clamped and fixed through the rectangular clamping cover 4; when the length of the display board 2 is not enough, the display auxiliary board 5 can be unfolded to display longer paintings; when the light is insufficient, an operator can turn on the light supplement lamp 7 and pull the universal tube 8 to adjust the light supplement lamp 7 to a proper position for light supplement irradiation; when the student who watches is more, the operator can be connected camera 9 and multimedia, adjusts the length of second telescopic link 10, aligns camera 9 with the drawing, transmits the multimedia through drawing the photography and plays to realize the multimedia teaching needs.
From the above, the utility model discloses a set the adjustable shelf to by 2 end to end articulated structures in proper order of a plurality of show boards, and set up first telescopic link 3 in the inboard of adjustable shelf, and make the both ends of first telescopic link 3 respectively with two relative show boards 2 fixed connection in the adjustable shelf, so that contained angle between each show board 2 can produce along with the flexible of first telescopic link 3 and change in the adjustable shelf, in order to form various show shapes, thereby satisfy multiple show demands, and convenient operation is nimble swiftly.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (10)
1. The utility model provides a show shelf is used in teaching of art specialty which characterized in that includes: adjustable shelf and support frame (1) that is used for supporting the adjustable shelf, wherein:
the movable frame is formed by sequentially hinging n display plates (2) end to end, wherein n is an even number greater than 4; a first telescopic rod (3) which is horizontally arranged is arranged on the inner side of the movable frame, and two ends of the first telescopic rod (3) are respectively and fixedly connected with two opposite display plates (2) in the movable frame;
the support frame (1) is positioned below the first telescopic rod (3) and is connected with the first telescopic rod (3).
2. The display stand for teaching of artistic professions according to claim 1, wherein the display plate (2) is provided at an outer side surface thereof with a display groove recessed toward an inner side surface thereof, the display plate (2) is provided with a card cover (4) which is clamped with the display groove and covers the display groove, and the card cover (4) is made of a transparent material.
3. The display stand for teaching artistic professions according to claim 1, wherein the inside of the display board (2) is provided with a display sub-board (5) which can be folded to one side and is positioned on the same plane with the display board (2) after being folded.
4. The display stand for teaching of artistic professions according to claim 3, wherein one side of the display auxiliary plate (5) is hinged to the side of the display plate (2), a clamping head (51) is arranged on the display auxiliary plate (5), and a clamping groove for the clamping head (51) to be clamped is formed in the inner side of the display plate (2).
5. The display stand for teaching artistic professions according to claim 1, wherein the display board (2) is provided with a fixing mechanism (6) for fixing the exhibit.
6. The display stand for teaching artistic expertise of claim 1, wherein n is 6.
7. The showing stand for teaching of artistic professions according to claim 1, wherein a light supplement lamp (7) is arranged above the movable stand, and the light supplement lamp (7) is connected with the first telescopic rod (3) through a universal pipe (8).
8. The display stand for teaching of artistic professions according to claim 1, wherein the movable stand is provided with a camera (9) and a second telescopic rod (10) for driving the camera (9) to ascend and descend, and the camera (9) is connected with the second telescopic rod (10) through an elbow.
9. The display rack for teaching of artistic professions according to claim 1, wherein the first telescopic rod (3) comprises a sleeve (31) and a movable rod (32) with one end extending into the sleeve (31) and capable of sliding in and out of the sleeve (31), the inner cavity of the sleeve (31) is a rectangular cavity, an anti-slip cushion layer attached to the inner wall of the sleeve (31) is arranged on the inner wall of the sleeve (31), and a locking mechanism for locking the movable rod (32) is arranged on the sleeve (31); the cross section of the movable rod (32) is rectangular.
10. The display stand for teaching of artistic professions as claimed in any one of claims 1 to 9, wherein the support frame (1) is rotatably connected with the first telescopic rod (3), the support frame (1) is a height-adjustable movable frame, and rollers are mounted at the bottom of the support frame (1).
