Abstract
The utility model belongs to the technical field of sewage treatment device, especially, energy-concerving and environment-protective sewage treatment plant, which comprises a tank body, the top side welding of the jar body has the ring, the inboard rotation of ring is connected with the carousel, the bottom central part of carousel and bottom one side all rotate the pivot that is connected with vertical setting, the outside fixedly connected with multiunit puddler of pivot, the top side welding of ring has the one end of two L type poles, and the other end of two L type poles passes through bolt fixedly connected with motor, the output shaft of motor and the top fixed connection that is located the pivot at carousel central part, and the top of two pivots is fixed respectively to have cup jointed gear wheel and pinion, the gear wheel meshes with the pinion mutually, the pinion is fixed to cup joint on the output. The utility model has the advantages of reasonable design, can carry out the revolution in the jar body when the rotation of multiunit puddler to abundant stirring sewage mixes with the flocculating agent, has effectively improved stirring efficiency, does benefit to impurity and the mud of subsiding in the sewage.
Description
Technical Field
The utility model relates to a sewage treatment device technical field especially relates to an energy-concerving and environment-protective sewage treatment plant.
Background
Sewage treatment is a process of purifying sewage to meet the water quality requirement of draining a certain water body or reusing the sewage. Sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people. For example, chinese patent with publication number CN208055165U discloses an energy-saving and environment-friendly sewage treatment device, which comprises a tank, wherein sewage enters the tank, is mixed with a reaction solution and stirred, is filtered and purified by a three-stage filter layer, flows into a settling tank for secondary settling, and is discharged through a liquid discharge pipe, so that effective purification treatment of sewage is realized; when the stirring, because chain drive, gear drive make reciprocal lead screw also follow the rotation, remove the nut along reciprocal lead screw axial displacement and push away the filter layer top surface impurity of the superiors to both sides through the push pedal, be convenient for derive from the blow off pipe, the clearance is convenient, effectively shortens clean time, guarantees the work efficiency of filter layer.
However, the design has defects that the sewage treatment device designed by the patent is not sufficient in stirring and poor in sewage mixing effect, so that an energy-saving and environment-friendly sewage treatment device is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects of the prior art and providing an energy-saving and environment-friendly sewage treatment device.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
an energy-saving environment-friendly sewage treatment device comprises a tank body, wherein a circular ring is welded on the top side of the tank body, the inner side of the circular ring is rotationally connected with a rotary table, the central part of the bottom and one side of the bottom of the rotary table are rotationally connected with a vertically arranged rotary shaft, a plurality of groups of stirring rods are fixedly connected with the outer side of the rotating shaft, one end of two L-shaped rods is welded on the top side of the circular ring, the other ends of the two L-shaped rods are fixedly connected with a motor through bolts, an output shaft of the motor is fixedly connected with the top end of a rotating shaft positioned in the central part of the rotating disc, the top ends of the two rotating shafts are respectively fixedly sleeved with a big gear and a small gear which are engaged with each other, the small gear is fixedly sleeved on an output shaft of the motor, the outer side of the large gear is meshed with the inner side of the circular ring, a separation net is arranged at the bottom of the inner side of the tank body, and the bottom side of the tank body is communicated with a sewage discharge pipe.
Preferably, the inner side of the circular ring is provided with a rack, and the large gear is meshed with the rack, so that the large gear can walk on the inner side of the rack while rotating.
Preferably, the outside of carousel is provided with the ring channel, and the inboard of ring channel rotates and is connected with a plurality of gyro wheels, the inboard of ring is provided with annular spout, and a plurality of gyro wheels all with annular spout roll connection for the carousel can get up in the inboard steady rotation of ring.
Preferably, the outer side of the rotating shaft is fixedly sleeved with an inner ring of the bearing, and an outer ring of the bearing is fixedly connected with the turntable, so that the rotating shaft is conveniently arranged on the turntable in a rotating manner.
Preferably, the top and the bottom of the outer side of the tank body are respectively provided with a water inlet pipe and a water outlet pipe, and the water inlet pipe, the water outlet pipe and the sewage discharge pipe are respectively provided with a valve for inputting sewage, discharging sewage and discharging sludge.
The energy-saving and environment-friendly sewage treatment device in the utility model inputs sewage into the tank body, the motor drives the pinion, the rotating shaft and the multiple groups of stirring rods to rotate when being electrified, the stirring rods stir the sewage in the tank body, a flocculating agent is put into the tank body, the pinion rotates to drive the gearwheel to rotate slowly, the gearwheel drives the rotating shaft and the stirring rods which are positioned outside the turntable to rotate, the gearwheel walks on the rack, and the gearwheel can drive the turntable to rotate in the inner side of the circular ring;
the energy-saving and environment-friendly sewage treatment device in the utility model has the advantages that the rotating shaft and the stirring rod which are positioned at the central part of the rotary disc can rotate, the rotating shaft and the stirring rod which are positioned at the edge part of the rotary disc can rotate and simultaneously revolve, the sewage in the tank body can be fully stirred, the sewage is fully mixed with the flocculating agent, and sundries and sludge in the sewage are deposited below the separation net, so that the sludge is conveniently discharged;
the utility model has the advantages of reasonable design, can carry out the revolution in the jar body when the rotation of multiunit puddler to abundant stirring sewage mixes with the flocculating agent, has effectively improved stirring efficiency, does benefit to impurity and the mud of subsiding in the sewage.
Drawings

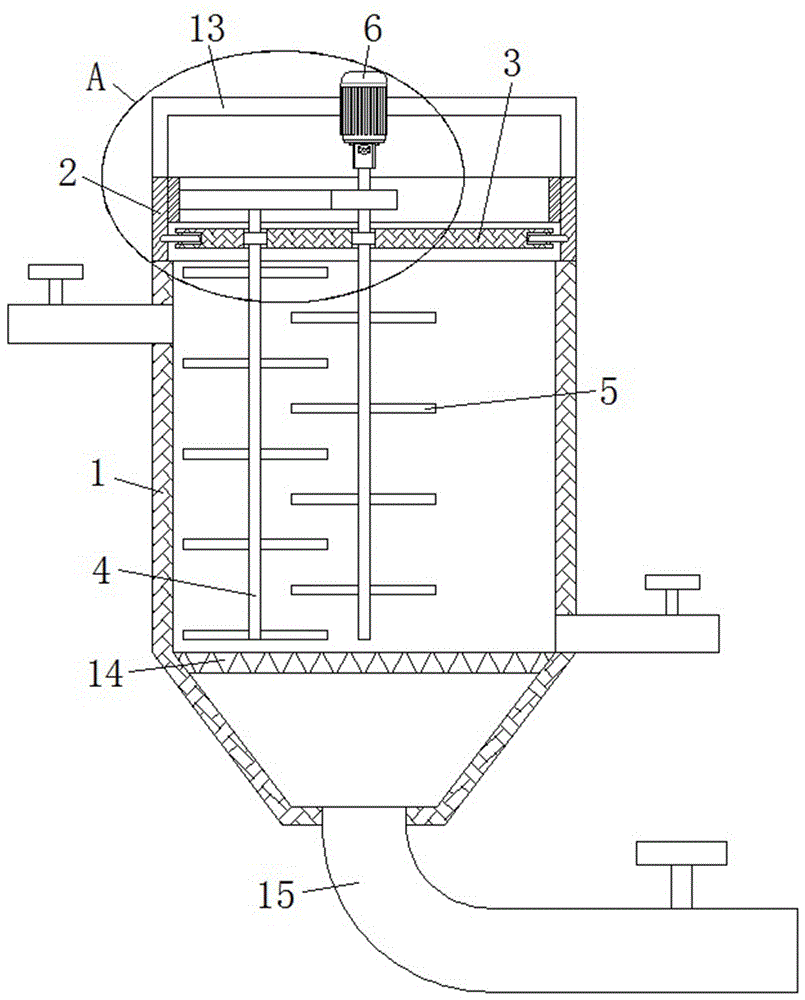

FIG. 1 is a schematic structural view of an energy-saving and environment-friendly sewage treatment plant provided by the utility model;
FIG. 2 is a schematic structural view of part A of the energy-saving and environment-friendly sewage treatment plant provided by the utility model.
In the figure: 1. a tank body; 2. a circular ring; 3. a turntable; 4. a rotating shaft; 5. a stirring rod; 6. a motor; 7. a pinion gear; 8. a bull gear; 9. a roller; 10. a rack; 11. an annular chute; 12. a bearing; 13. an L-shaped rod; 14. separating the net; 15. a sewage discharge pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-2, an energy-saving and environment-friendly sewage treatment device comprises a tank body 1, a circular ring 2 is welded on the top side of the tank body 1, a rotary table 3 is rotatably connected on the inner side of the circular ring 2, a vertically arranged rotary shaft 4 is rotatably connected on the central part of the bottom and one side of the bottom of the rotary table 3, a plurality of groups of stirring rods 5 are fixedly connected on the outer side of the rotary shaft 4, one ends of two L-shaped rods 13 are welded on the top side of the circular ring 2, the other ends of the two L-shaped rods 13 are fixedly connected with a motor 6 through bolts, an output shaft of the motor 6 is fixedly connected with the top end of the rotary shaft 4 positioned on the central part of the rotary table 3, the top ends of the two rotary shafts 4 are respectively and fixedly sleeved with a large gear 8 and a small gear 7, the large gear 8 is meshed with the small gear 7, the small gear 7 is, the bottom side of the tank body 1 is communicated with a sewage discharge pipe 15.
The utility model discloses in, the inboard of ring 2 is provided with rack 10, and gear wheel 8 meshes with rack 10 mutually for 8 rotatory while in gear wheel can be at the inboard walking of rack 10.
The utility model discloses in, the outside of carousel 3 is provided with the ring channel, and the inboard of ring channel is rotated and is connected with a plurality of gyro wheels 9, and the inboard of ring 2 is provided with annular spout 11, and a plurality of gyro wheels 9 all with annular spout 11 roll connection for carousel 3 can get up in the inboard steady rotation of ring 2.
The utility model discloses in, the fixed inner circle that has cup jointed bearing 12 in the outside of pivot 4, and bearing 12's outer lane and 3 fixed connection of carousel, the convenience rotates pivot 4 and sets up on carousel 3.
The utility model discloses in, the outside top and the outside bottom of jar body 1 are provided with inlet tube and drain pipe respectively, and all are provided with the valve on inlet tube, drain pipe and the blow off pipe 15, are used for inputing sewage, discharging sewage and discharging silt respectively.
In the utility model, when in use, the utility model supplies power to the motor 6 by using the commercial power, and sets a control switch for the motor 6, the sewage is input into the tank body 1, the motor 6 drives the pinion 7, the rotating shaft 4 and the multiple groups of stirring rods 5 to rotate when being electrified, the stirring rods 5 can stir the sewage in the tank body 1, the flocculating agent is put into the tank body 1, the pinion 7 drives the gearwheel 8 to rotate slowly when rotating, the gearwheel 8 drives the rotating shaft 4 and the stirring rods 5 which are positioned at the outer side of the turntable 3 to rotate, at the moment, the gearwheel 8 walks on the rack 10, the turntable 3 can be driven by the gearwheel 8 to rotate at the inner side of the circular ring 2, the rotating shaft 4 and the stirring rods 5 which are positioned at the central part of the turntable 3 can rotate, the rotating shaft 4 and the stirring rods 5 which are positioned at the edge part of the turntable 3 can rotate and simultaneously revolve, the, sundries and sludge in the sewage are deposited below the separation net 14, so that the sludge is convenient to discharge.
The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt prior art, and conventional model, including circuit connection adopts conventional connection mode among the prior art, does not detailed here again.
Claims (5)
1. The utility model provides an energy-concerving and environment-protective sewage treatment plant, includes a jar body (1), its characterized in that, the top side welding of jar body (1) has ring (2), the inboard rotation of ring (2) is connected with carousel (3), the bottom central part and bottom one side of carousel (3) all rotate and are connected with pivot (4) of vertical setting, the outside fixedly connected with multiunit puddler (5) of pivot (4), the top side welding of ring (2) has the one end of two L type poles (13), and the other end of two L type poles (13) passes through bolt fixedly connected with motor (6), the output shaft of motor (6) and the top fixed connection of pivot (4) that are located carousel (3) central part, and the top of two pivot (4) is fixed respectively has cup jointed gear wheel (8) and pinion (7), gear wheel (8) mesh with pinion (7), the small gear (7) is fixedly sleeved on an output shaft of the motor (6), the outer side of the large gear (8) is meshed with the inner side of the circular ring (2), the bottom of the inner side of the tank body (1) is provided with a separation net (14), and the bottom side of the tank body (1) is communicated with a sewage discharge pipe (15).
2. An energy-saving and environment-friendly sewage treatment plant as claimed in claim 1, wherein a rack (10) is arranged on the inner side of the circular ring (2), and the gearwheel (8) is meshed with the rack (10).
3. The energy-saving and environment-friendly sewage treatment device according to claim 1, wherein an annular groove is formed on the outer side of the rotary plate (3), a plurality of rollers (9) are rotatably connected to the inner side of the annular groove, an annular chute (11) is formed on the inner side of the annular ring (2), and the plurality of rollers (9) are all in rolling connection with the annular chute (11).
4. The energy-saving and environment-friendly sewage treatment device according to claim 1, wherein an inner ring of the bearing (12) is fixedly sleeved on the outer side of the rotating shaft (4), and an outer ring of the bearing (12) is fixedly connected with the turntable (3).
5. The energy-saving and environment-friendly sewage treatment device according to claim 1, wherein the top and bottom of the outside of the tank body (1) are respectively provided with a water inlet pipe and a water outlet pipe, and the water inlet pipe, the water outlet pipe and the sewage discharge pipe (15) are respectively provided with a valve.
