The utility model discloses a coiling mechanism for cable manufacture, the power distribution box comprises a box body, the first louvre of positive bottom fixedly connected with of box, there is the cabinet door at the left top of inner chamber of the box through hinge swing joint, the positive left side fixedly connected with controller of cabinet door, the positive fixedly connected with observation window of cabinet door, the hand slot has been seted up on the positive right side of cabinet door, the left bottom fixedly connected with pushing hands of box, the equal fixedly connected with landing leg in both sides of bottom half, the bottom fixedly connected with anti-skidding rubber pad of landing leg, the activity chamber has all been seted up to the both sides of bottom half and lie in the relative one side of landing leg. The utility model discloses a cooperation of first motor, threaded rod, thread bush, first U type frame, connecting rod, second U type frame, flat board and gyro wheel is used, can realize the convenience that the device removed, and the convenience that better assurance was removed, the better practicality that has increased the device.
Description
Technical Field
The utility model relates to a coiling mechanism technical field specifically is a coiling mechanism for cable manufacture.
Background
The power cable is used for transmitting and distributing electric energy, the power cable is commonly used for urban underground power grids, power station leading-out lines, power supply inside industrial and mining enterprises and power transmission lines under river-crossing seawater, and the winding is a method for winding continuous products such as films, strips, monofilaments, hoses and coated wires by using a winding drum.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a coiling mechanism for cable manufacture possesses the advantage that can be convenient for remove, has solved current coiling mechanism for cable manufacture and can not remove, can not remove the workplace according to actual need, has increased operation workman's operation, has reduced production efficiency, can not observe when the device moves, can not in time know the inside operation information of device, has increased the potential safety hazard of device operation, is unfavorable for the problem of going on that lasts of rolling work.
In order to achieve the above object, the utility model provides a following technical scheme: a winding device for cable production comprises a box body, wherein the bottom of the front side of the box body is fixedly connected with a first heat dissipation hole, the top of the left side of an inner cavity of the box body is movably connected with a cabinet door through a hinge, the left side of the front side of the cabinet door is fixedly connected with a controller, the front side of the cabinet door is fixedly connected with an observation window, a hand groove is formed in the right side of the front side of the cabinet door, the bottom of the left side of the box body is fixedly connected with a push handle, two sides of the bottom of the box body are fixedly connected with supporting legs, the bottoms of the supporting legs are fixedly connected with anti-skidding rubber pads, two sides of the bottom of the box body and the side opposite to the supporting legs are respectively provided with a movable cavity, the bottom of the left side of the inner cavity of the box body is, the surface of the threaded rod is in threaded connection with a threaded sleeve, the bottom of the threaded sleeve is fixedly connected with a first U-shaped frame, the inner cavity of the first U-shaped frame is movably connected with a connecting rod, one side of the connecting rod, which is far away from the first U-shaped frame, is movably connected with a second U-shaped frame, the bottom of the second U-shaped frame is fixedly connected with a flat plate, two sides of the flat plate are both fixedly connected with sliding blocks, the bottoms of two sides of the inner cavity of the box body and below the first motor are both provided with sliding grooves matched with the sliding blocks for use, the inner cavity of the sliding grooves are movably connected with the sliding blocks, two sides of the bottom of the flat plate are both fixedly connected with rolling wheels, the tops of two sides of the box body are both provided with second heat dissipation holes, two sides of the inner cavity of the box body are both fixedly connected with partition plates, the output end of the second motor is fixedly connected with a rotating rod, and the surface of the rotating rod is movably connected with a take-up reel.
Preferably, the shape of box is the cuboid, the shape of landing leg is the cylinder, the shape of anti-skidding rubber pad is the cylinder.
Preferably, the right angle elbow of pushing hands is provided with the chamfer and bends, and the quantity of pushing hands is two, dull and stereotyped shape is the cuboid, the shape in activity chamber is the cuboid.
Preferably, the first heat dissipation hole is a cuboid, the observation window is a cuboid, and the second heat dissipation hole is a cylinder.
Preferably, the screw thread opposite direction of threaded rod both sides, the shape of baffle is the cuboid, the shape of bull stick is the cuboid, the middle shape of take-up reel is the cylinder, the both sides shape of take-up reel is the cylinder, and the diameter of the cylinder of take-up reel both sides is greater than the diameter of middle cylinder.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a cooperation of first motor, threaded rod, thread bush, first U type frame, connecting rod, second U type frame, flat board and gyro wheel is used, can realize the convenience that the device removed, and the convenience that better assurance was removed, the better practicality that has increased the device.
2. The utility model can support the device when the device works by arranging the supporting legs, avoid the device and a ground device, better increase the practicability of the device, can be conveniently controlled when the device is moved by arranging the pushing hands, better increase the practicability of the device, can discharge the heat generated by the first motor in time by arranging the first heat dissipation holes, better increase the safety of the device, can increase the convenience of opening the cabinet door by arranging the hand groove, better increase the practicability of the device, can be convenient for observing the operation condition in the device by arranging the observation window, better increase the operation safety of the device, can be convenient for the heat dissipation of the power supply and the second motor by arranging the second heat dissipation holes, can be convenient for the cable to enter the device to be collected at the same time, better increase the practicability of the device, and can be convenient for the cable collection disc by arranging the take-up reel, can be convenient for install and dismantle, can be convenient for going on of rolling work.
Drawings

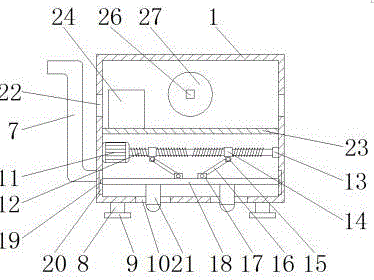

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the appearance structure of the present invention;
fig. 3 is a schematic structural diagram of a second motor according to the present invention.
In the figure: 1. a box body; 2. a first heat dissipation hole; 3. a cabinet door; 4. a controller; 5. an observation window; 6. a hand groove; 7. a pushing handle; 8. a support leg; 9. an anti-skid rubber pad; 10. a movable cavity; 11. a first motor; 12. a threaded rod; 13. a bearing; 14. a threaded sleeve; 15. a first U-shaped frame; 16. a connecting rod; 17. a second U-shaped frame; 18. a flat plate; 19. a slider; 20. a chute; 21. a roller; 22. a second heat dissipation hole; 23. a partition plate; 24. a power source; 25. a second motor; 26. a rotating rod; 27. a take-up reel.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The components of the present invention are all standard components or components known to those skilled in the art, and the structure and principle thereof can be known by the technical manual or by the conventional experimental method.
Referring to fig. 1-3, a winding device for cable production comprises a box body 1, wherein a first heat dissipation hole 2 is fixedly connected to the front bottom of the box body 1, heat generated by a first motor 11 can be timely discharged by arranging the first heat dissipation hole 2, the safety of the device is better increased, the box body 1 is in a cuboid shape, a support leg 8 is in a cylinder shape, an anti-skid rubber pad 9 is in a cylinder shape, a cabinet door 3 is movably connected to the left top of an inner cavity of the box body 1 through a hinge, a controller 4 is fixedly connected to the front left side of the cabinet door 3, an observation window 5 is fixedly connected to the front side of the cabinet door 3, the operation condition inside the device can be conveniently observed by arranging the observation window 5, the operation safety of the device is better increased, the first heat dissipation hole 2 is in a cuboid shape, the observation window 5 is in a cuboid shape, and a second heat dissipation hole 22 is, the right side of the front of the cabinet door 3 is provided with a hand groove 6, the convenience of opening the cabinet door 3 can be increased by arranging the hand groove 6, the practicability of the device is better increased, the left bottom of the cabinet body 1 is fixedly connected with a push handle 7, the device can be conveniently controlled when being moved by arranging the push handle 7, the practicability of the device is better increased, the right-angled bend of the push handle 7 is provided with a chamfer bend, the number of the push handles 7 is two, the flat plate 18 is in a cuboid shape, the movable cavity 10 is in a cuboid shape, two sides of the bottom of the cabinet body 1 are both fixedly connected with supporting legs 8, the device can be supported when working by arranging the supporting legs 8, the device and a ground device are avoided, the practicability of the device is better increased, the bottom of the supporting legs 8 is fixedly connected with anti-skid rubber pads 9, two sides of the bottom of the cabinet body 1 and one side opposite to the supporting legs 8 are, the bottom of the left side of the inner cavity of the box body 1 is fixedly connected with a first motor 11, the output end of the first motor 11 is fixedly connected with a threaded rod 12, the bottom of the right side of the inner cavity of the box body 1 is fixedly connected with a bearing 13, the inside of the bearing 13 is fixedly connected with the threaded rod 12, the surface of the threaded rod 12 is in threaded connection with a threaded sleeve 14, the bottom of the threaded sleeve 14 is fixedly connected with a first U-shaped frame 15, the inner cavity of the first U-shaped frame 15 is movably connected with a connecting rod 16, one side of the connecting rod 16 far away from the first U-shaped frame 15 is movably connected with a second U-shaped frame 17, the bottom of the second U-shaped frame 17 is fixedly connected with a flat plate 18, two sides of the flat plate 18 are both fixedly connected with sliding blocks 19, the bottom of two sides of the inner cavity of the box body 1 and below the first motor 11 are, the top parts of the two sides of the box body 1 are respectively provided with a second heat dissipation hole 22, the heat dissipation of a power supply 24 and a second motor 25 can be facilitated by arranging the second heat dissipation holes 22, the cable can be conveniently collected by a cable entering device, the practicability of the device is better increased, the two sides of the inner cavity of the box body 1 are respectively fixedly connected with a baffle 23, the left side of the top part of the baffle 23 is fixedly connected with the power supply 24, the top part of the back surface of the inner cavity of the box body 1 is fixedly connected with the second motor 25, the output end of the second motor 25 is fixedly connected with a rotating rod 26, the surface of the rotating rod 26 is movably connected with a take-up reel 27, the take-up reel 27 is arranged, the installation and the disassembly can be facilitated, the rolling work can be conveniently carried out, the thread directions of the two sides of the threaded rod 12 are opposite, the baffle 23 is cuboid, the, and the diameter of the cylinder of take-up reel 27 both sides is greater than the diameter of middle cylinder, uses through the cooperation of first motor 11, threaded rod 12, thread bush 14, first U type frame 15, connecting rod 16, second U type frame 17, dull and stereotyped 18 and gyro wheel 21, can realize the convenience that the device removed, and the convenience of removal is better guaranteed, the better practicality that has increased the device.
When the device is used and needs to be moved, the controller 4 controls the first motor 11 to rotate, the first motor 11 drives the threaded rod 12 to rotate, the threaded rod 12 drives the threaded sleeve 14 to slide, the threaded sleeve 14 drives the connecting rod 16 to move, the connecting rod 16 drives the flat plate 18 to move, the flat plate 18 drives the roller 21 to move, when the anti-skid rubber pad 9 leaves away from the ground, the controller 4 stops the first motor 11 to rotate, the push handle 7 is pulled, the device is moved, when a cable needs to be wound, the controller 4 controls the second motor 25 to work, the second motor 25 drives the rotating rod 26 to rotate, the rotating rod 26 drives the take-up reel 27 to rotate, the take-up reel 27 winds the cable entering the box body 1 through the second heat dissipation hole 22, when the winding is observed through the observation window 5, the controller 4 stops the second motor 25 to work, the hand slot 6 is pulled, the cabinet door 3 is opened, the take-up reel 27 is taken down to realize the winding work of the device.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a coiling mechanism for cable manufacture, includes box (1), its characterized in that: the portable multifunctional cabinet is characterized in that a first heat dissipation hole (2) is fixedly connected to the front bottom of the inner cavity of the cabinet body (1), a cabinet door (3) is movably connected to the left top of the inner cavity of the cabinet body (1) through a hinge, a controller (4) is fixedly connected to the front left side of the cabinet door (3), an observation window (5) is fixedly connected to the front side of the cabinet door (3), a hand groove (6) is formed in the front right side of the cabinet door (3), a pushing handle (7) is fixedly connected to the left bottom of the cabinet body (1), supporting legs (8) are fixedly connected to the two sides of the bottom of the cabinet body (1), anti-skid rubber pads (9) are fixedly connected to the bottoms of the supporting legs (8), movable cavities (10) are formed in the two sides of the bottom of the cabinet body (1) and located on the opposite sides of the supporting legs (8), a first motor (11), the bottom on the right side of the inner cavity of the box body (1) is fixedly connected with a bearing (13), the inside of the bearing (13) is fixedly connected with a threaded rod (12), the surface of the threaded rod (12) is in threaded connection with a threaded sleeve (14), the bottom of the threaded sleeve (14) is fixedly connected with a first U-shaped frame (15), the inner cavity of the first U-shaped frame (15) is movably connected with a connecting rod (16), one side, far away from the first U-shaped frame (15), of the connecting rod (16) is movably connected with a second U-shaped frame (17), the bottom of the second U-shaped frame (17) is fixedly connected with a flat plate (18), two sides of the flat plate (18) are fixedly connected with sliding blocks (19), sliding grooves (20) matched with the sliding blocks (19) are formed in the bottoms of two sides of the inner cavity of the box body (1) and below the first motor (11), and the inner cavity of the sliding grooves (20, the utility model discloses a take-up reel, including dull and stereotyped (18), the equal fixedly connected with gyro wheel (21) in both sides of dull and stereotyped (18) bottom, second louvre (22) have all been seted up at the top of box (1) both sides, the equal fixedly connected with baffle (23) in both sides of box (1) inner chamber, the left side fixedly connected with power (24) at baffle (23) top, top fixedly connected with second motor (25) at the box (1) inner chamber back, the output fixedly connected with bull stick (26) of second motor (25), the surperficial swing joint of bull stick (26) has take-up reel (27).
2. The winding device for cable production according to claim 1, wherein: the shape of box (1) is the cuboid, the shape of landing leg (8) is the cylinder, the shape of anti-skidding rubber pad (9) is the cylinder.
3. The winding device for cable production according to claim 1, wherein: the right angle elbow of pushing hands (7) is provided with the chamfer and bends, and the quantity of pushing hands (7) is two, the shape of flat board (18) is the cuboid, the shape in activity chamber (10) is the cuboid.
4. The winding device for cable production according to claim 1, wherein: the shape of the first heat dissipation hole (2) is a cuboid, the shape of the observation window (5) is a cuboid, and the shape of the second heat dissipation hole (22) is a cylinder.
5. The winding device for cable production according to claim 1, wherein: the screw thread opposite direction of threaded rod (12) both sides, the shape of baffle (23) is the cuboid, the shape of bull stick (26) is the cuboid, the middle shape of take-up reel (27) is the cylinder, the both sides shape of take-up reel (27) is the cylinder, and the diameter of the cylinder of take-up reel (27) both sides is greater than the diameter of middle cylinder.
