Abstract

The utility model provides an insert formula pen bag of standing to one side, it includes the bag body, the bag body is including the left bag body and the right bag body, a side of the left bag body is connected with a side of the right bag body, and other sides of the left bag body are passed through closing mechanism with other sides of the right bag body and are connected, the junction of the left bag body and the right bag body is connected with first spacer, form first cavity between first spacer and the left bag body, form the second cavity between first spacer and the right bag body, be equipped with the second spacer of at least one slope form in the second cavity, the right side of second spacer is connected with the right bag body, and the left side of second spacer is connected with first spacer, and the level of second spacer outer end is higher than the level in second spacer inner. The first cavity on the left side can be used for storing conventional pens and pen container type pen bags, and the second cavity on the right side is internally provided with a second spacer to enable the pen container to be in an inclined pen container shape, so that pens can be taken conveniently, and the pen container can be used for placing pens frequently used.

Description

Inclined inserting type standing pen bag

Technical Field

The utility model relates to a stationery, especially, relate to a pen bag.

Background

The pen bag is an extension of the writing case, can be used for containing pens or other small stationery, is more convenient to carry than the writing case, is more comfortable in hand feeling, saves more space than the writing case, can contain most things in the smallest space, and utilizes more small spaces. The applicant designs a standing pen bag (application number: CN201721196032.9) capable of vertically placing pen bags in the past, but because many students have pens, the pens are overlapped and doped after being placed in the pen bag, and the pens need to be found when being taken, so that the pens are inconvenient.

SUMMERY OF THE UTILITY MODEL

The utility model discloses provide an insert formula pen bag of standing to one side to above problem, but article subregion in the pen bag is accomodate.

The utility model provides a used technical scheme of above problem is: the utility model provides an insert formula pen bag of standing to one side, it includes the bag body, the bag body is including the left bag body and the right bag body, a side of the left bag body is connected with a side of the right bag body, and other sides of the left bag body are passed through closing mechanism with other sides of the right bag body and are connected, the junction of the left bag body and the right bag body is connected with first spacer, form first cavity between first spacer and the left bag body, form the second cavity between first spacer and the right bag body, be equipped with the second spacer of at least one slope form in the second cavity, the right side of second spacer is connected with the right bag body, and the left side of second spacer is connected with first spacer, and the level of second spacer outer end is higher than the level in second spacer inner.

The utility model discloses first cavity and second cavity about the product pen bag divide into through first spacer, and second spacer outer end indicates that the second spacer keeps away from the one end of the left side bag body and the right side bag body junction. The first cavity on the left side can be used for storing conventional pens and pen container type pen bags, and the second cavity on the right side is internally provided with a second spacer to enable the pen container to be in an inclined pen container shape, so that pens can be taken conveniently, and the pen container can be used for placing pens frequently used. After adopting above structure, compare the prior art beneficial part and lie in can accomodating the pen utensil according to the use habit subregion, conveniently take common pen.

Preferably, the first cavity is provided with a separation blade, the right side edge of the separation blade is connected with the first separation blade, the left side edge of the separation blade is connected with the left bag body, the lower end of the first cavity is provided with a first bottom plate, the right side edge of the first bottom plate is connected with the lower end of the first separation blade, the left side edge of the first bottom plate is connected with the lower end of the left bag body, and the outer side edge of the first bottom plate is connected with the lower end of the separation blade. After the pen bag is arranged, the first cavity is in a pen barrel shape after the pen bag is opened, the baffle plate prevents the pen from falling outwards, and the outer side edge of the first bottom plate is the side edge of one end, far away from the joint of the left bag body and the right bag body, of the first bottom plate.

Preferably, the lower end of the second cavity is provided with a second bottom plate, the right side edge of the second bottom plate is connected with the lower end of the right bag body, and the left side edge of the second bottom plate is connected with the lower end of the first spacer. The lower part of the second cavity is an open space after the arrangement, and temporary small articles can be conveniently stored.

Preferably, the third spacer that the level set up is equipped with in the top of second spacer, the right side limit and the right bag body of third spacer are connected, and the left side limit and the first spacer of third spacer are connected. The upper portion of the second cavity can be used for a small article storage area after the third spacer is arranged.

Preferably, the second spacer and the third spacer are provided with folding guide lines, so that the pen bag can be opened and closed more smoothly and conveniently.

Preferably, the outer end of the second distance piece and the outer end of the third distance piece are both provided with upward flanges. The turn-ups of second spacer can avoid the pen instrument roll-off of inserting to one side, and the turn-ups of third spacer can avoid the little article of accomodating to drop.

Preferably, the closure mechanism is a zipper. The other sides of the left bag body and the other sides of the right bag body are respectively provided with a chain belt which is engaged through a pull head.

Drawings

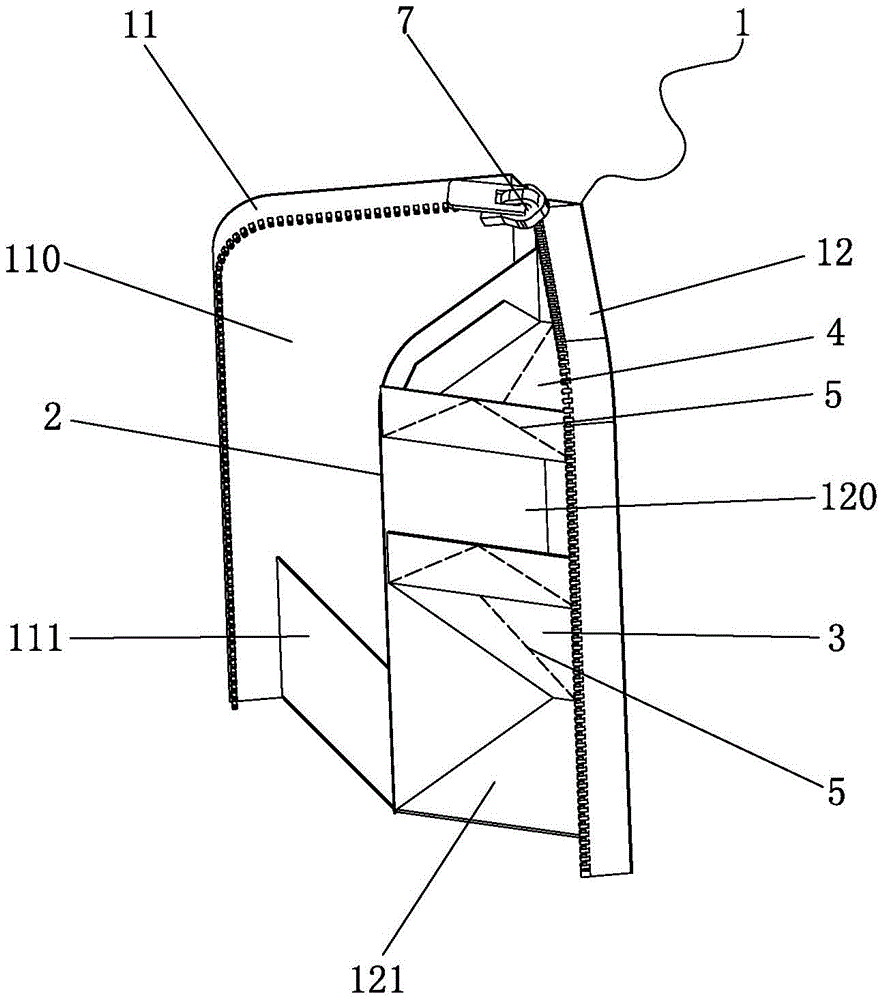

Fig. 1 is a schematic structural view of the obliquely inserted standing pen bag of the present invention.

Fig. 2 is a schematic structural view of the oblique-insertion standing pen bag of the present invention in another direction.

As shown in the figure: 1. the bag body, 11, left bag body, 110, first cavity, 111, separation blade, 112, first bottom plate, 12, right bag body, 121, second bottom plate, 2, first spacer, 3, second spacer, 4, third spacer, 5, folding guide line, 6, turn-ups, 7, zip fastener.

Detailed Description

The invention is further described with reference to the accompanying drawings and the detailed description.

As shown in fig. 1 and 2, the obliquely-inserted standing pen bag comprises a bag body 1, wherein the bag body 1 comprises a left bag body 11 and a right bag body 12, one side edge of the left bag body 11 is connected with one side edge of the right bag body 12, and the other side edges of the left bag body 11 are connected with the other side edges of the right bag body 12 through a closing mechanism. The junction of left bag 11 and right bag 12 is connected with the first spacer 2 of erectting the setting, forms first cavity 110 between first spacer 2 and the left bag 11, forms second cavity 120 between first spacer 2 and the right bag 12. An inclined second spacer 3 is arranged in the second cavity 120, the right side of the second spacer 3 is connected with the right bag body 12, the left side of the second spacer 3 is connected with the first spacer 2, and the horizontal height of the outer end of the second spacer 3 is higher than that of the inner end of the second spacer 3. The outer end of the second spacer 3 refers to the end of the second spacer 3 away from the joint of the left bag body 11 and the right bag body 12.

The first cavity 110 is provided with a baffle 111, the baffle 111 is made of elastic material, the right side of the baffle 111 is connected with the first baffle 2, and the left side of the baffle 111 is connected with the left bag body 11. The lower end of the first cavity 110 is provided with a first bottom plate 112, the right side of the first bottom plate 112 is connected with the lower end of the first spacer 2, the left side of the first bottom plate 112 is connected with the lower end of the left bag body 11, and the outer side of the first bottom plate 112 is connected with the lower end of the baffle 111. When the pen bag is opened, the first cavity 110 is in a pen barrel shape, and the blocking piece 111 is equivalent to the barrel wall of the pen barrel and used for supporting the pen to avoid falling outwards. The outer side of the first bottom plate 112 refers to the side of the first bottom plate 112 away from the end where the left bag body 11 and the right bag body 12 are connected.

The lower extreme of second cavity 120 is equipped with second bottom plate 121, and the right side of second bottom plate 121 is connected with the lower extreme of right bag body 12, and the left side of second bottom plate 121 is connected with the lower extreme of first spacer 2. The lower part of the second cavity is an open space after the arrangement, and temporary small articles can be conveniently stored.

The third spacer 4 that the level set up is equipped with in the top of second spacer 3, and the right side of third spacer 4 is connected with right bag body 12, and the left side of third spacer 4 is connected with first spacer 2. The upper portion of the second cavity 120 after the third partition 4 is provided can be used for a small article receiving area.

First spacer 2, second spacer 3 and third spacer 4 are the cloth material, and are equipped with folding guide line 5 on second spacer 3 and the third spacer 4, open and shut more smoothly and conveniently at the pen bag.

The outer end of second spacer 3 and the outer end of third spacer 4 all are equipped with ascending turn-ups 6. The turned-over edge 6 of the second spacer 3 can avoid the inclined insertion of the pen to slide out, and the turned-over edge 6 of the third spacer 4 can avoid the accommodated small articles to drop. The outer end of the third spacer 4 refers to the end of the third spacer 4 far away from the joint of the left bag body 11 and the right bag body 12

The closing mechanism is a zipper 7. The other sides of the left bag body 11 and the right bag body 12 are respectively provided with a chain belt, and are engaged with each other through a slider. The closing mechanism can also be in a button mode, buttons which correspond to one another are arranged on the other side edges of the left bag body 11 and the right bag body 12 respectively, and the buttons can be snap fasteners or magnetic suction fasteners.

The utility model discloses a first spacer 2 is divided the bag body 1 into about first cavity 110 and second cavity 120, and first cavity 110 in left side can be used to conventional pen utensil and accomodate and pen container formula pen bag. The second cavity 120 on the right side is separated by a second spacer 3, so that the pen is in an inclined pen container shape, is convenient for taking pens and can be used for placing frequently used pens. The accommodation space on the third spacer 4 in the second cavity 120 and the open space between the second spacer 3 and the second bottom plate 121 are used for storing small articles such as erasers, the whole space is divided into multiple areas, and different desktop tools can be better classified by users and are convenient to use.

Claims (7)

1. The utility model provides an insert formula pen bag of standing to one side, it includes bag body (1), its characterized in that: the bag body (1) comprises a left bag body (11) and a right bag body (12), one side edge of the left bag body (11) is connected with one side edge of the right bag body (12), the other side edges of the left bag body (11) are connected with the other side edges of the right bag body (12) through a closing mechanism, the joint of the left bag body (11) and the right bag body (12) is connected with a first spacer (2), a first cavity (110) is formed between the first spacer (2) and the left bag body (11), a second cavity (120) is formed between the first spacer (2) and the right bag body (12), at least one inclined second spacer (3) is arranged in the second cavity (120), the right side of second spacer (3) is connected with right bag body (12), and the left side of second spacer (3) is connected with first spacer (2), and the level of second spacer (3) outer end is higher than the level of second spacer (3) inner end.

2. The angle-insertion type standing pen bag according to claim 1, wherein: first cavity (110) are equipped with separation blade (111), the right side limit and the first spacer (2) of separation blade (111) are connected, and the left side limit and the left bag body (11) of separation blade (111) are connected, and the lower extreme of first cavity (110) is equipped with first bottom plate (112), the right side limit and the lower extreme of first spacer (2) of first bottom plate (112) are connected, and the left side limit and the lower extreme of the left bag body (11) of first bottom plate (112) are connected, and the outside limit of first bottom plate (112) is connected with the lower extreme of separation blade (111).

3. The angle-insertion type standing pen bag according to claim 1, wherein: the lower extreme of second cavity (120) is equipped with second bottom plate (121), the right side of second bottom plate (121) is connected with the lower extreme of right bag body (12), and the left side of second bottom plate (121) is connected with the lower extreme of first spacer (2).

4. The angle-insertion type standing pen bag according to claim 1, wherein: the top of second spacer (3) is equipped with third spacer (4) that the level set up, the right side limit and the right bag body (12) of third spacer (4) are connected, and the left side limit and the first spacer (2) of third spacer (4) are connected.

5. The angle-insertion type standing pen bag according to claim 4, wherein: the second distance piece (3) and the third distance piece (4) are provided with folding guide lines (5).

6. The angle-insertion type standing pen bag according to claim 4, wherein: the outer end of the second spacer (3) and the outer end of the third spacer (4) are both provided with upward flanges (6).

7. The angle-insertion type standing pen bag according to claim 1, wherein: the closing mechanism is a zipper (7).
