CN211519020U

CN211519020U - Categorised save set of electronic bill for financial management

Info

Publication number: CN211519020U
Application number: CN201922345880.7U
Authority: CN
Inventors: 董爱乐
Original assignee: Jilin Teachers Institute of Engineering and Technology
Current assignee: Jilin Teachers Institute of Engineering and Technology
Priority date: 2019-12-24
Filing date: 2019-12-24
Publication date: 2020-09-18
Anticipated expiration: 2029-12-24

Abstract

The utility model discloses a categorised save set of electronic bill for financial management, including base and second spring, the upside of base is connected with the axis of rotation, and the top of axis of rotation is connected with the support frame, the upper end of support frame is connected with the rolling disc, and the outside of rolling disc installs the storehouse of keeping, the top of keeping the storehouse is connected with sealed lid, and the bottom of sealed lid is connected with the extrusion device, the right side fixedly connected with loop bar of sealed lid, and the loop bar has the inserted bar through second spring coupling, the bottom inner wall in storehouse of keeping is installed and is placed the board. The utility model discloses be provided with axis of rotation and rolling disc, carry out categorised save work to the bill, be provided with extrusion device and protruding piece, avoid the bill to turn on one's side at the save storehouse rotation in-process, reduce the disorderly phenomenon of bill, be provided with recess and sliding plate, be convenient for carry out the work of ventilating to the bill of depositing in the save storehouse.

Description

Categorised save set of electronic bill for financial management

Technical Field

The utility model relates to a bill storage technology field specifically is a categorised save set of electronic bill for financial management.

Background

The core thought of electronic bill is exactly that the bill in kind is electronized, the bill of electron can be transferred like the bill in kind, stick to present, the matter is escorted, act such as collection, electronic bill need print into the paper version and preserve, the later stage work of being convenient for needs to seek and look up, but the categorised save set structure of current electronic bill is comparatively single, often be difficult to carry out categorised the save to different types of bill, need consume the longer time when user later stage looks up the bill, and the categorised save set of current electronic bill is difficult to carry out extrusion work to the bill of saving, the easy chaotic phenomenon that takes place of bill, the categorised save set of current electronic bill often is difficult to ventilate the bill, the bill easily produces the phenomenon of going mouldy, the shelf life is shorter, therefore, need for a categorised save set of electronic bill for financial management to solve above-mentioned problem urge.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a categorised save set of electronic bill for financial management to it is difficult to carry out categorised the saving and is difficult to carry out extrusion work and is difficult to the problem of work of taking a breath to the bill of saving to solve that to propose among the above-mentioned background art to different types of bill.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a categorised save set of electronic bill for financial management, includes base and second spring, the upside of base is connected with the axis of rotation, and the top of axis of rotation is connected with the support frame, the upper end of support frame is connected with the rolling disc, and the outside of rolling disc installs the storehouse of keeping, the top of keeping the storehouse is connected with sealed lid, and the bottom of sealed lid is connected with the extrusion device, the right side fixedly connected with loop bar of sealed lid, and the loop bar has the inserted bar through second spring coupling, the bottom inner wall in storehouse of keeping installs places the board, the storehouse inner wall of keeping evenly is provided with protruding piece, set up flutedly on the rolling disc, and insert on the recess and be equipped with the sliding plate.

Preferably, the rotating shaft is connected with the base through a bearing, and the rotating shaft and the base form a rotating structure.

Preferably, the sealing cover is hinged with the storage bin, and the storage bin and the sealing cover form a rotating structure.

Preferably, the extrusion device comprises a first spring, a connecting plate and a rubber pad, the connecting plate is welded at the bottom end of the first spring, and the rubber pad is glued at the bottom end of the connecting plate.

Preferably, one end of the second spring is connected with the left side of the loop bar, the other end of the loop bar is connected with the inserted bar, and the loop bar and the inserted bar form a sliding structure through the second spring.

Preferably, a sliding groove is formed in the groove, sliding blocks are mounted on the upper side and the lower side of the sliding plate, and the groove and the sliding plate form a sliding structure through the sliding groove and the sliding blocks.

Compared with the prior art, the beneficial effects of the utility model are that: this categorised save set of electronic bill for financial management is provided with axis of rotation and rolling disc, carries out categorised save work to the bill, is provided with extrusion device and protruding piece, avoids the bill to turn on one's side at the save storehouse rotation in-process, reduces the disorderly phenomenon of bill, is provided with recess and sliding plate, is convenient for carry out ventilation work to the bill of depositing in the save storehouse.

(1) The device is through being provided with axis of rotation and rolling disc, and convenient to use person puts the bill according to each department and places the bill and preserve the storehouse in, carries out categorised save work, and the person of facilitating the use gets simultaneously and takes the bill, shortens the operating time that the user seeked the bill, improves user's work efficiency, strengthens the practicality of this device.

(2) The device is through being provided with extrusion device and protruding piece, and the user of being convenient for exerts the strength to the bill and carries out extrusion work when depositing the bill, avoids the bill to deposit the in-process in the storehouse, and the bill rotates the in-process in the storehouse and turns on one's side, reduces the disorderly phenomenon of bill.

(3) The device is convenient for ventilate the bill of depositing in the storehouse through being provided with recess and sliding plate, reduces the production of the long-term storage in-process moldy phenomenon of bill in the storehouse of preserving, and the save life-span of reinforcing bill further strengthens the practicality of this device.

Drawings

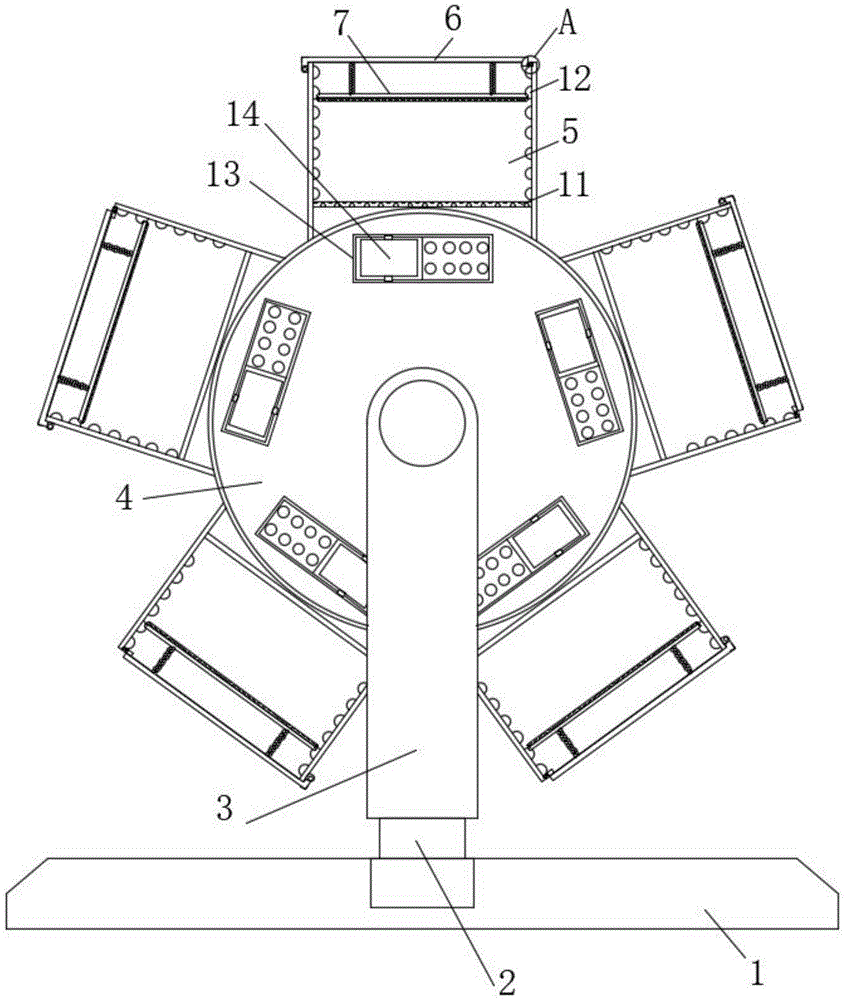

FIG. 1 is a schematic sectional view of the front view of the structure of the present invention;

FIG. 2 is a schematic side view of the structure of the present invention;

fig. 3 is an enlarged schematic view of the structure at a in fig. 1 according to the present invention;

fig. 4 is a schematic front sectional view of the structure of the extruding apparatus of the present invention.

In the figure: 1. a base; 2. a rotating shaft; 3. a support frame; 4. rotating the disc; 5. a storage bin; 6. a sealing cover; 7. an extrusion device; 71. a first spring; 72. a connecting plate; 73. a rubber pad; 8. a loop bar; 9. a second spring; 10. inserting a rod; 11. placing the plate; 12. a raised block; 13. a groove; 14. a sliding plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides an embodiment:

the utility model provides a categorised save set of electronic bill for financial management, including base 1 and second spring 9, the upside of base 1 is connected with axis of rotation 2, and the top of axis of rotation 2 is connected with support frame 3, axis of rotation 2 passes through the bearing and links to each other with base 1, axis of rotation 2 constitutes revolution mechanic with base 1, when the bill of depositing in the storehouse 5 of taking needs, rotatable axis of rotation 2 that links to each other with base 1 drives the synchronous rotation of support frame 3 that links to each other with axis of rotation 2, the user can change support frame 3 to ninety degrees, convenient to use person gets, shorten the user and look for the bill time, strengthen the practicality of this device, the upper end of support frame 3 is connected with rolling disc 4, and the storehouse 5 of keeping is installed to the outside of rolling disc 4, the top of storehouse 5 is connected with sealed lid 6, and the bottom of sealed lid 6 is connected with extrusion device 7, extrusion device 7 includes, Connecting plate 72 and rubber pad 73, the welding of the bottom of first spring 71 has connecting plate 72, and the bottom of connecting plate 72 is glued there is rubber pad 73, and when rubber pad 73 contacted with the bill, upward power was applyed to the connecting plate 72 that links to each other with rubber pad 73, and the first spring 71 that links to each other on the promotion connecting plate 72 upwards contracts, and the bill of constantly extrudeing and placing guarantees to deposit the level and smooth of bill, reduces the production of the disordered circumstances of bill.

The right side of the sealing cover 6 is fixedly connected with a loop bar 8, the loop bar 8 is connected with an inserted bar 10 through a second spring 9, the sealing cover 6 is hinged with the storage bin 5, the storage bin 5 and the sealing cover 6 form a rotating structure, one end of the second spring 9 is connected with the left side of the loop bar 8, the other end of the loop bar 8 is connected with the inserted bar 10, the loop bar 8 and the inserted bar 10 form a sliding structure through the second spring 9, when a user needs to store bills, the user firstly pulls the inserted bar 10 leftwards, the second spring 9 connected with the inserted bar 10 is pressed by force, the elasticity is enhanced to be close to the left side of the loop bar 8, the inserted bar 10 is pulled out from a slot hole formed in the upper side of the storage bin 5, then the user can pull the sealing cover 6 upwards, the sealing cover 6 hinged with the storage bin 5 is opened by force, the sorted bills can be placed in each storage bin 5 for classified storage work, install with the bottom inner wall of preserving storehouse 5 and place board 11, preserve 5 inner walls of storehouse and evenly be provided with protruding piece 12, set up fluted 13 on the rolling disc 4, and insert on the fluted 13 and be equipped with sliding plate 14, the inside spout of having seted up of recess 13, the slider is installed to both sides about sliding plate 14, recess 13 passes through spout and slider and sliding plate 14 constitution sliding structure, when the user need carry out ventilation work to the bill of depositing in preserving storehouse 5, sliding plate 14 can slide left, the slider of installation slides in the spout of seting up on recess 13 on sliding plate 14, the hole of seting up of recess 13 right side exposes afterwards, owing to place evenly set up the hole on board 11, the bill and the air contact of placing on board 11 this moment, the work of taking a breath, further strengthen the practicality of this device.

The working principle is as follows: when a user needs to store bills, firstly, the user pulls the inserting rod 10 leftwards, the second spring 9 connected with the inserting rod 10 is pressed by force, the elasticity is enhanced to be close to the left side of the loop bar 8, at the moment, the inserting rod 10 is pulled out from a groove hole formed in the upper side of the storage bin 5, then, the user can pull the sealing cover 6 upwards, the sealing cover 6 hinged with the storage bin 5 is opened by force, at the moment, classified bills can be placed in each storage bin 5, the bills are placed on the placing plate 11 arranged on the storage bin 5 and are limited by the raised blocks 12, the friction force between the bills is reduced, adjacent bills are easily separated by the raised blocks 12, at the moment, the user can close the sealing cover 6, at the moment, the extruding device 7 arranged on the lower side of the sealing cover 6 is contacted with the bills, when the rubber pad 73 is contacted with the bills, an upward force is applied to the connecting plate 72 connected with the rubber pad 73, and the first spring 71 connected with the connecting plate 72 is pushed, the bill of placing is constantly extrudeed, and rubber pad 73 is the rubber material, and the frictional force between increase and the bill guarantees to deposit the level and smooth of bill, reduces the production of the disordered circumstances of bill.

When the bills stored in the storage bin 5 need to be taken, the rotating shaft 2 connected with the base 1 can be rotated to drive the supporting frame 3 connected with the rotating shaft 2 to synchronously rotate, a user can rotate the supporting frame 3 to ninety degrees, the taking is convenient for the user, meanwhile, a user can apply force to rotate the rotating disc 4 hinged with the support frame 3 to a required position through the notepaper arranged on each sealing cover 6, the time for the user to search bills is shortened, the working efficiency is improved, when the user needs to ventilate the bills stored in the storage bin 5, the sliding plate 14 can slide leftwards, the sliding block arranged on the sliding plate 14 slides in the sliding groove arranged on the groove 13, then the hole arranged on the right side of the groove 13 is exposed, because the holes are uniformly formed in the placing plate 11, the bills placed on the placing plate 11 are in contact with the air, and the ventilation work is carried out.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a categorised save set of electronic bill for financial management, includes base (1) and second spring (9), its characterized in that: the upside of base (1) is connected with axis of rotation (2), and the top of axis of rotation (2) is connected with support frame (3), the upper end of support frame (3) is connected with rolling disc (4), and the outside of rolling disc (4) installs and keep in storehouse (5), the top of keeping in storehouse (5) is connected with sealed lid (6), and the bottom of sealed lid (6) is connected with extrusion device (7), the right side fixedly connected with loop bar (8) of sealed lid (6), and loop bar (8) are connected with inserted bar (10) through second spring (9), the bottom inner wall of keeping in storehouse (5) is installed and is placed board (11), it evenly is provided with protruding piece (12) to keep in storehouse (5) inner wall, set up fluted (13) on rolling disc (4), and insert on recess (13) and be equipped with sliding plate (14).

2. The electronic bill classifying and storing device for financial management according to claim 1, wherein: the rotating shaft (2) is connected with the base (1) through a bearing, and the rotating shaft (2) and the base (1) form a rotating structure.

3. The electronic bill classifying and storing device for financial management according to claim 1, wherein: the sealing cover (6) is hinged with the storage bin (5), and the storage bin (5) and the sealing cover (6) form a rotating structure.

4. The electronic bill classifying and storing device for financial management according to claim 1, wherein: the extrusion device (7) comprises a first spring (71), a connecting plate (72) and a rubber pad (73), wherein the connecting plate (72) is welded at the bottom end of the first spring (71), and the rubber pad (73) is glued at the bottom end of the connecting plate (72).

5. The electronic bill classifying and storing device for financial management according to claim 1, wherein: one end of the second spring (9) is connected with the left side of the sleeve rod (8), the other end of the sleeve rod (8) is connected with the inserted bar (10), and the sleeve rod (8) forms a sliding structure with the inserted bar (10) through the second spring (9).

6. The electronic bill classifying and storing device for financial management according to claim 1, wherein: the sliding groove is formed in the groove (13), sliding blocks are mounted on the upper side and the lower side of the sliding plate (14), and the groove (13) and the sliding plate (14) form a sliding structure through the sliding groove and the sliding blocks.
